FAIL-SAFE CHART
HINT:
The pre-collision system fail-safe function and details are indicated in the table.

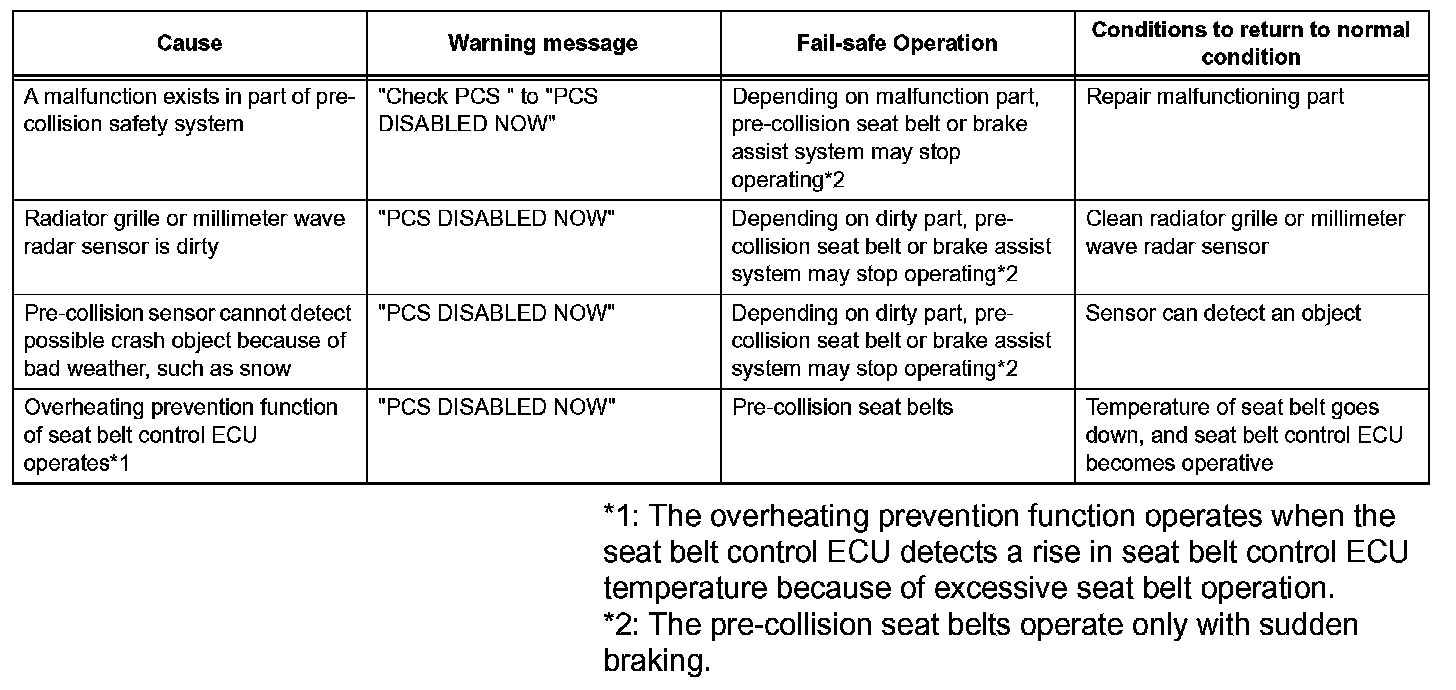

Fail-Safe Chart:
