Display Signal Circuit Between Multi-Display and Television Camera Assembly

Display Signal Circuit between Multi-display and Television Camera Assembly

DESCRIPTION

This is the display signal circuit of the television camera.

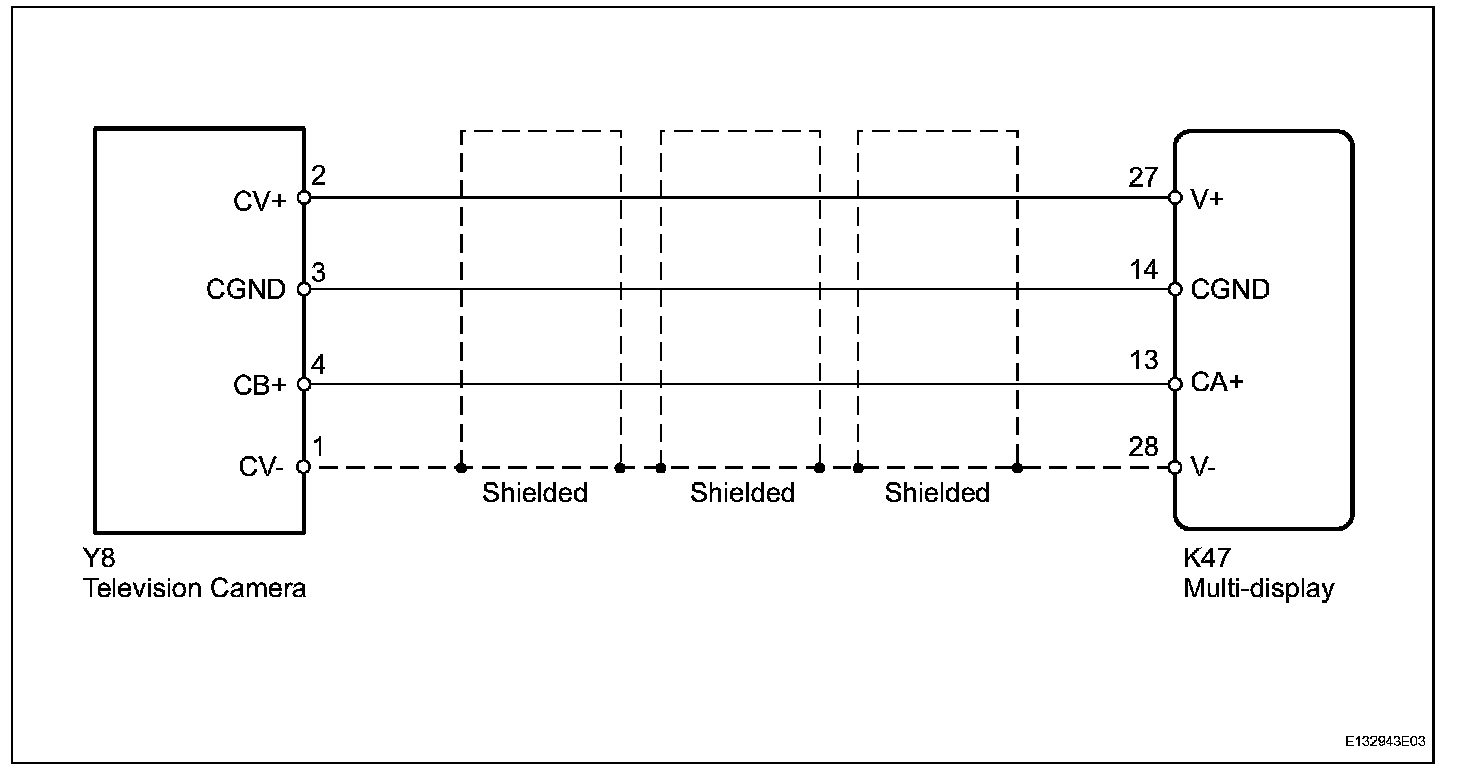

Wiring Diagram:





INSPECTION PROCEDURE

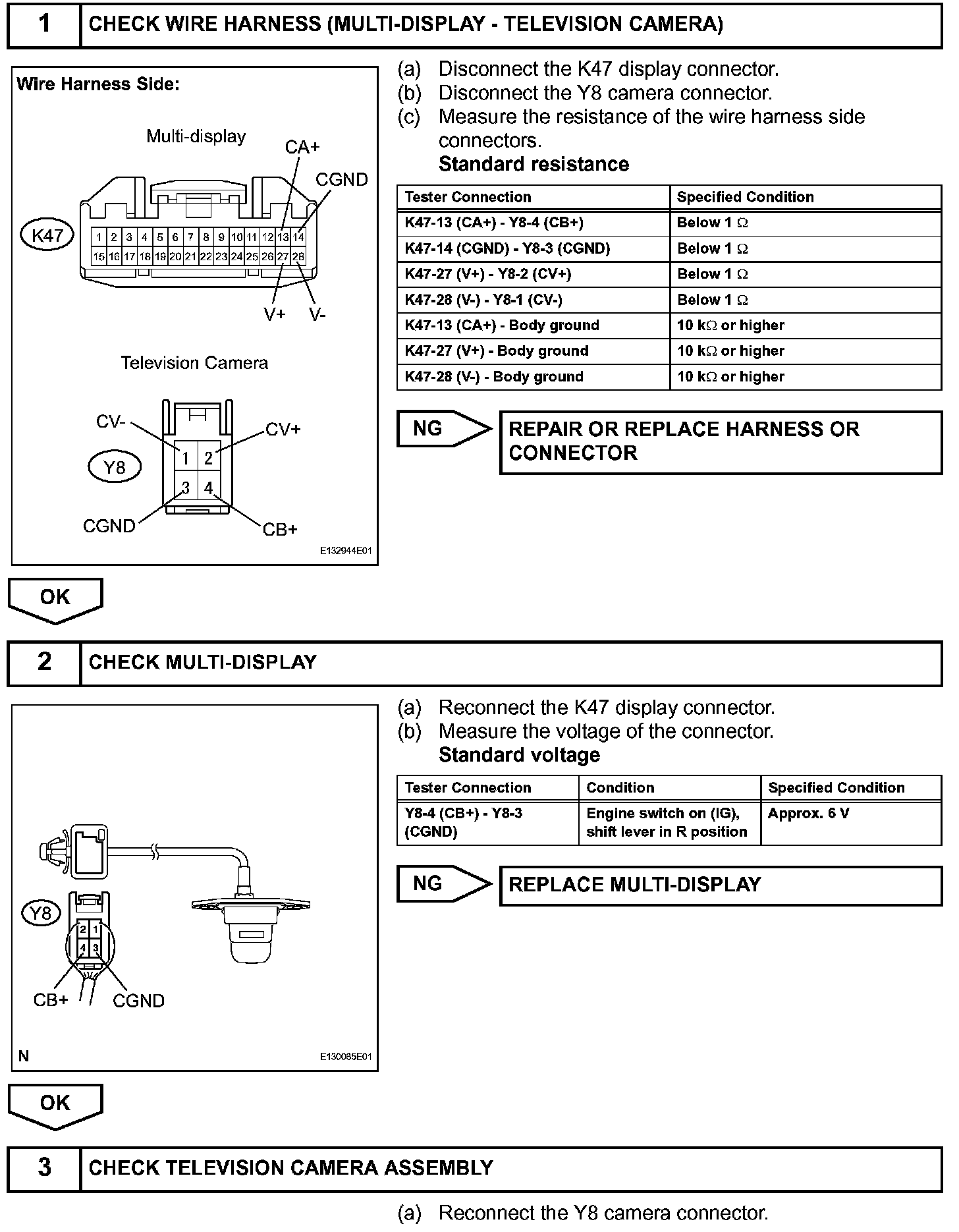

Step 1-3:

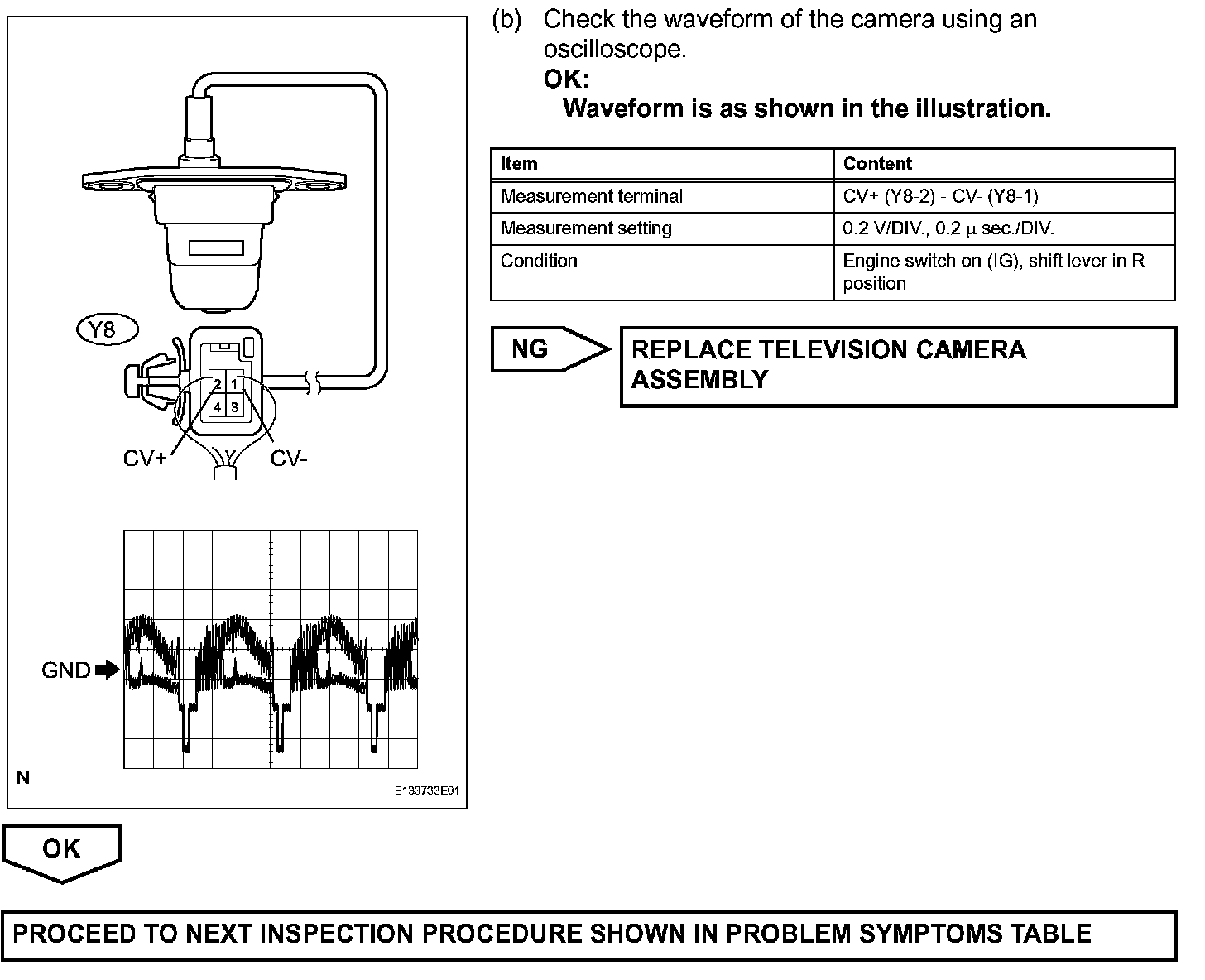

Step 3 (Continued):
