No. 1 Clearance Warning Buzzer Circuit
No. 1 Clearance Warning Buzzer Circuit
No. 1 Clearance Warning Buzzer Circuit

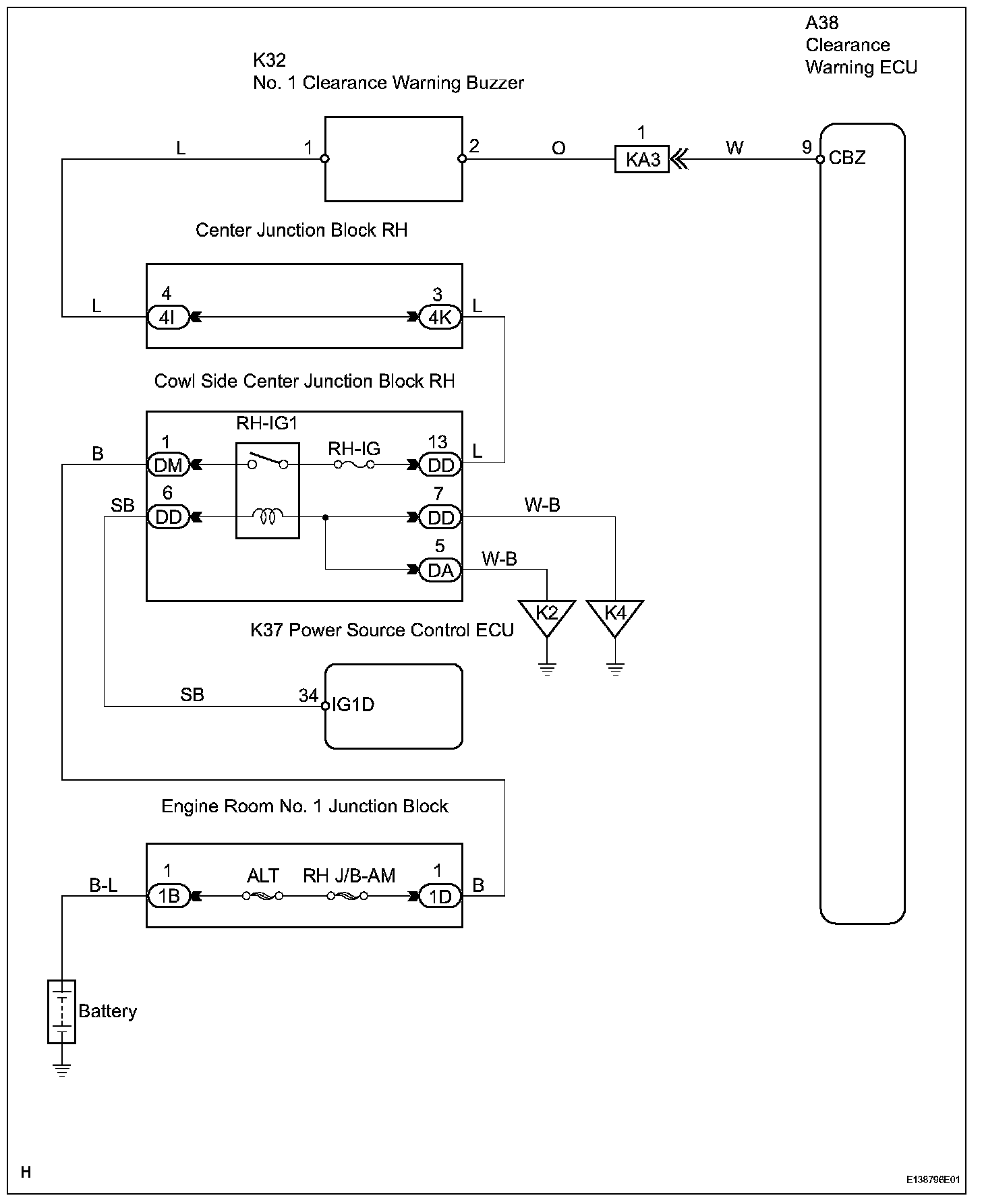

Wiring Diagram:
INSPECTION PROCEDURE

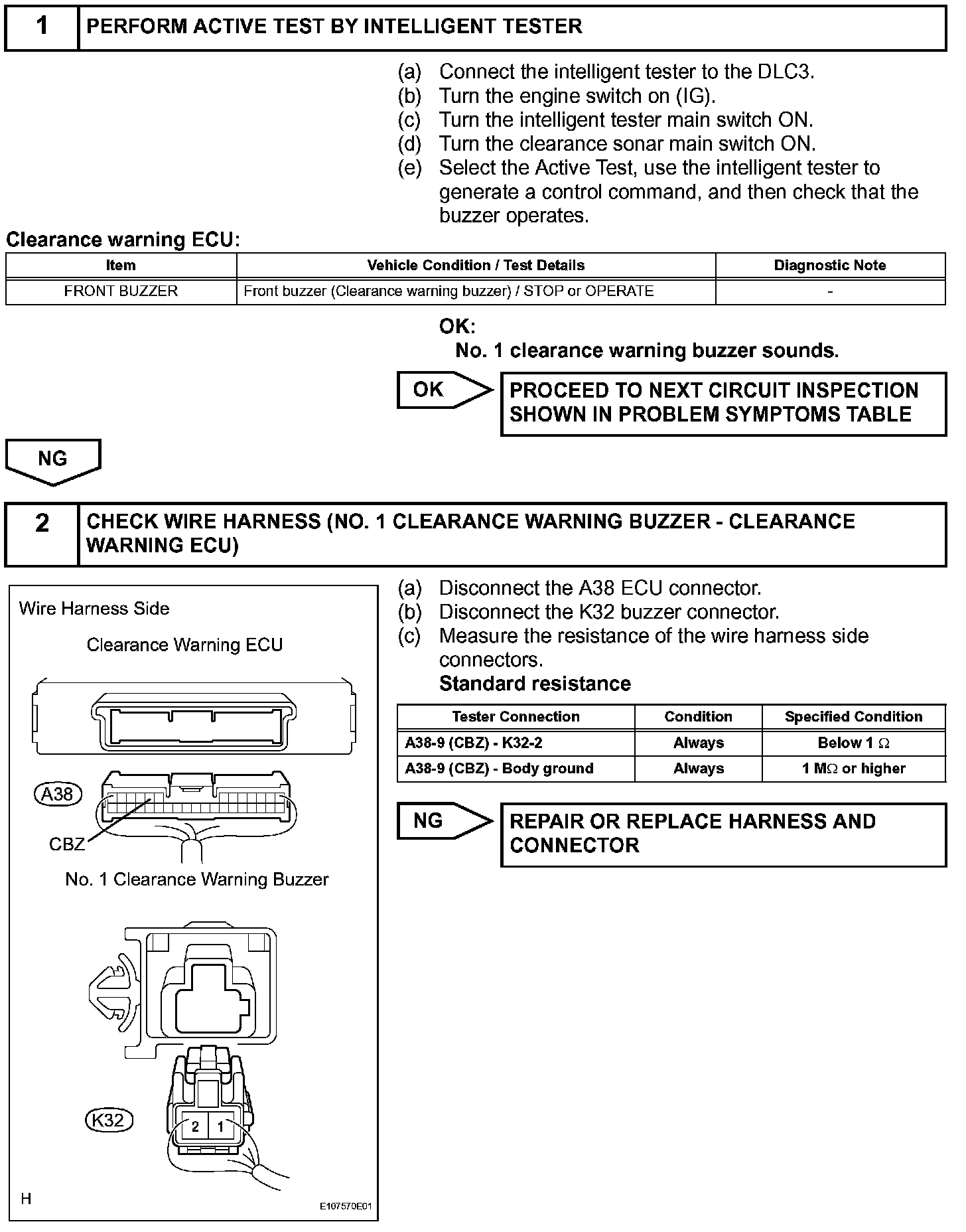

Step 1-2:

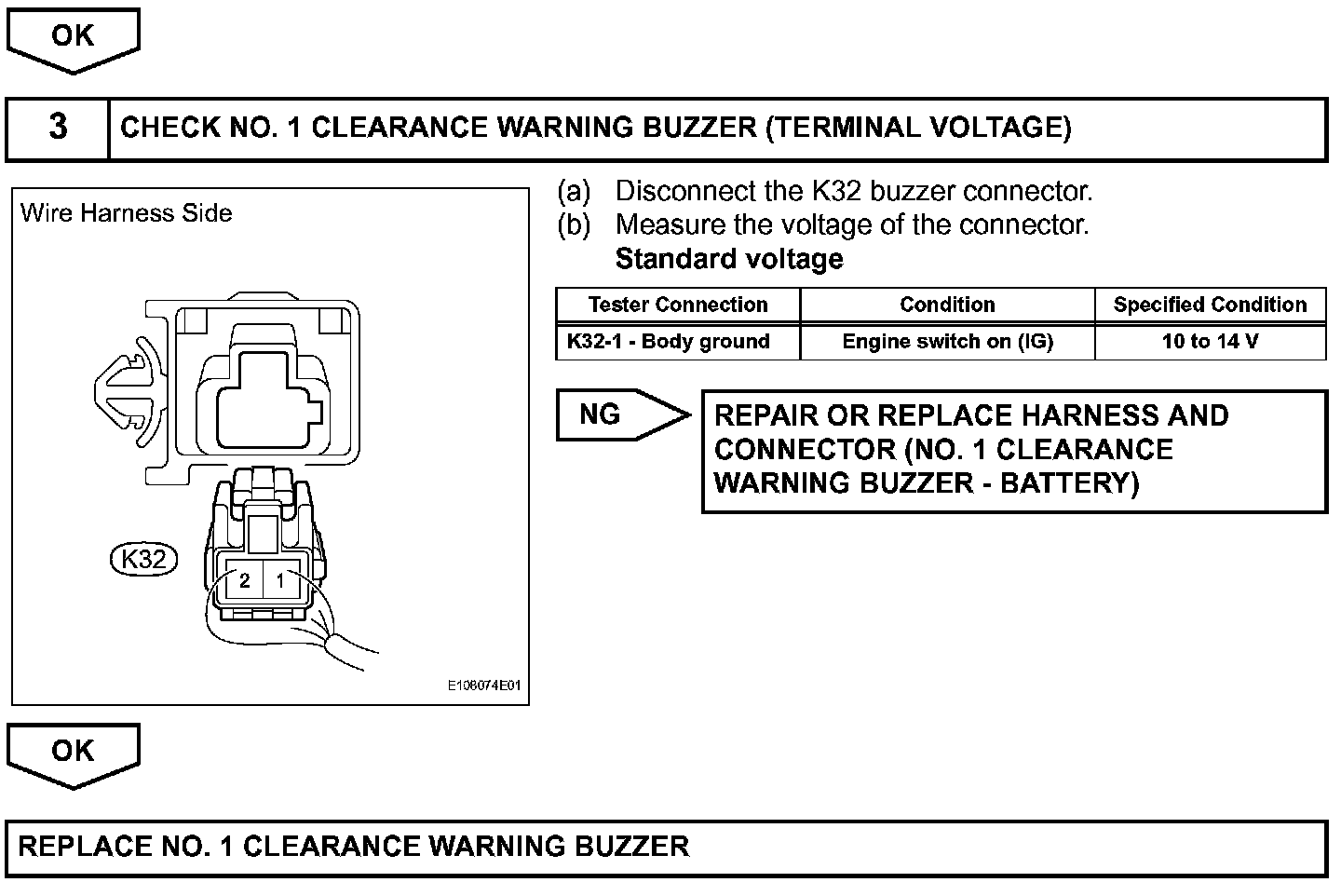

Step 2 (Continued)-3:
