Theft Deterrent System

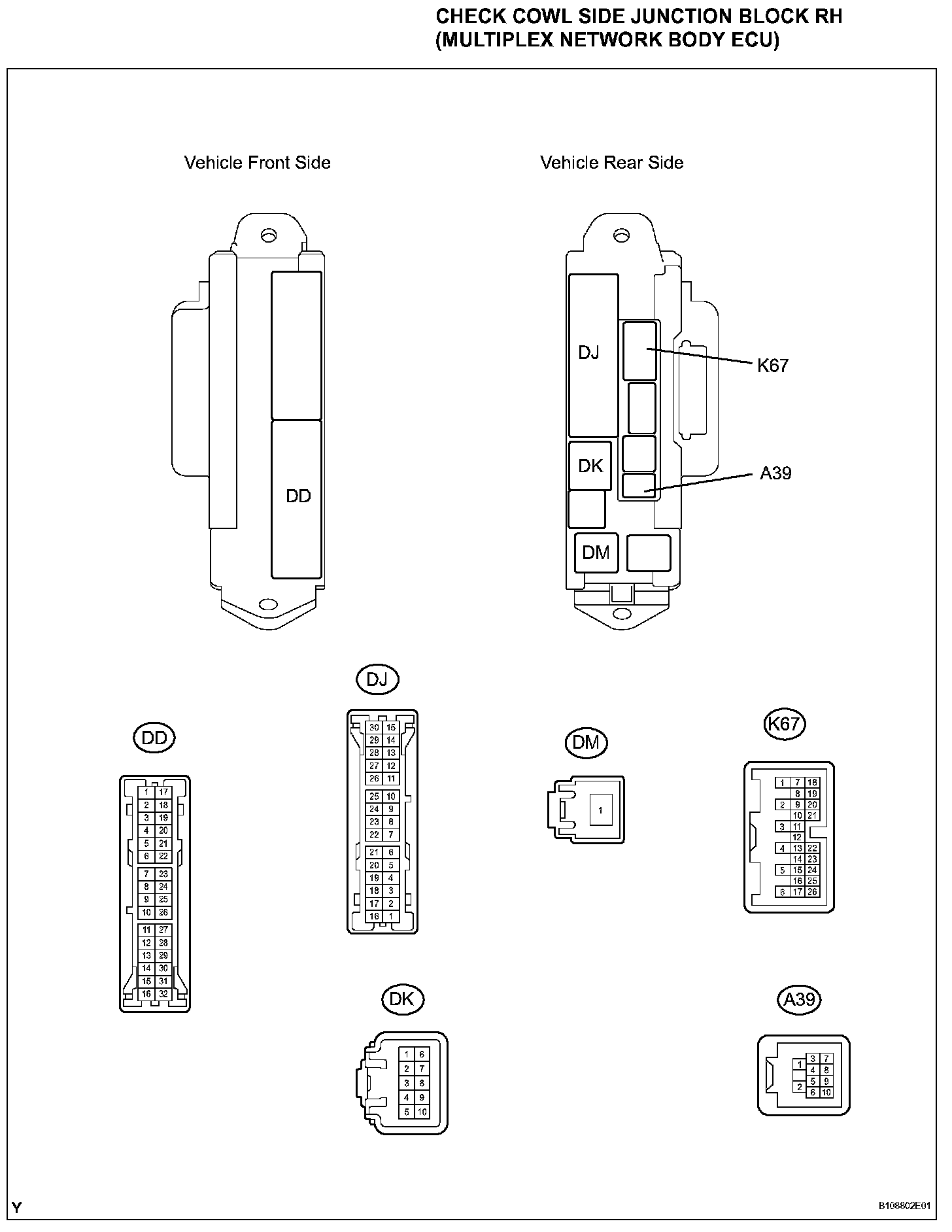

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block RH (Multiplex Network Body ECU) (Part 1):

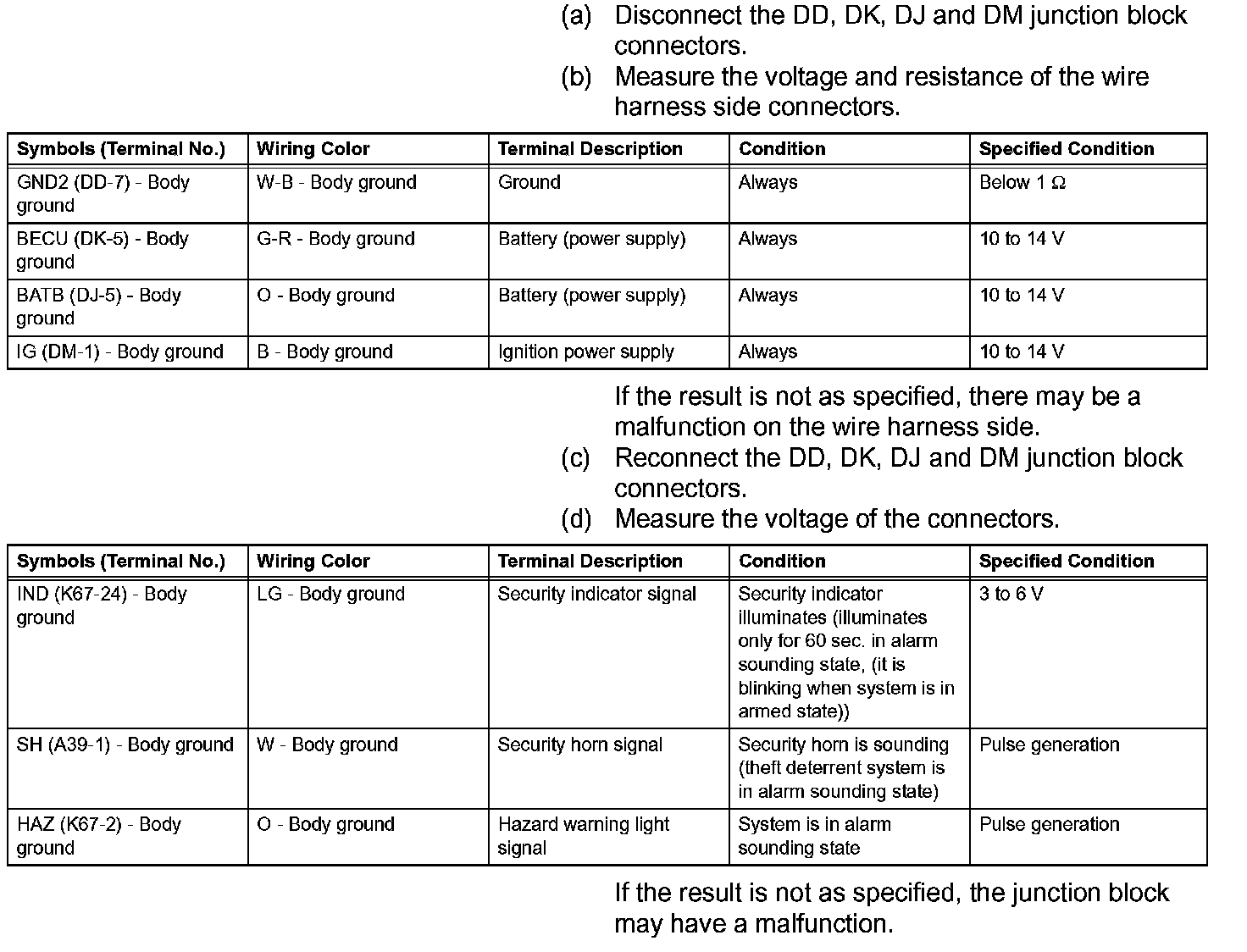

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block RH (Multiplex Network Body ECU) (Part 2):

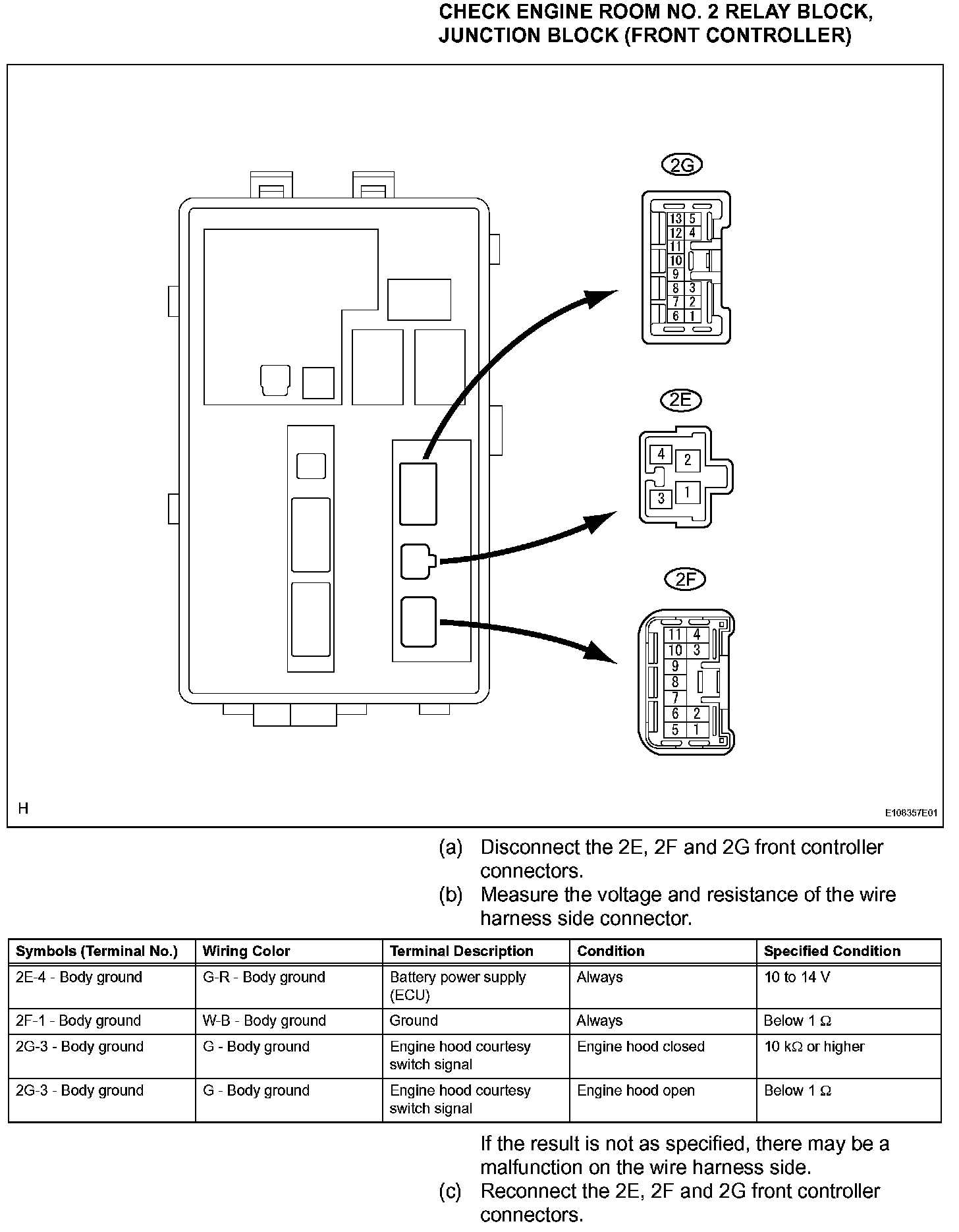

Terminals Of Control Module/Pinouts - Check Engine Room No.2 Relay Block, Junction Block (Front Controller) (Part 1):

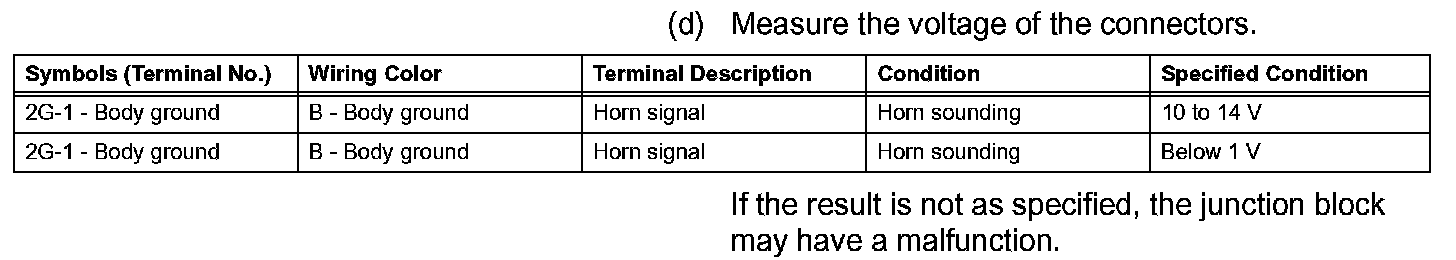

Terminals Of Control Module/Pinouts - Check Engine Room No.2 Relay Block, Junction Block (Front Controller) (Part 2):

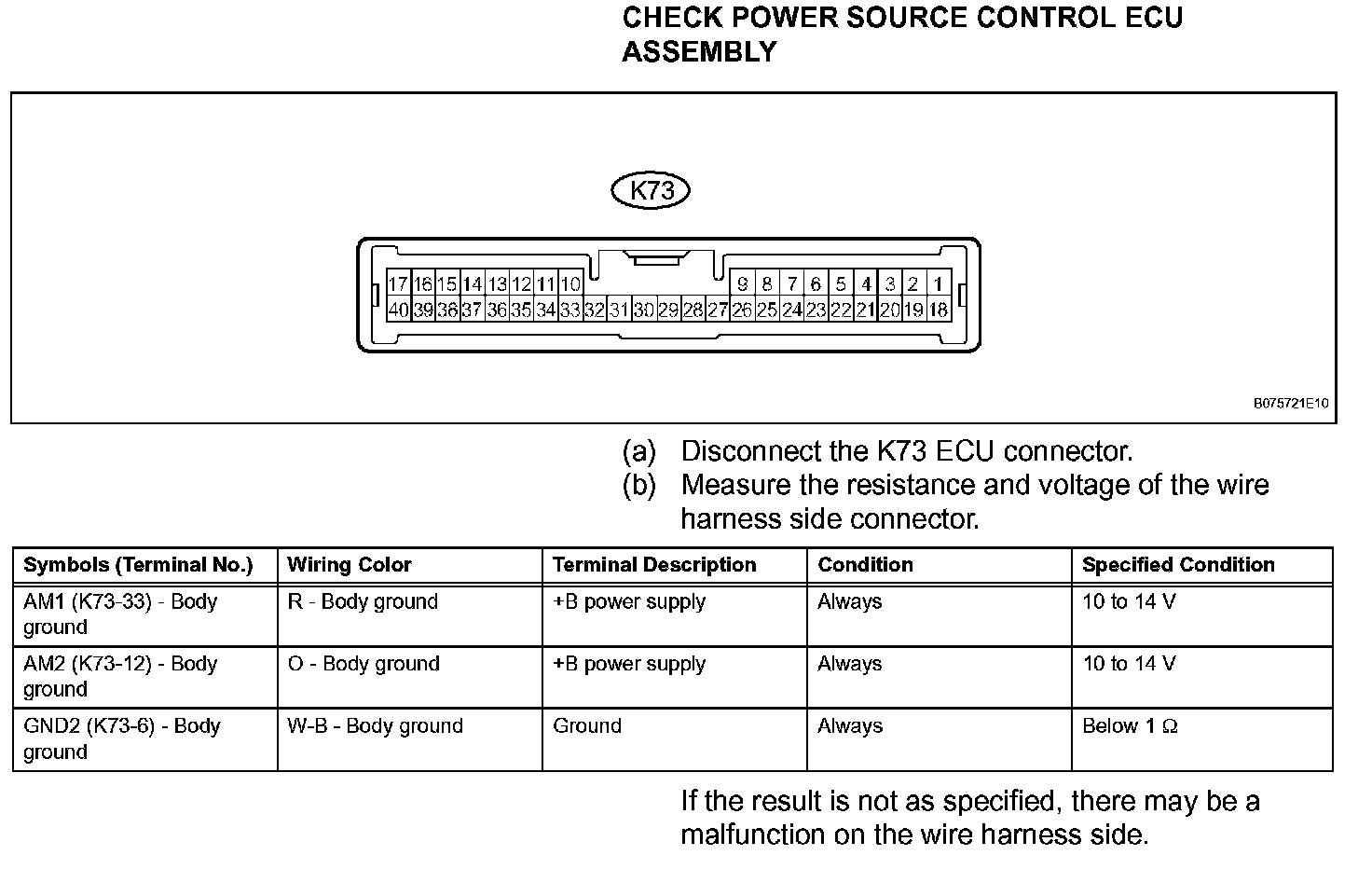

Terminals Of Control Module/Pinouts - Check Power Source Control ECU Assembly:
