IG Power Source Circuit
IG Power Source CircuitDESCRIPTION
When the engine switch is turned on (IG), positive (+) battery voltage is applied to the cowl side junction block RH (multiplex network body ECU).
Wiring Diagram:
INSPECTION PROCEDURE

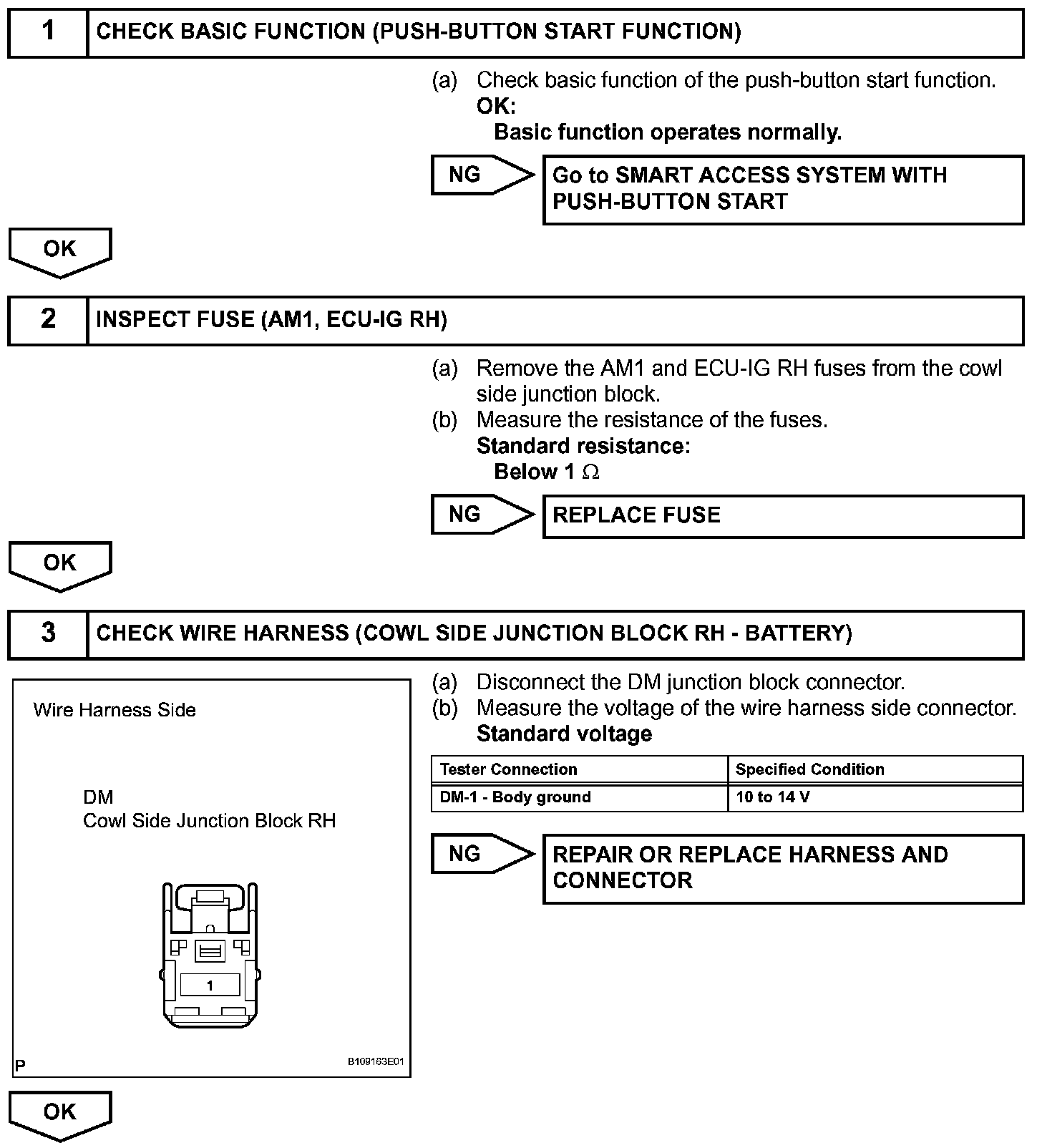

Step 1-3:

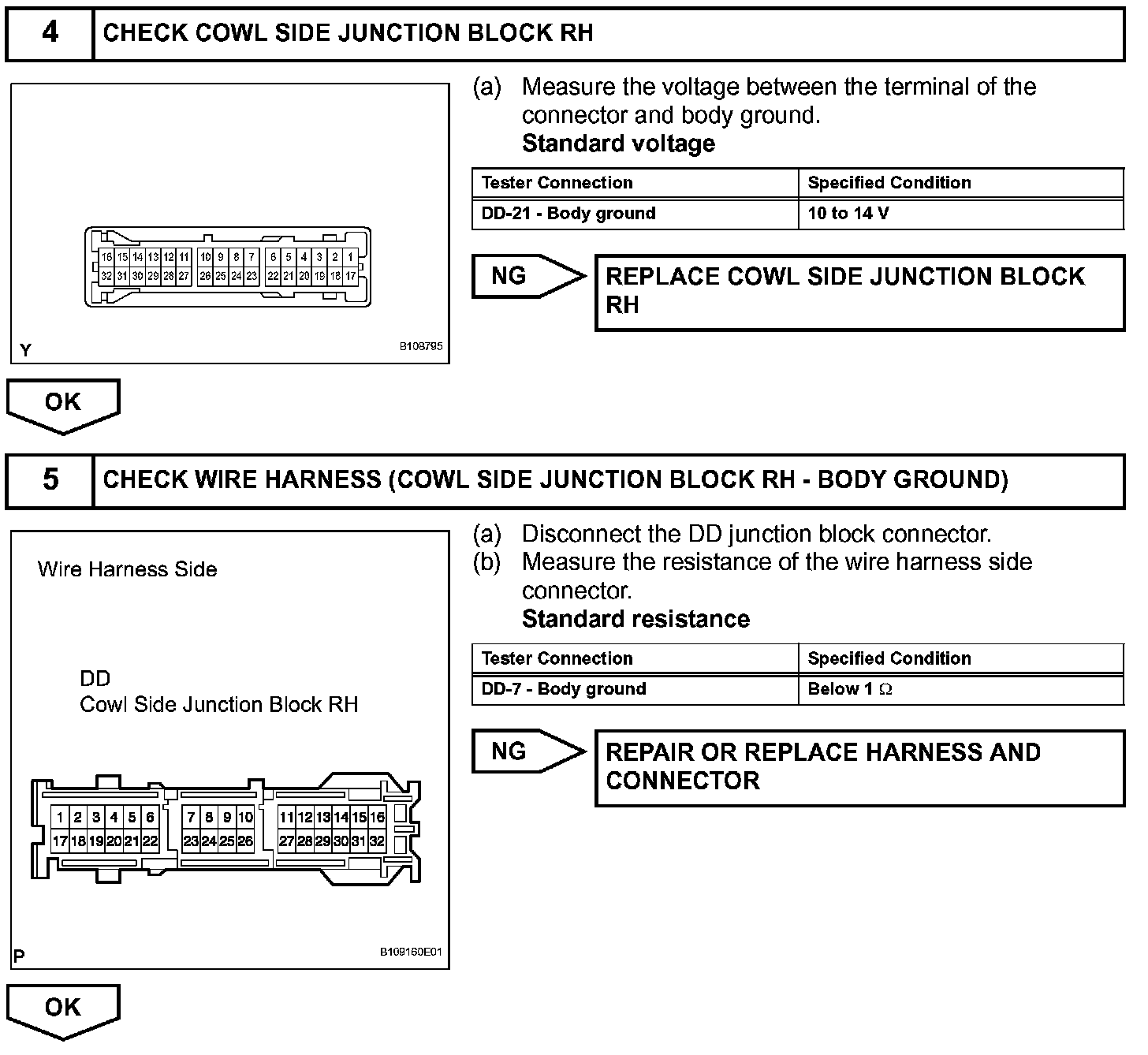

Step 4-5:

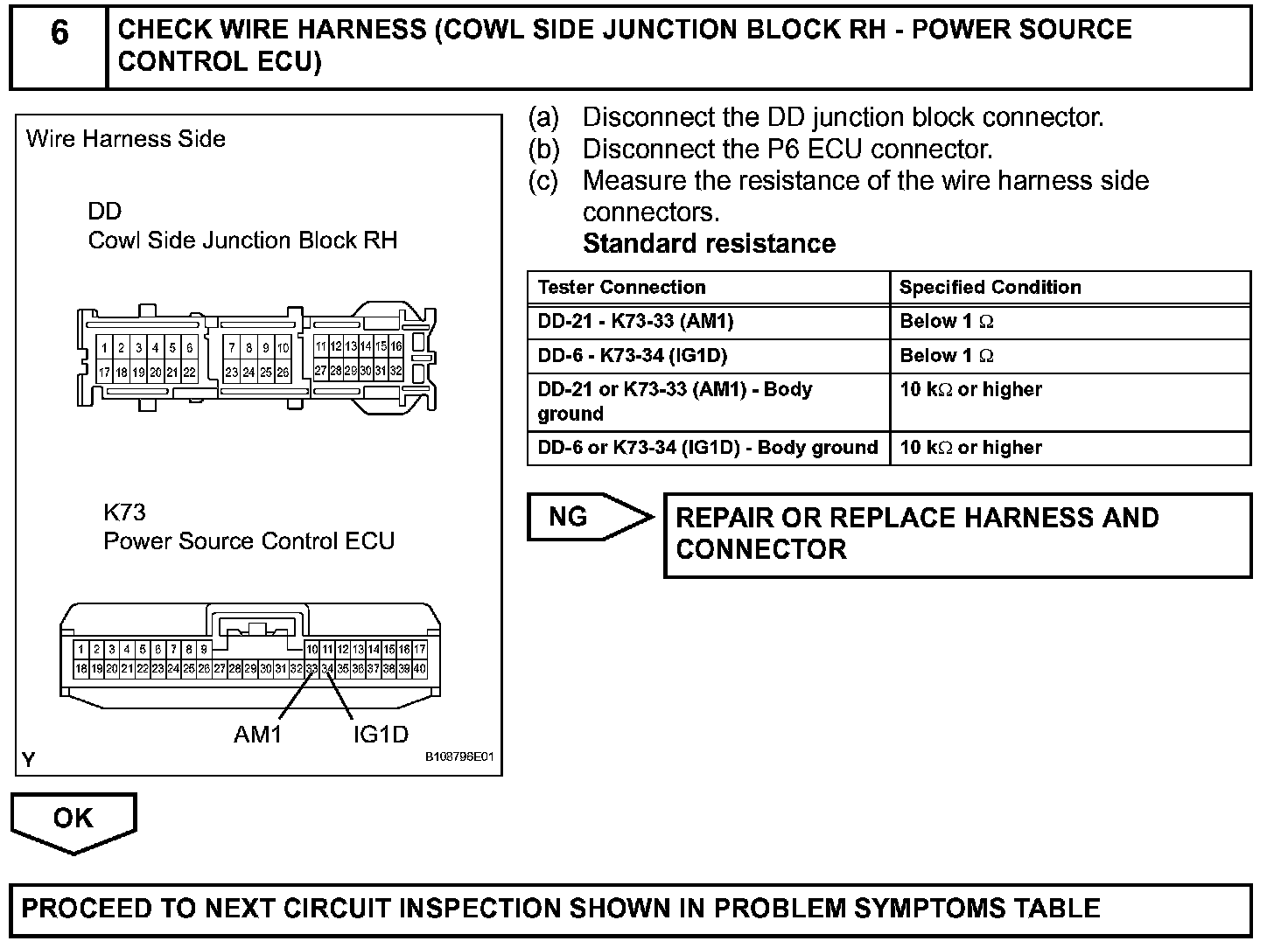

Step 6:
