Certification ECU Power Source Circuit

Certification ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the certification ECU.

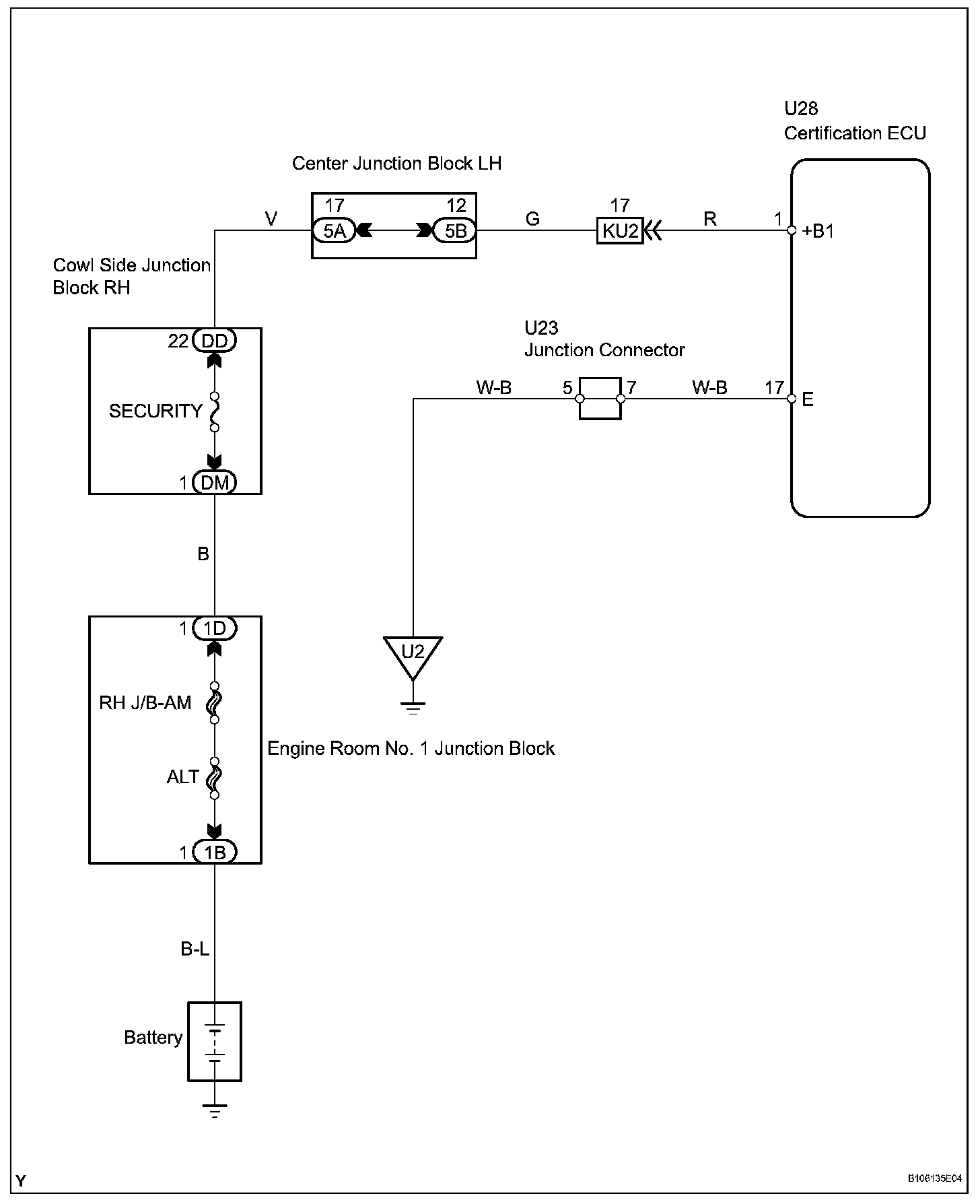

Wiring Diagram:






Step 1-2:

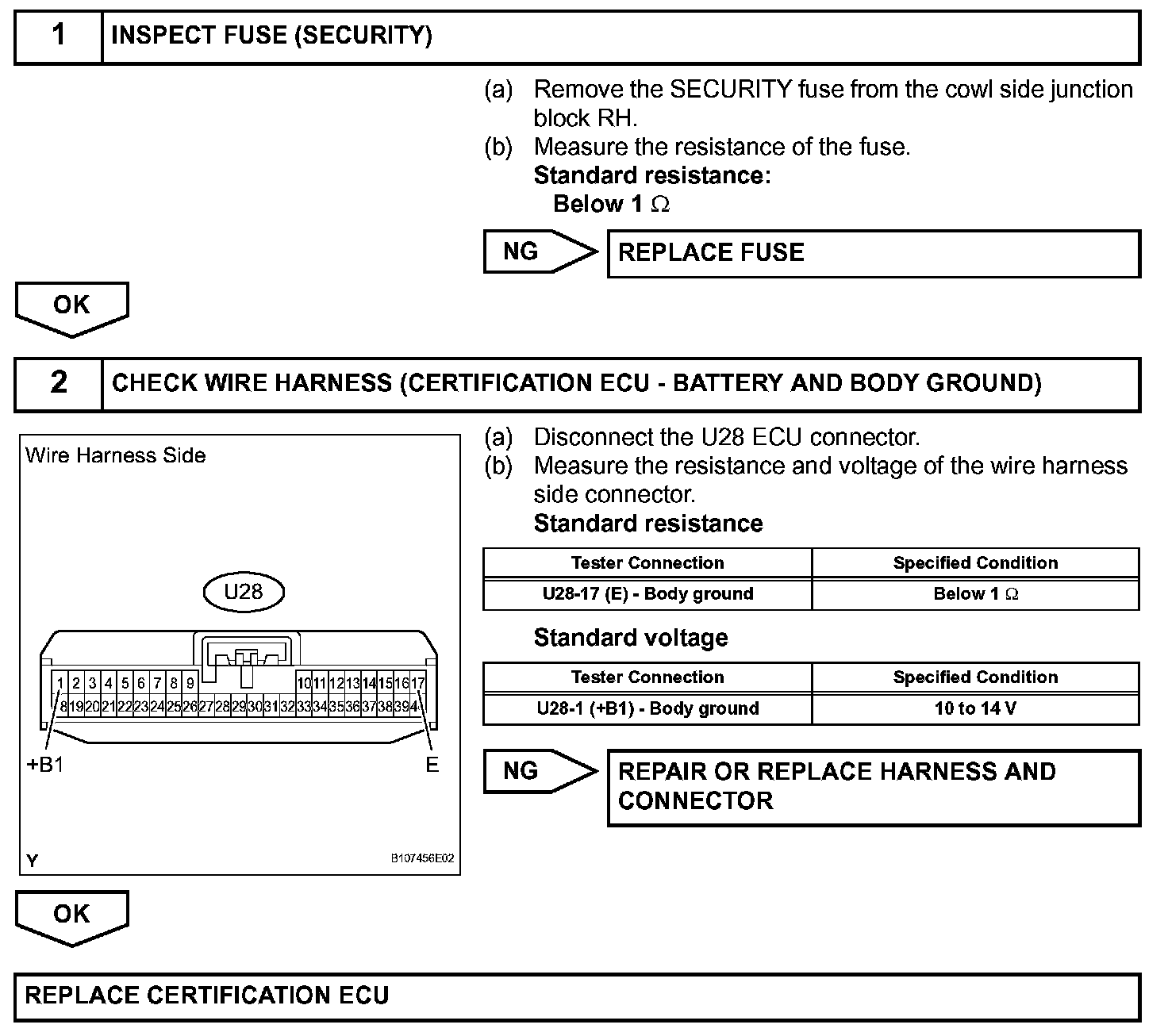

INSPECTION PROCEDURE
