Smart Access System With Push-Button Start

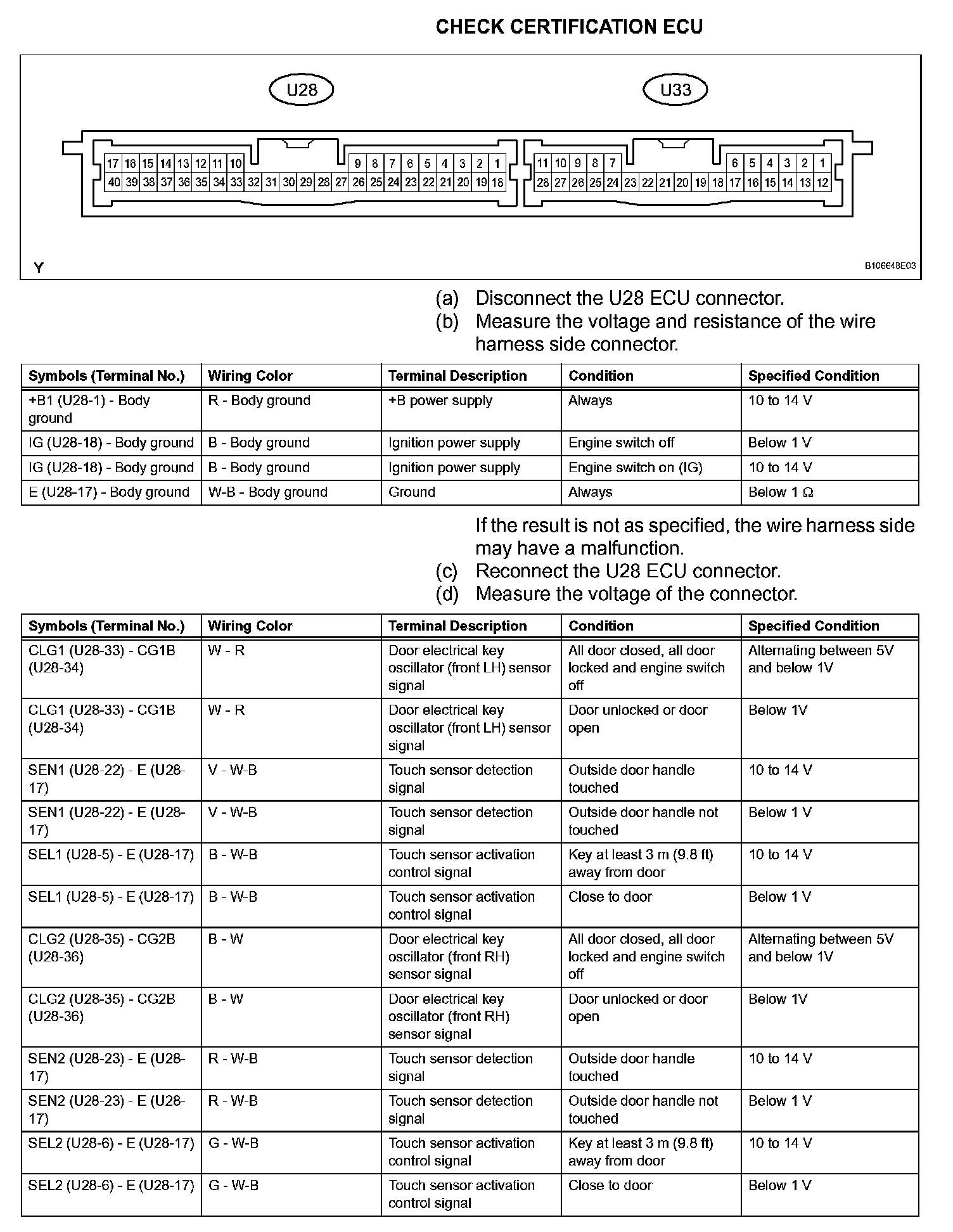

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 1):

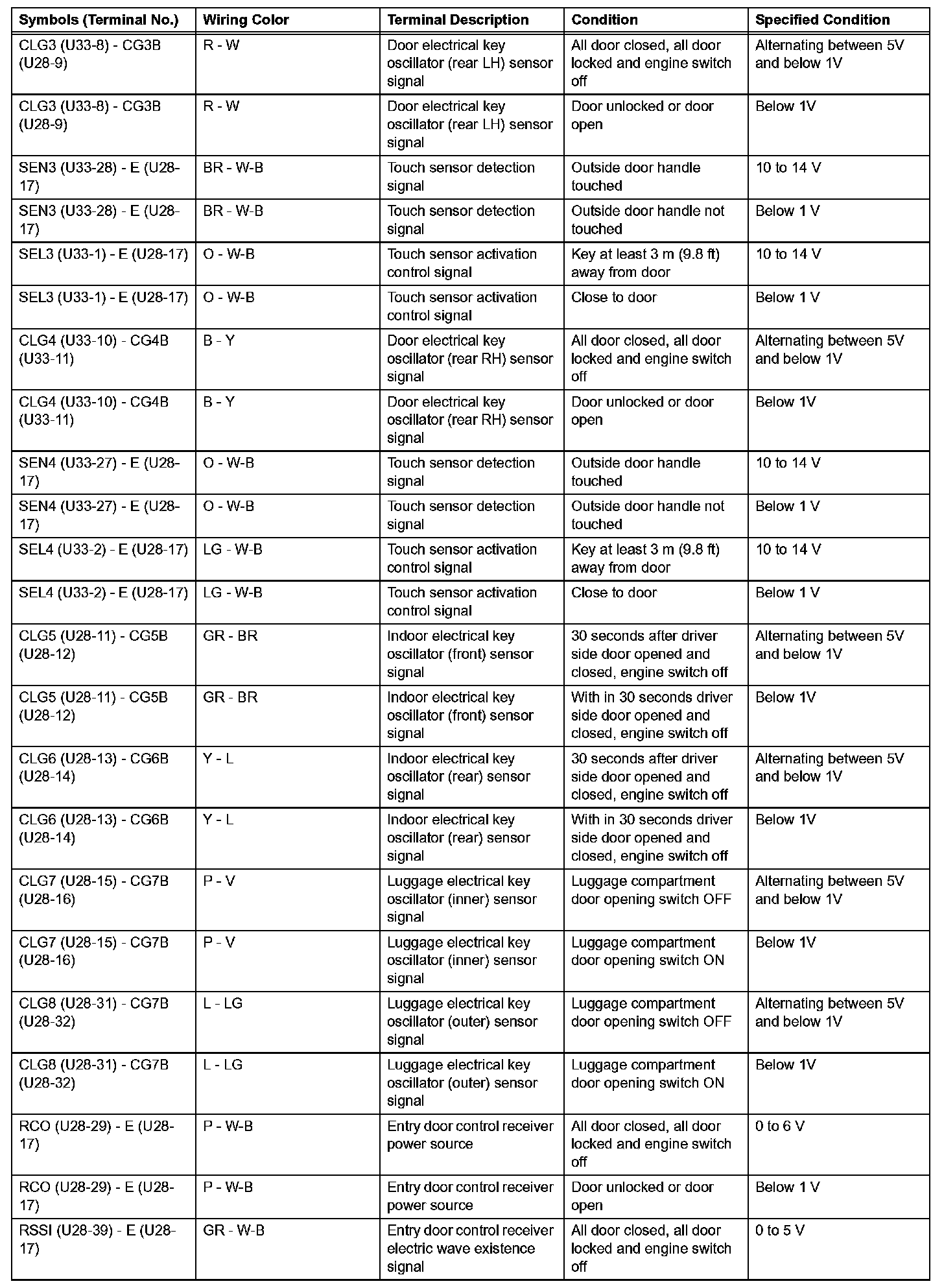

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 2):

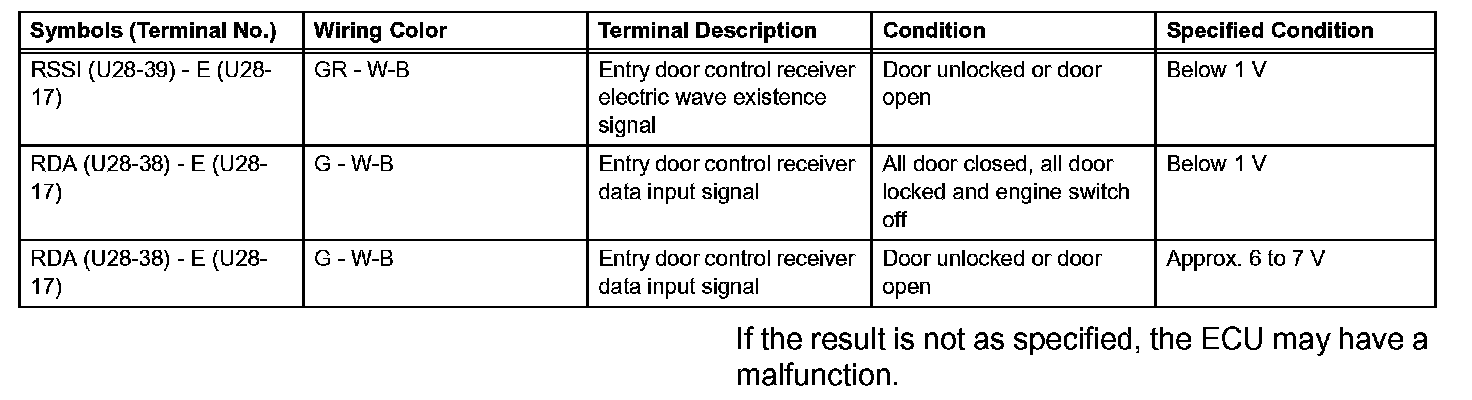

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 3):

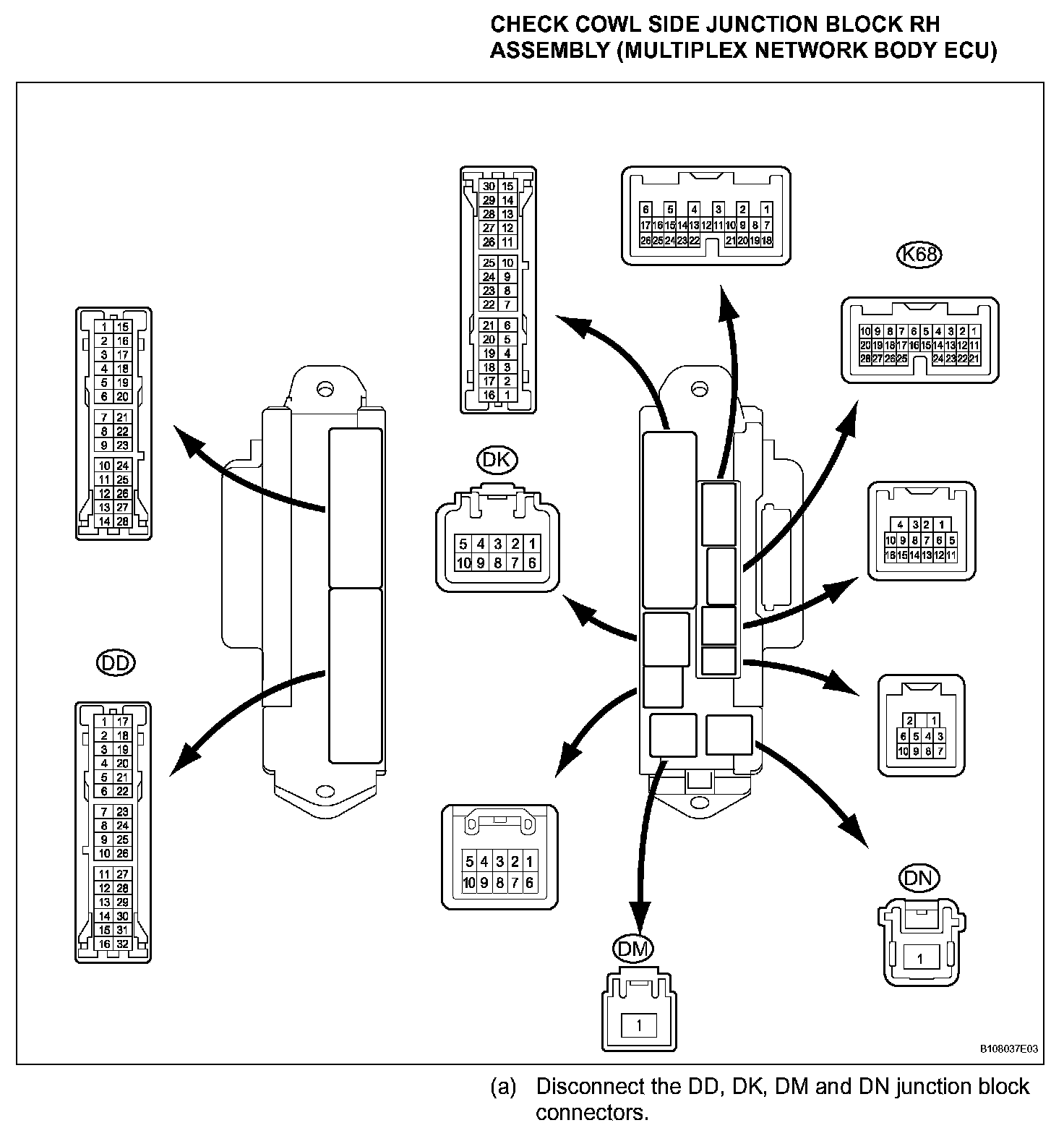

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block RH Assembly(Multiplex Network Body ECU) (Part 1):

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block RH Assembly (Multiplex Network Body ECU) (Part 2):

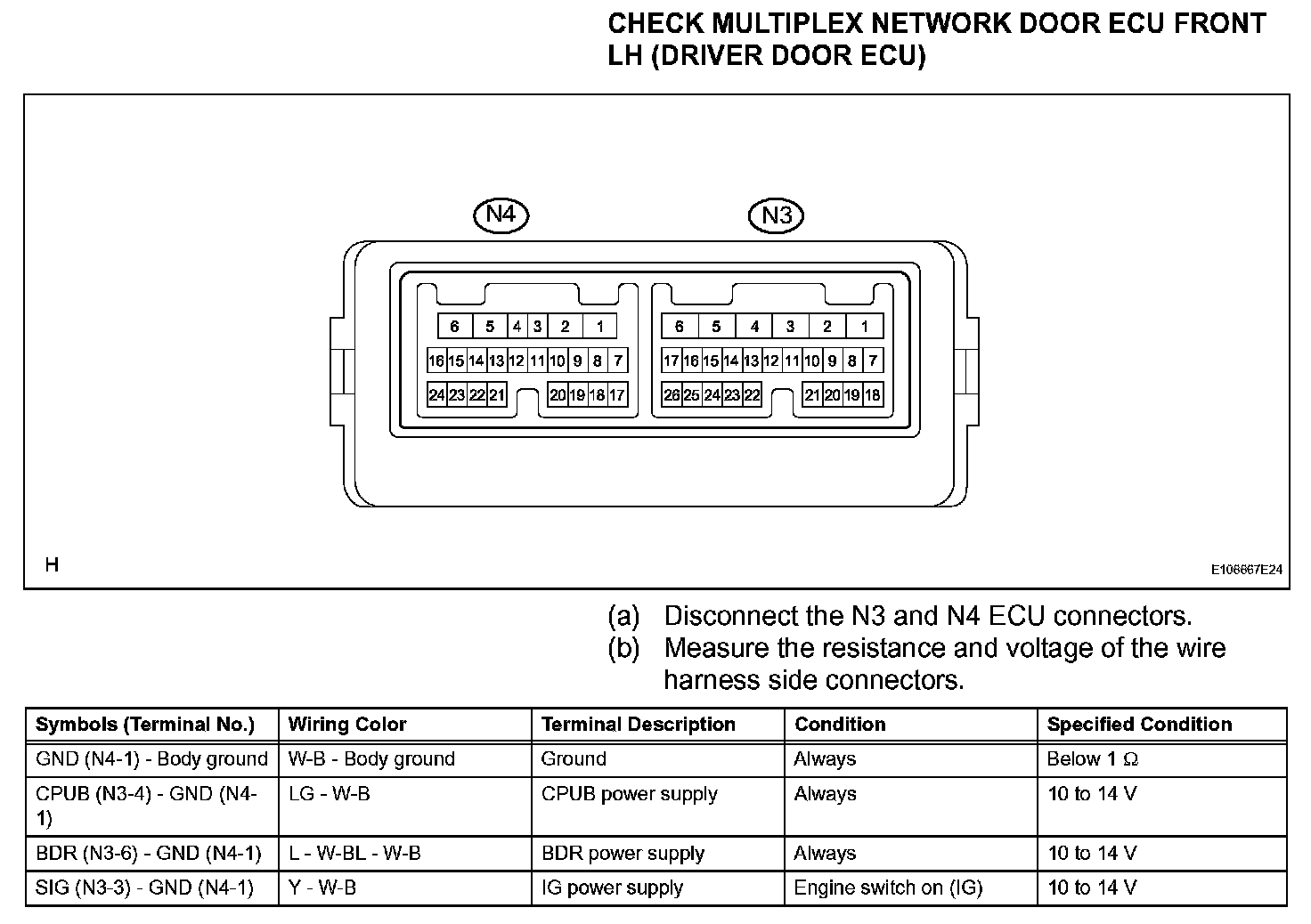

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front LH(Driver Door ECU) (Part 1):

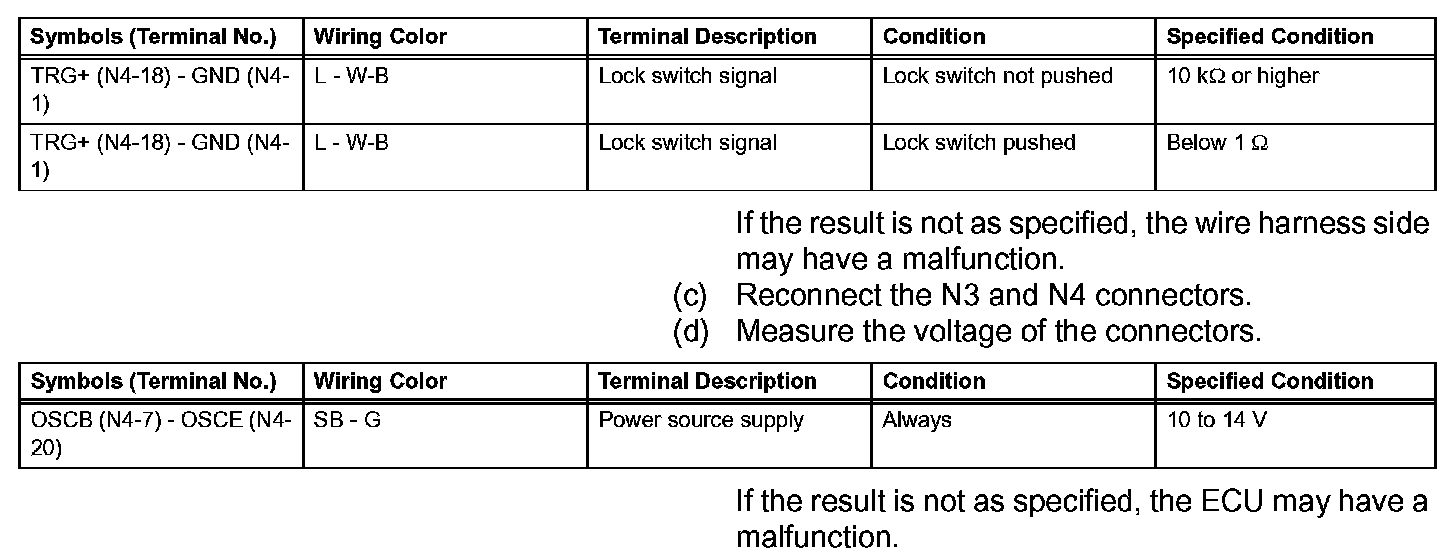

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front LH(Driver Door ECU) (Part 2):

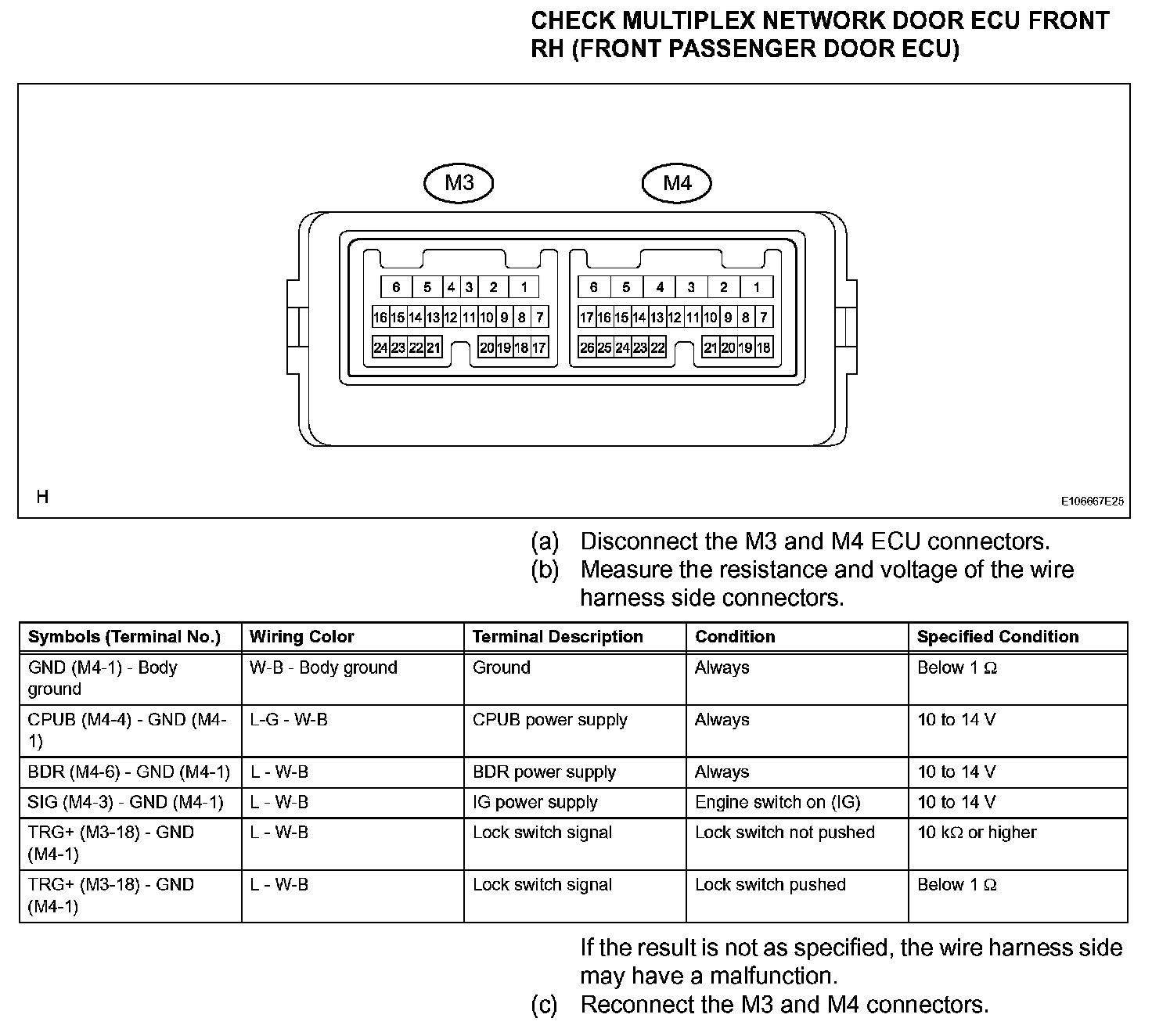

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front RH (Front Passenger Door ECU) (Part 1):

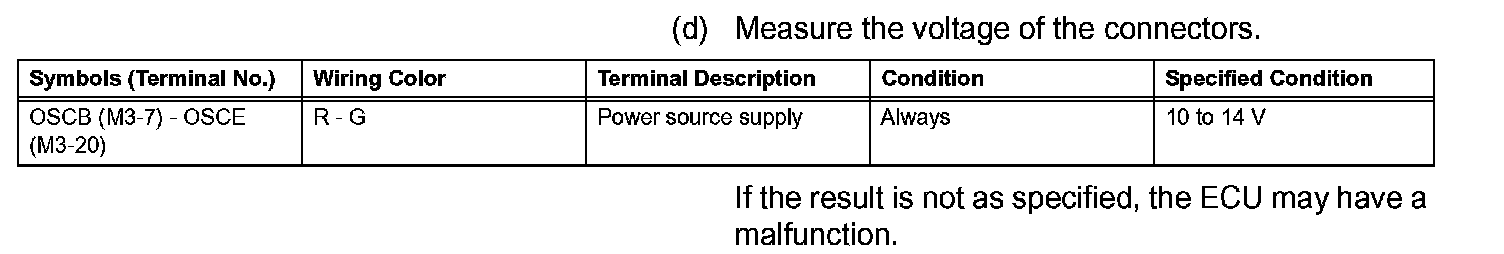

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front RH (Front Passenger Door ECU) (Part 2):

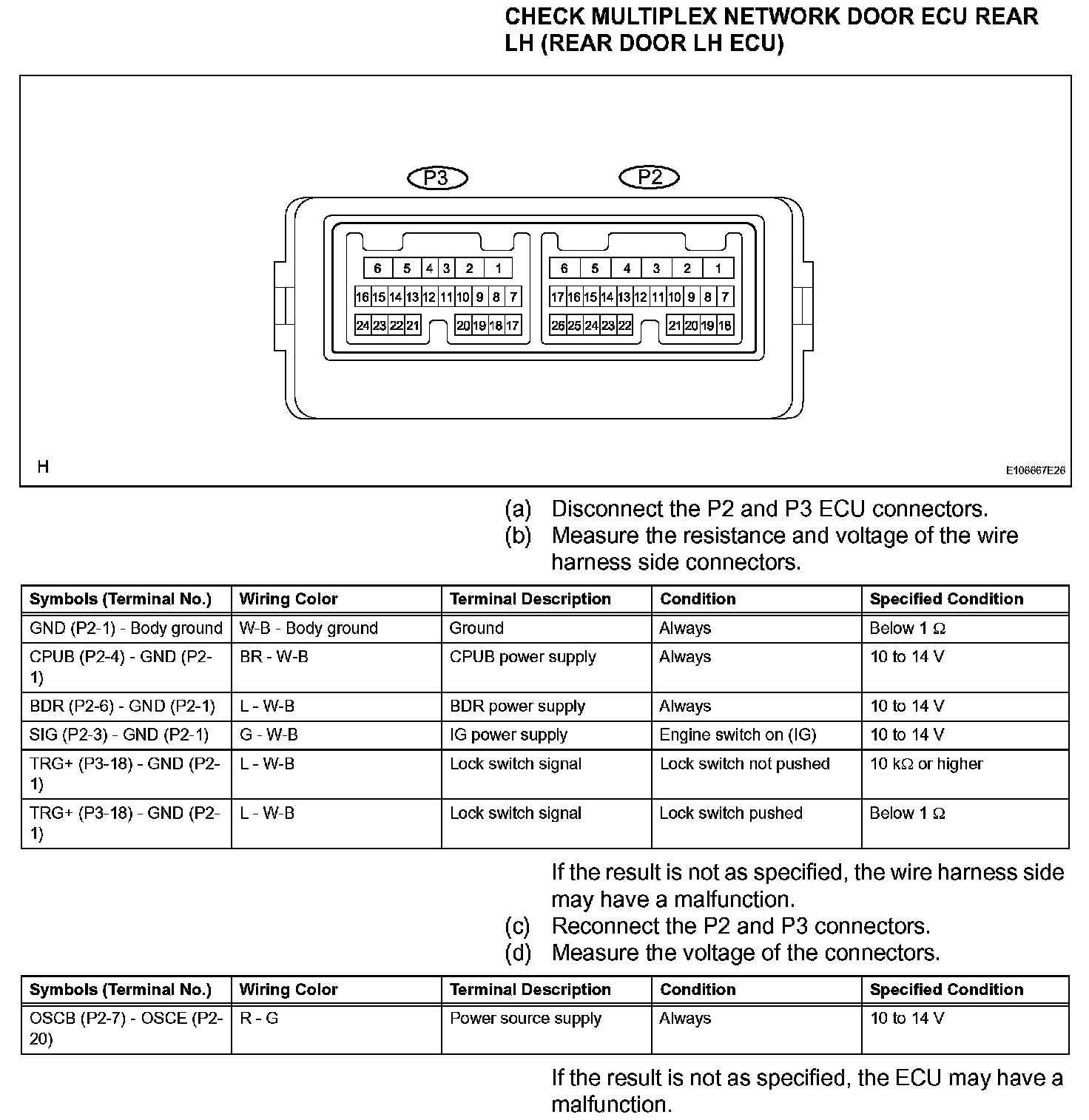

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Rear LH(Rear Door LH ECU):

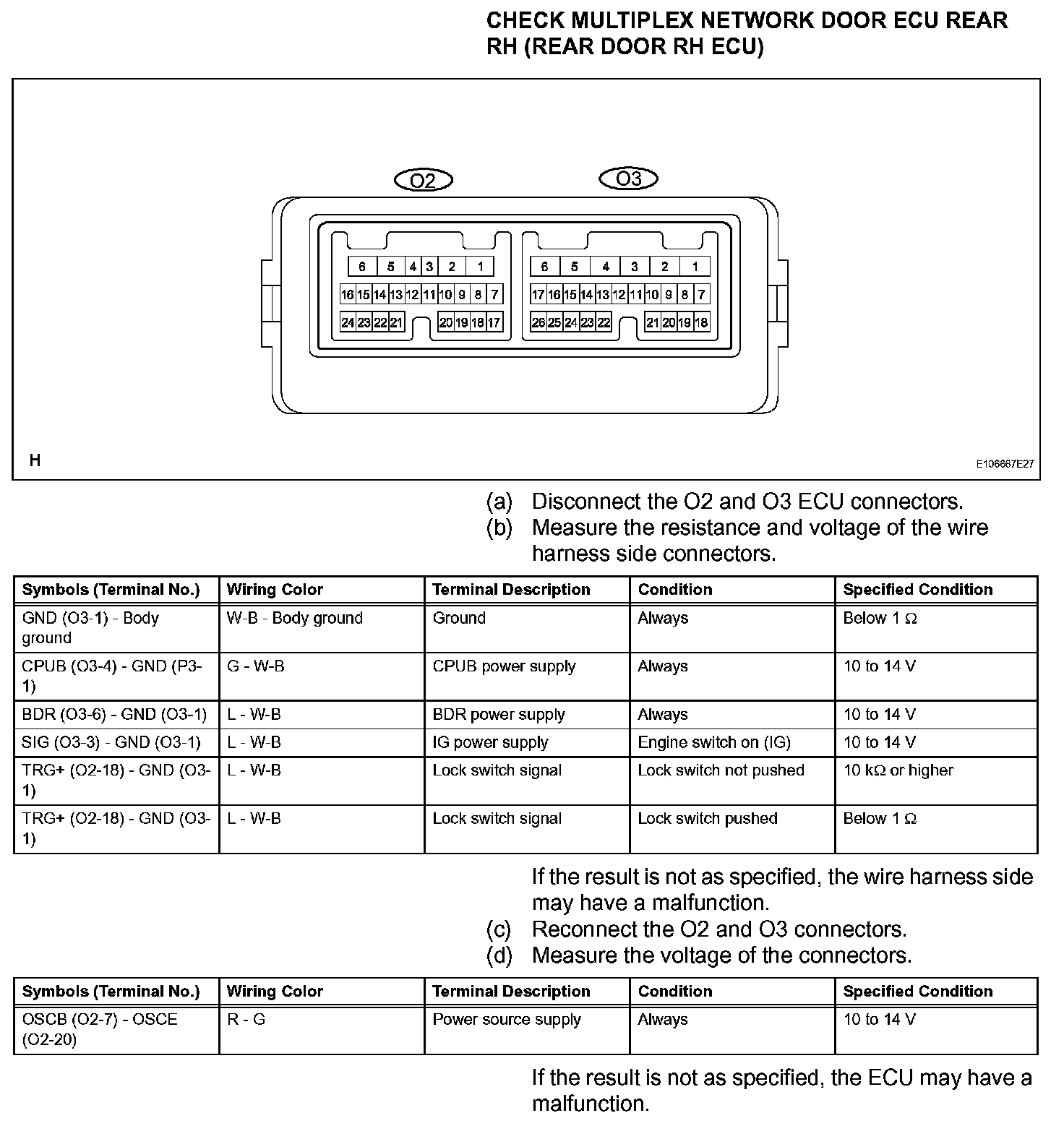

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Rear RH (Rear Door RH ECU):

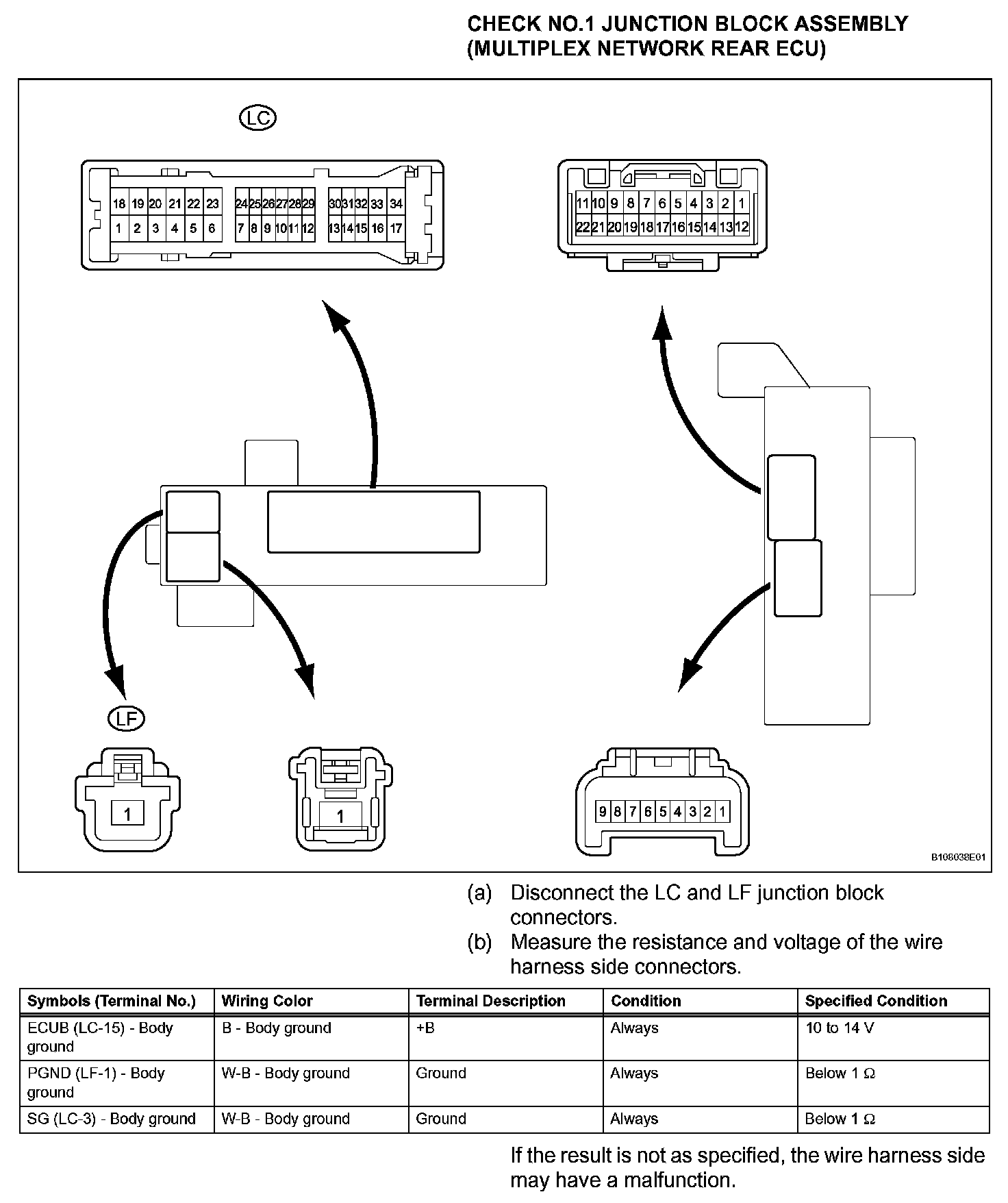

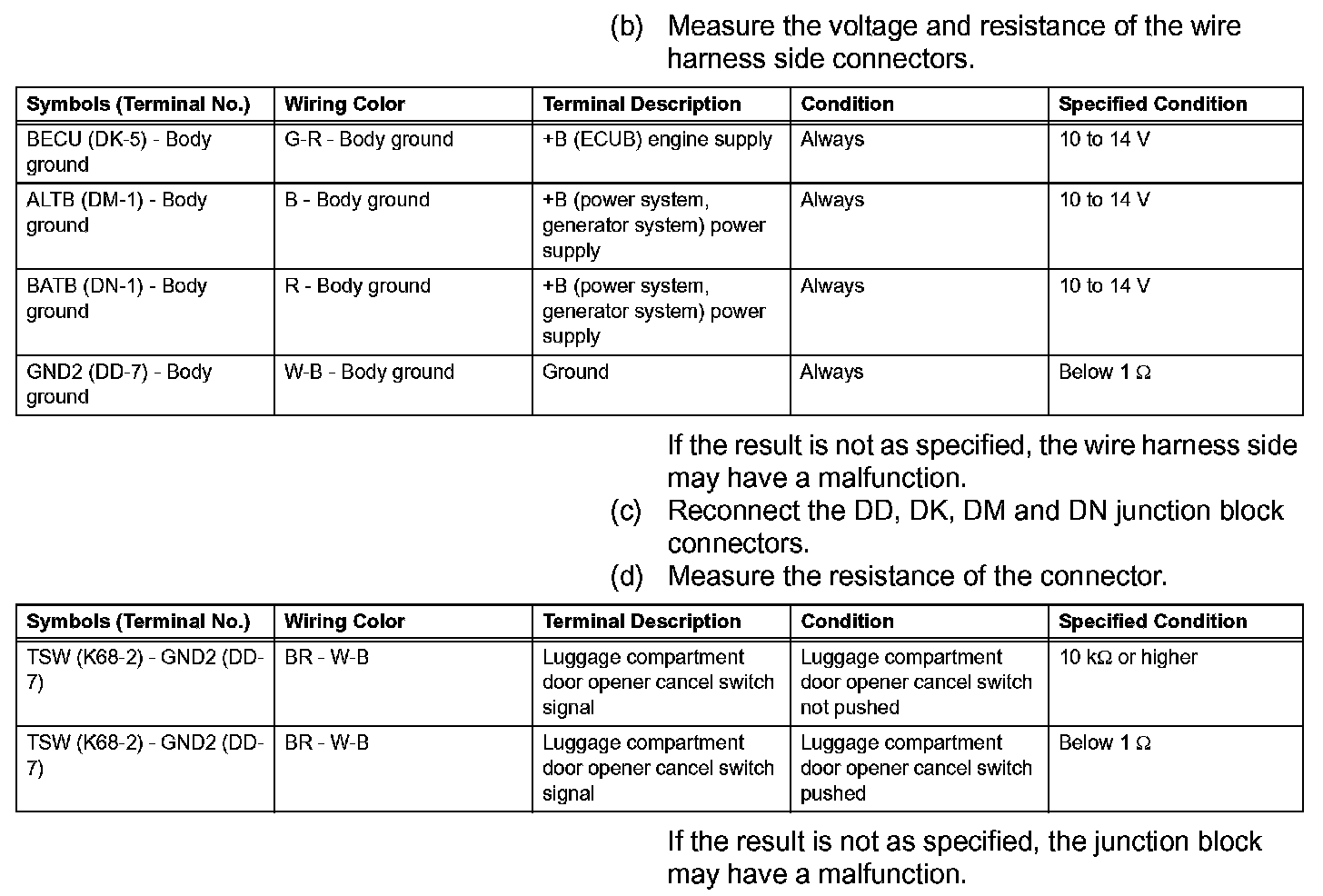

Terminals Of Control Module/Pinouts - Check No.1 Junction Block Assembly (Multiplex Network Rear ECU):
