Theft Deterrent System

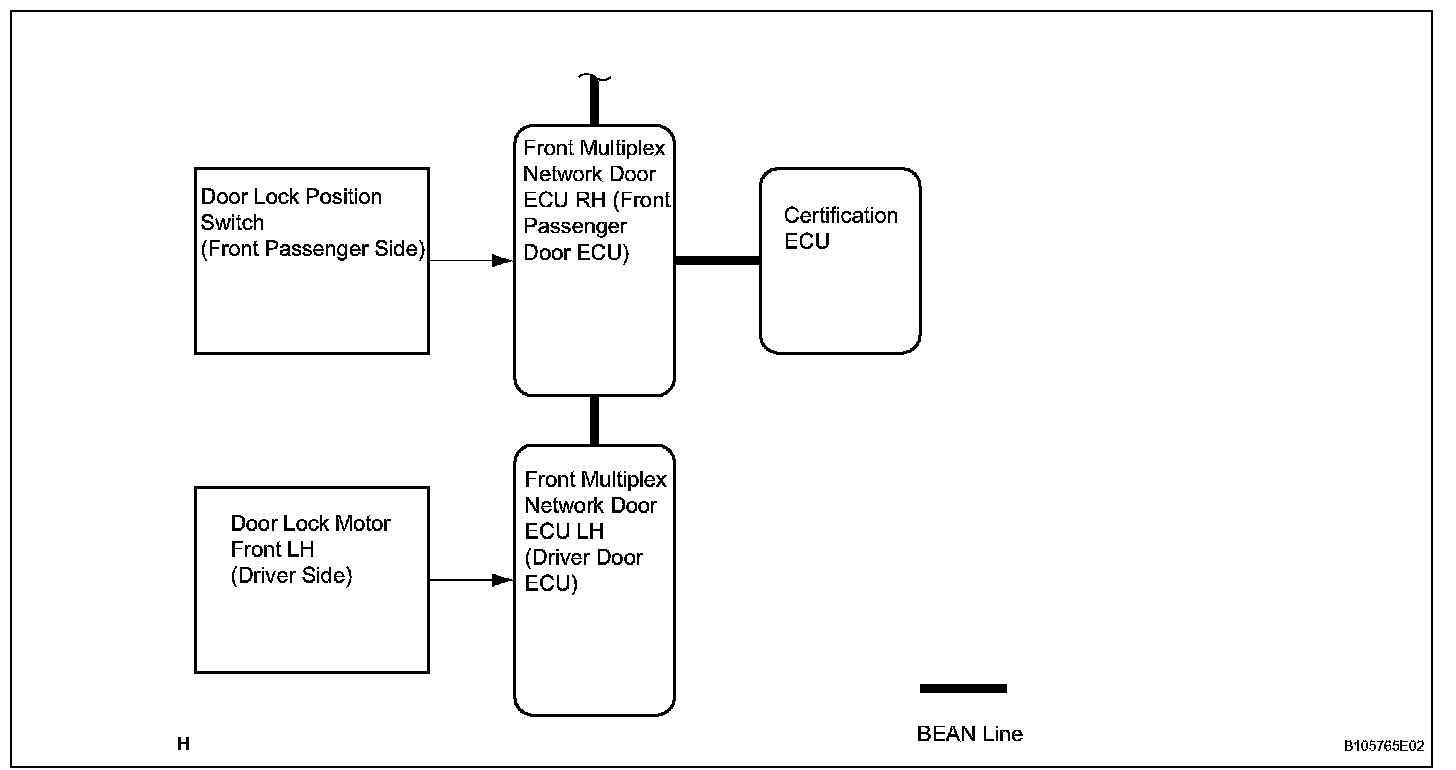

System Diagram (Part 1):

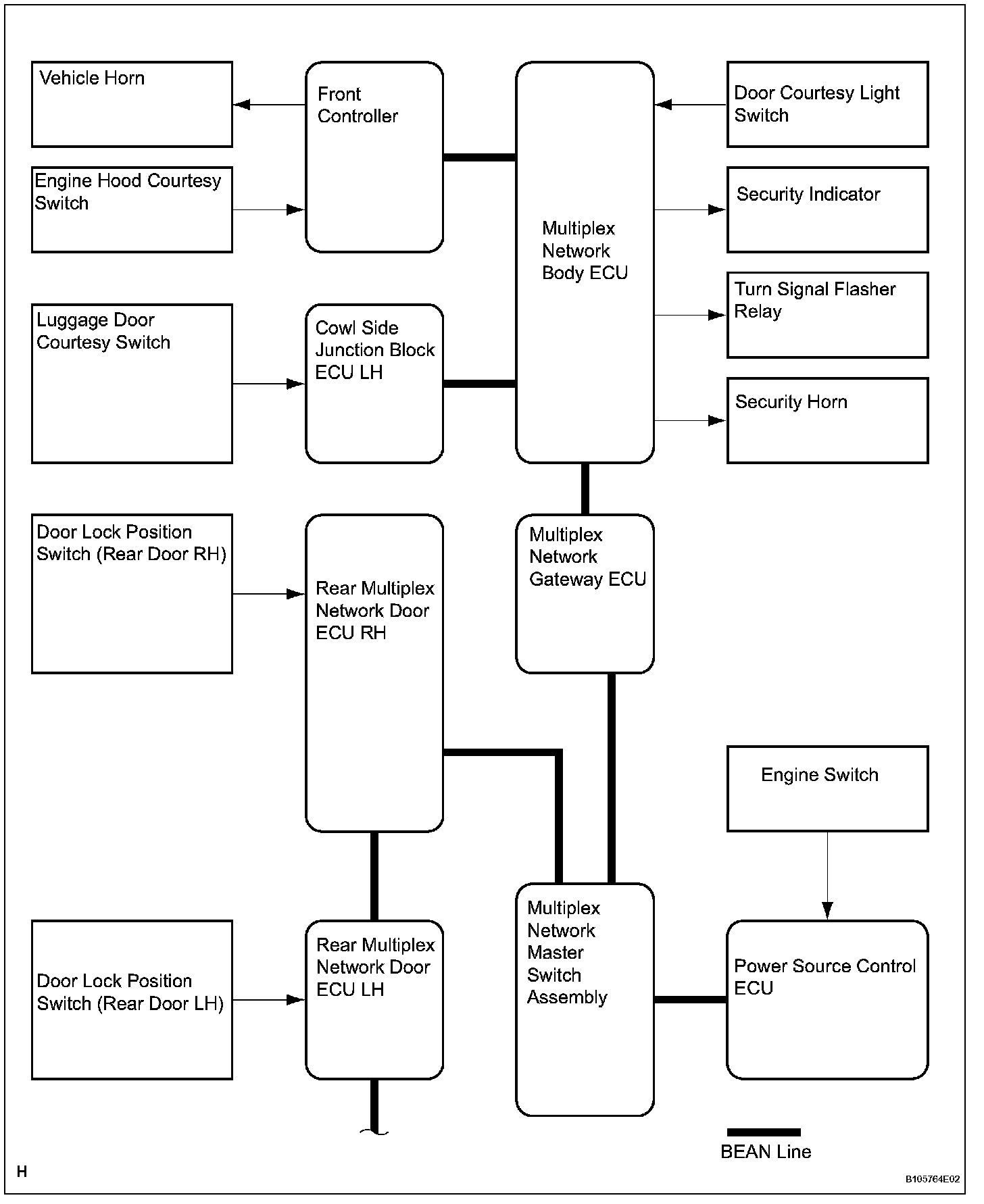

System Diagram (Part 2):

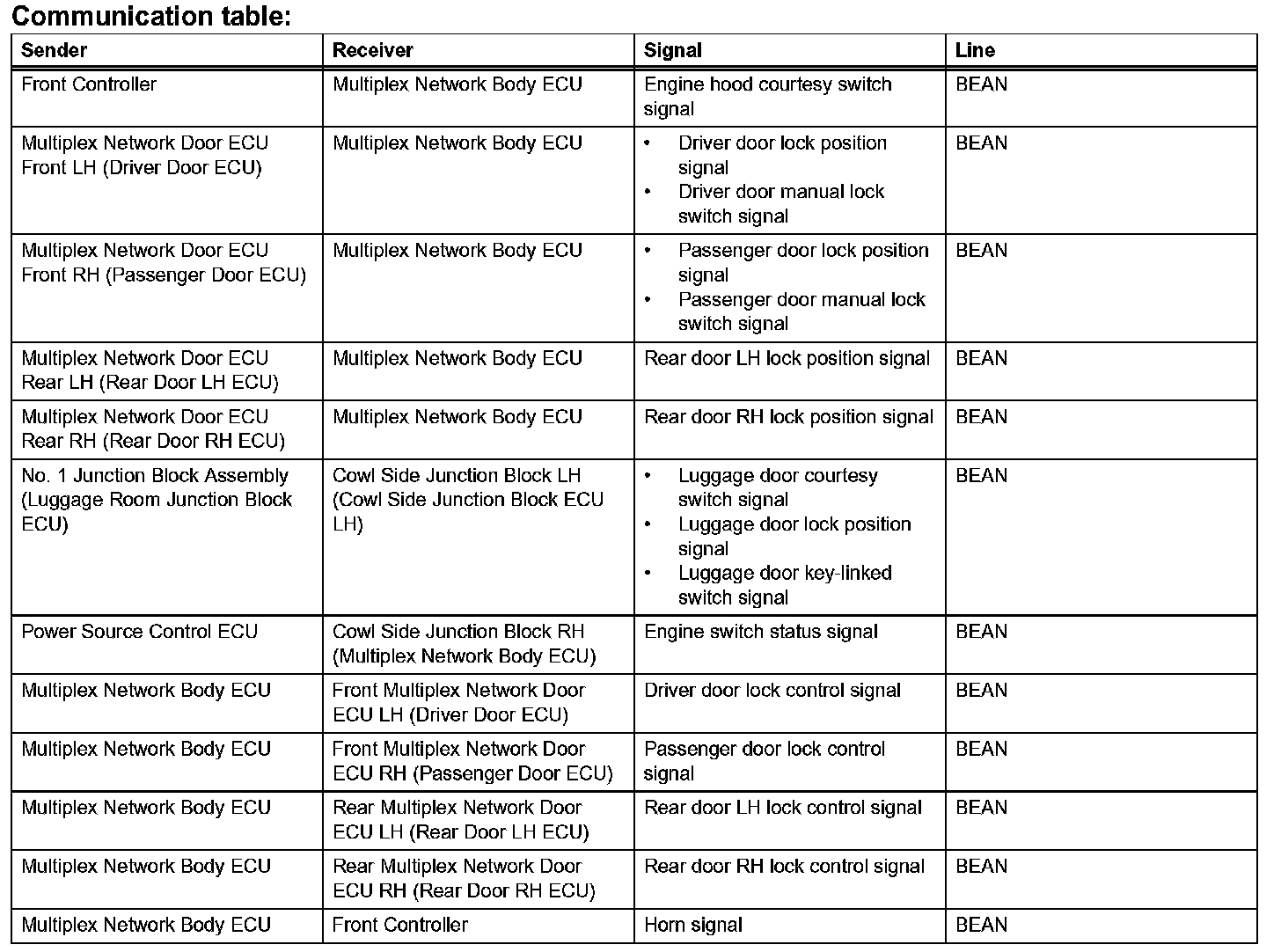

System Diagram:

SYSTEM DESCRIPTION

1. THEFT DETERRENT SYSTEM DESCRIPTION
The theft deterrent system is designed to deter vehicle break-ins and theft. If an attempted break-in or theft is detected, the vehicle horns and security horn will sound and the hazard warning light will flash. The system detects an attempted break-in or theft when any of the following occurs: 1) the vehicle is forcibly entered, 2) the engine hood is forcibly opened, 3) the doors are unlocked without the use of a key, or 4) the cable from the negative (-) battery terminal is disconnected and reconnected.

If the system enters the alarm sounding state, any unlocked doors will automatically lock. The system has 4 states: disarmed state, arming preparation state, armed and alarm sounding state.

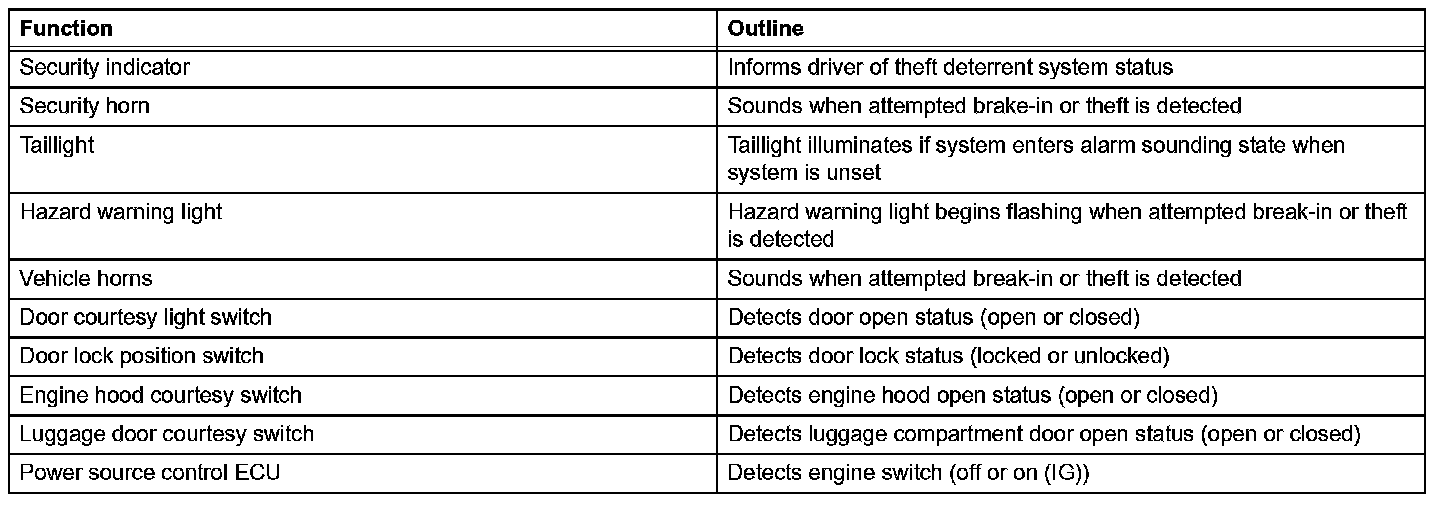

2. FUNCTION OF MAIN COMPONENT





3. SYSTEM FUNCTION
a. Disarmed state:
- The alarm function is not operating.
- The theft deterrent system is not operating.

b. Arming preparation state:
- The theft deterrent system is not operating.

c. Arming state:
- The theft deterrent system is operating.

d. Alarm sounding state:
- The alarm function is operating (60 ±5 seconds).
