DTC U1110 Lost Communication with Clearance Sonar Module

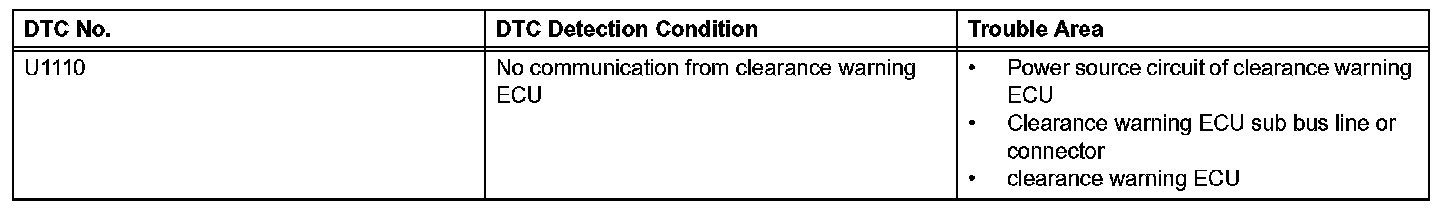

DTC Detection Condition:
DESCRIPTION

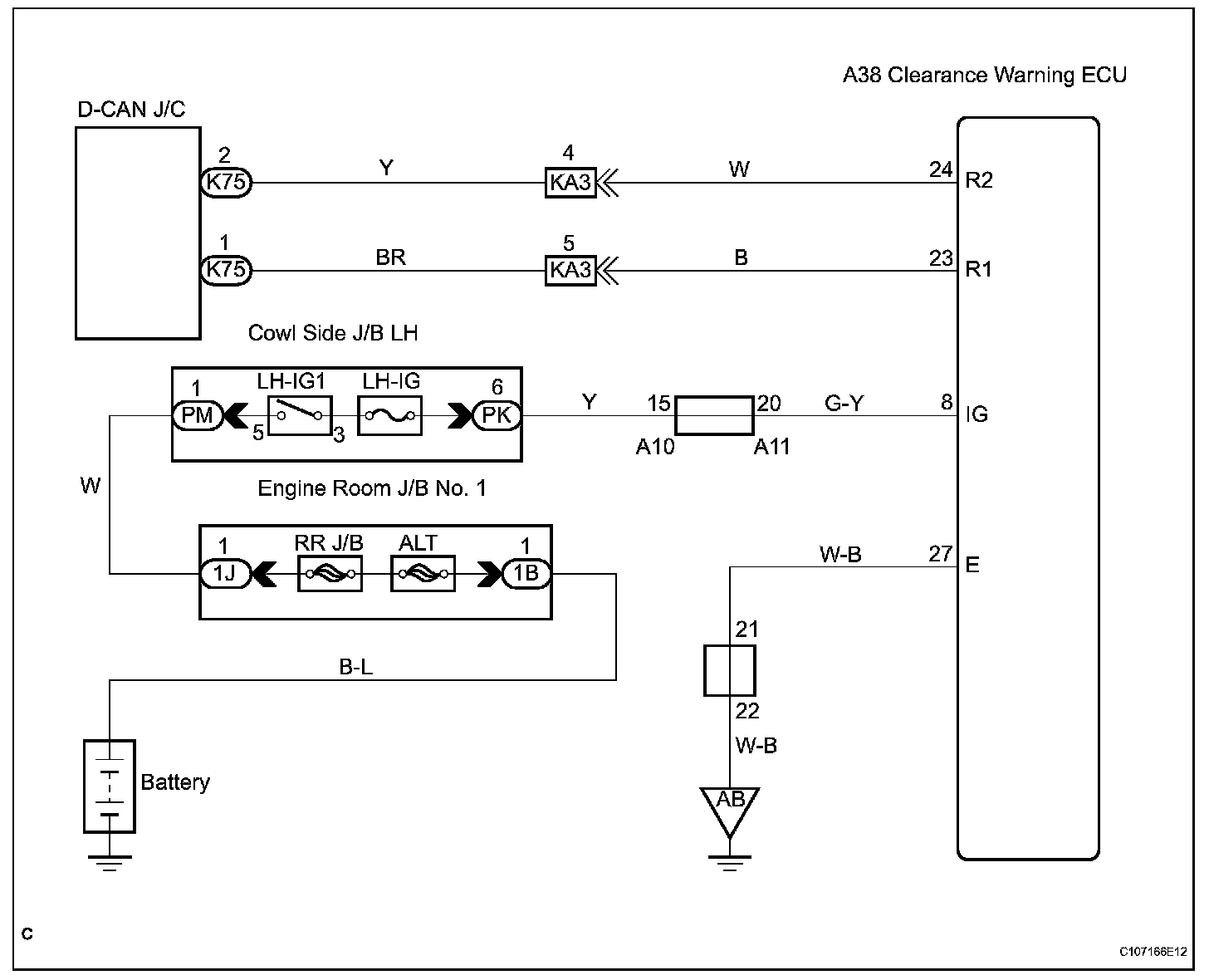

Wiring Diagram:

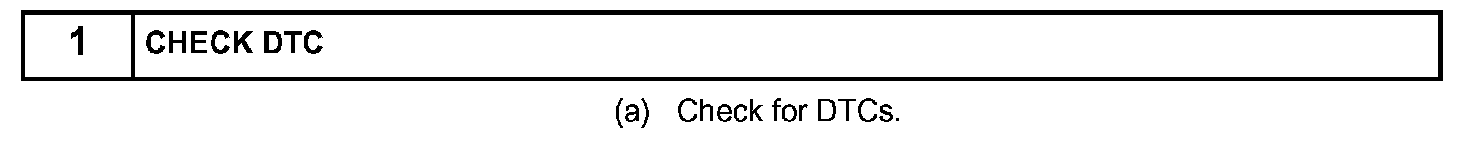

Step 1:

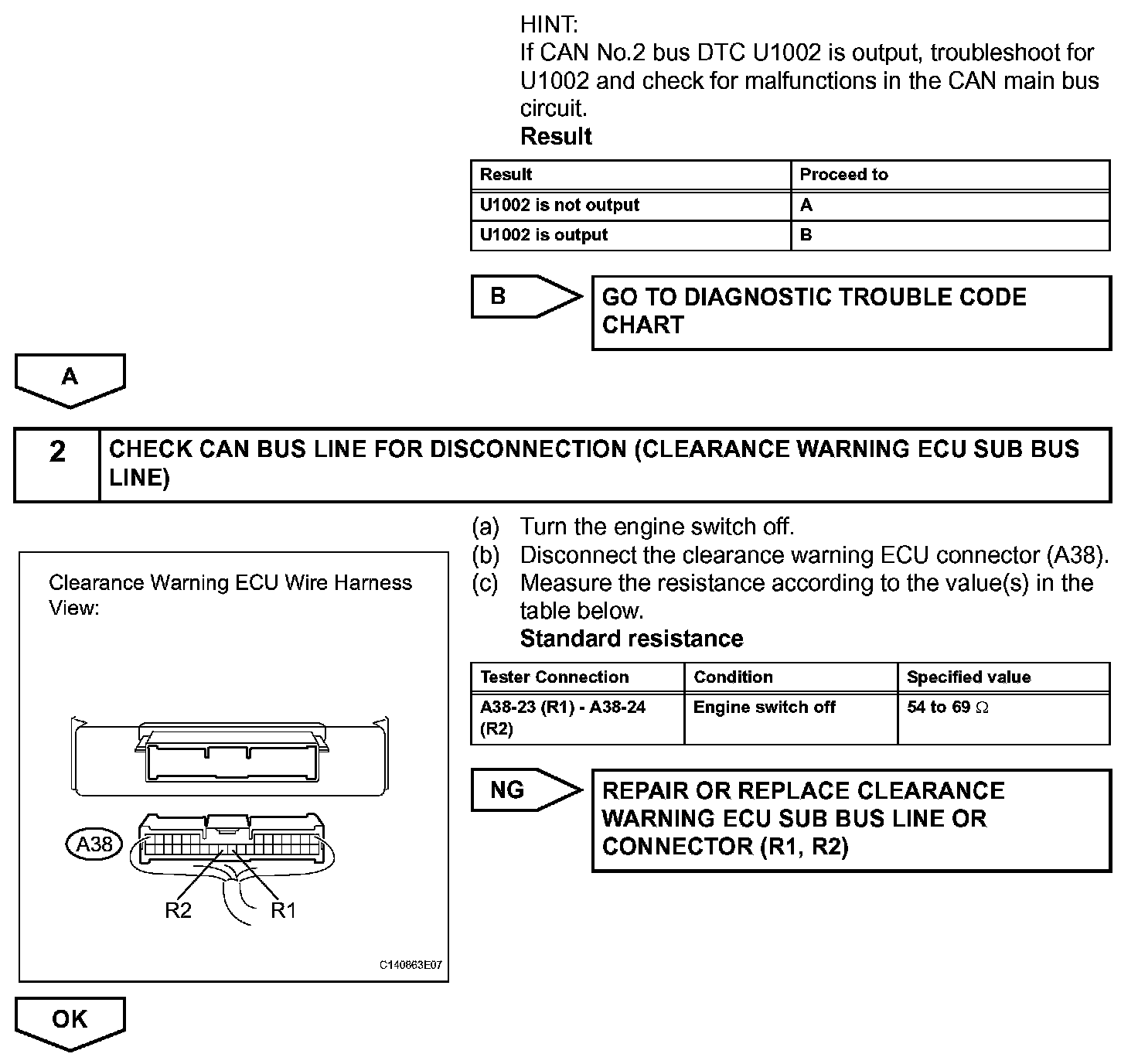

Step 1 (Continued)-2:
Step 3:
INSPECTION PROCEDURE
