U1002

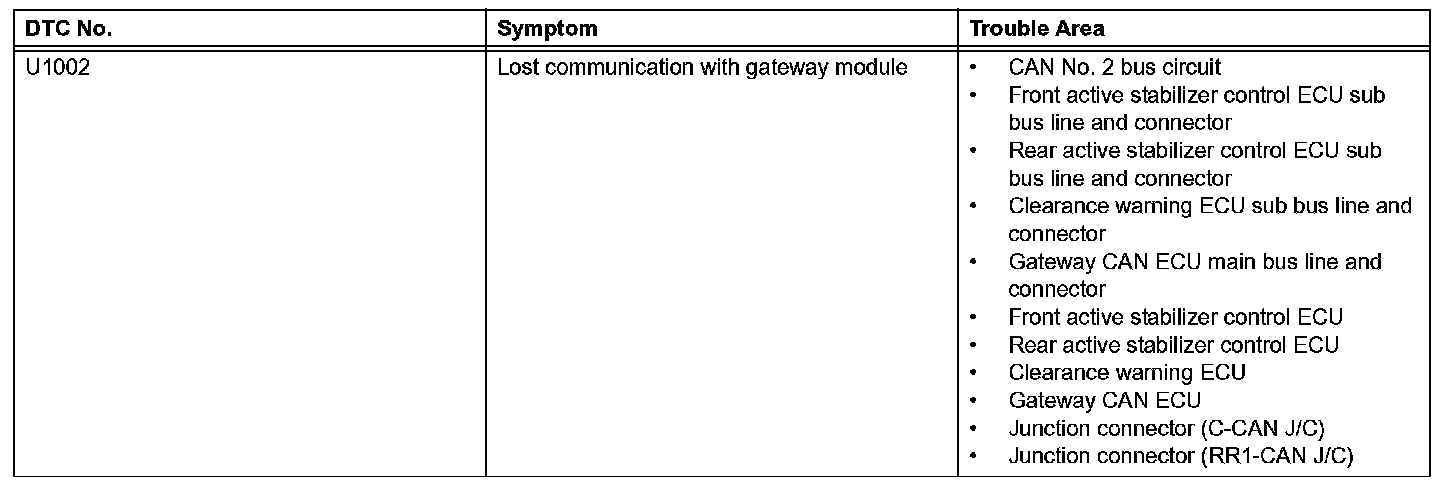

DTC U1002 Lost Communication with Gateway ModuleDESCRIPTION
If 2 or more DTCs are output during the DTC check, one side of the CAN sub bus line may be open. (One side of the CANH [sub bus line]/CANL [sub bus line] of the ECU and/or sensor is open.

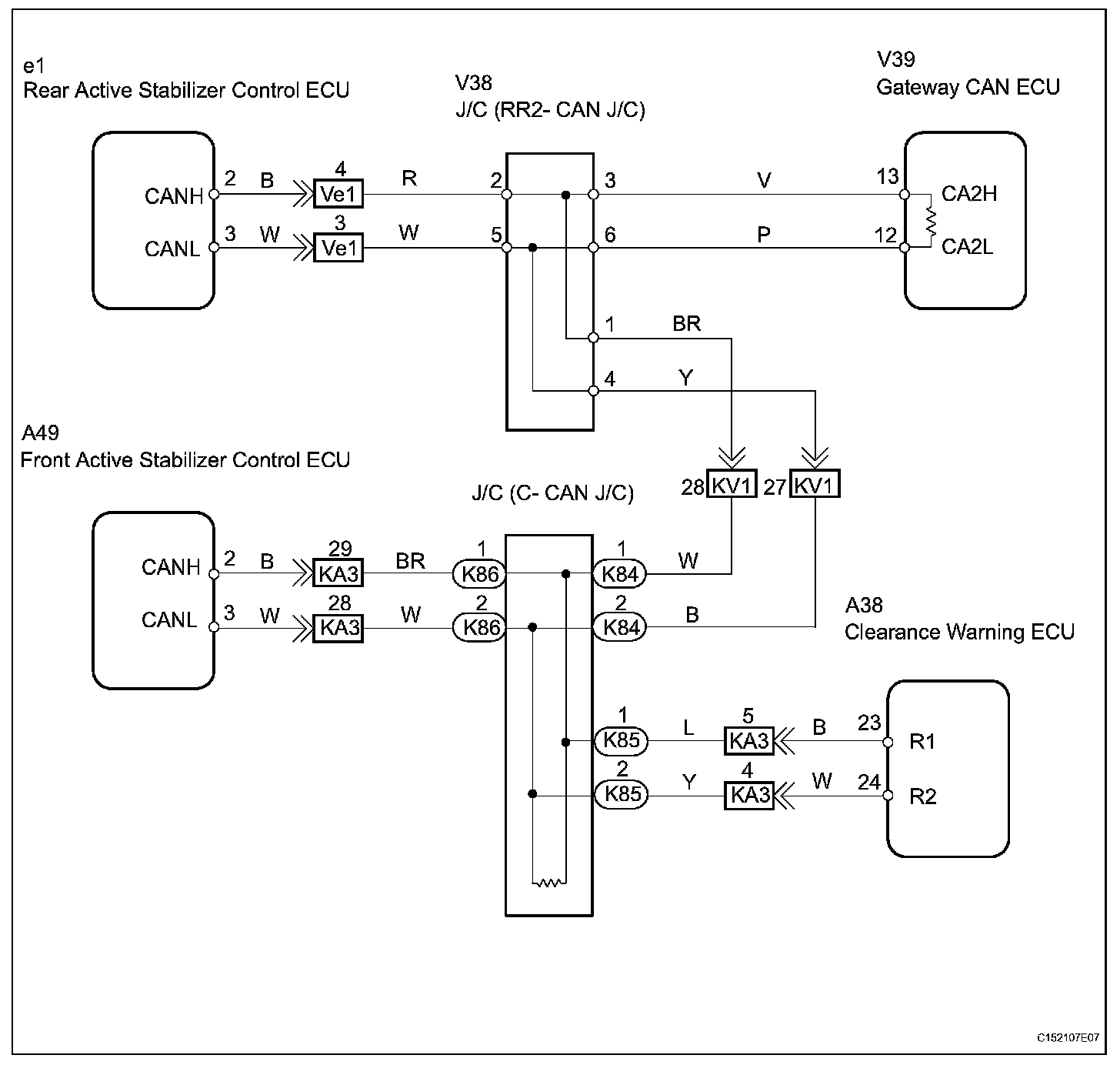

Wiring Diagram:

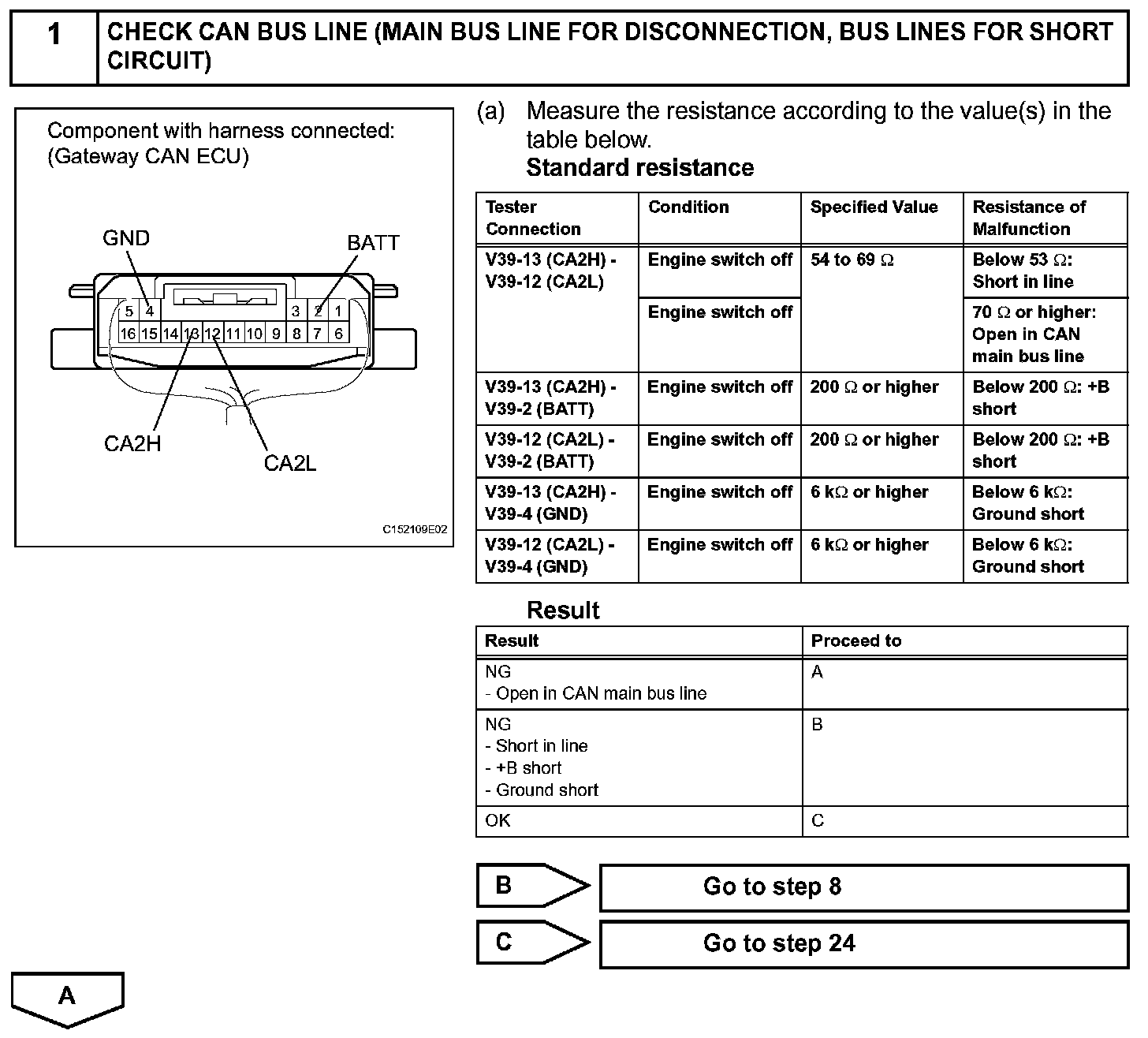

Step 1:

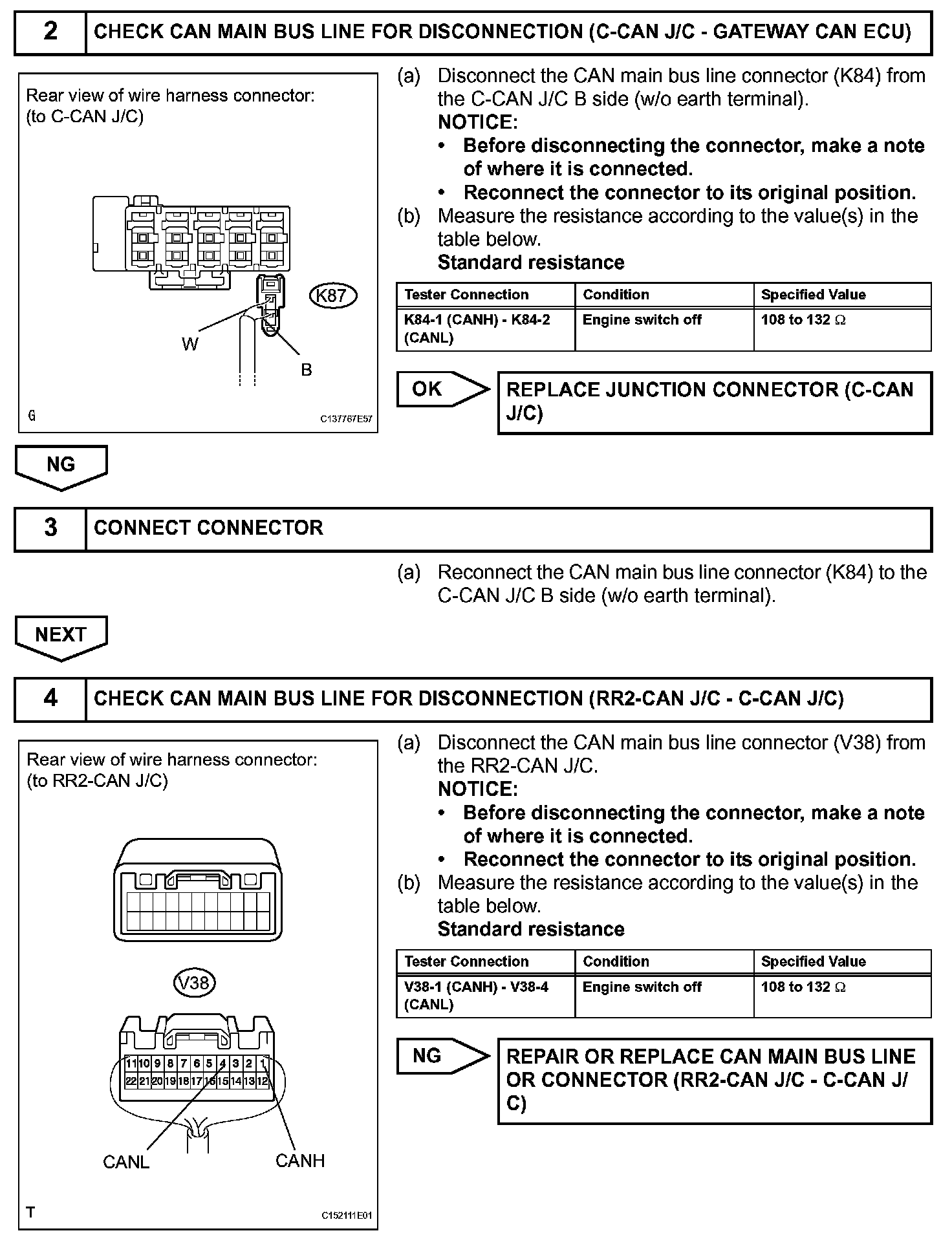

Step 2-4:
Step 4 (Continued)-6:

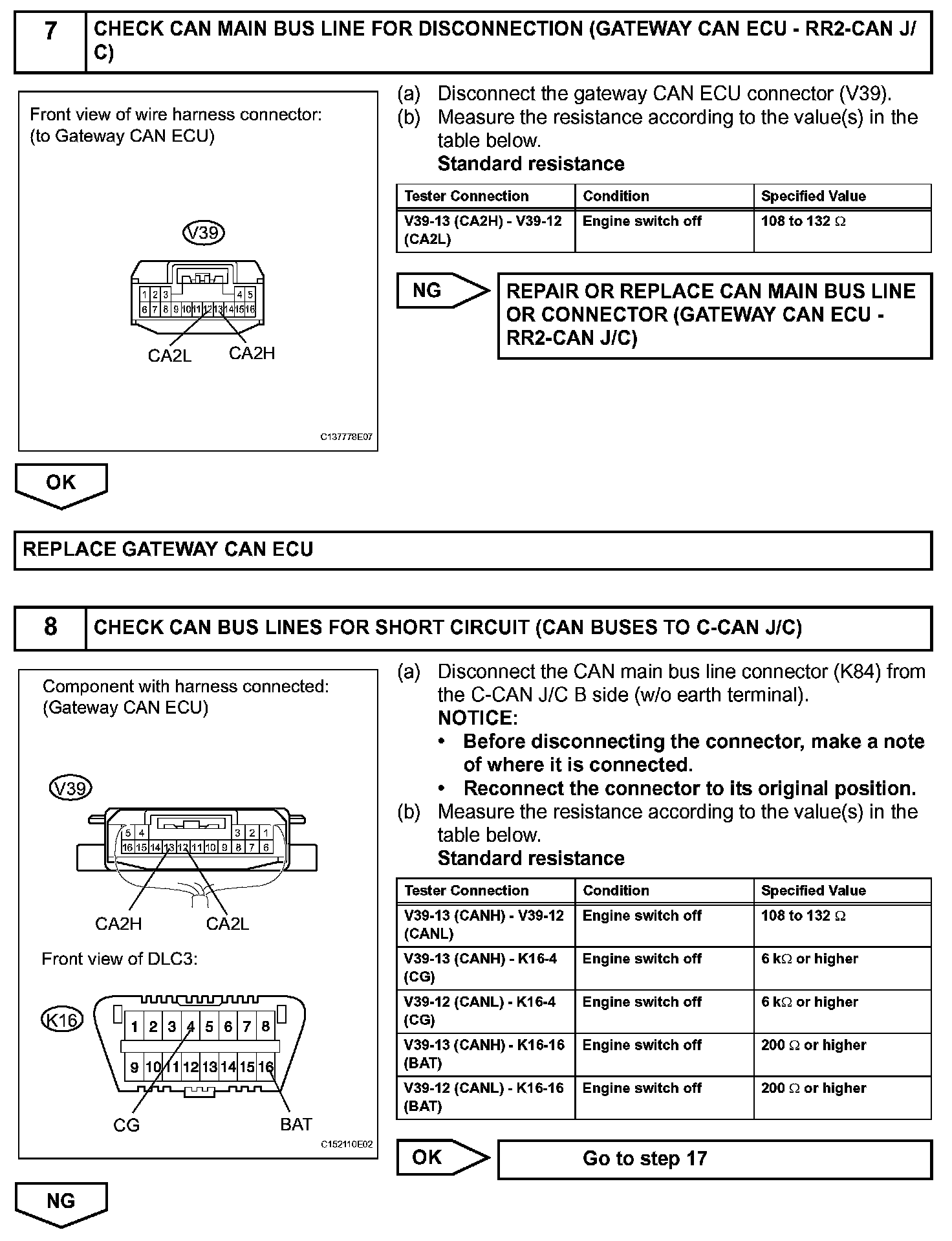

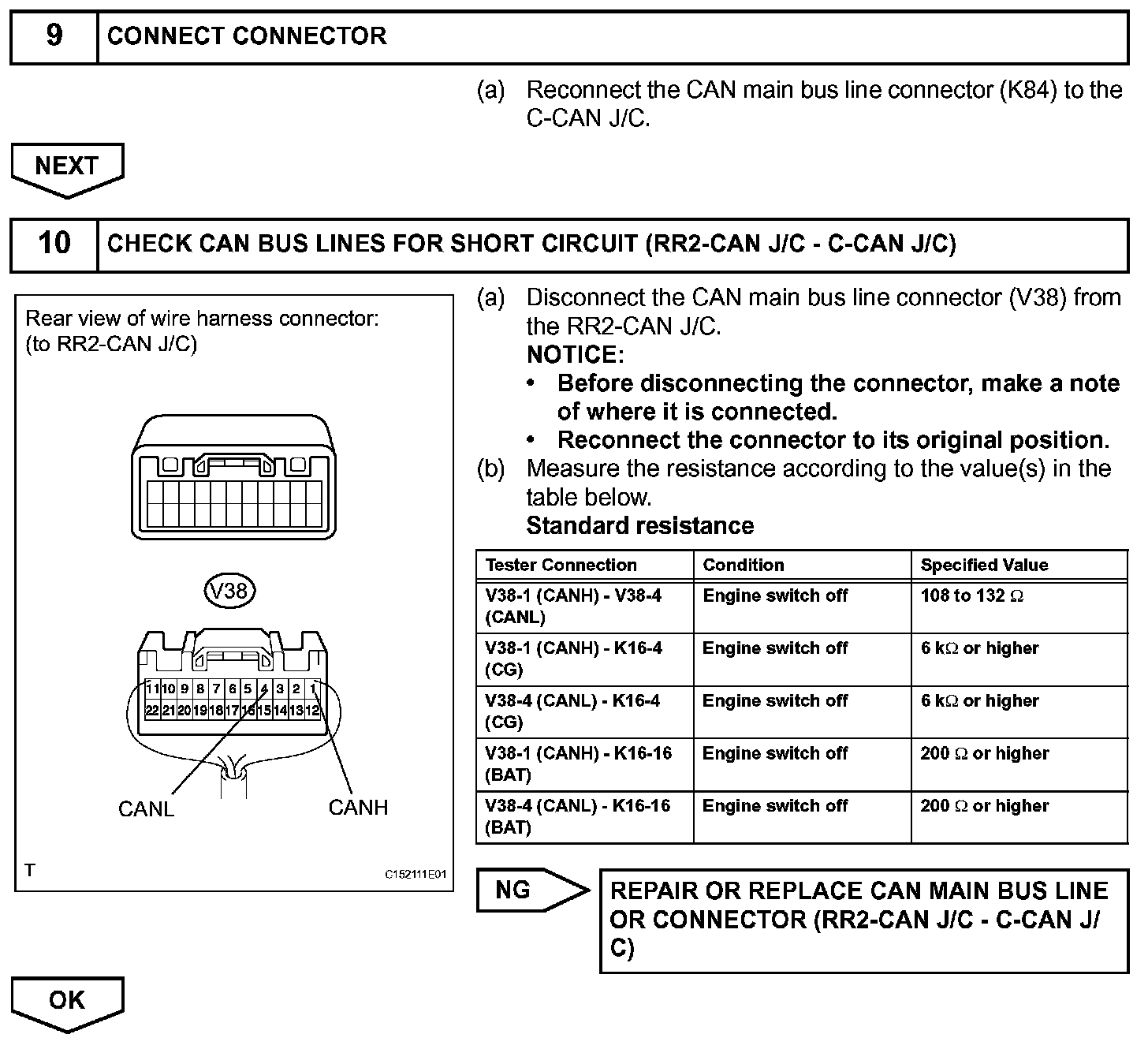

Step 7-8:
Step 9-10:

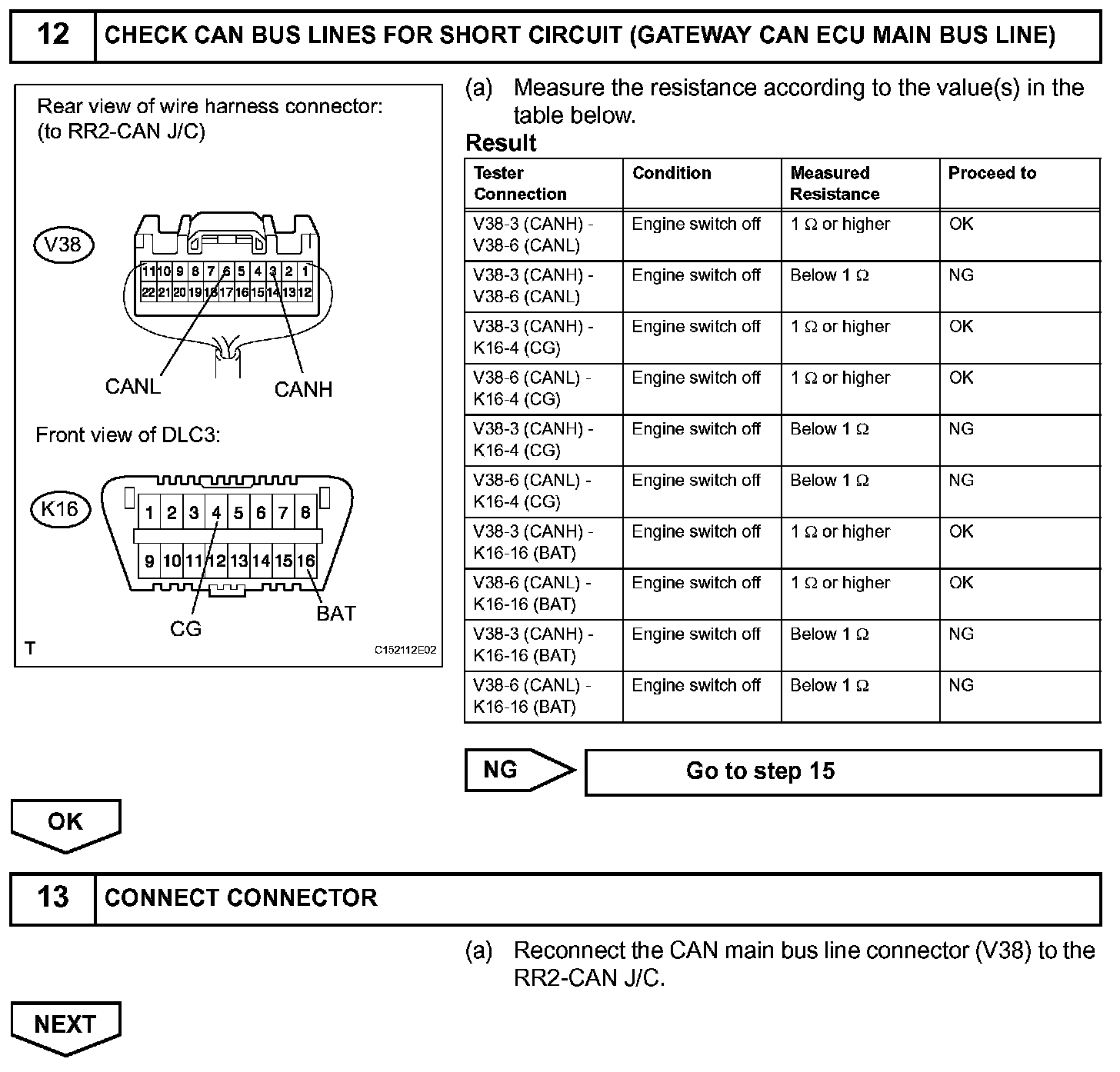

Step 11:
Step 12-13:

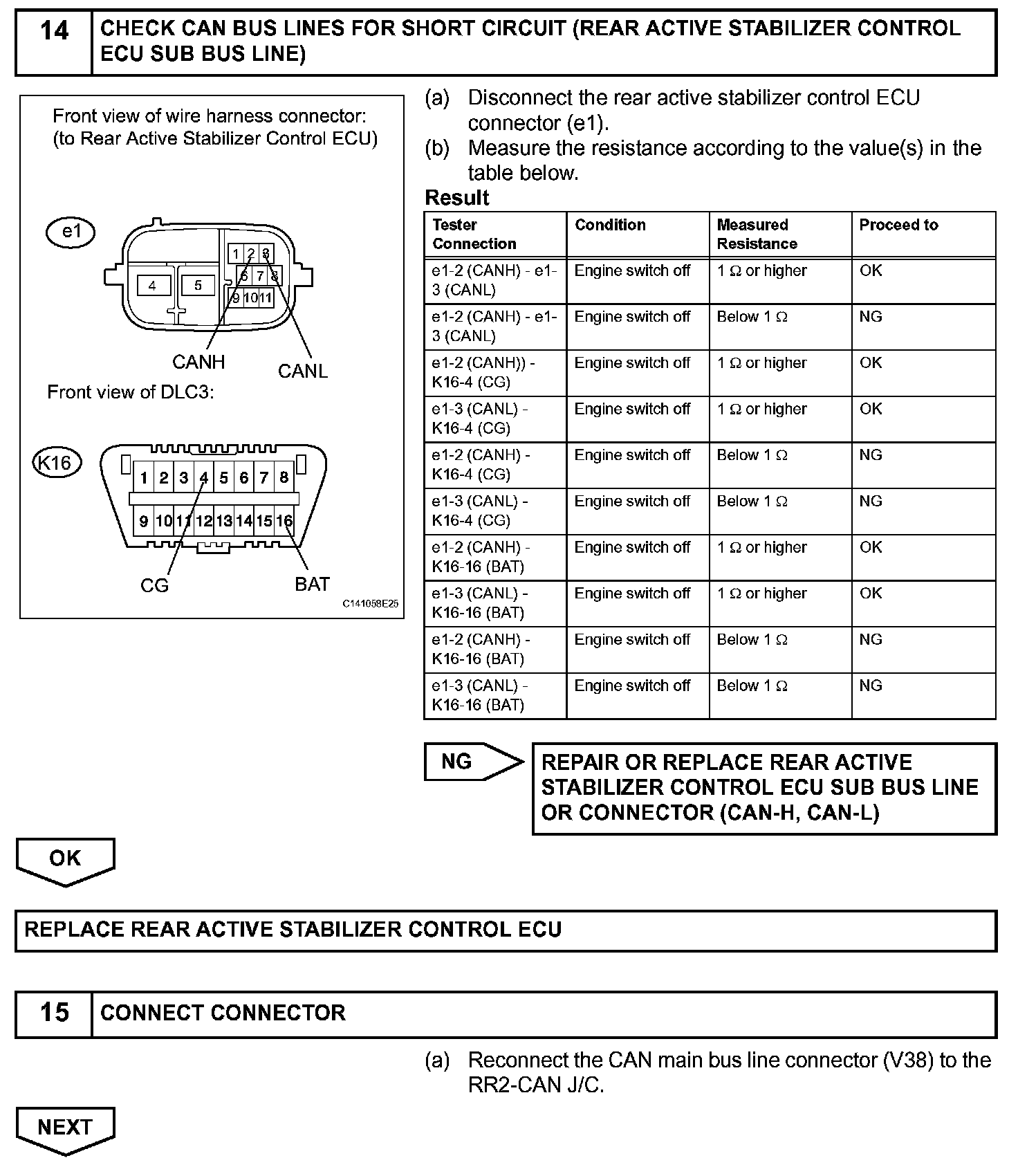

Step 14-15:

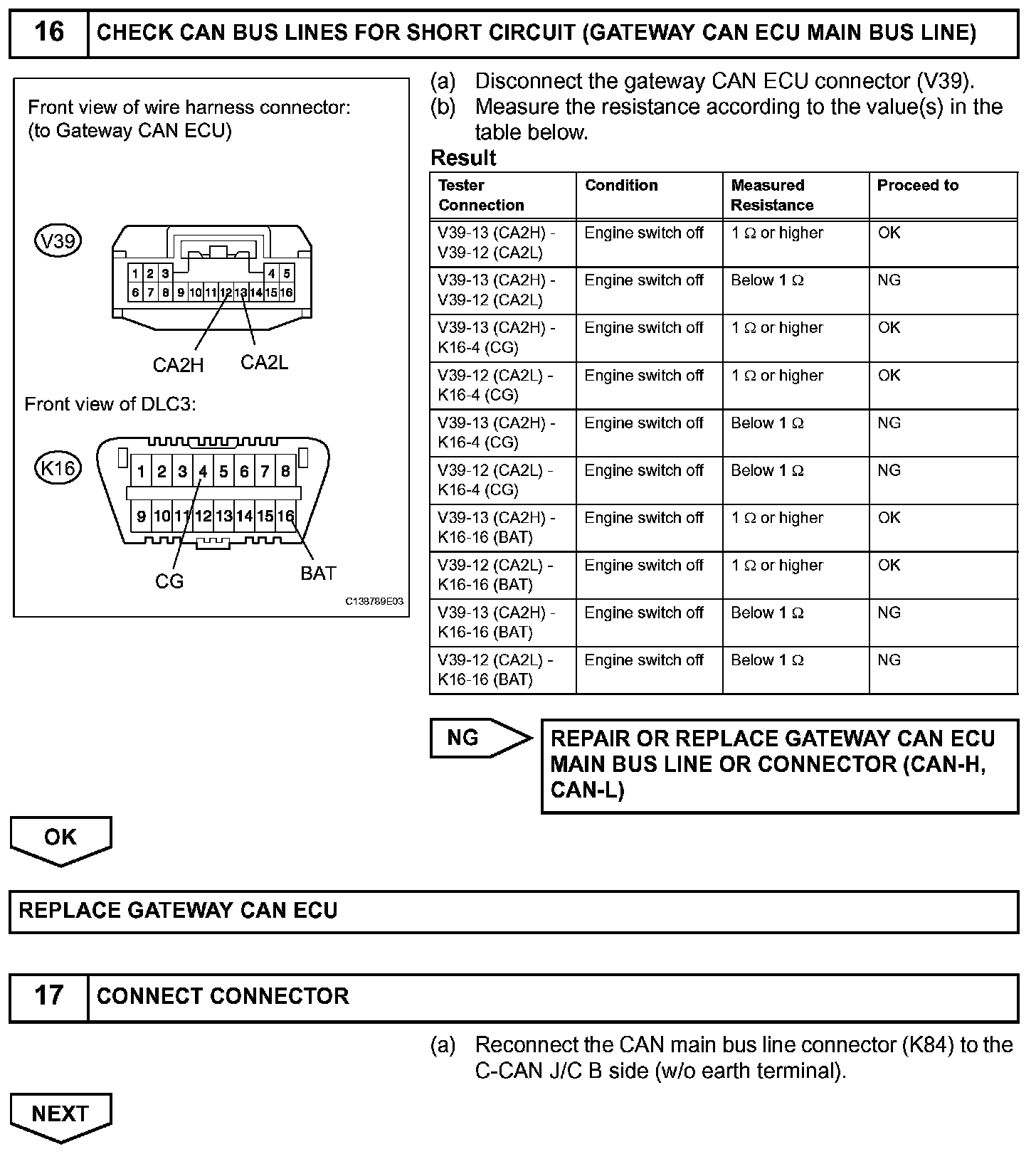

Step 16-17:

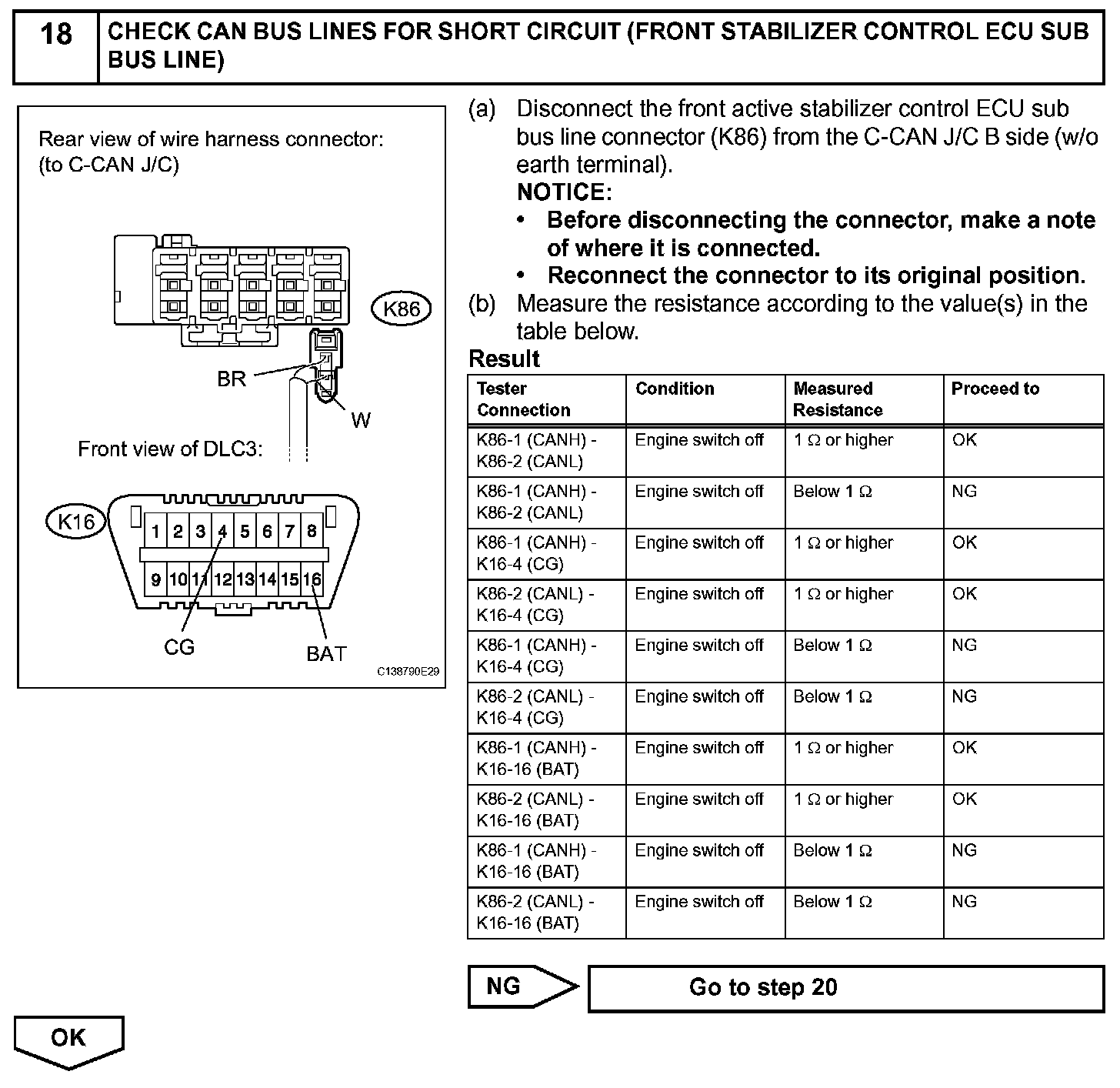

Step 18:

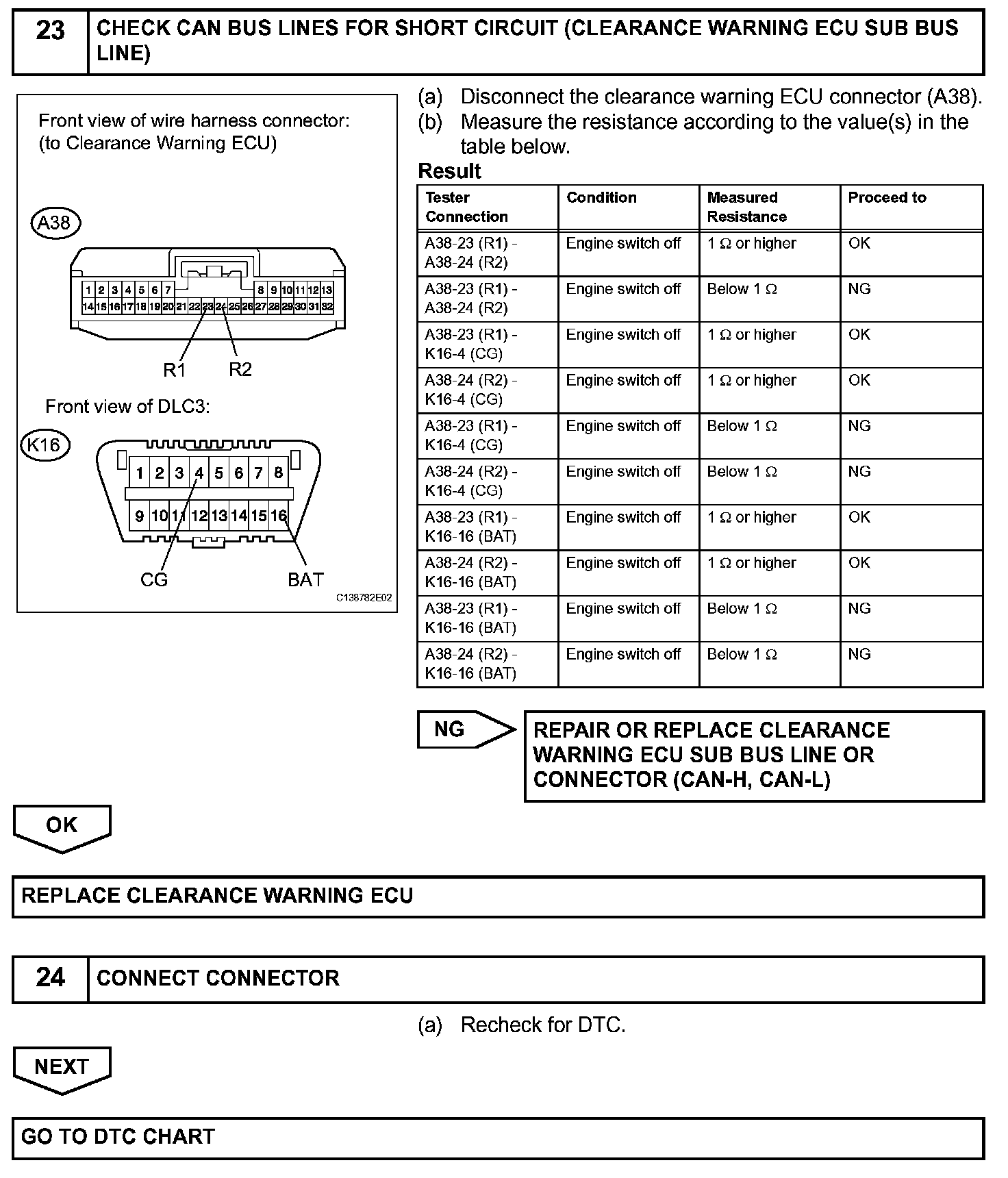

Step 19-20:

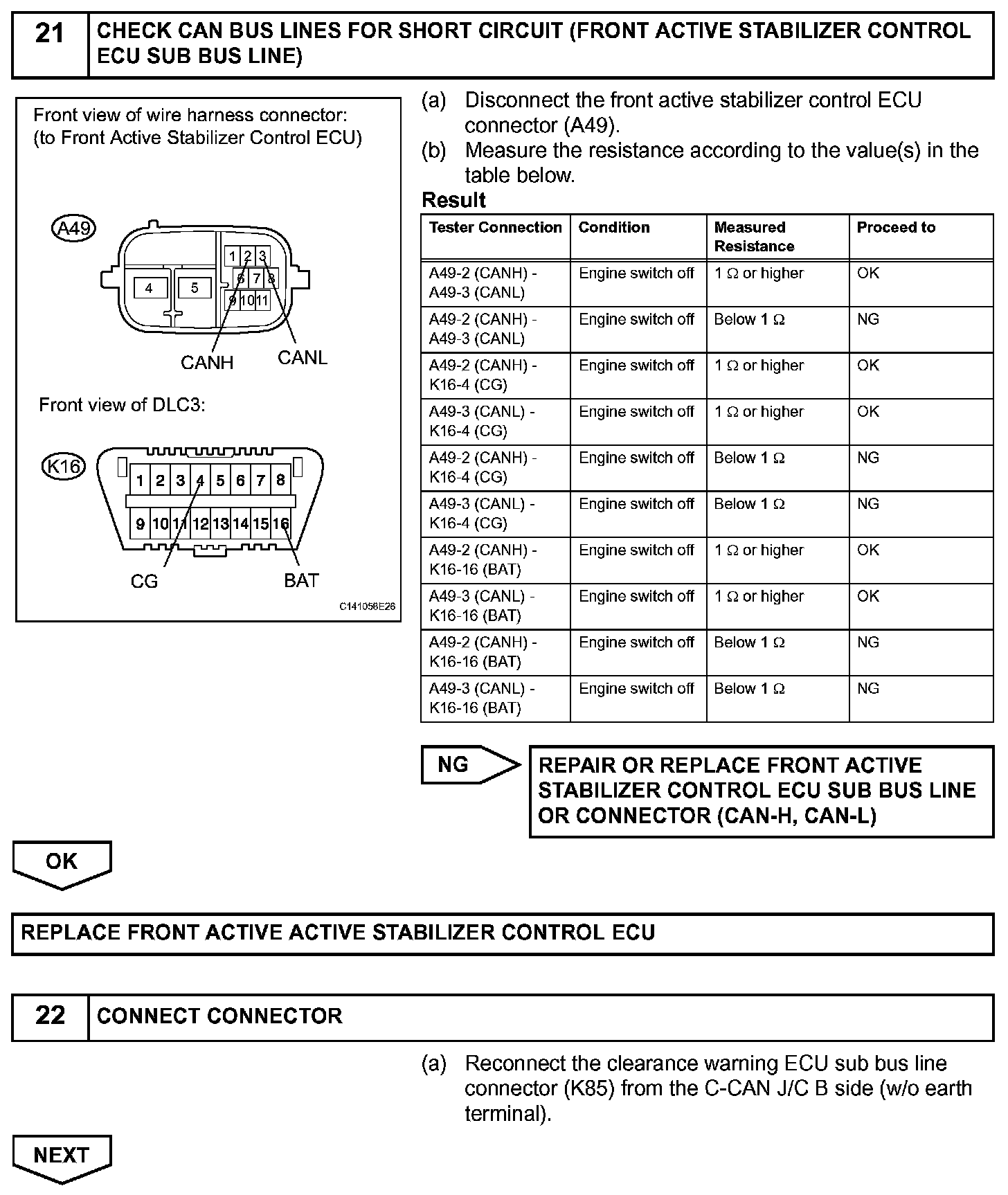

Step 21-22:
Step 23-24:
INSPECTION PROCEDURE
