P2759

DTC P2759 Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)

DESCRIPTION

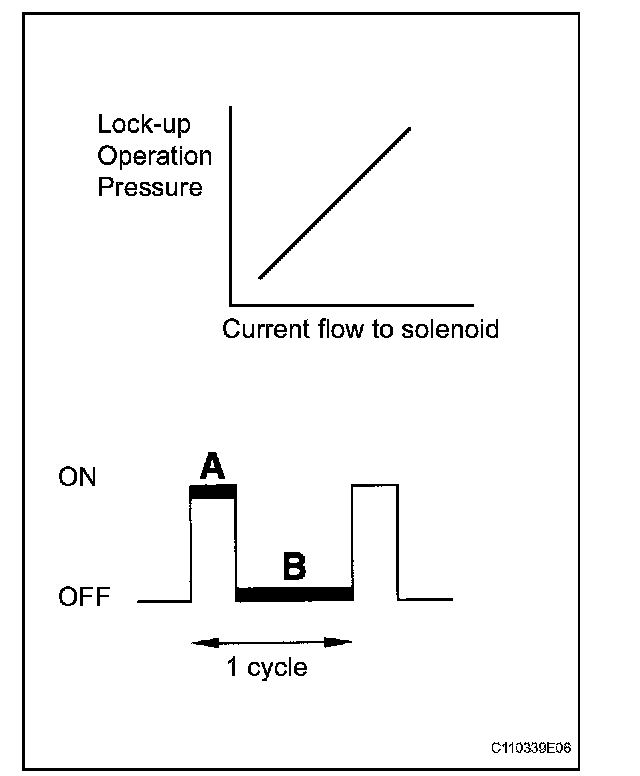

The amount of current flow to the solenoid is controlled by the duty ratio* of the ECM output signal. The higher the duty ratio becomes, the higher the lock-up hydraulic pressure becomes during the lock-up operation.





*: The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non-continuity, then Duty Ratio (%) = A/(A+B) x 100.

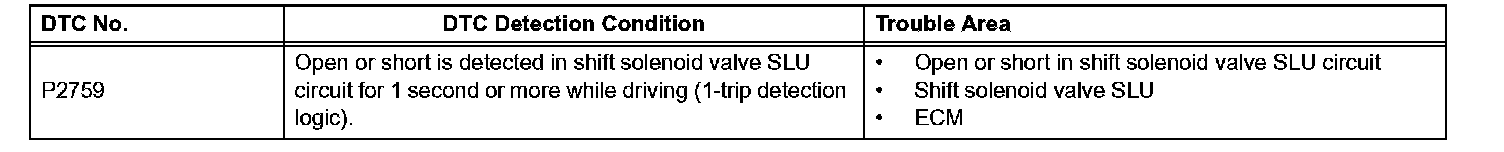

P2759:

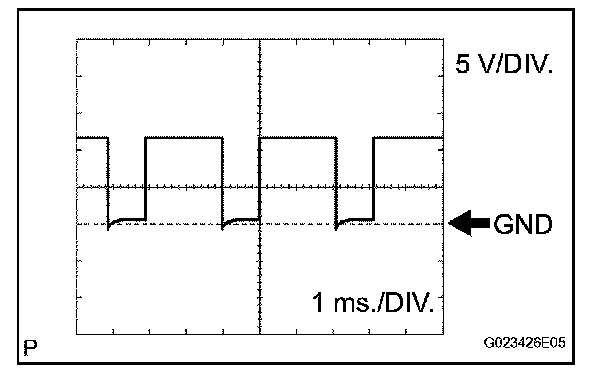

Reference (Using an oscilloscope):
Check the waveform between the terminals SLU+ and SLU- of the ECM connector





Standard: Refer to the illustration.








MONITOR DESCRIPTION
When an open or short in a shift solenoid valve (SLU) circuit is detected, the ECM determines there is a malfunction. The ECM will turn on the MIL and store this DTC.

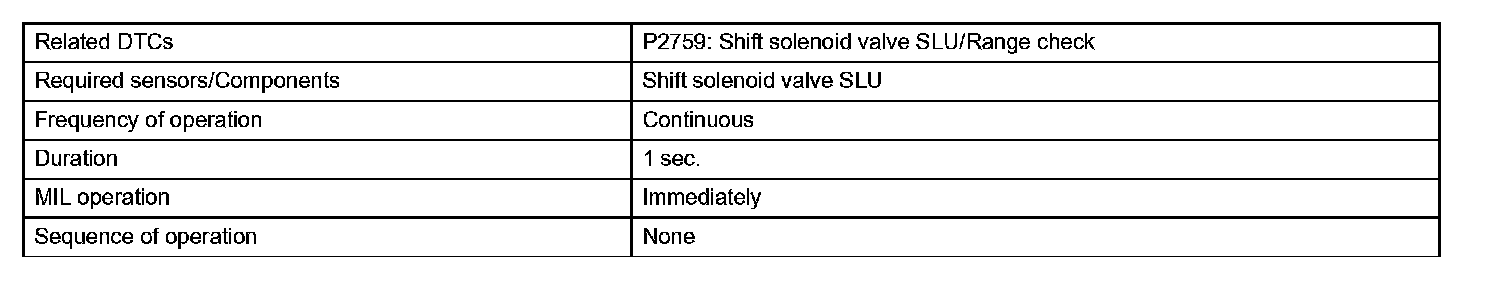

MONITOR STRATEGY

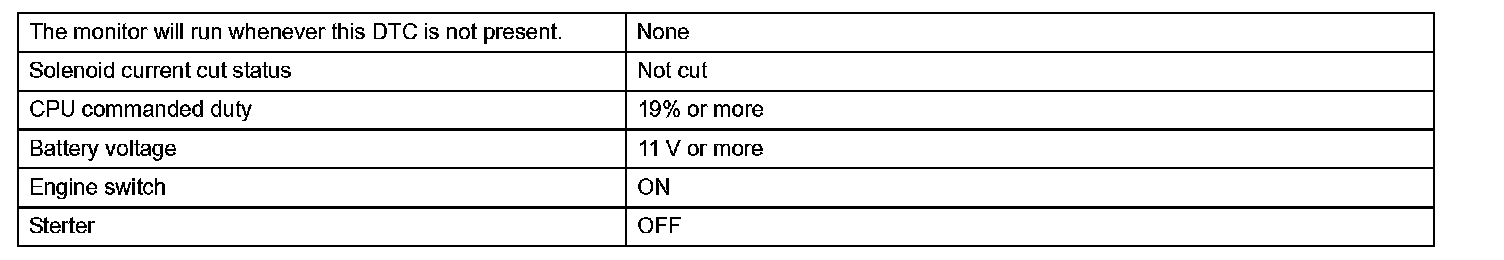

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE

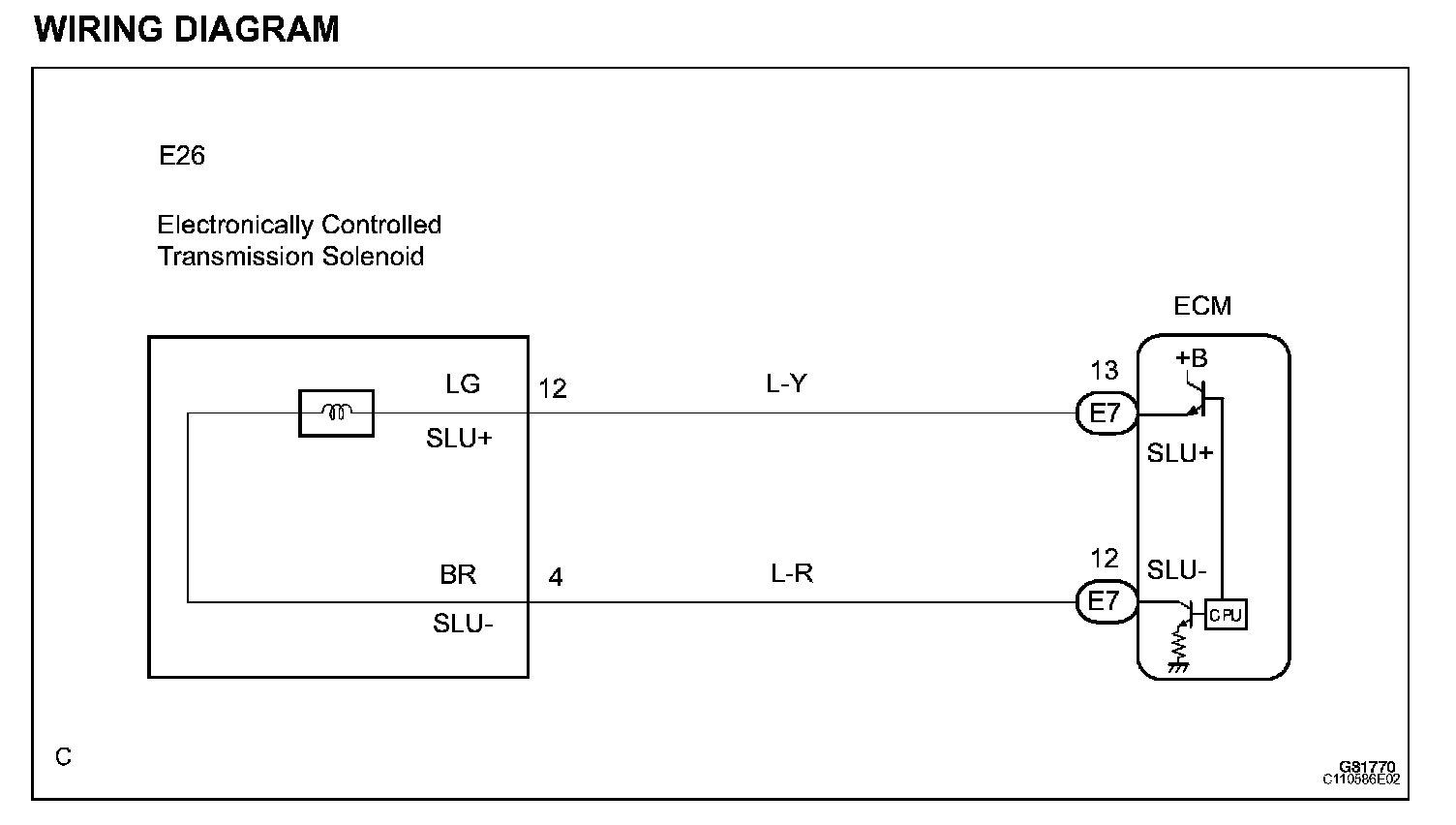

WIRING DIAGRAM:

INSPECTION PROCEDURE

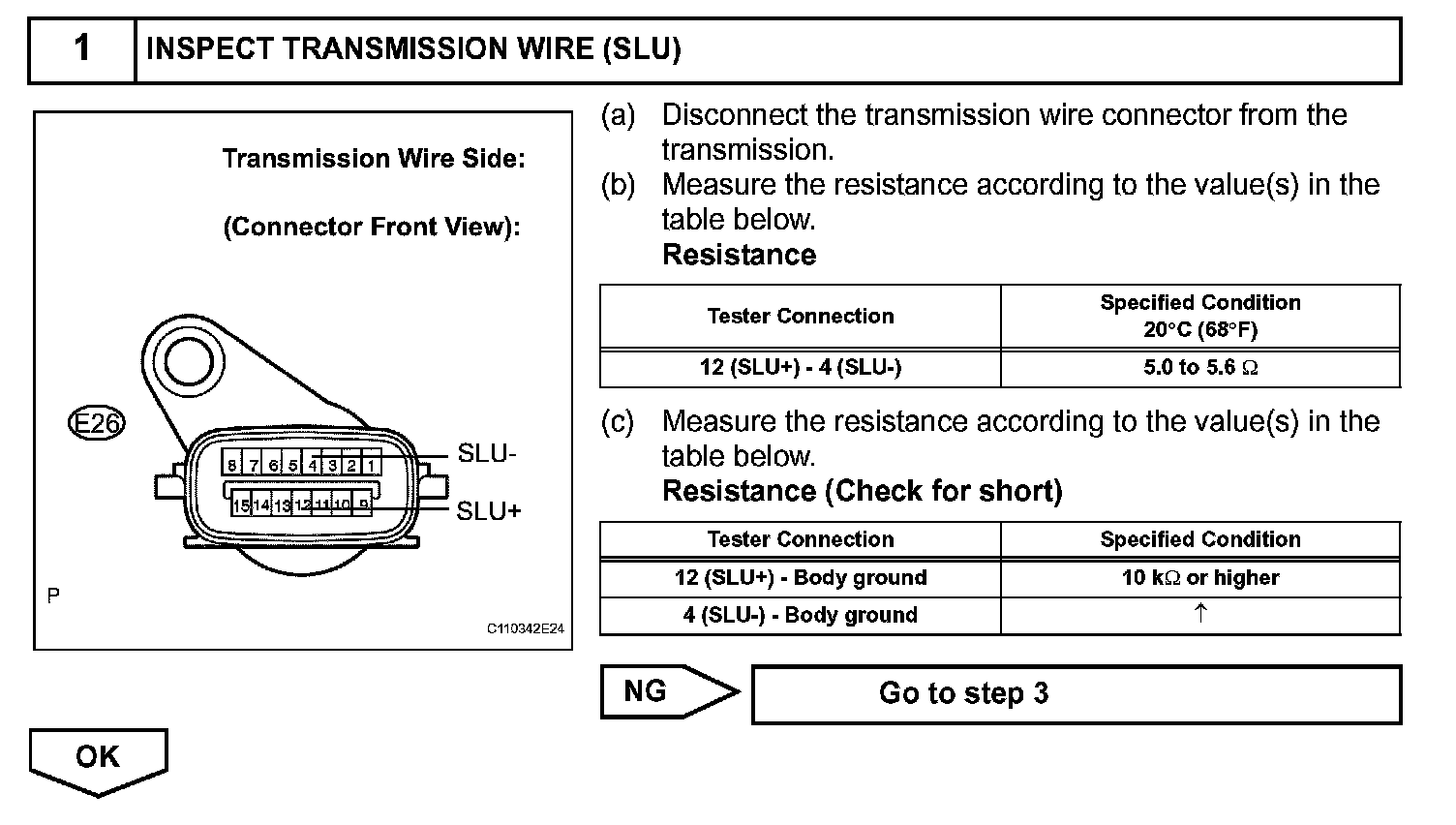

Step 1:

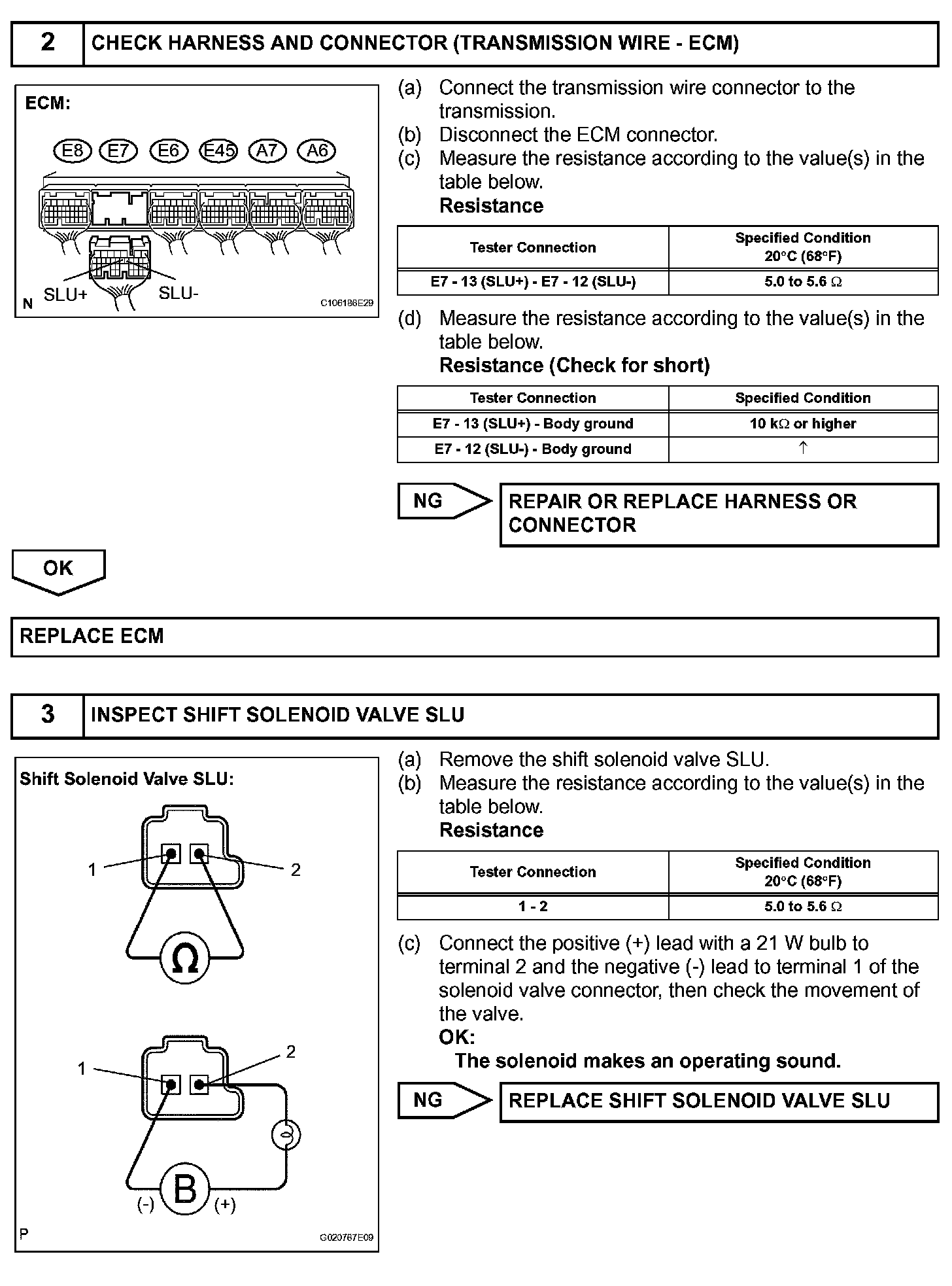

Steps 2-3(Part 1):

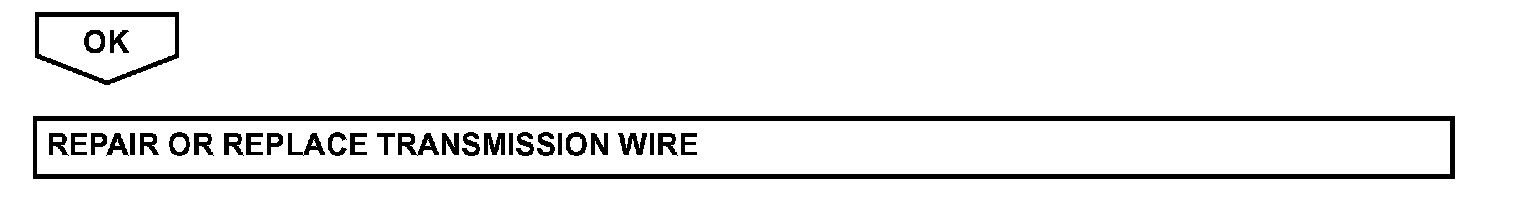

Step 3(Part 2):
