DTC P0973 Shift Solenoid "A" Control Circuit Low (Shift Solenoid Valve S1)
DTC P0974 Shift Solenoid "A" Control Circuit High (Shift Solenoid Valve S1)

DESCRIPTION
Shifting from 1st to 6th is performed in combination with "ON" and "OFF" operation of the shift solenoid valves SL1, SL2, S1, S2, S3, S4 and SR which is controlled by the ECM. If an open or short circuit occurs in one of the shift solenoid valves, the ECM controls the remaining normal shift solenoid valve to allow the vehicle to be operated smoothly. (In case of an open or short circuit, the ECM stops sending current to the circuit.) Fail safe function.

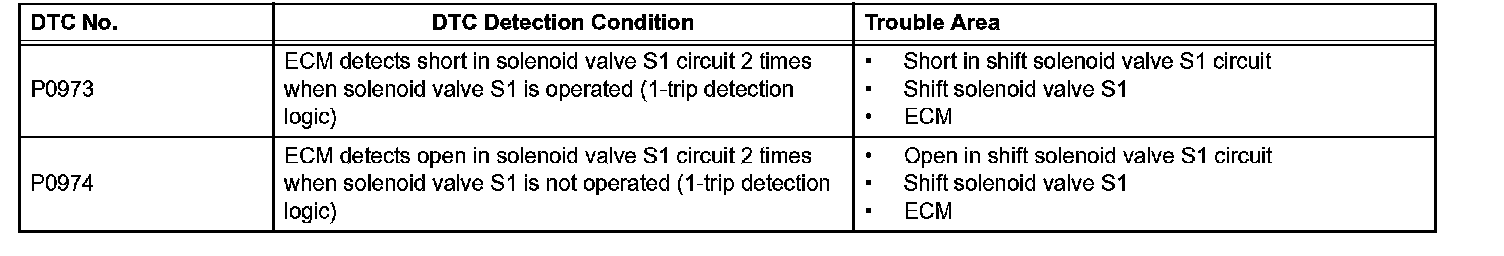

P0973-P0974:

MONITOR DESCRIPTION
These DTCs indicate an open or short in the shift solenoid valve S1 circuit. When there is an open or short circuit in any shift solenoid valve circuit, the ECM detects the problem and illuminates the MIL and stores the DTC. When the shift solenoid valve S1 is on, if resistance is 8 Ohms or less, the ECM determines there is a short in the shift solenoid valve S1 circuit.

When the shift solenoid valve S1 is off, if resistance is 100 k Ohms or more, the ECM determines there is an open in the shift solenoid valve S1 circuit.

MONITOR STRATEGY

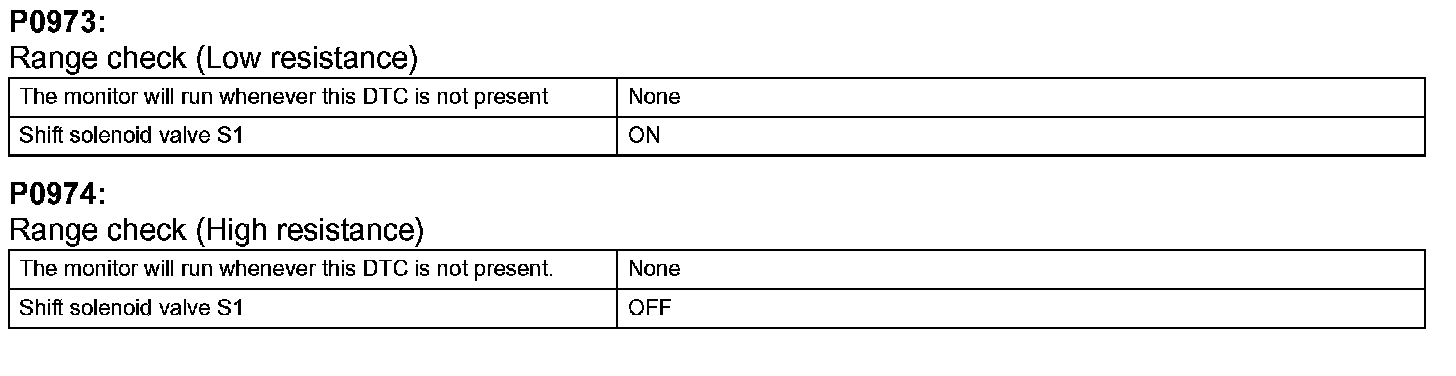

TYPICAL ENABLING CONDITIONS

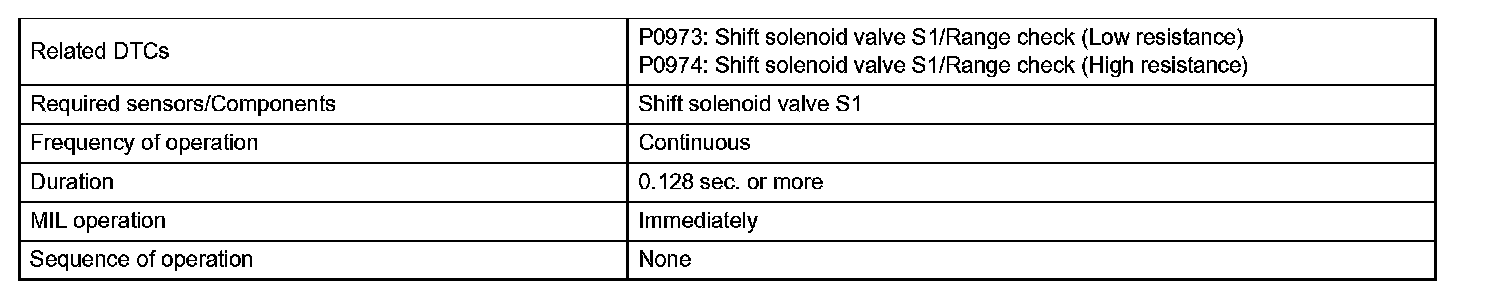

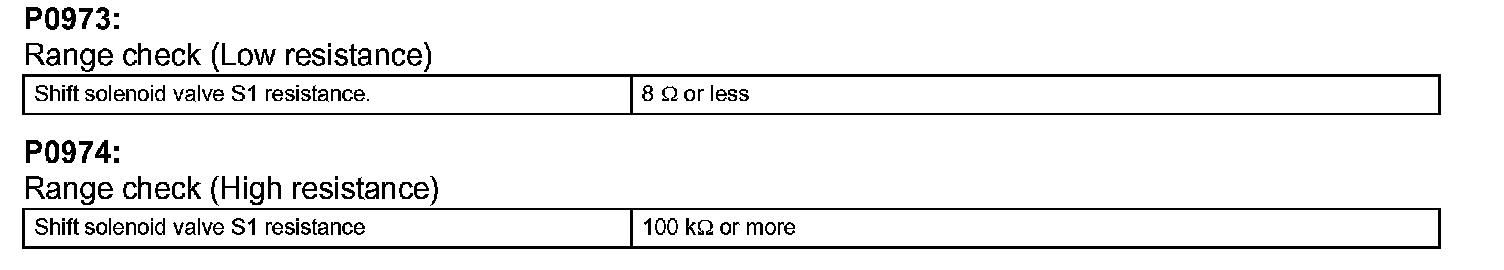

TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE

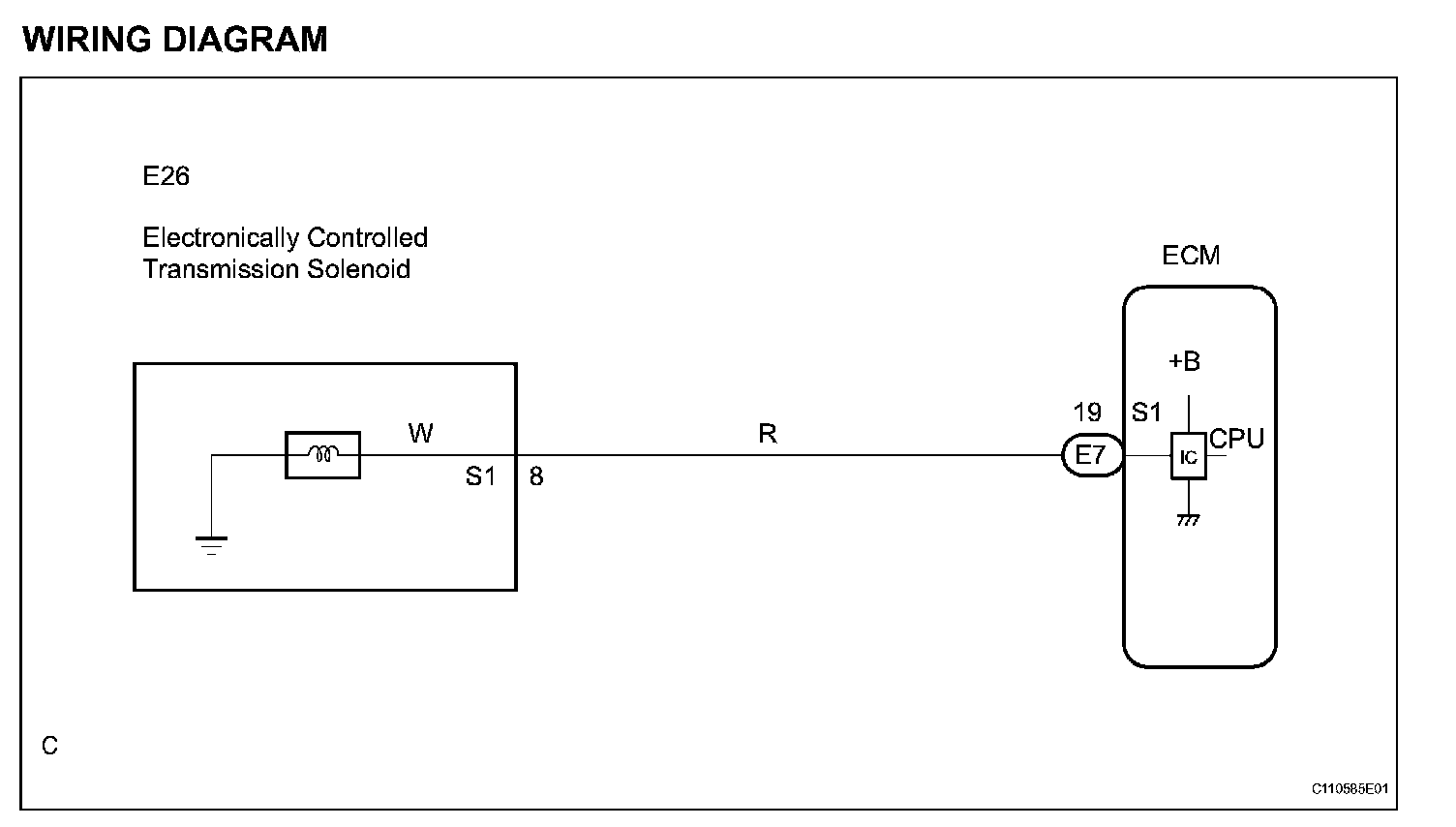

WIRING DIAGRAM:

INSPECTION PROCEDURE

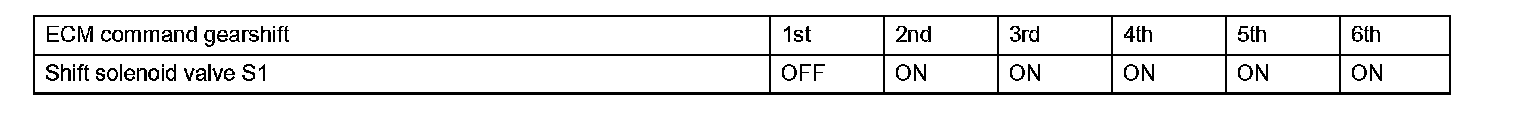

HINT: The shift solenoid valve S1 is turned on/off normally when the shift lever is in the D position:

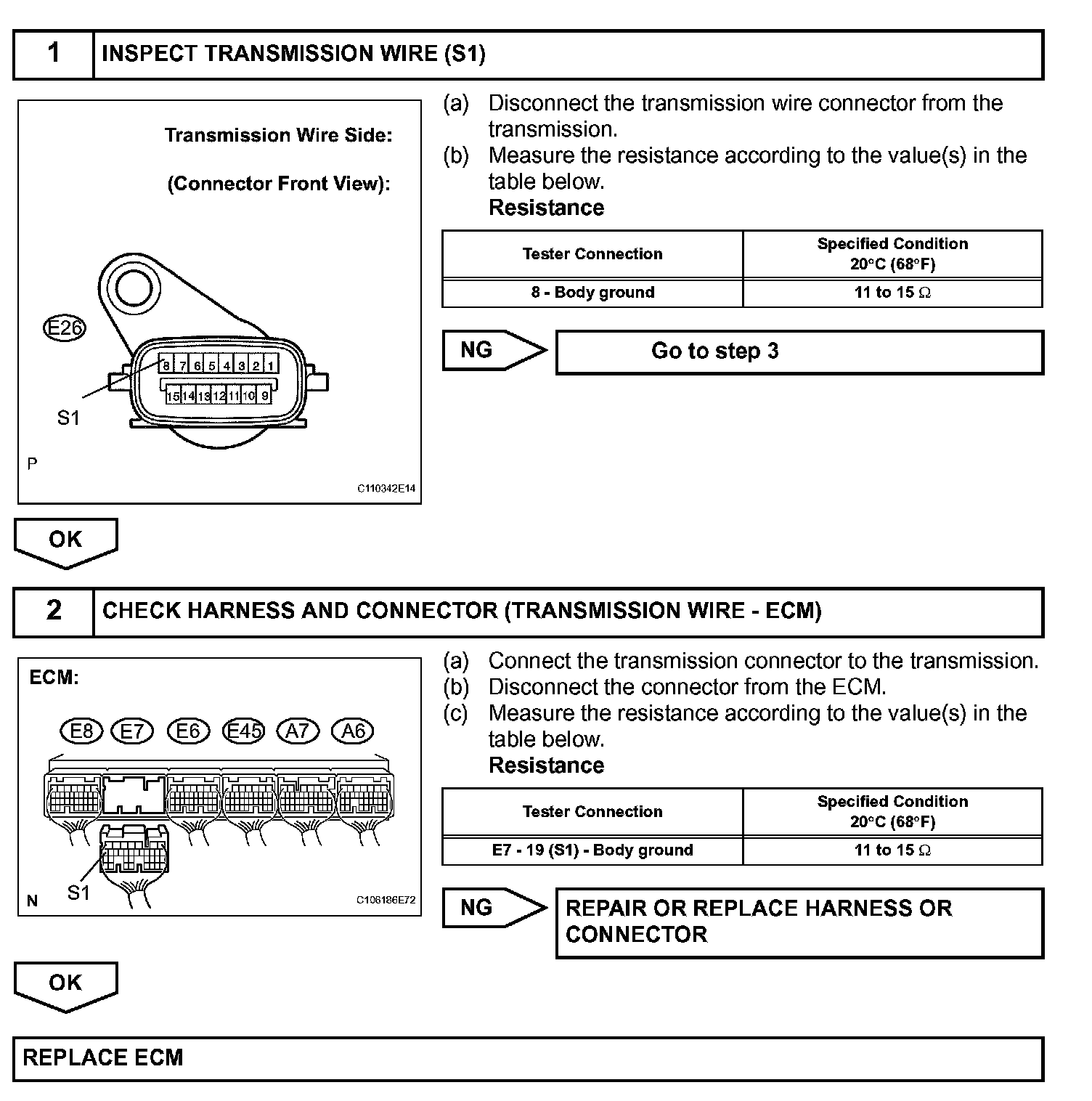

Steps 1-2:

Step 3:
