P0657

DTC P0657 Actuator Supply Voltage Circuit / Open

DESCRIPTION

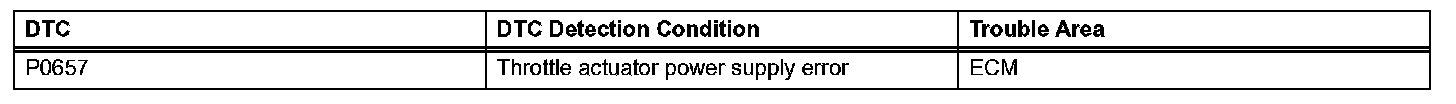

DTC Detection Condition:

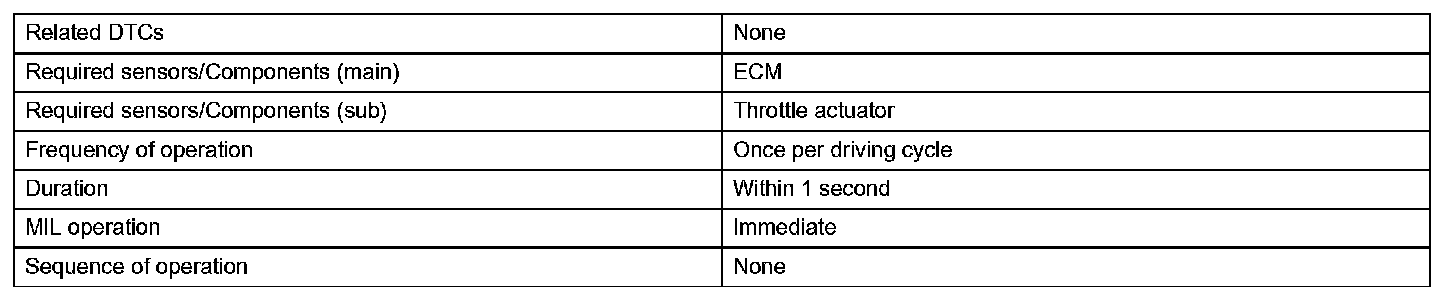

Monitor Strategy:

Typical Enabling Conditions:

Typical Malfunction Thresholds:

The ECM monitors the output voltage to the throttle actuator. This self- check ensures that the ECM is functioning properly. The output voltage is usually 0 V when the engine switch is turned off. If the output voltage is higher than 7 V when the engine switch is turned off, the ECM will illuminate the MIL and set the DTC when the engine switch is turned on (IG).

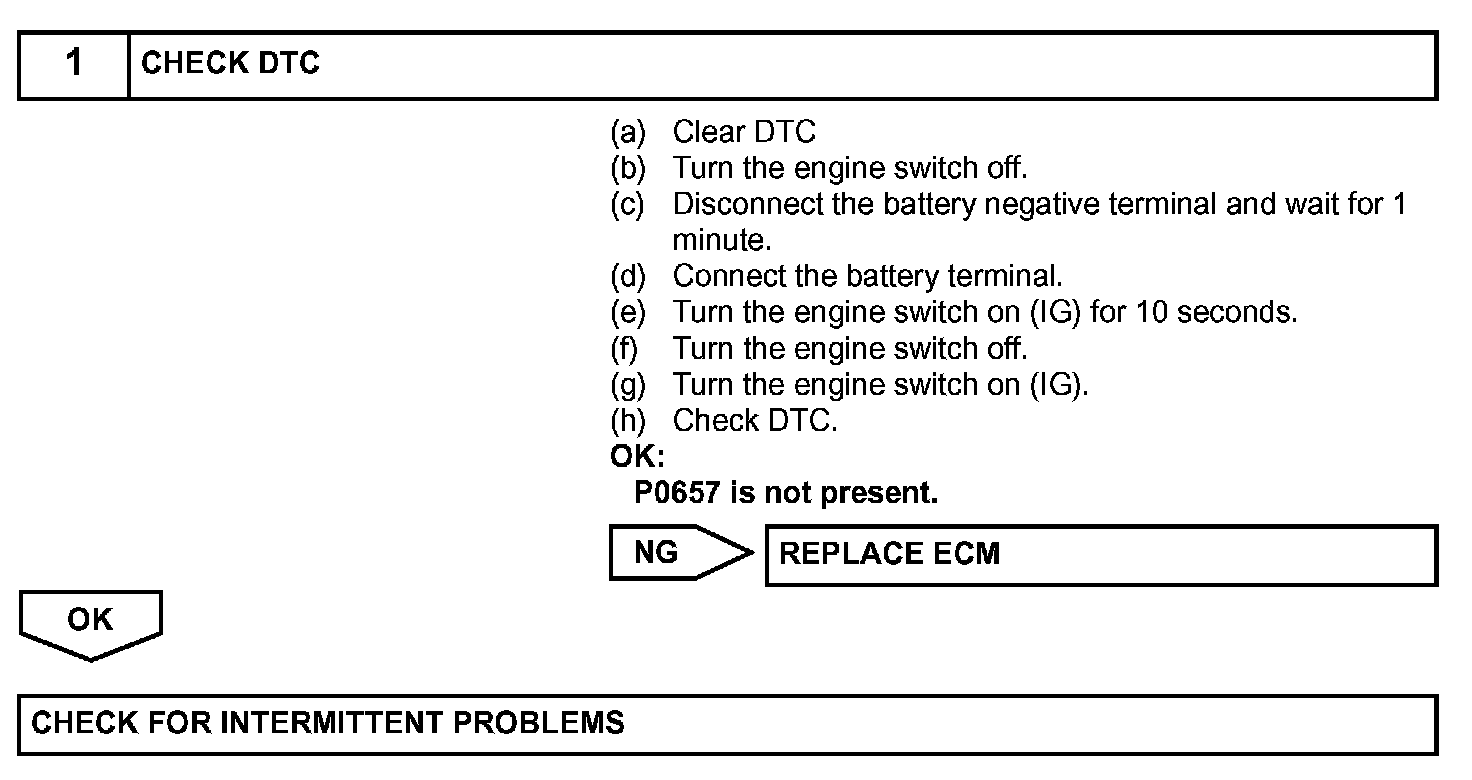

Step 1:

INSPECTION PROCEDURE
