P0604

DTC P0604 Internal Control Module Random Access Memory (RAM) Error

DESCRIPTION

DTC Detection Condition:

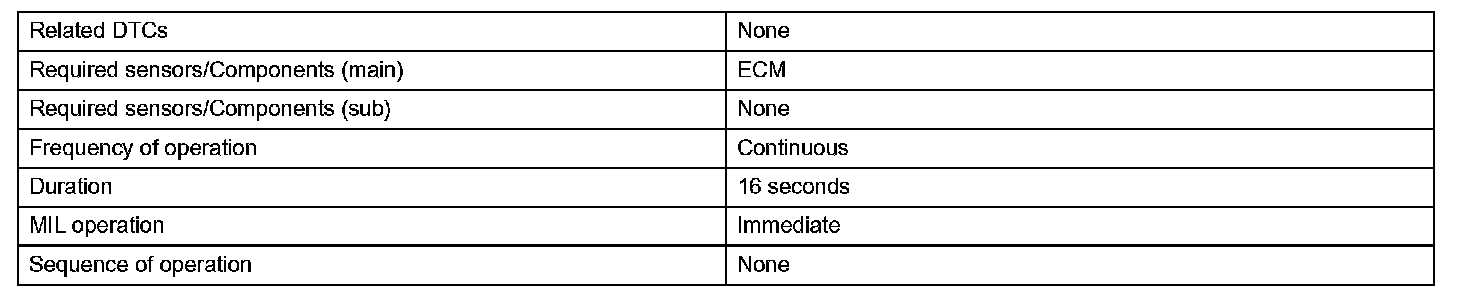

Monitor Strategy:

Typical Enabling Conditions:

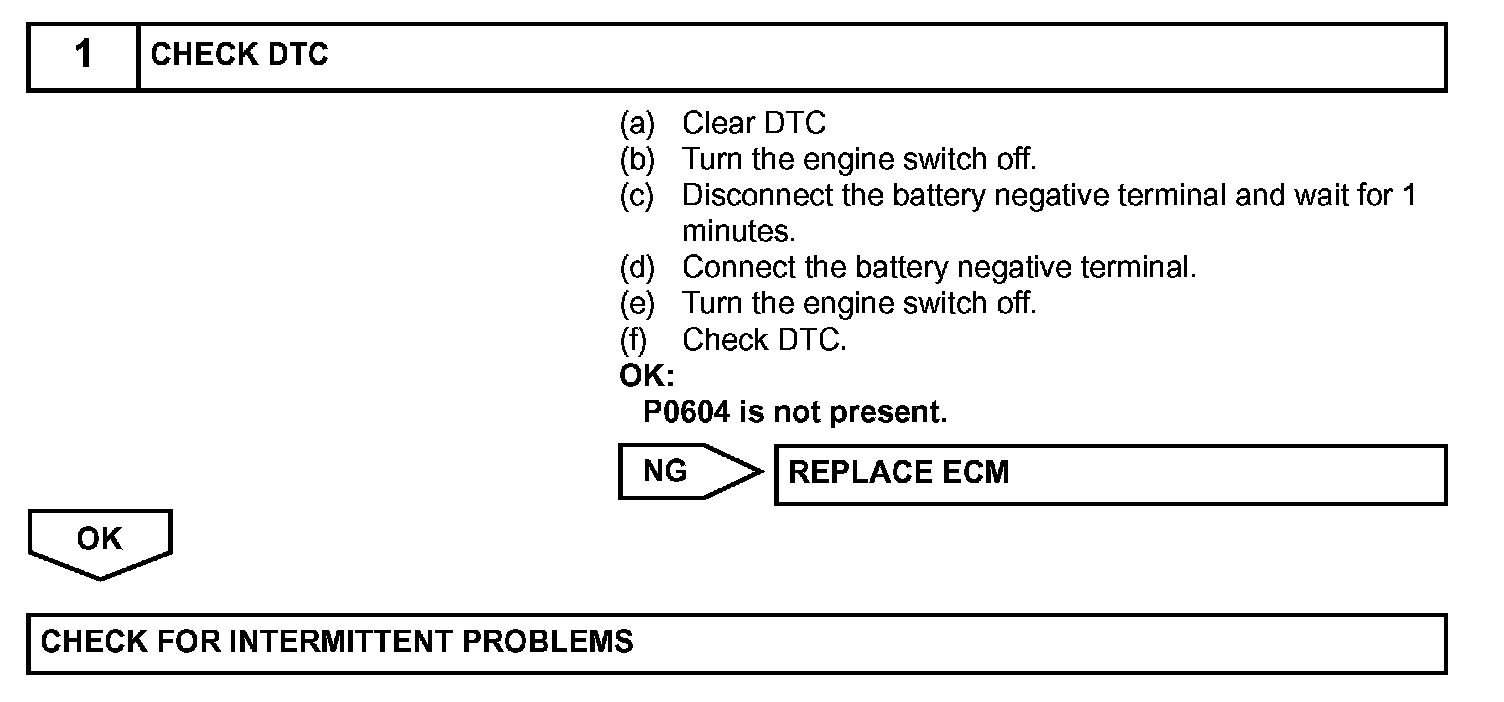

Step 1:

The ECM continuously monitors its internal memory status. This self-check ensures that the ECM is functioning properly. It is diagnosed by internal "mirroring" of the main CPU and sub CPU to detect the Random Access Memory (RAM) errors. If outputs from these CPUs are different and deviate from the standards, the ECM will illuminate the MIL and set the DTC immediately.

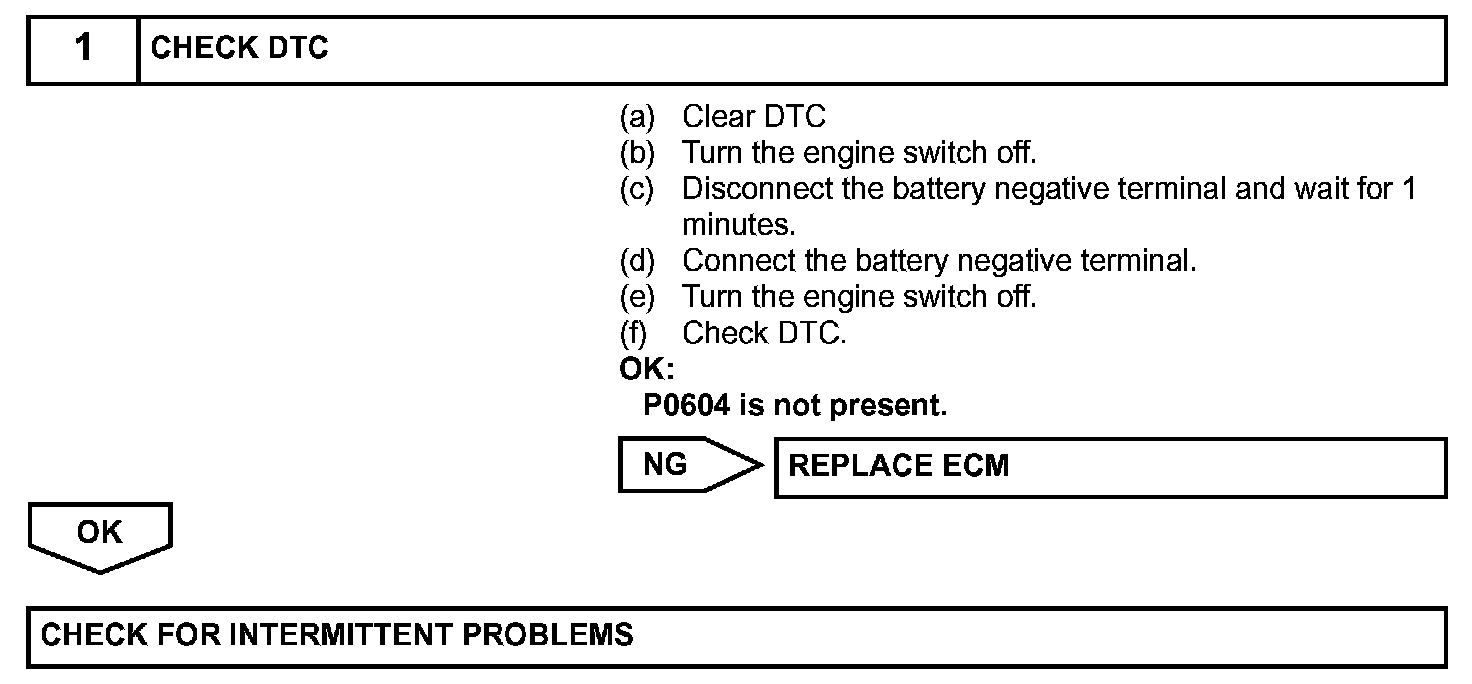

Step 1:

INSPECTION PROCEDURE
