Lost Communication With Power Steering Control Module
DTC U0131/56 Lost Communication with Power Steering Control ModuleDESCRIPTION
The steering control ECU receives signals from the power steering ECU via CAN communication. If the steering control ECU detects an error in reception, it will output this DTC.

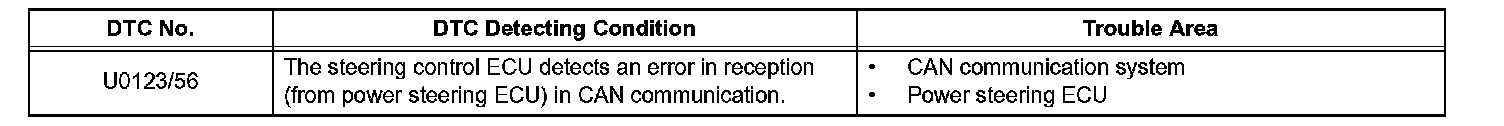

U0123/56:

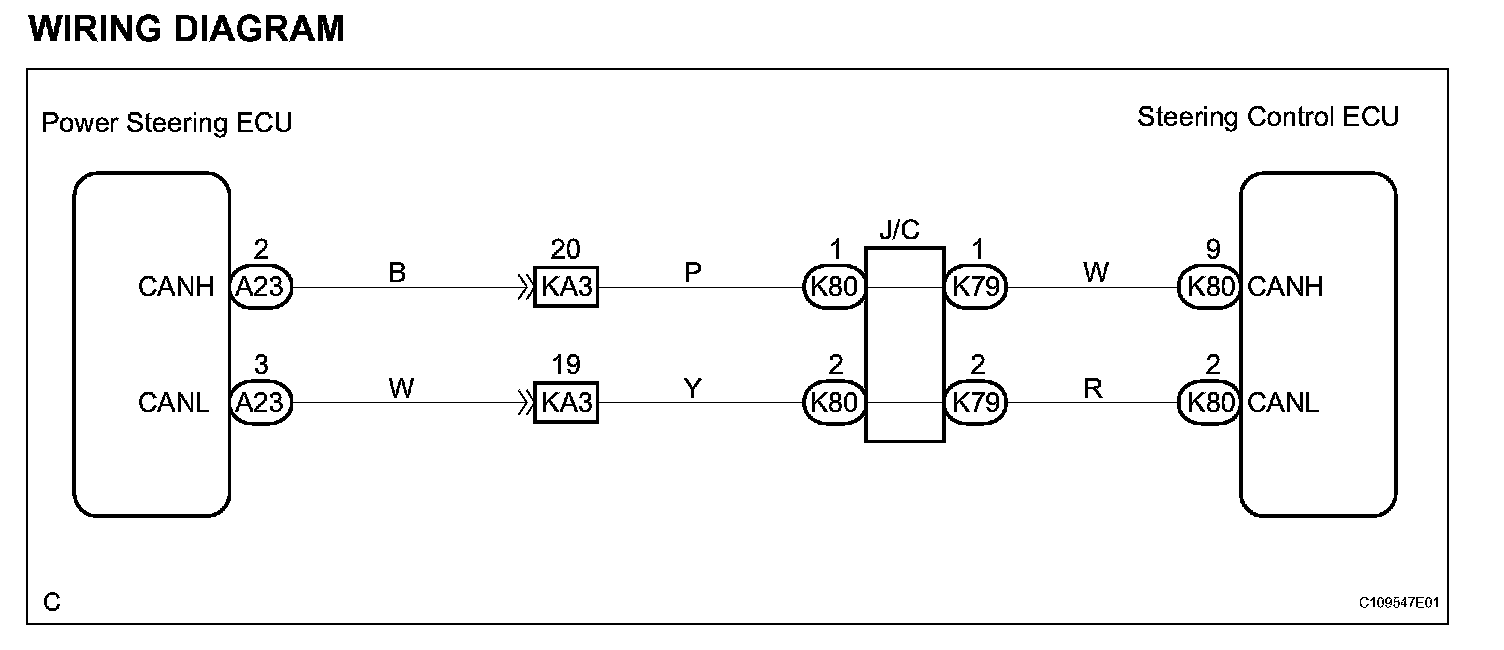

WIRING DIAGRAM:

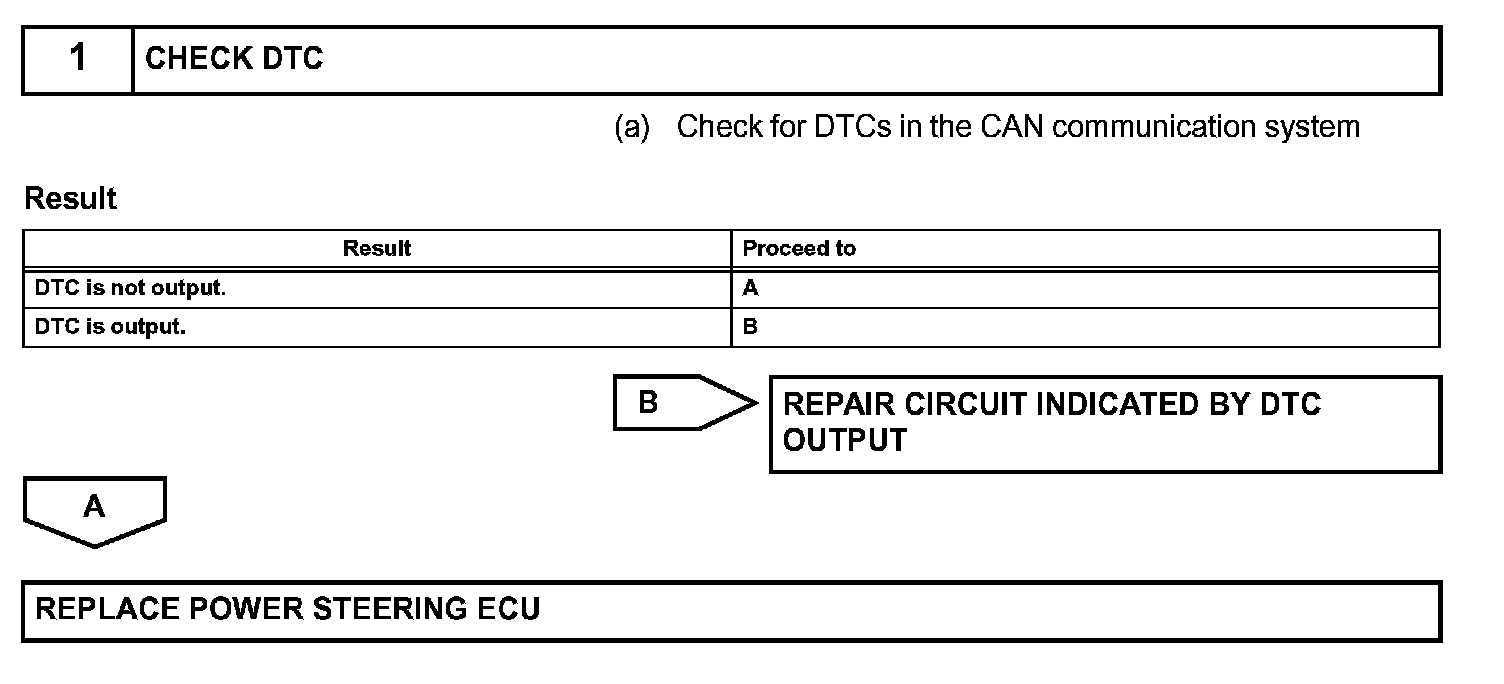

INSPECTION PROCEDURE
