Time-out Initialization Check of Rear Actuator

DTC C1905/13 Time-out Initialization Check of Rear Actuator

DESCRIPTION

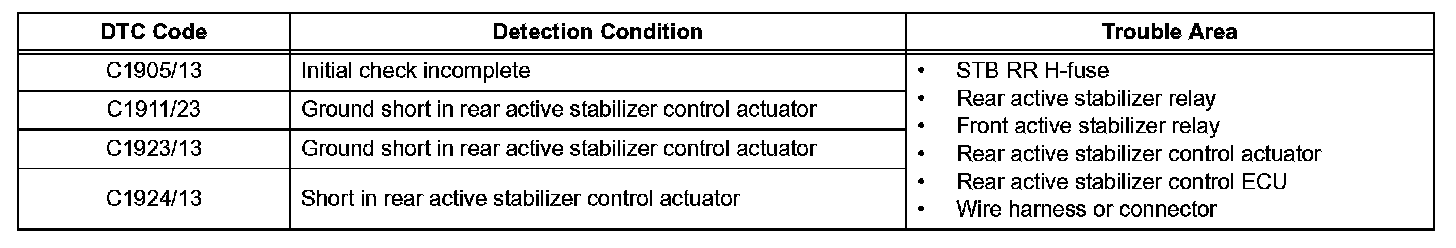

Detection Condition:

The rear active stabilizer control ECU and front active stabilizer control ECU use CAN communication to perform a mutual system check. If a problem occurs in the rear active stabilizer control ECU, rear active stabilizer control actuator, and PIG power source circuit, DTCs C1905/13, C1911/23, C1923/13 and C1924/13 are recorded.

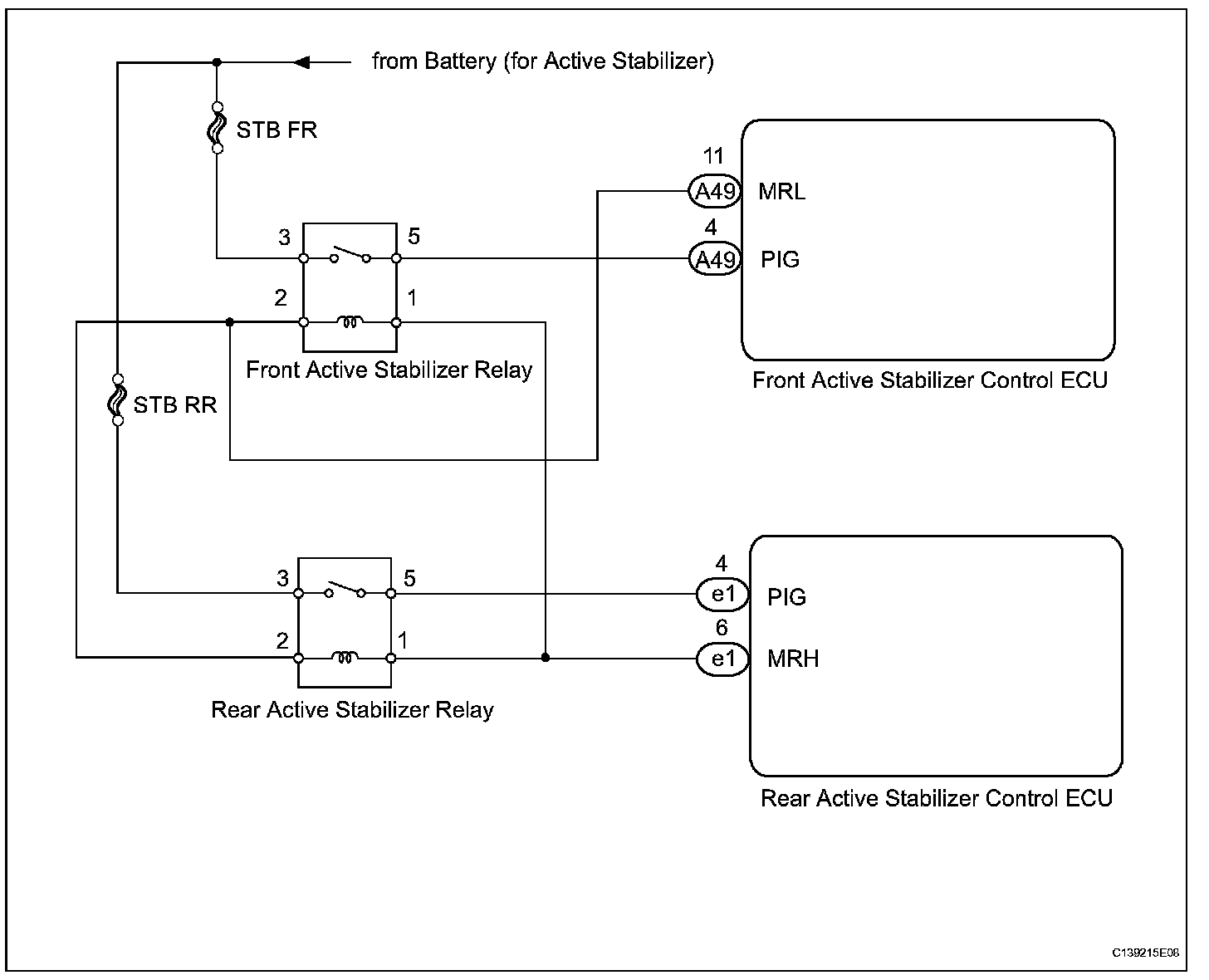

Wiring Diagram:

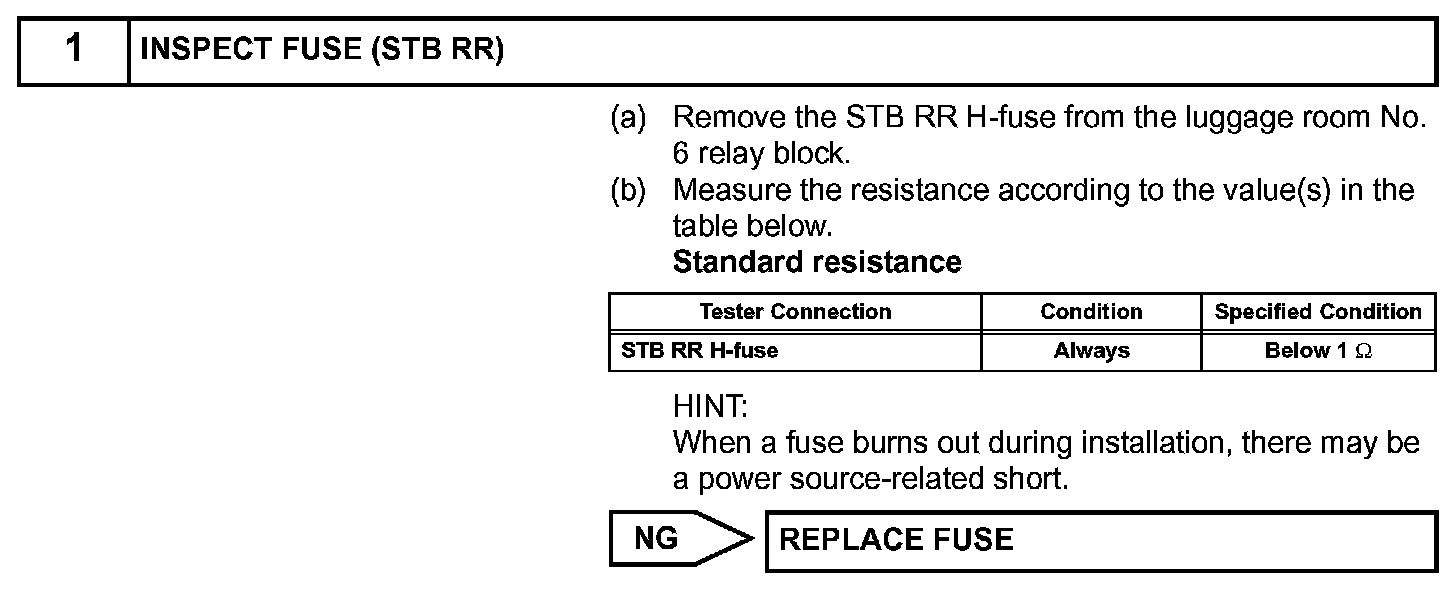

Step 1:

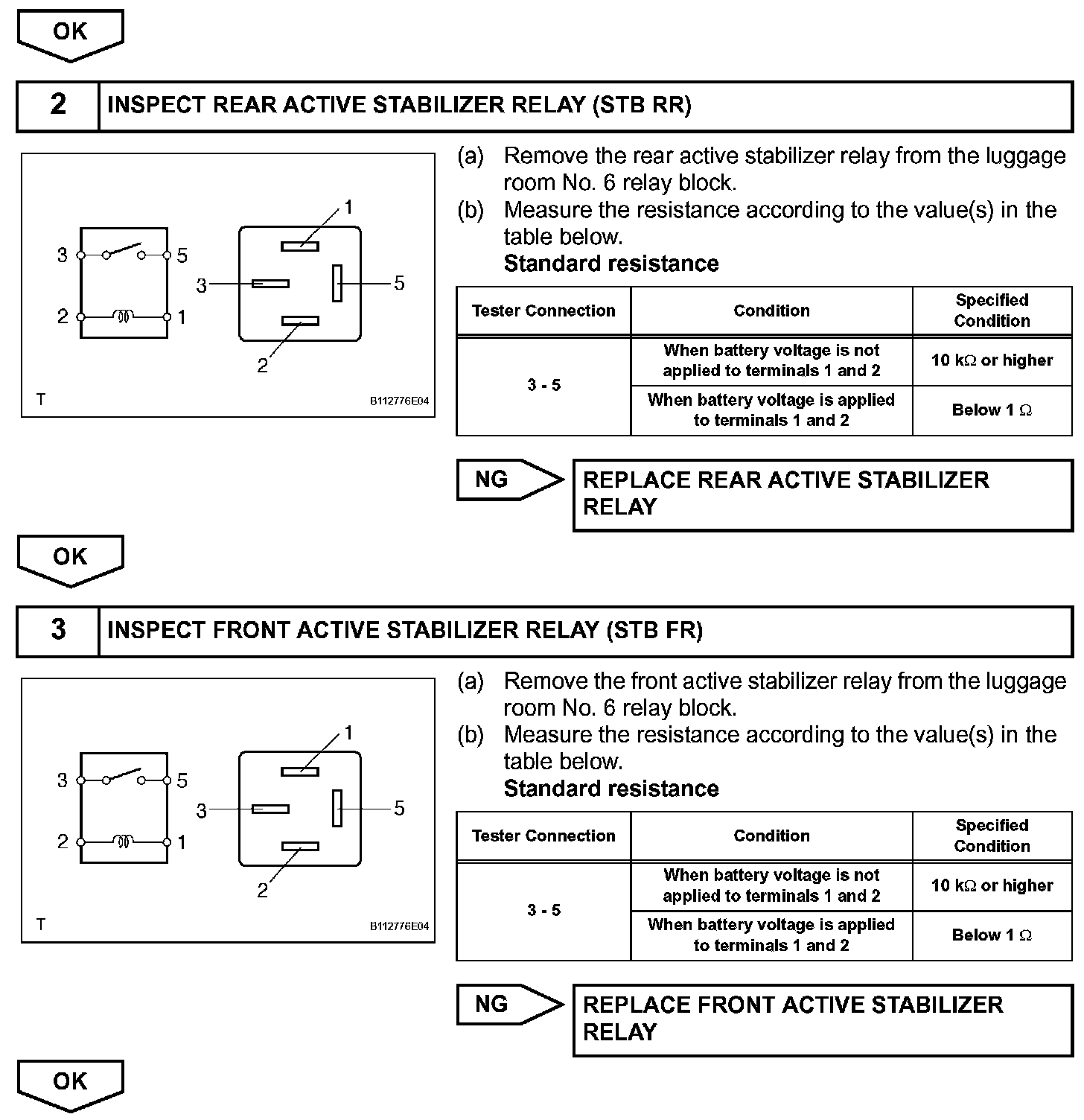

Step 1(Continued)-3:

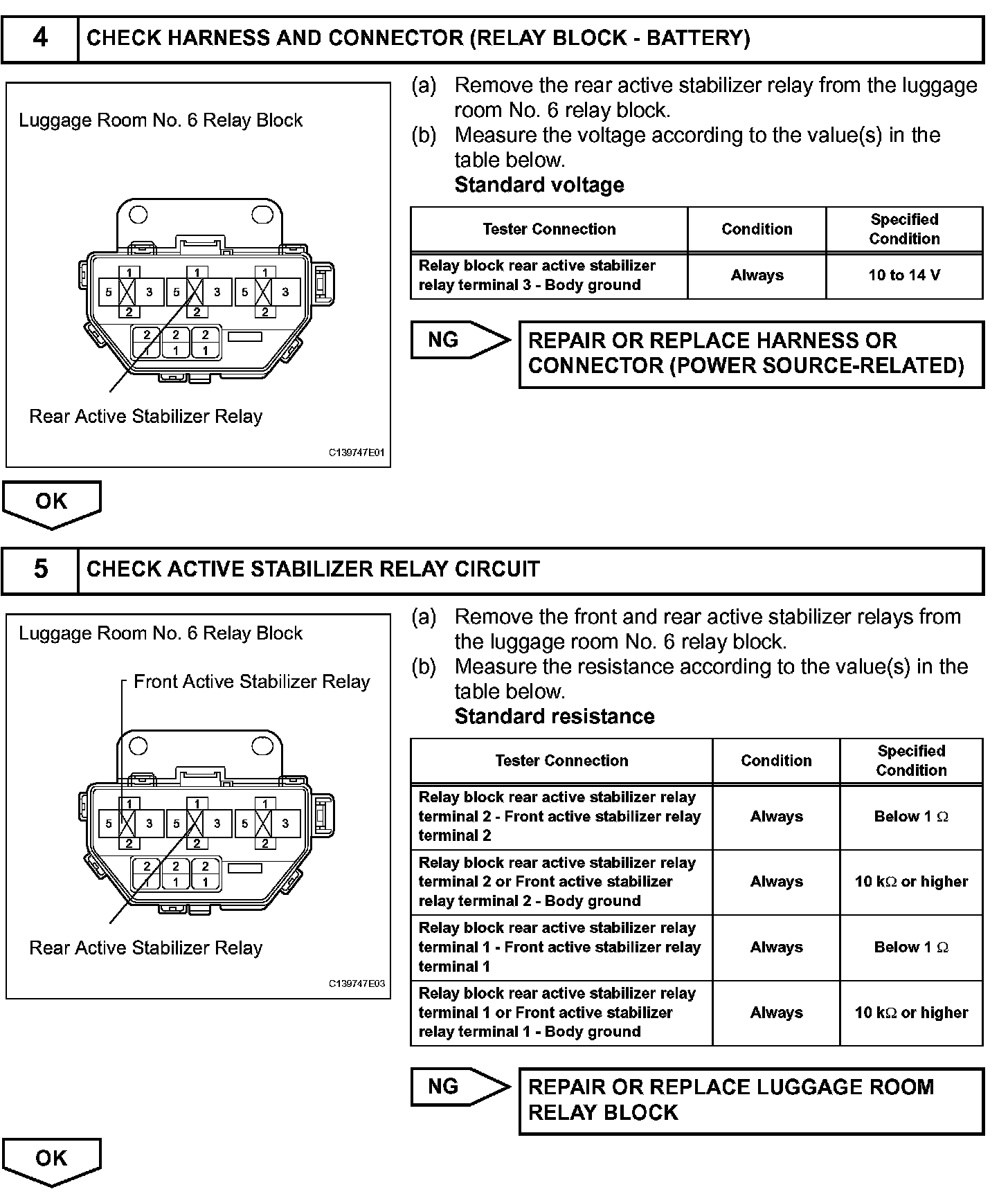

Step 4-5:

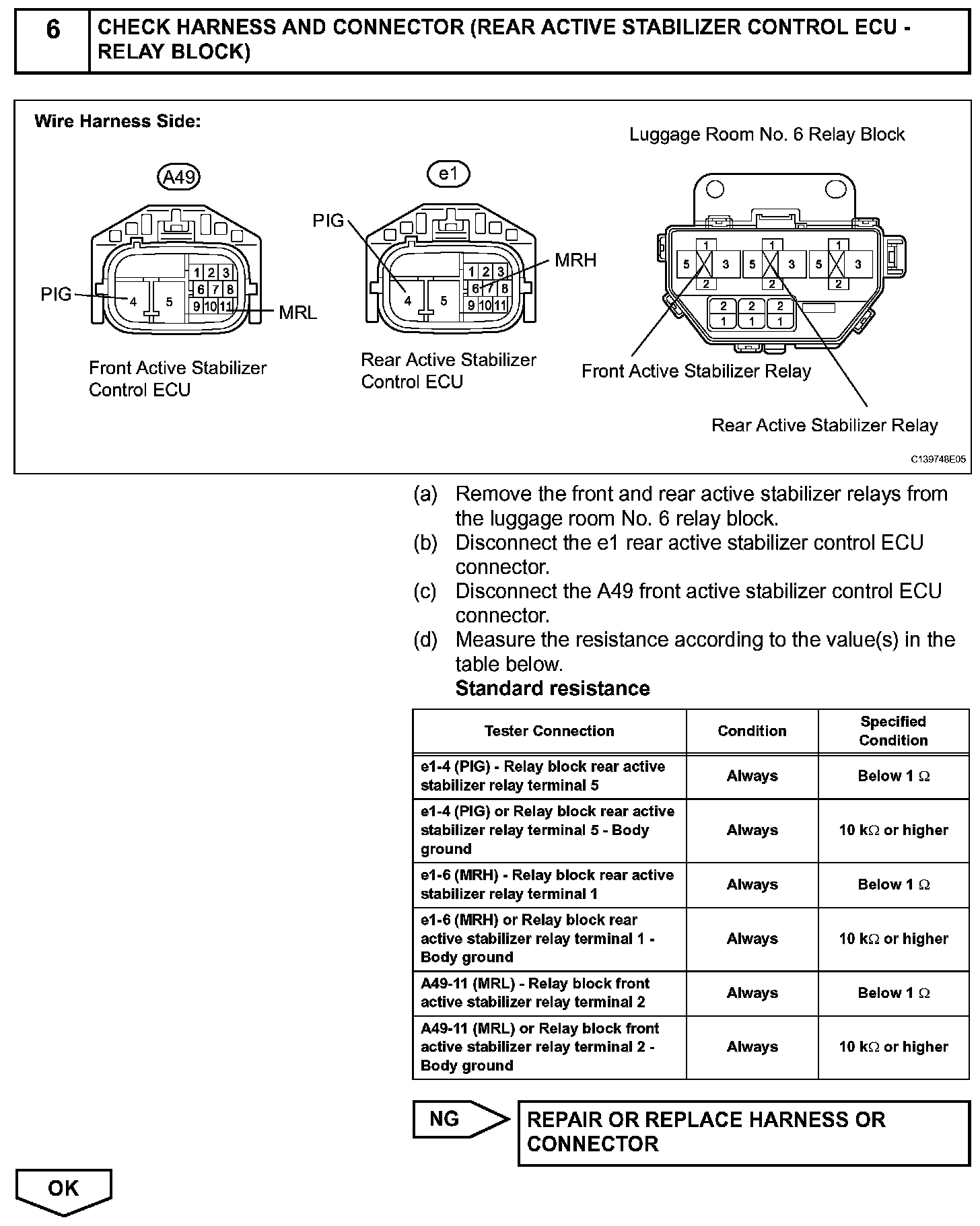

Step 6:

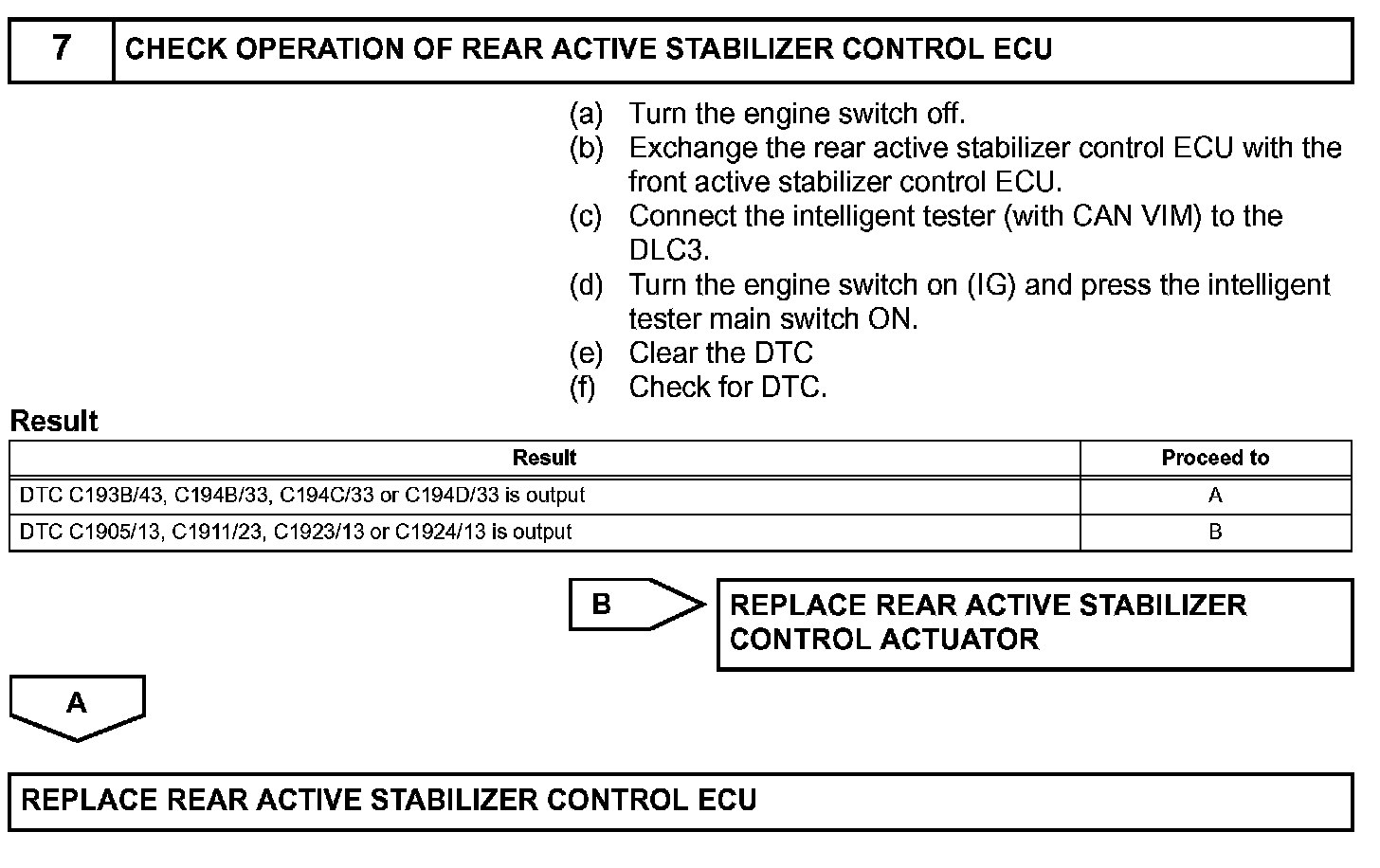

Step 7:

INSPECTION PROCEDURE
