SFI System

DIAGNOSTIC TROUBLE CODE CHART

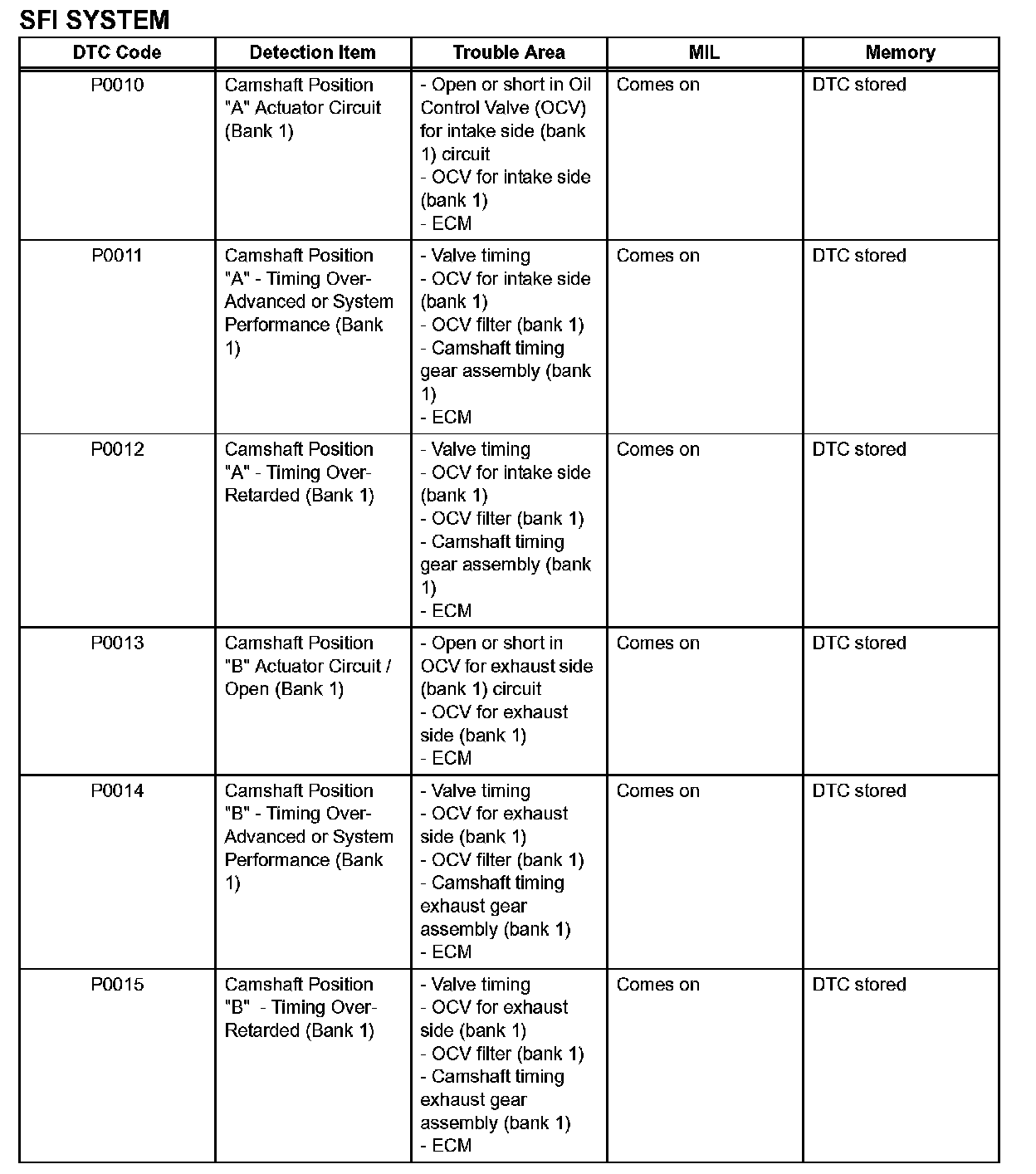

P0010-P0015:

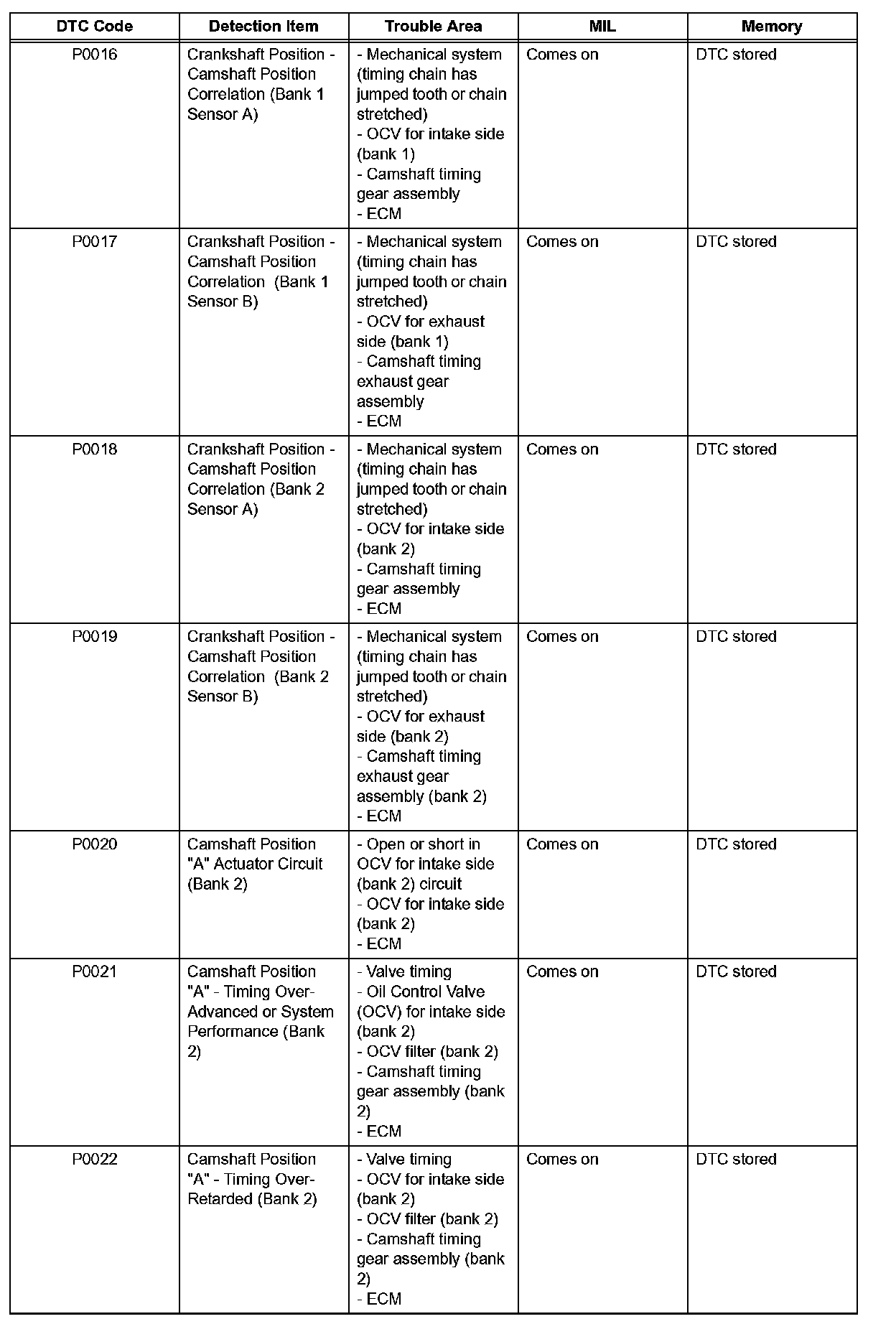

P0016-P0022:

P0023-P0051:

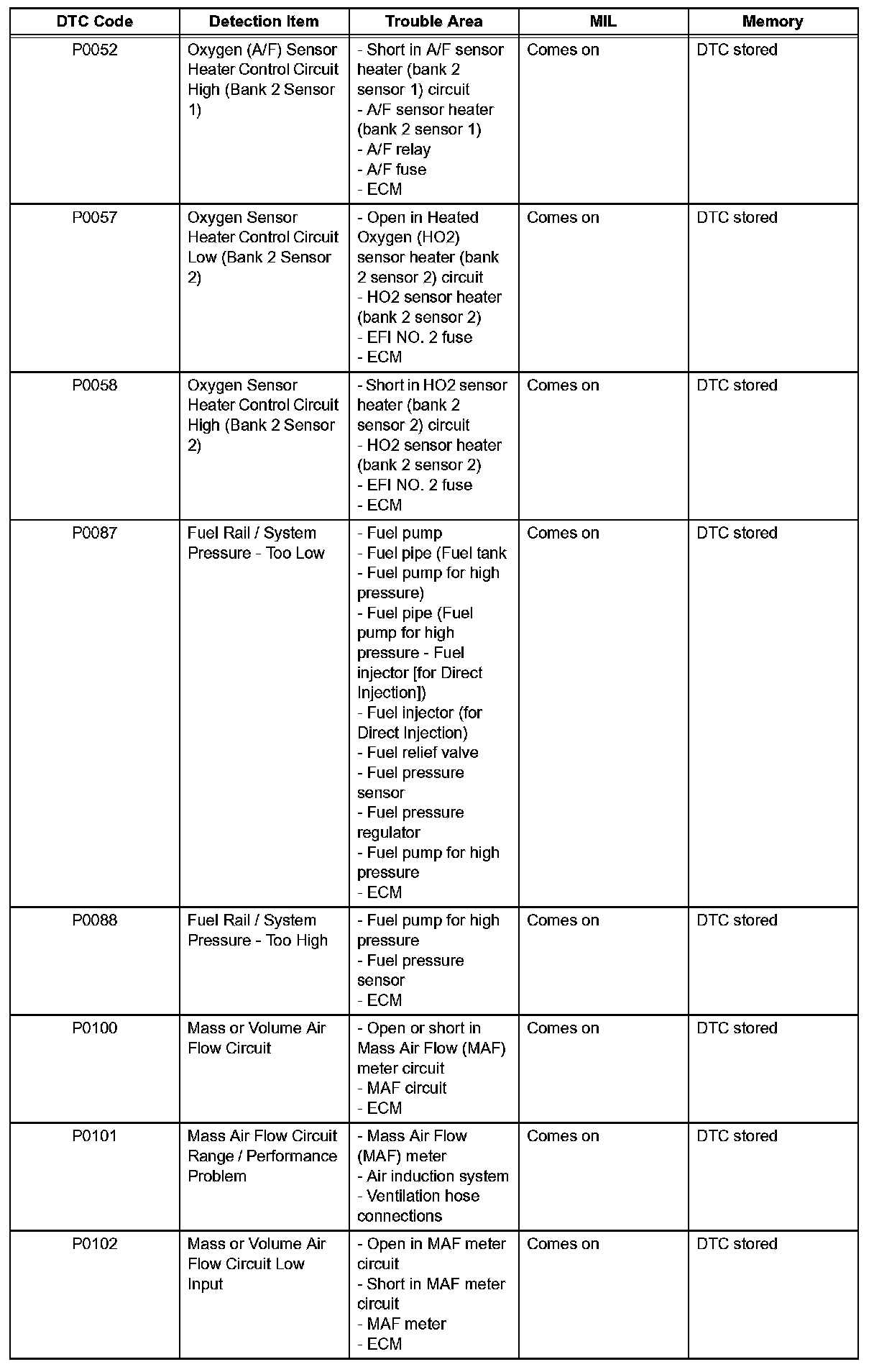

P0052-P0102:

P0103-P0123:

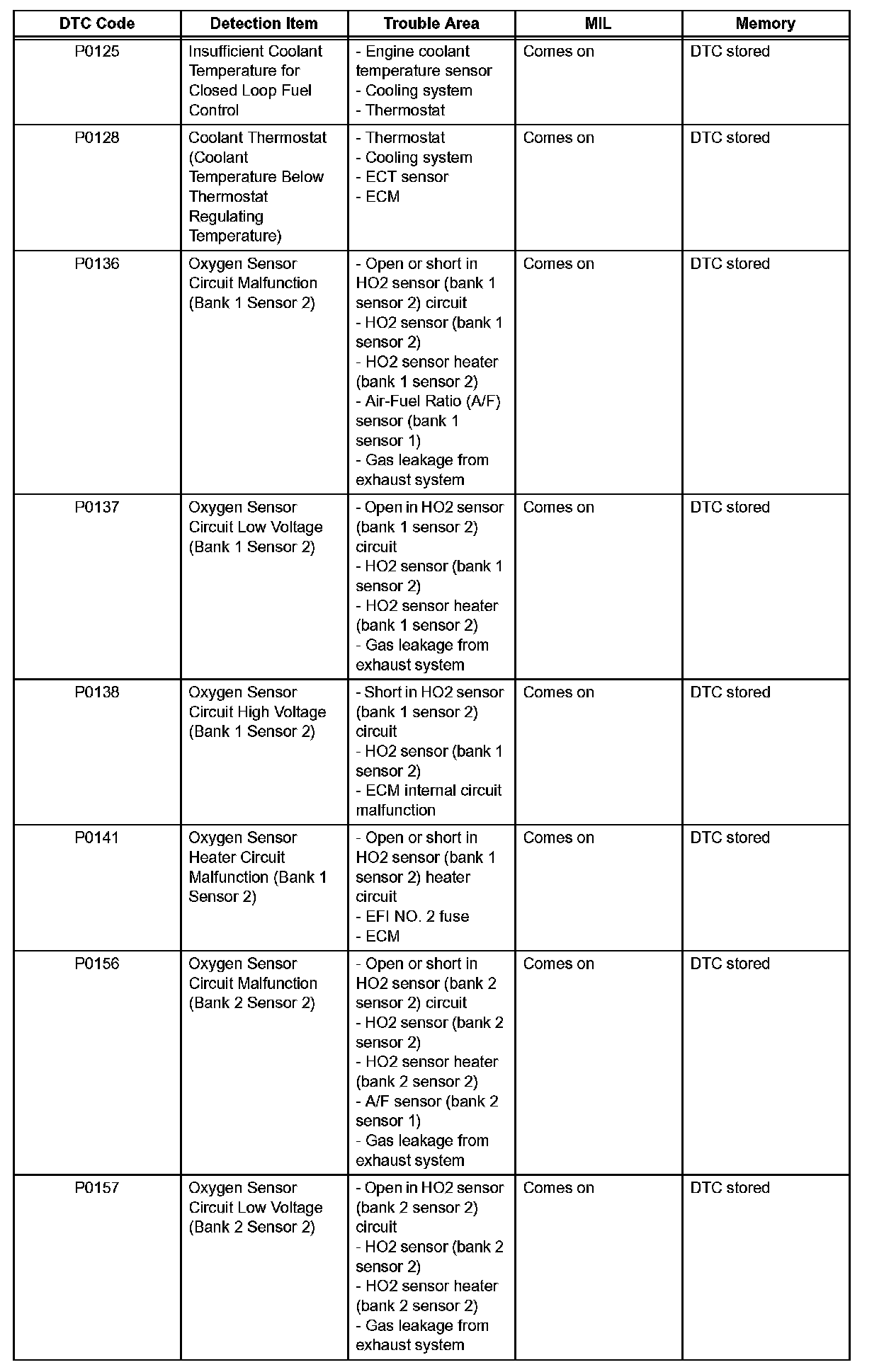

P0125-P0157:

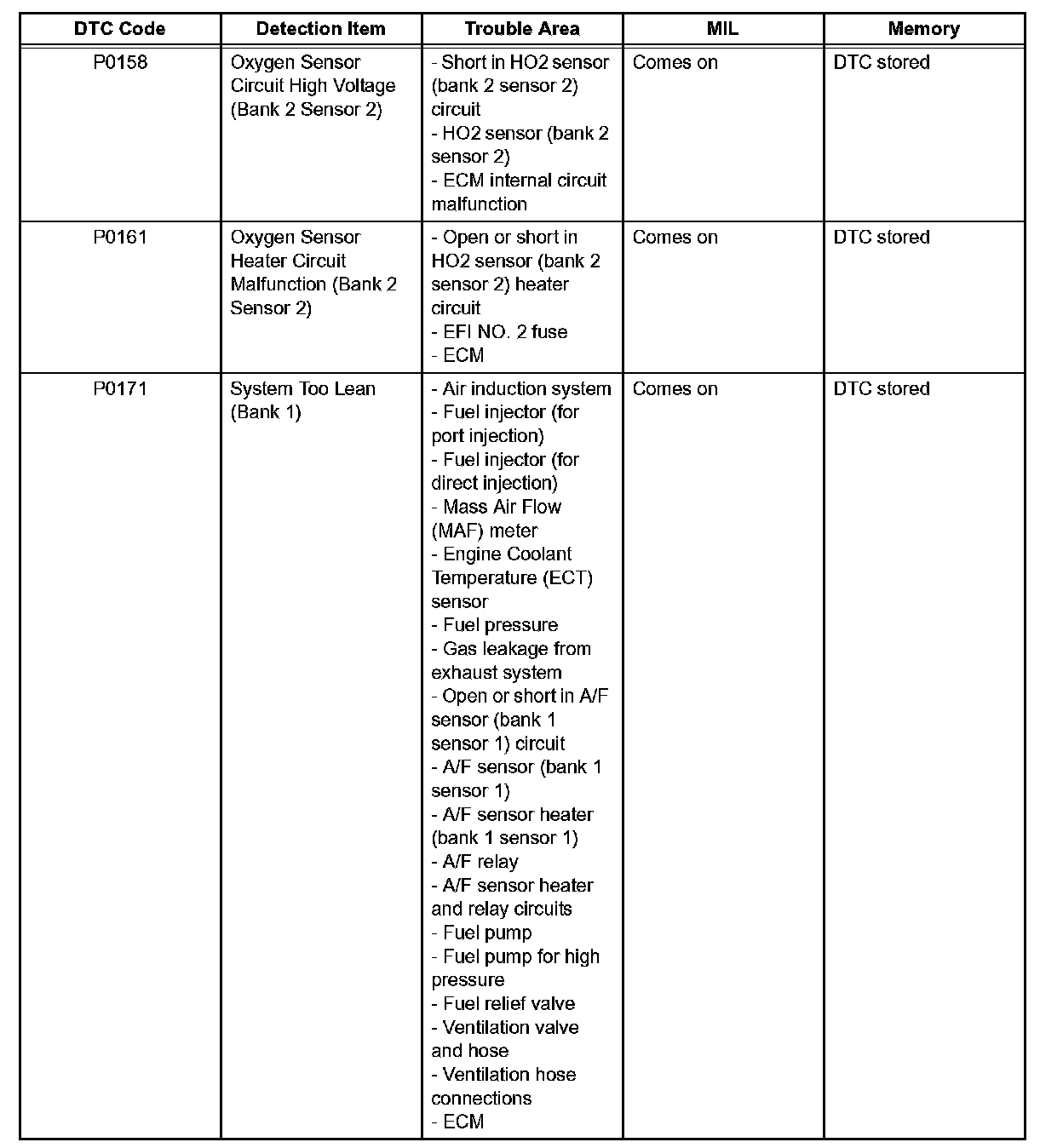

P0158-P0171:

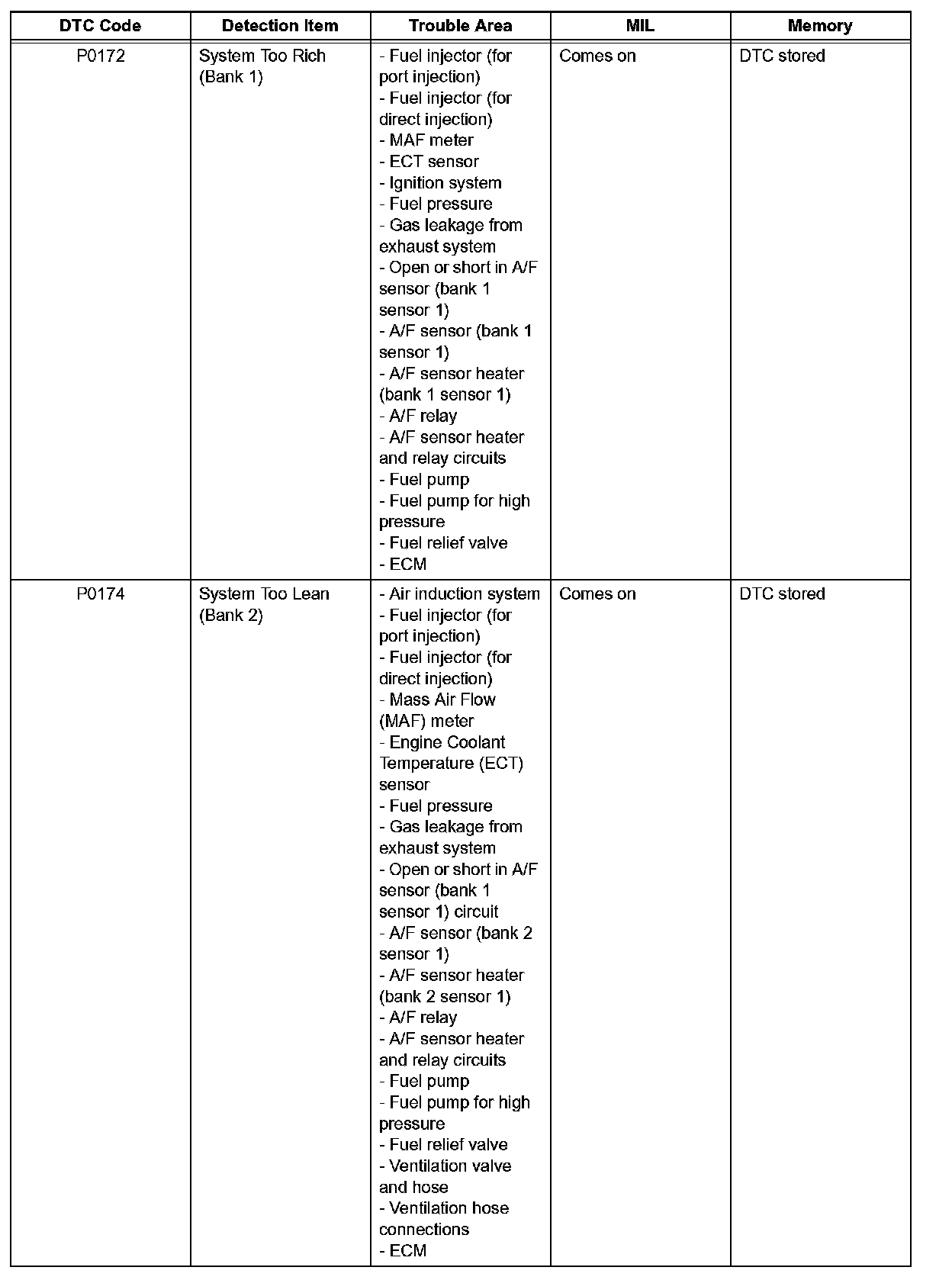

P0172-P0174:

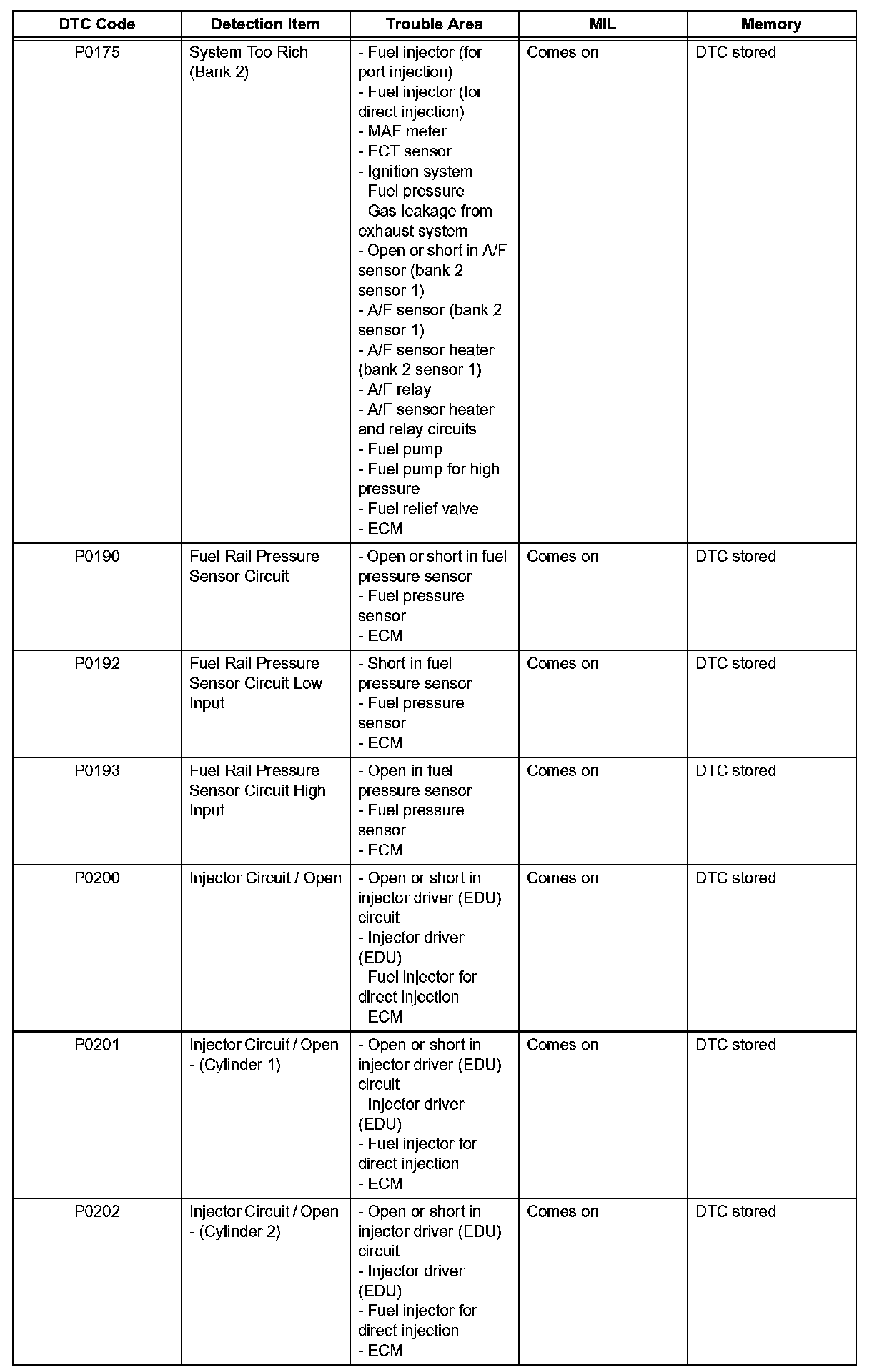

P0175-P0202:

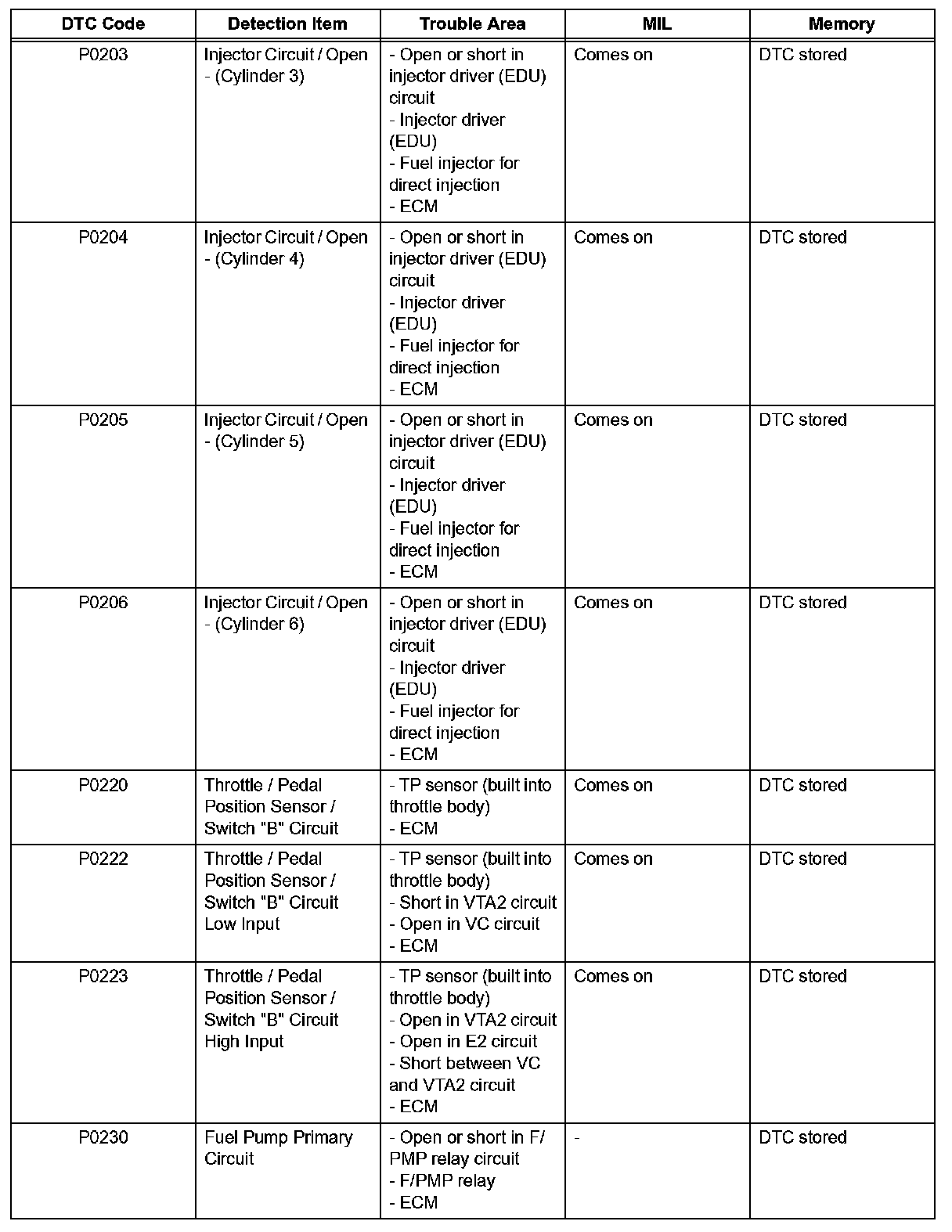

P0203-P0230:

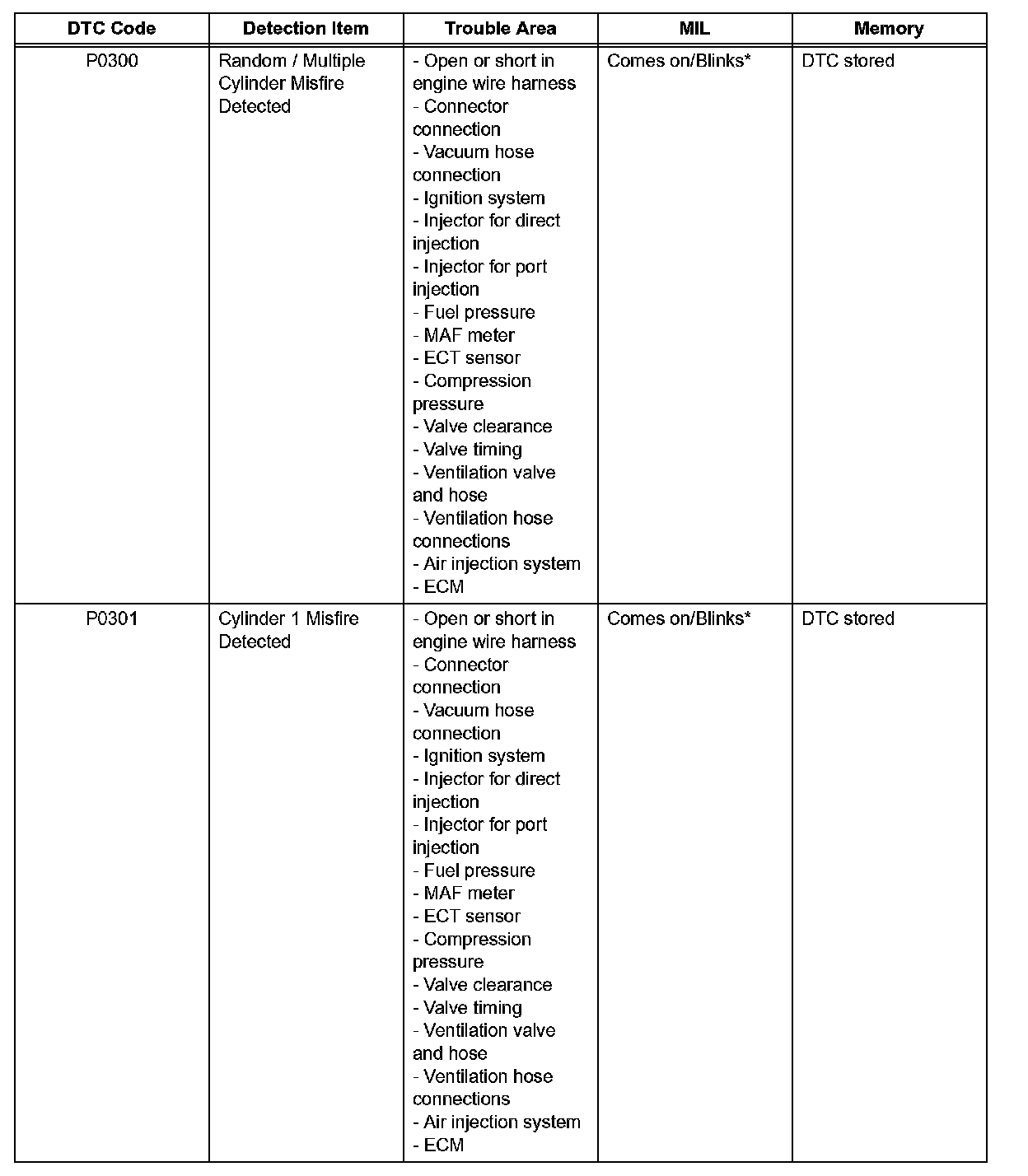

P0300-P0301:

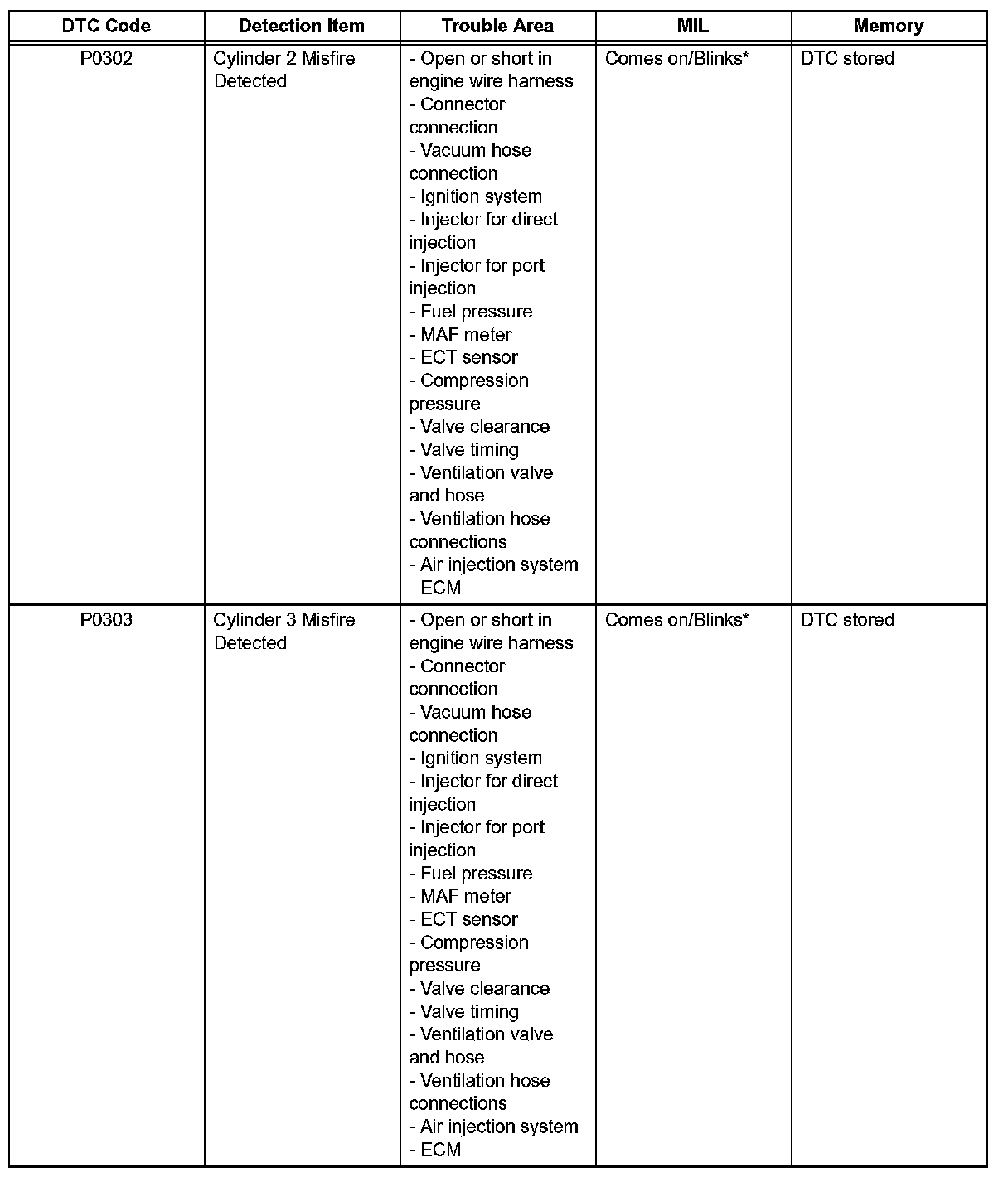

P0302-P0303:

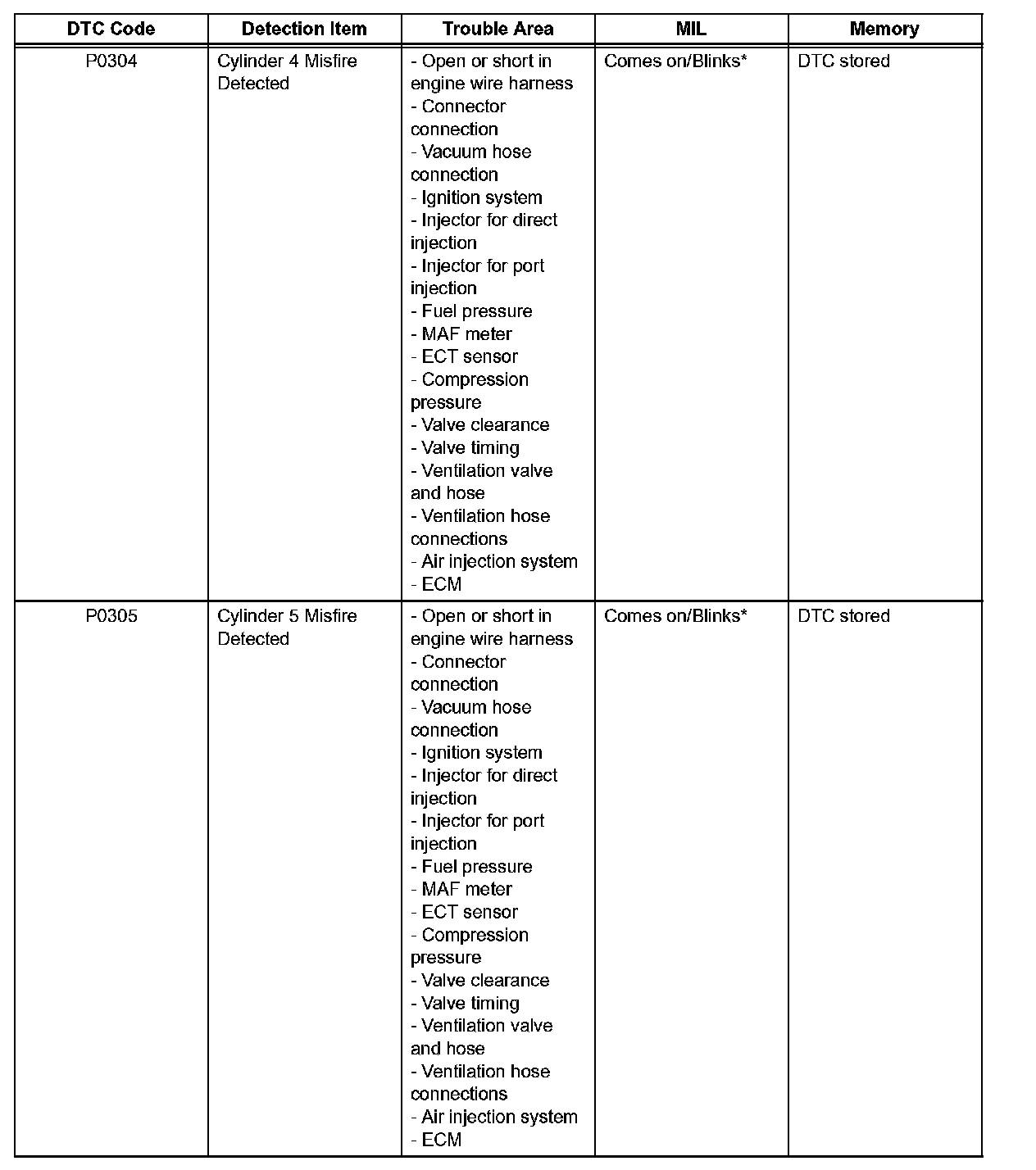

P0304-P0305:

P0306-P0340:

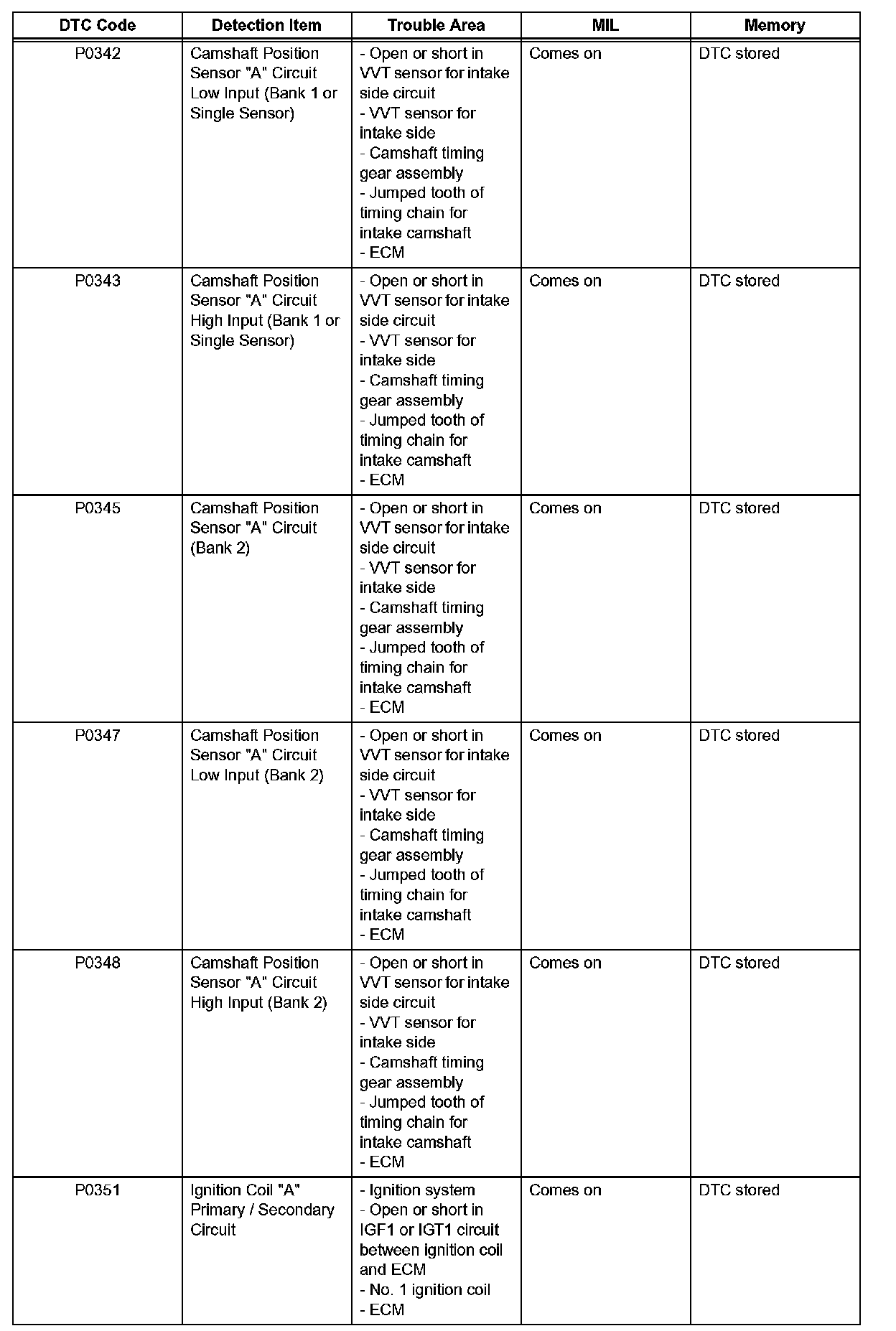

P0342-P0351:

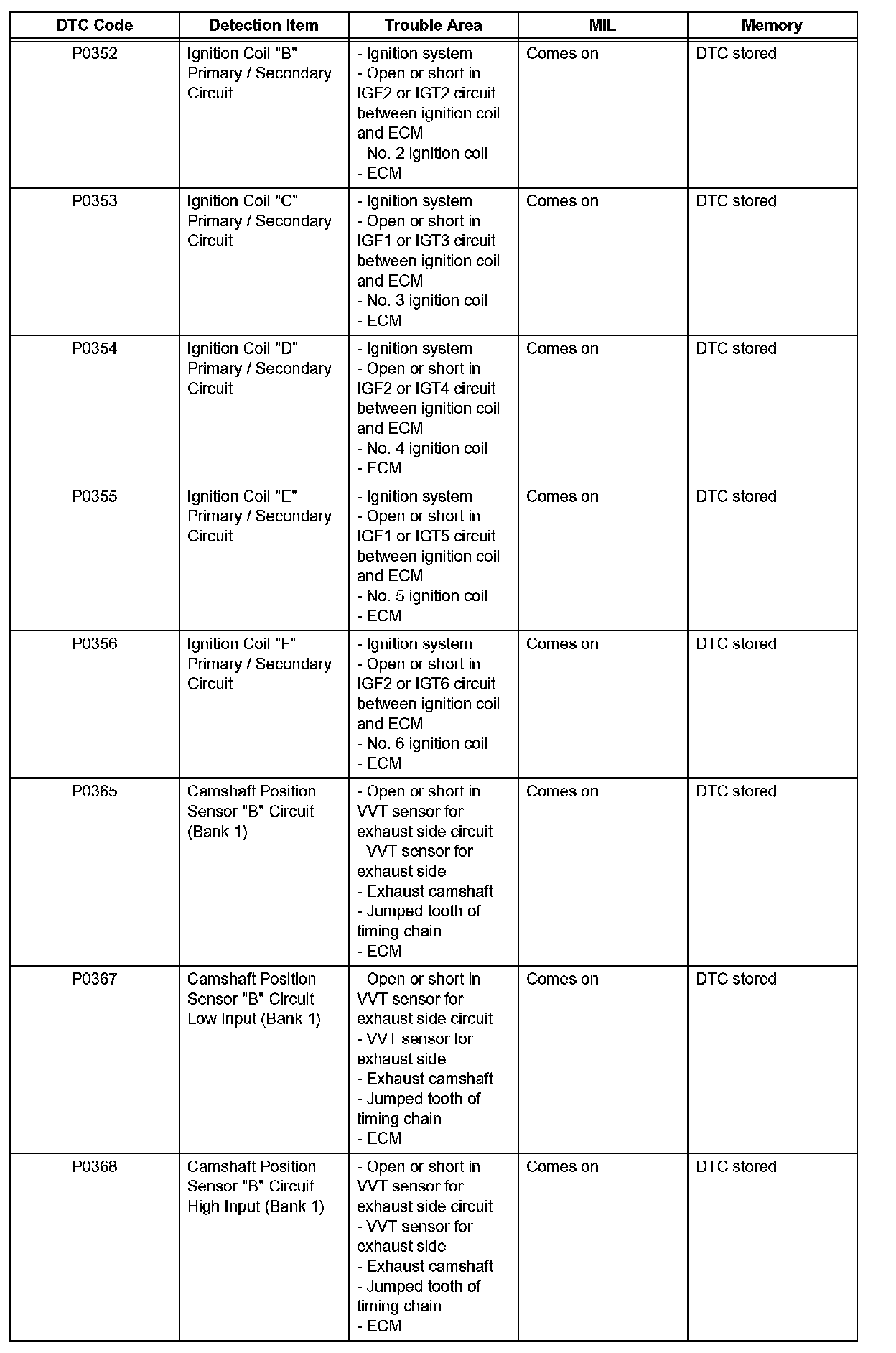

P0352-P0368:

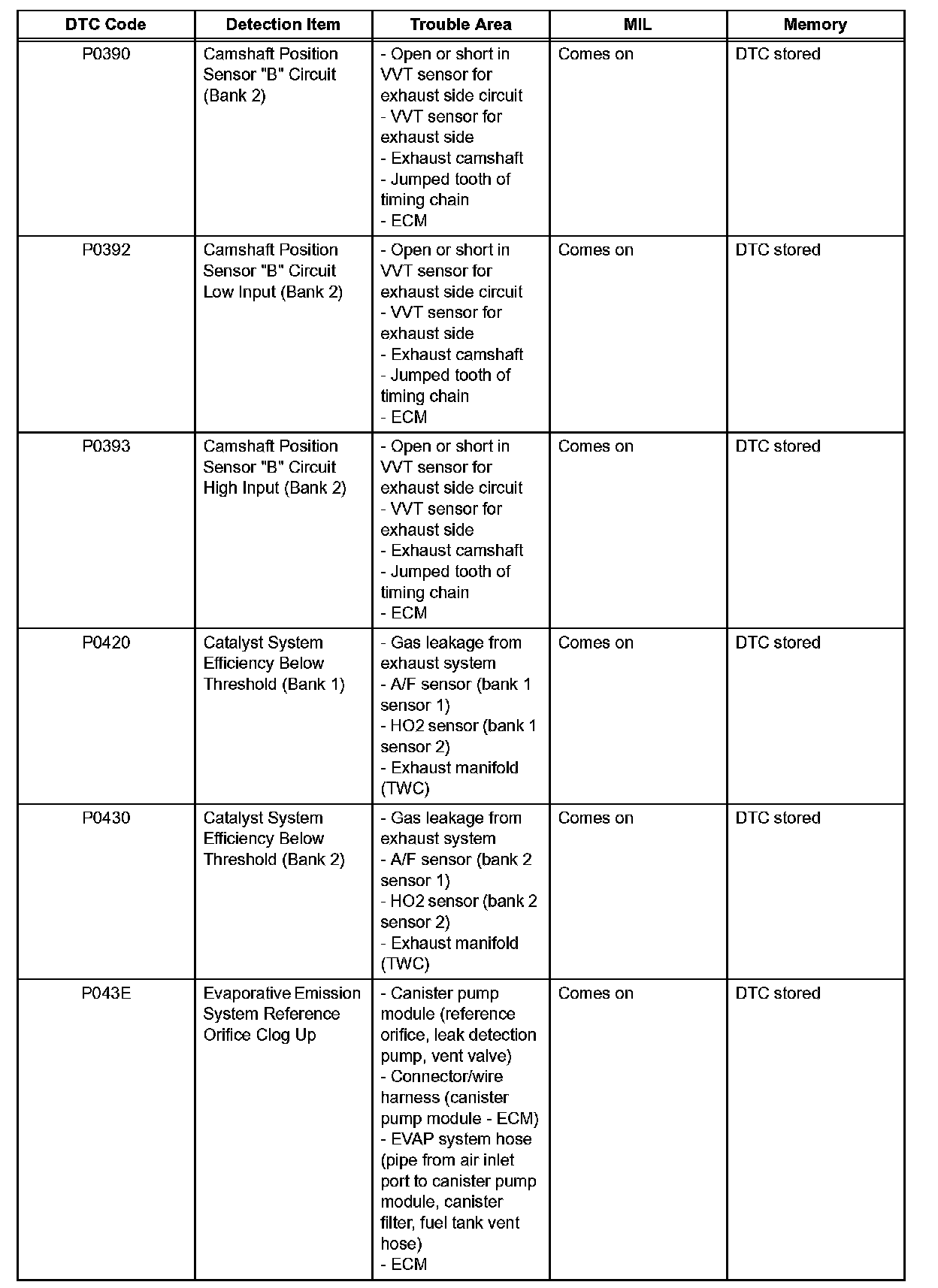

P0390-P043E:

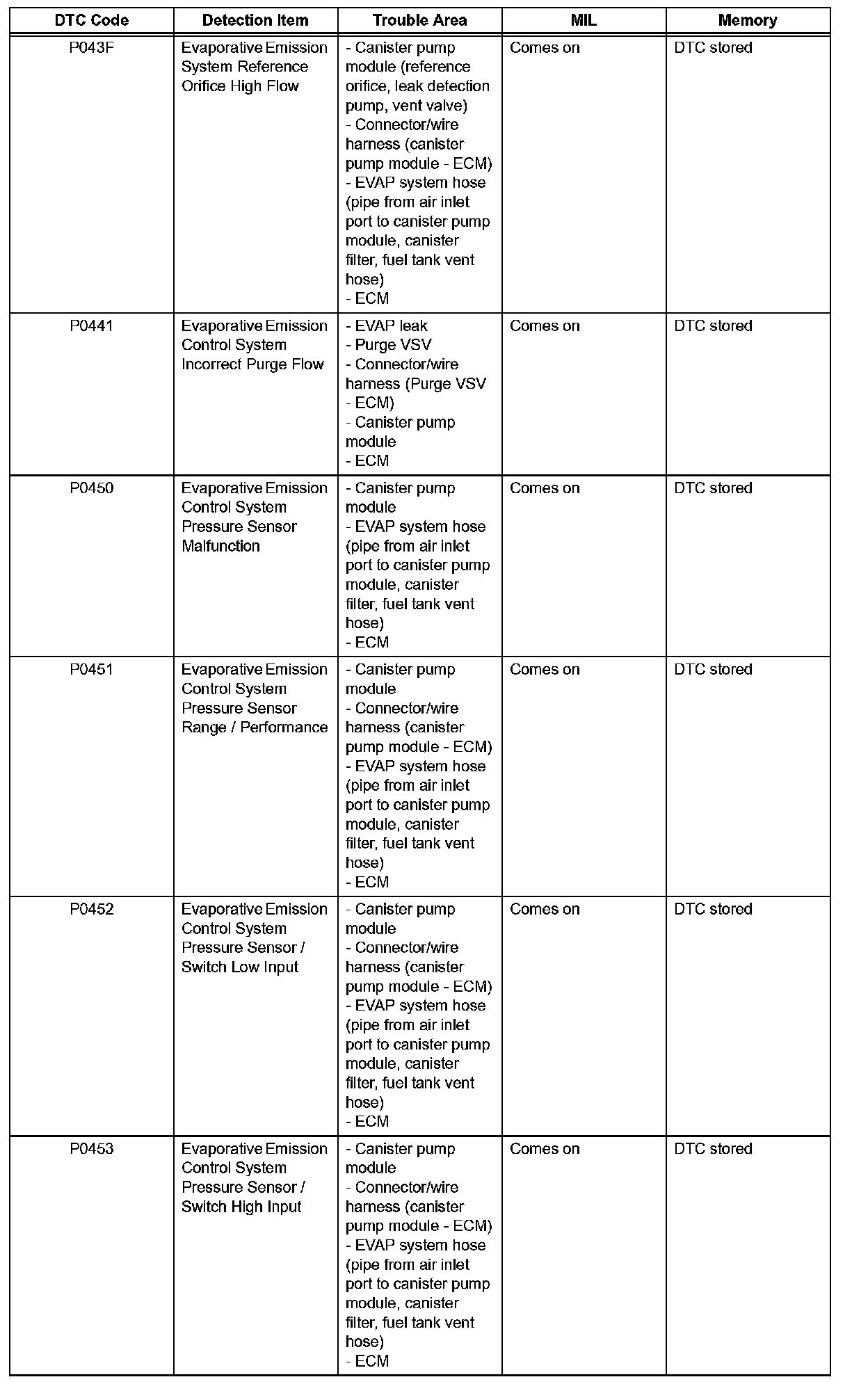

P043F-P0453:

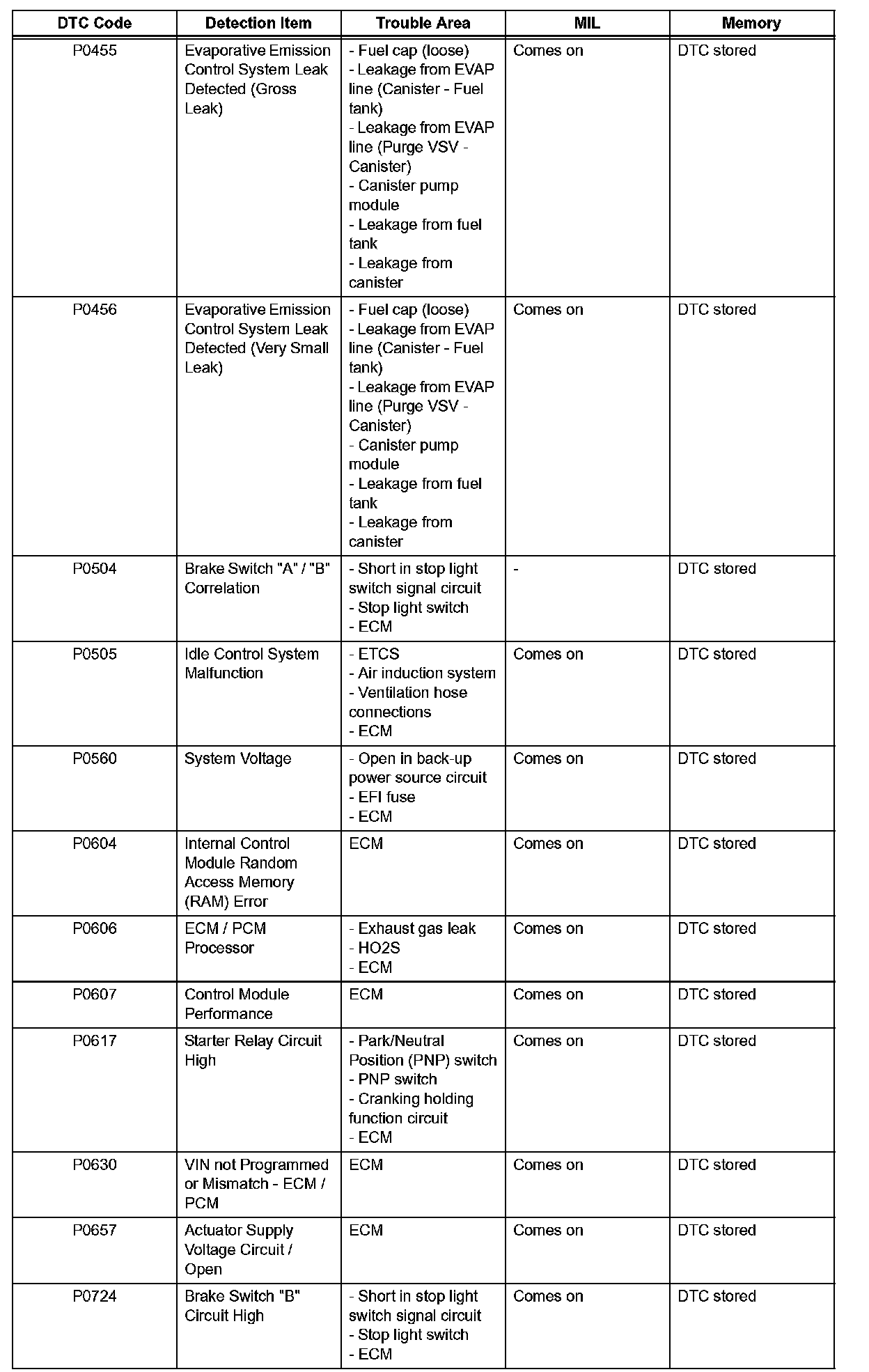

P0455-P0724:

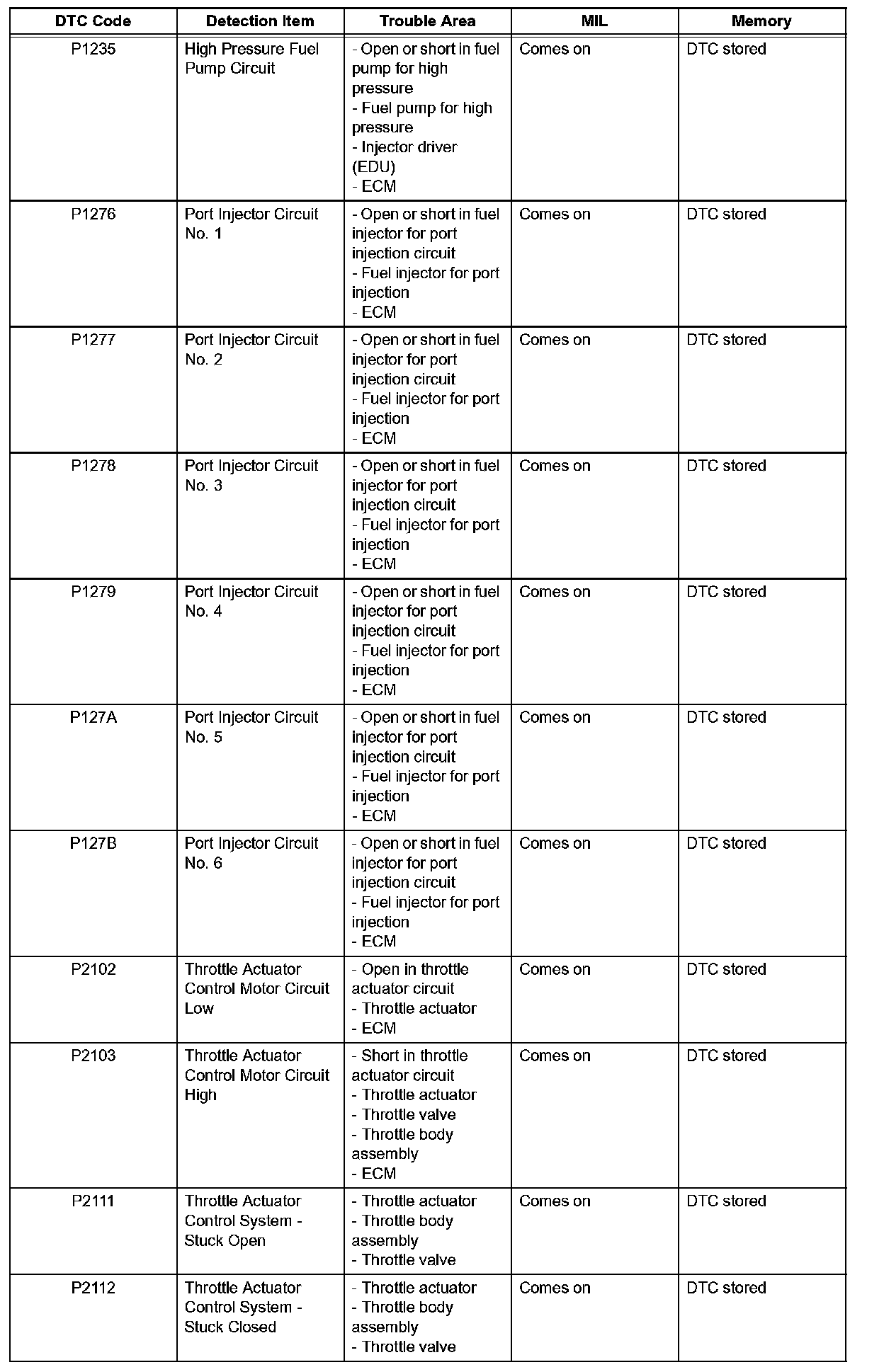

P1235-P2112:

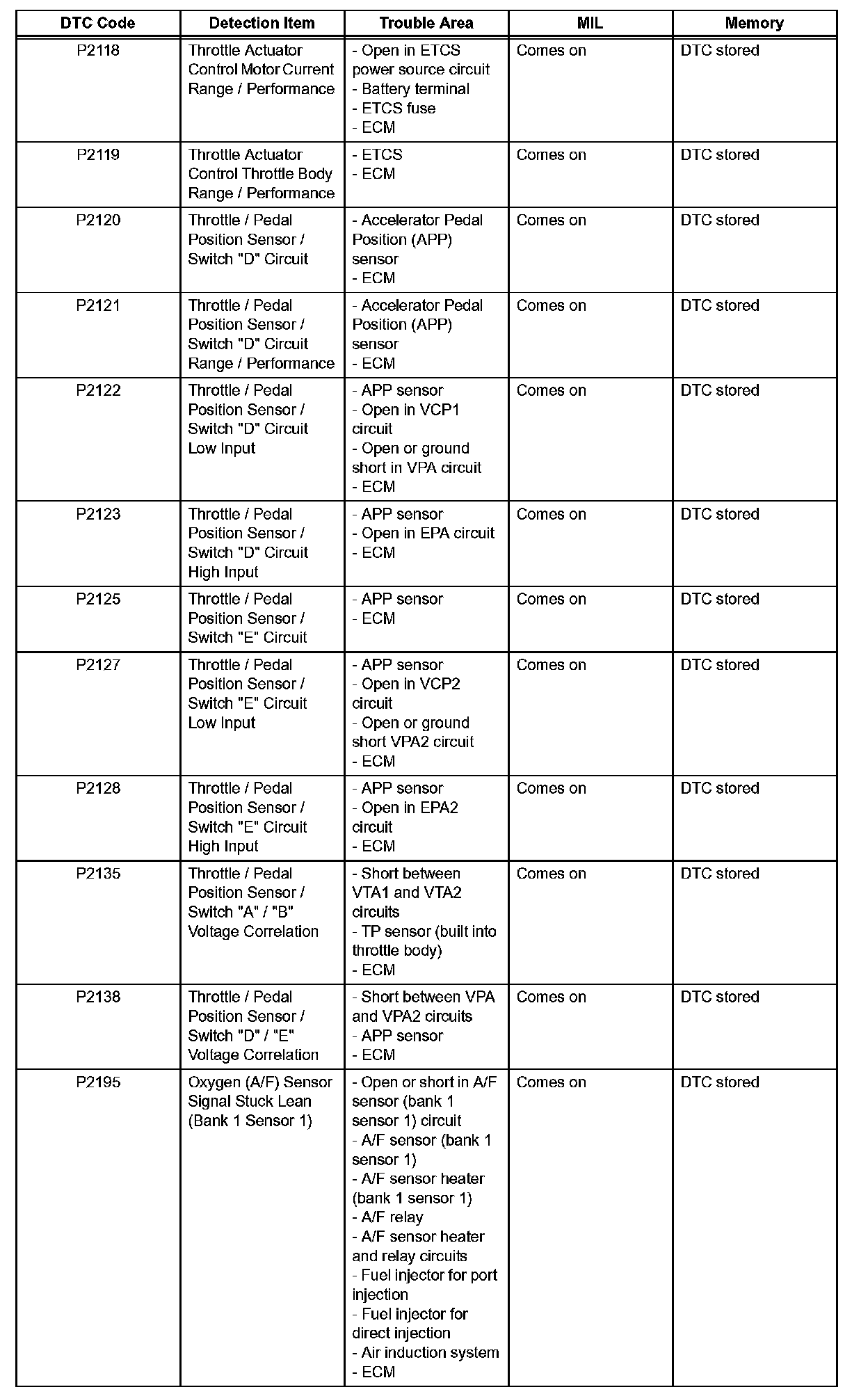

P2118-P2195:

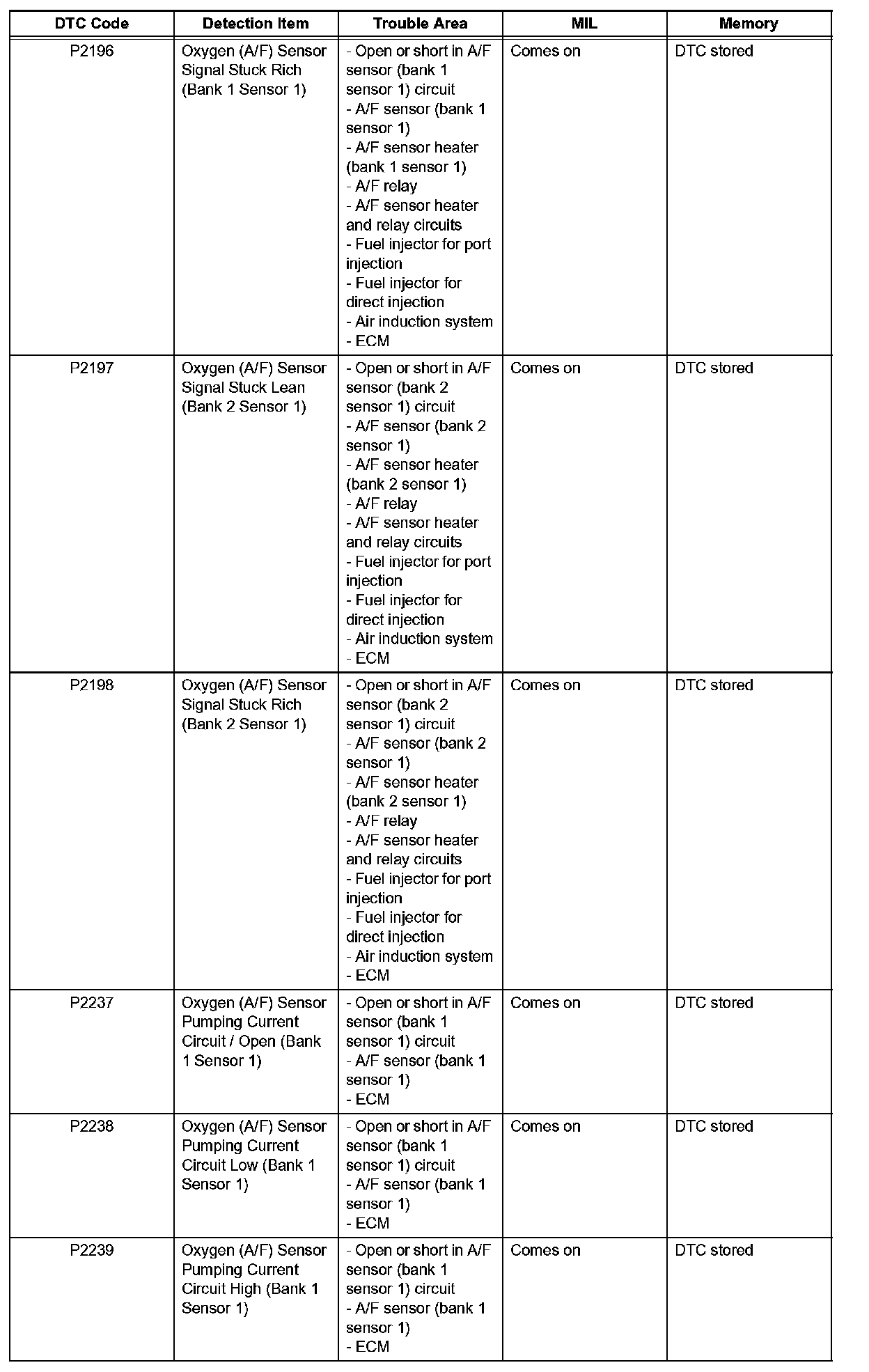

P2196-P2239:

P2240-P2401:

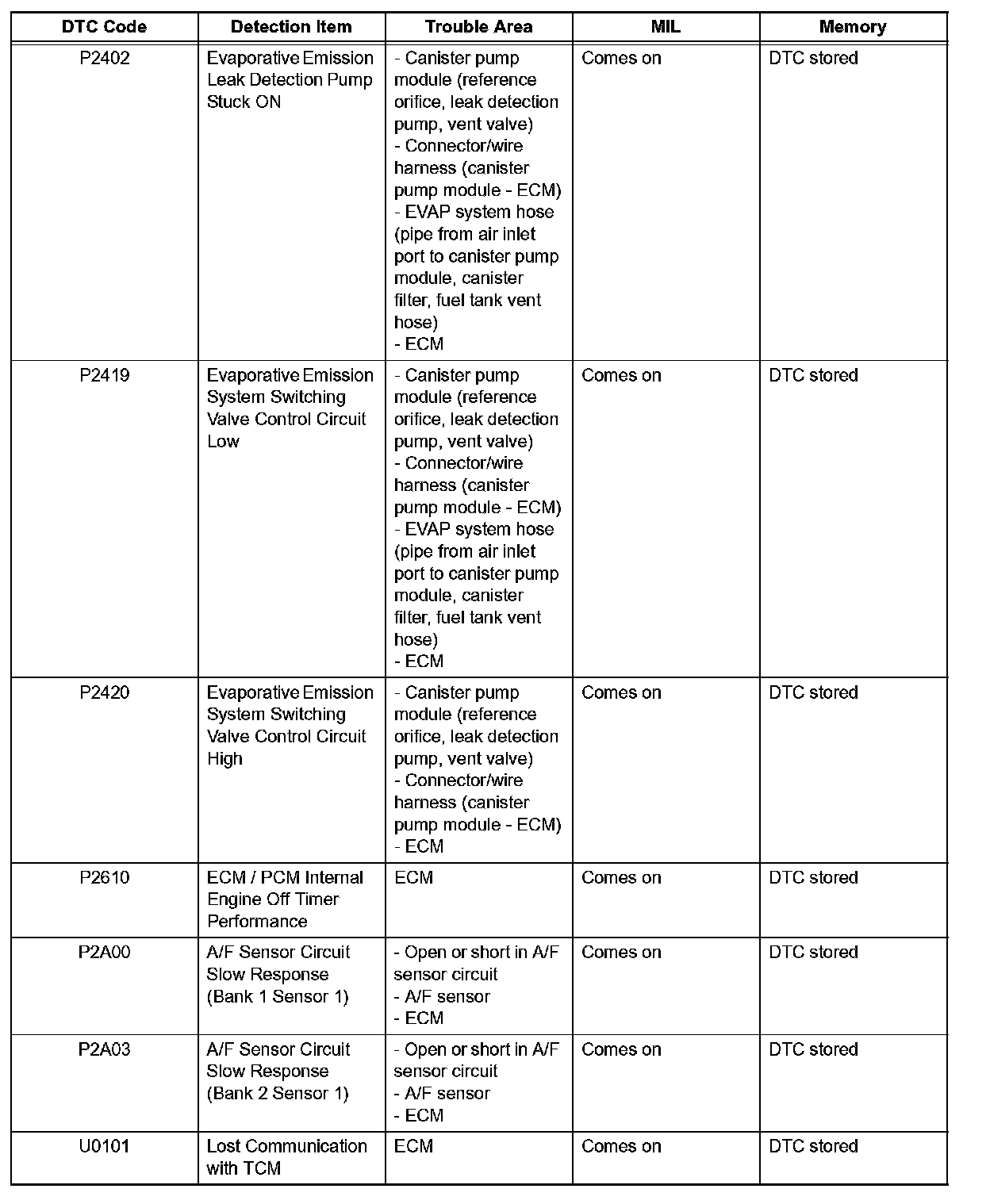

P2402-U0101:

HINT:
- Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.
- If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.
- *: MIL flashes when a catalyst damaged misfire is detected.
