Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed during the DTC check, check the parts listed in the table and proceed to DTC below.

HINT:
^ *1: "Comes on" means MIL (Malfunction Indicator Lamp) illuminates.
^ *2: "DTC stored" mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
^ This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.

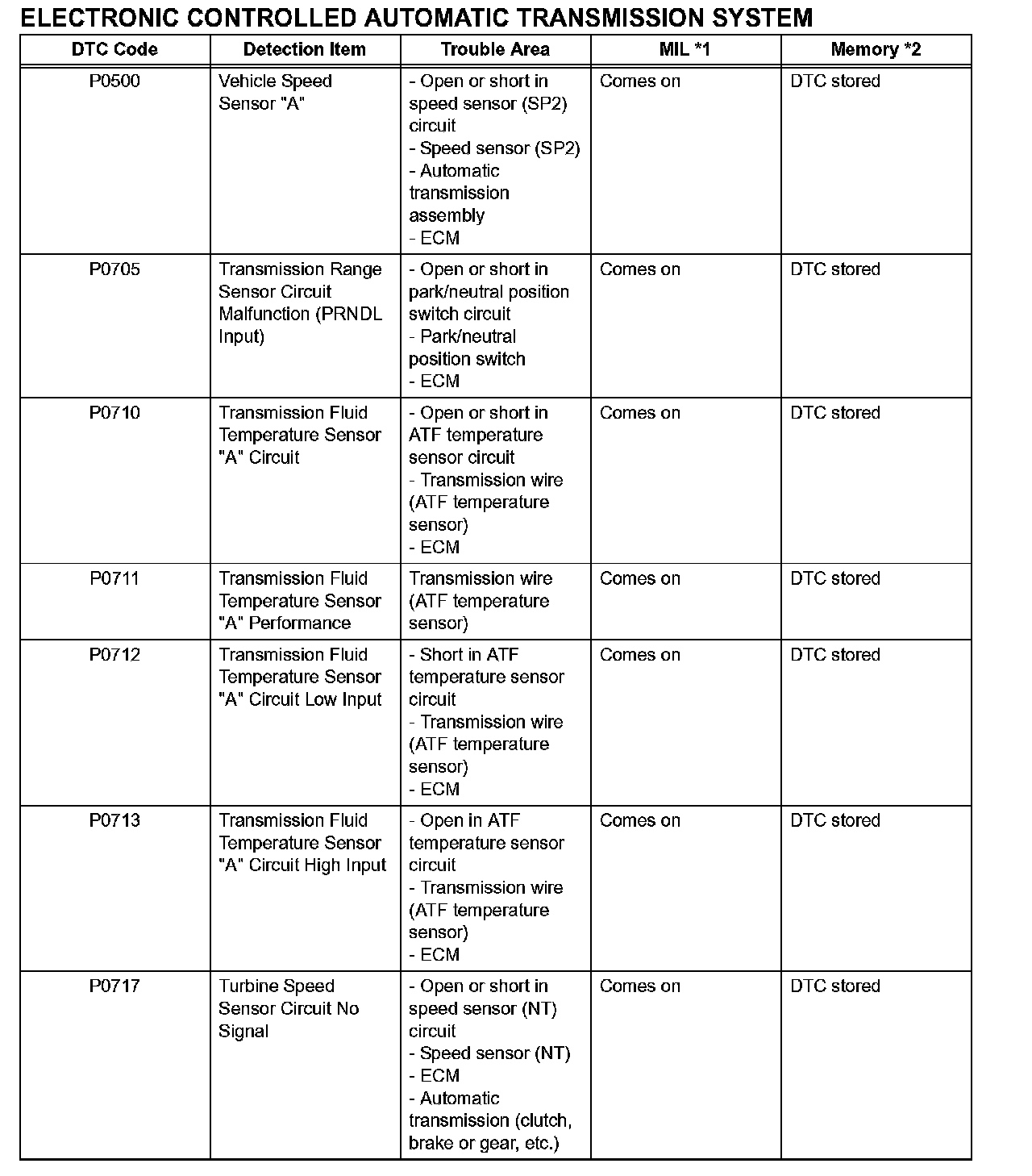

ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM

P0500-P0717:

P0724-P0766:

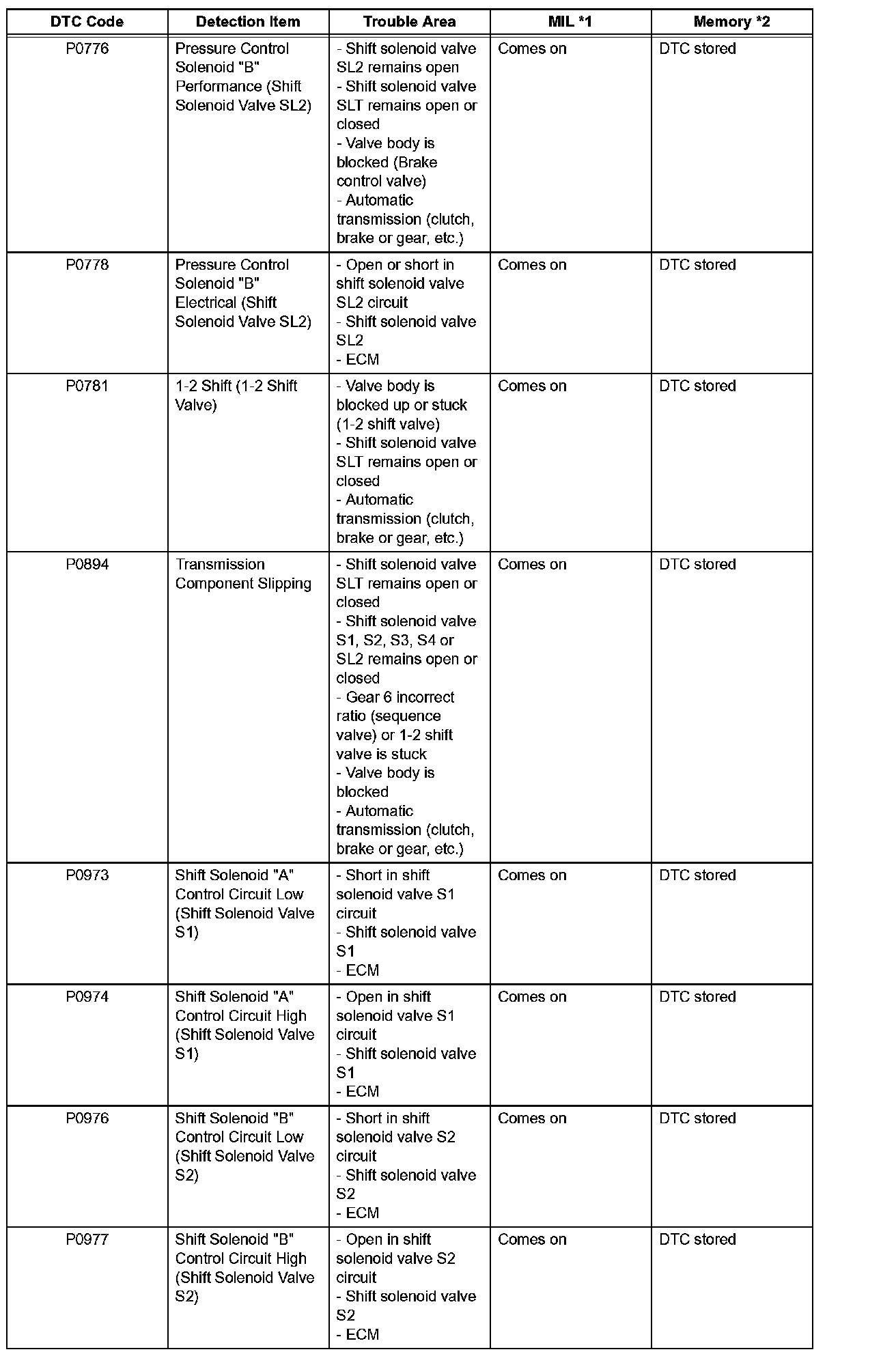

P0766-P0977:

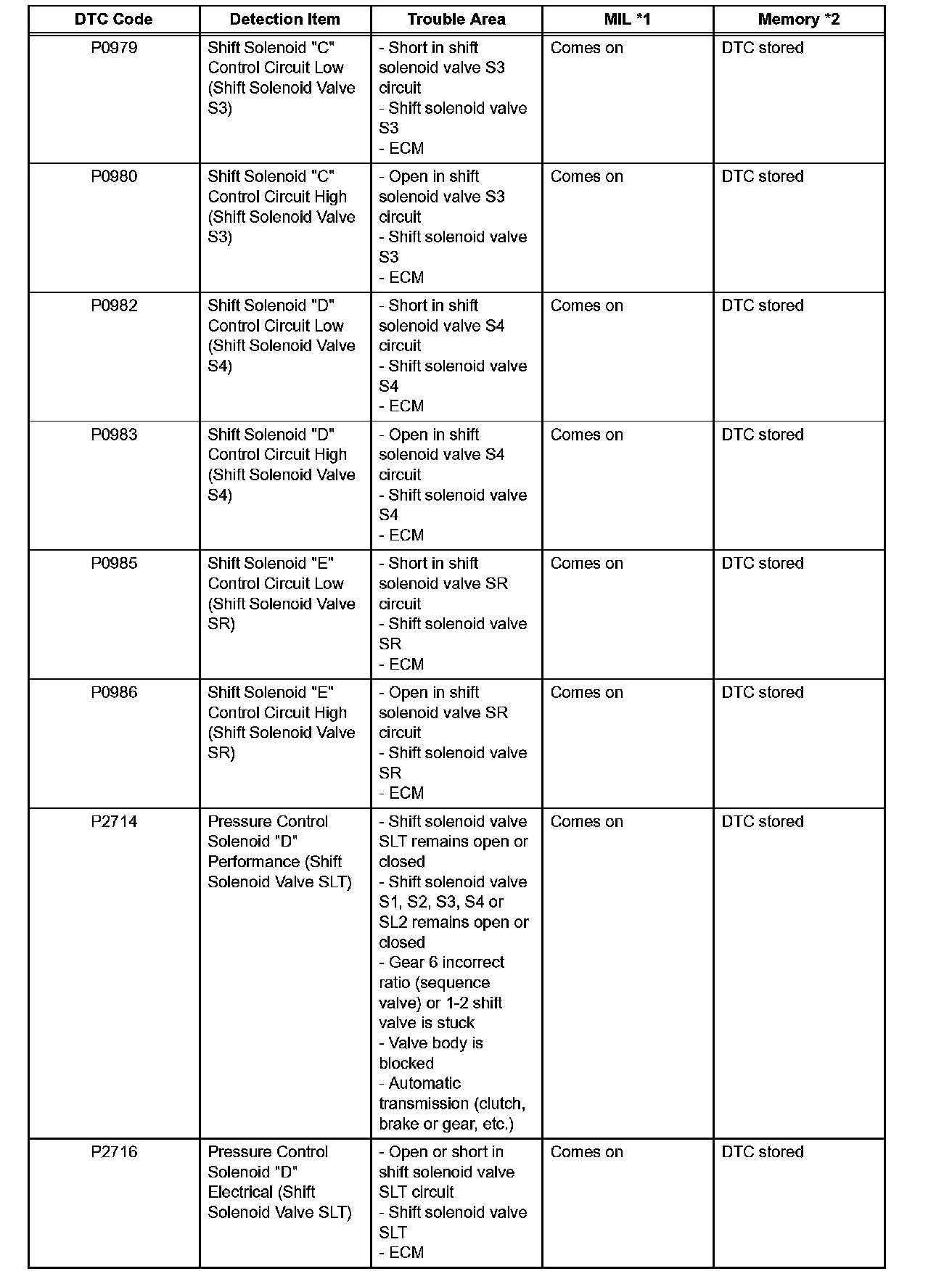

P0979-P2716:

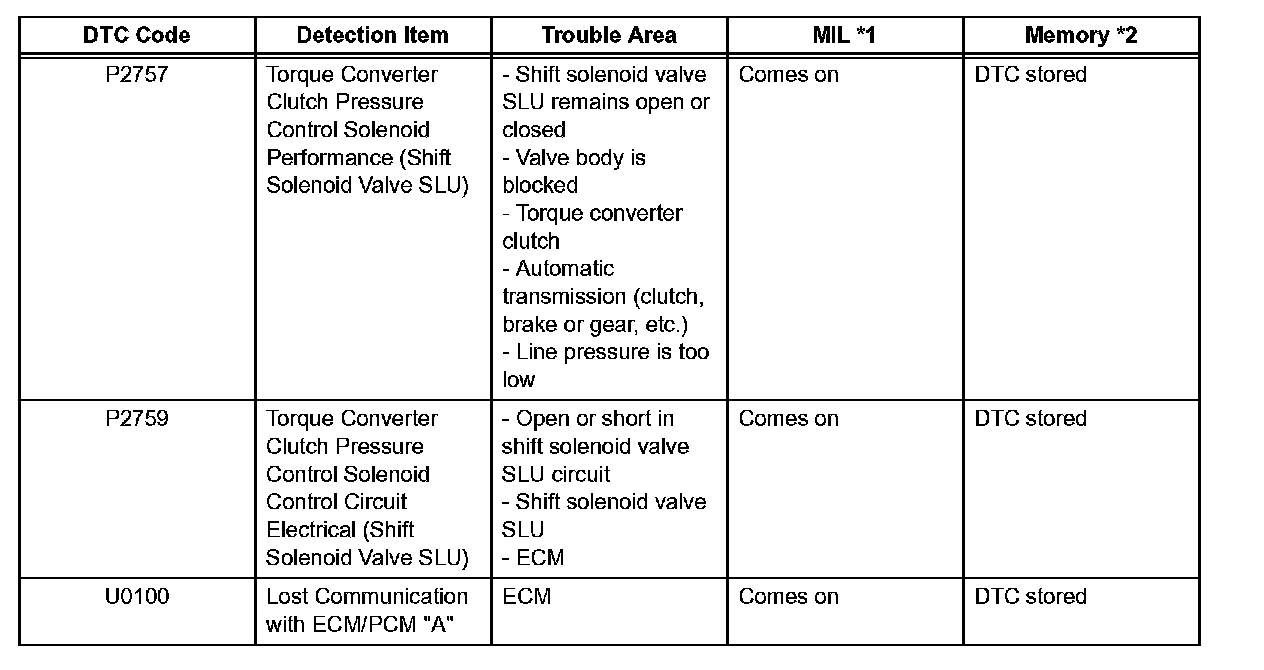

P2757-P2759/U0100:
