C1773

DTC C1773 VGRS ECU Malfunction

DESCRIPTION

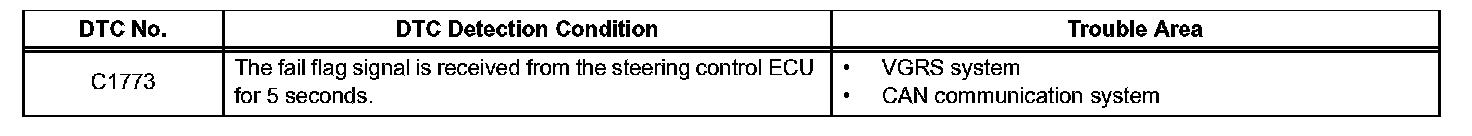

DTC Detection Condition:

- The absorber control ECU inputs the signals from the steering control ECU via CAN communication.
- The fail-safe function prohibits roll posture control if any malfunction occurs in the steering control ECU.

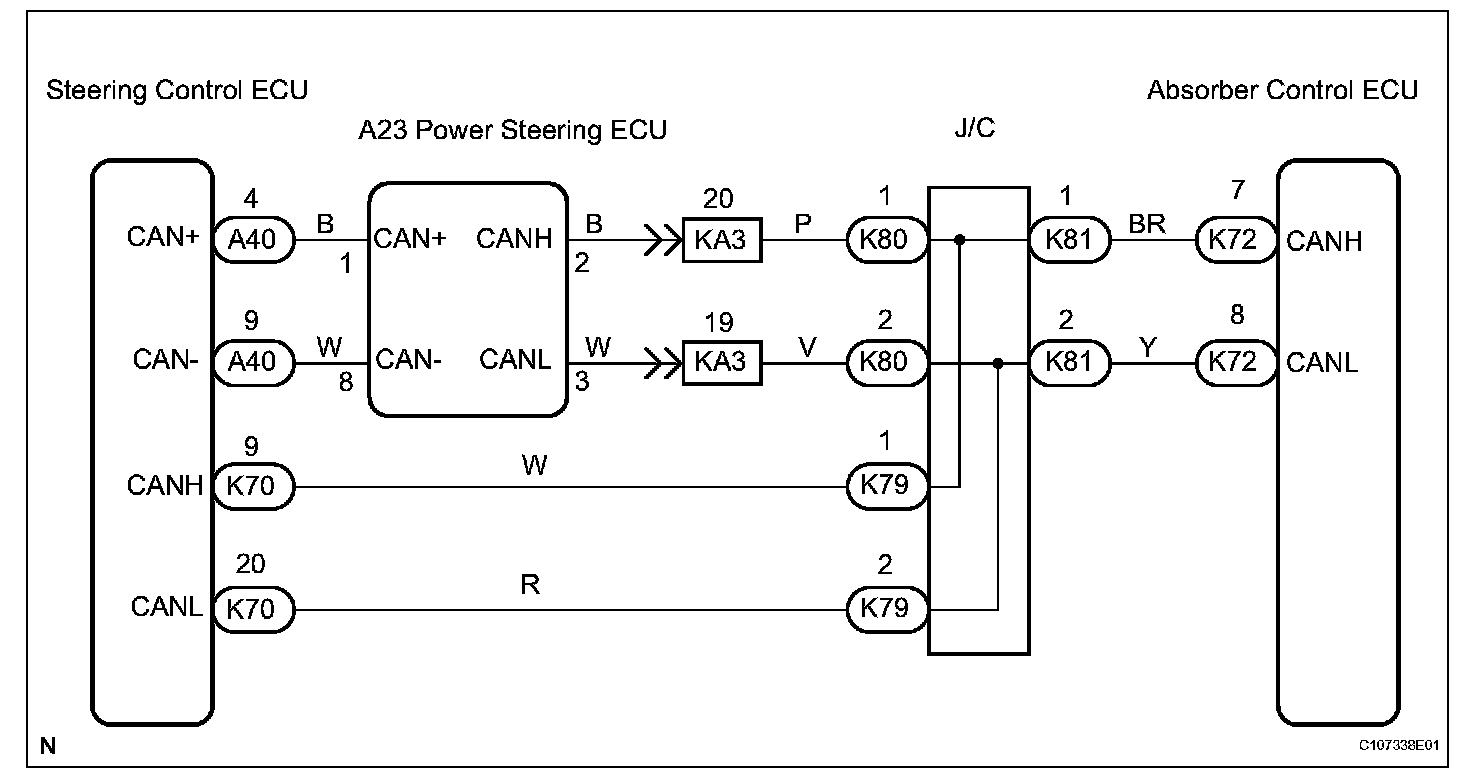

Wiring Diagram:

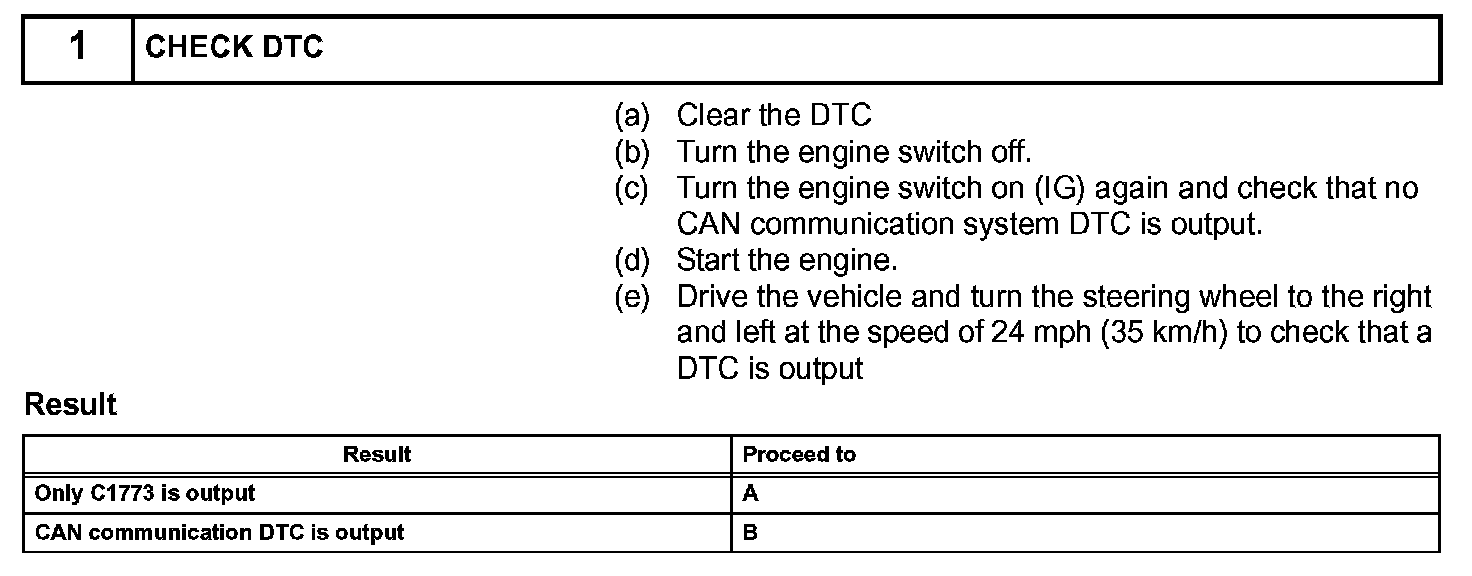

Step 1:

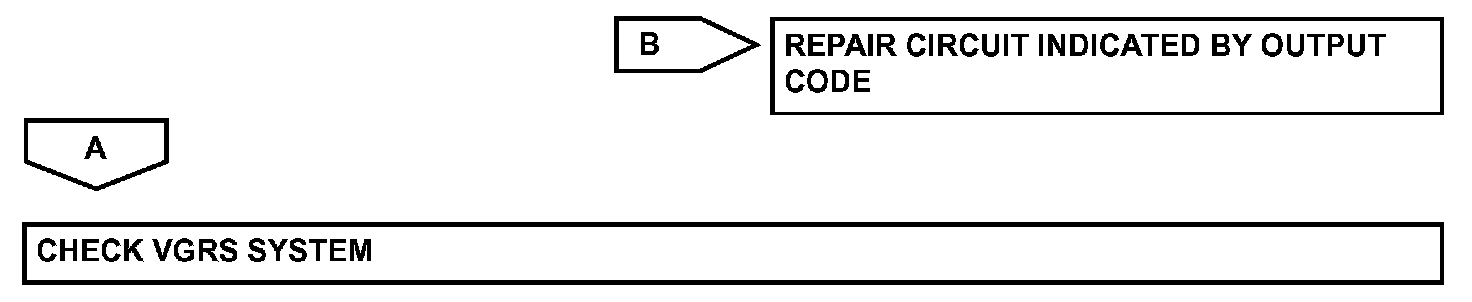

Step 1(Continued):

INSPECTION PROCEDURE
