C15B4

DTC C15B4/71 ECU Malfunction

DESCRIPTION
If the steering control ECU detects an internal malfunction, it will turn the master warning light on, store DTCs C15B4/71, and stop VGRS operation.

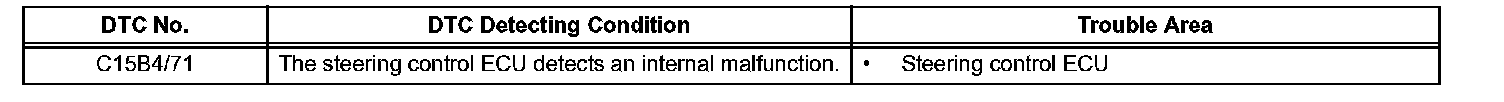

C15B4/71:

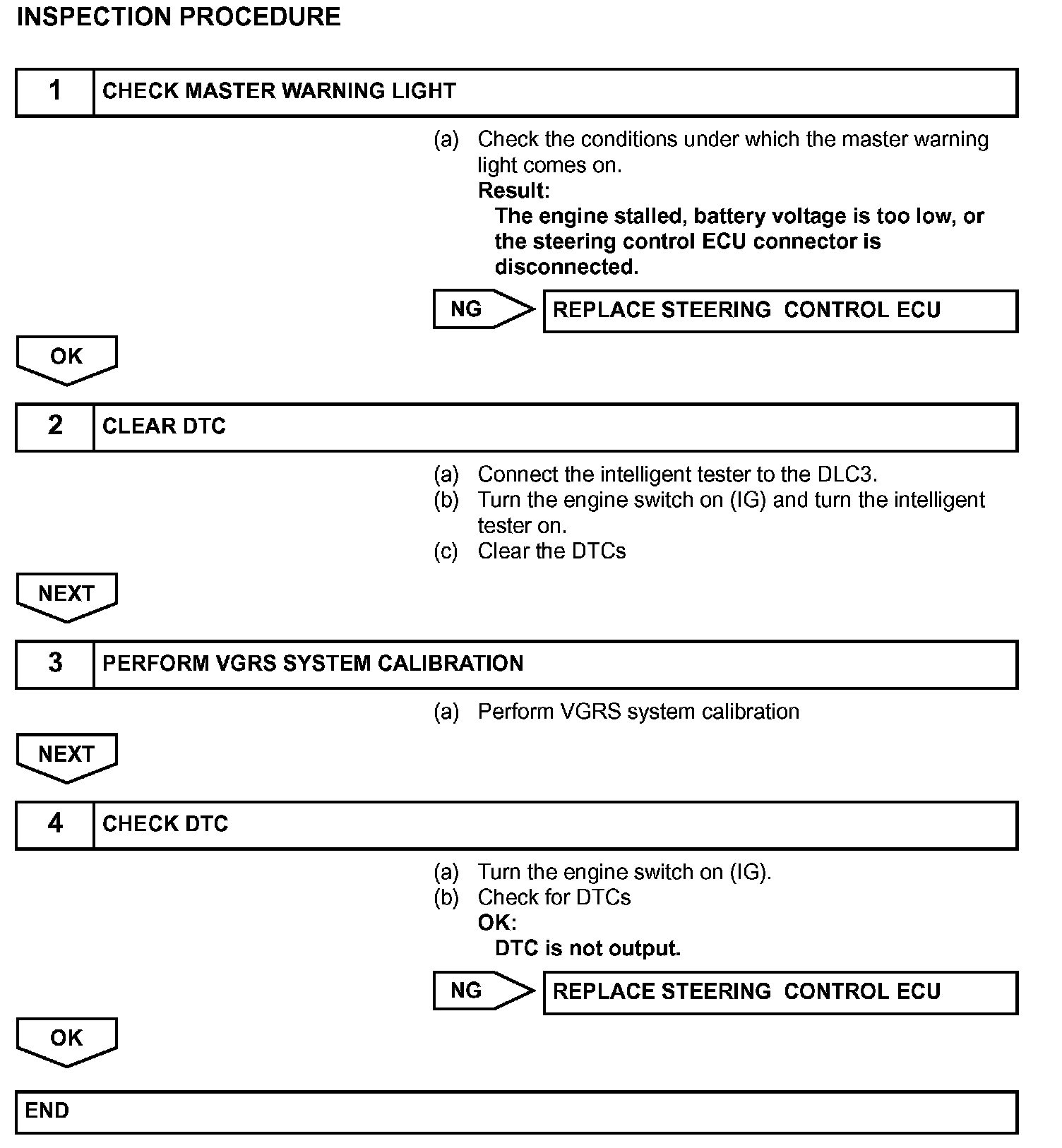

INSPECTION PROCEDURE

Steps 1-4:
