Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1593

C1593

DTC C1593/53 Actuator Standard Position Malfunction

DESCRIPTION
If the steering control ECU detects a steering actuator standard position error, it will store DTC C1593/53.

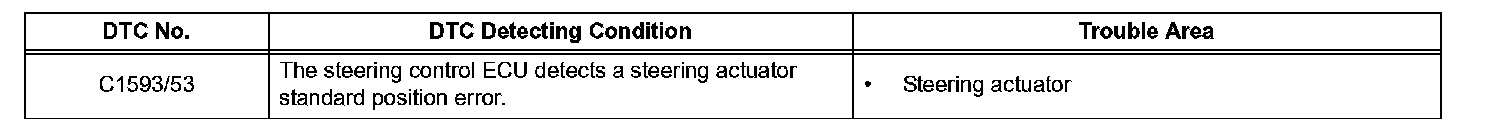

C1593/53:

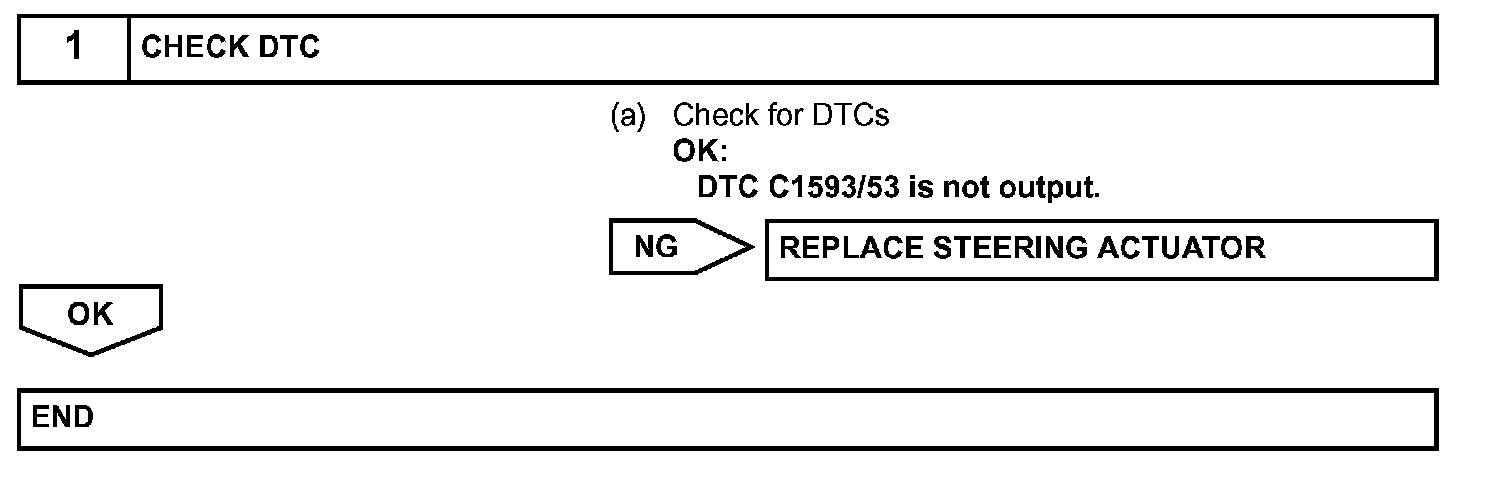

INSPECTION PROCEDURE

Step 1:
