Vehicle Stability Control System

DTC C1241/41 Low Battery Positive Voltage

DESCRIPTION

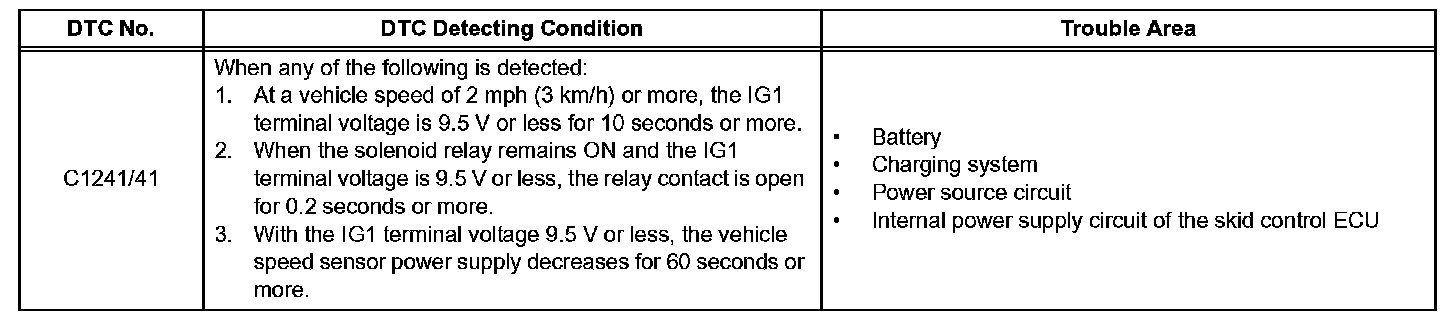

DTC Detecting Condition:

If a malfunction is detected in the power supply circuit, the skid control ECU (housed in the actuator assembly) outputs the DTC and prohibits operation with the fail-safe function.

This DTC is stored when the IG1 terminal voltage deviates from the DTC detecting condition due to a malfunction in the power supply or charging circuit such as the battery or alternator circuit, etc.

The DTC is cancelled when the IG1 terminal voltage returns to normal.

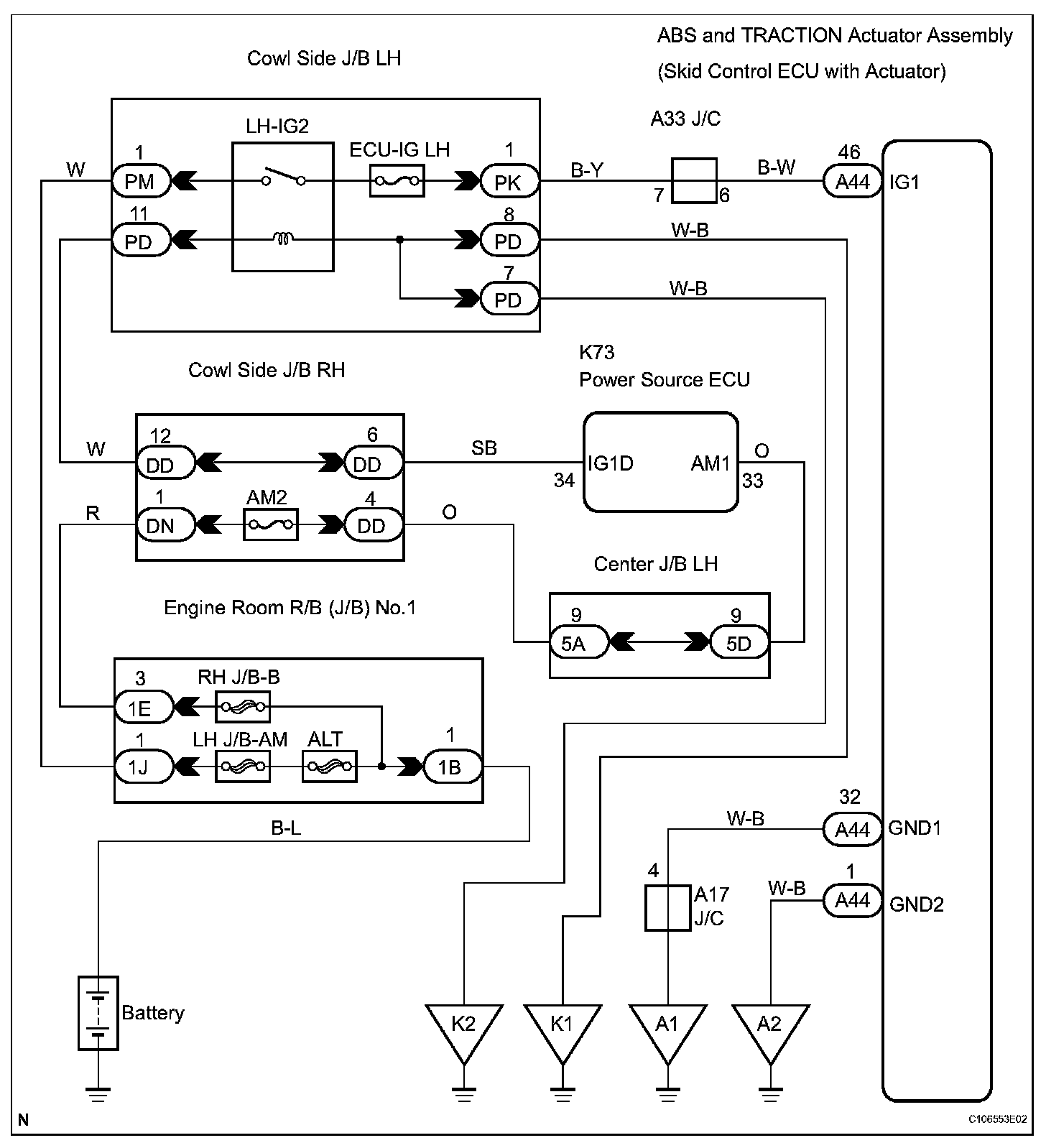

Wiring Diagram:

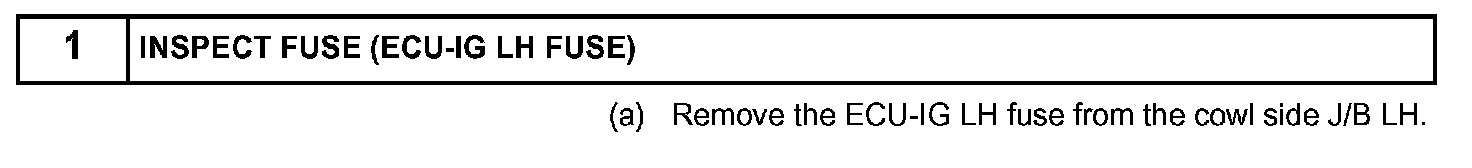

Step 1:

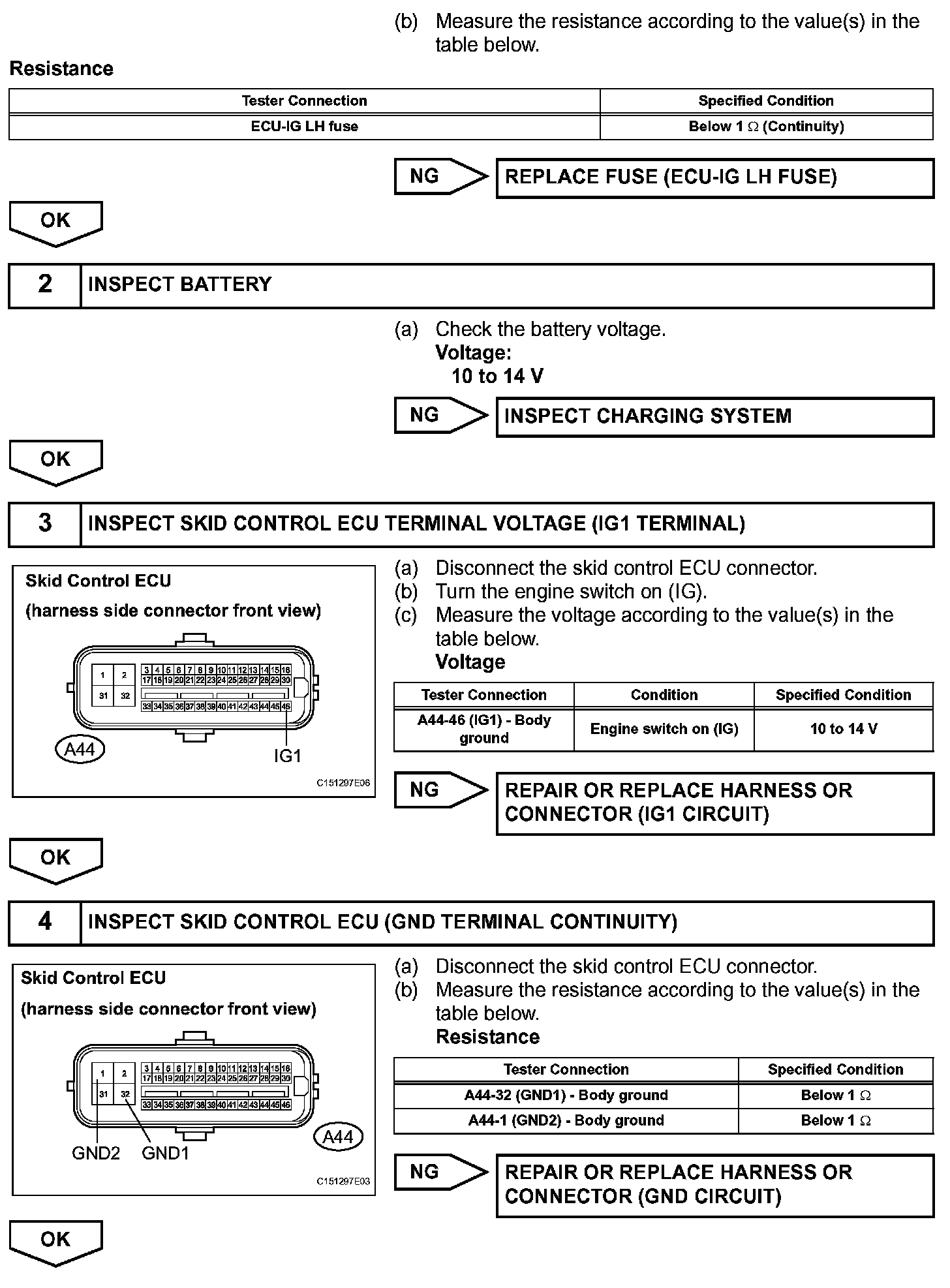

Step 1(Continued)-4:

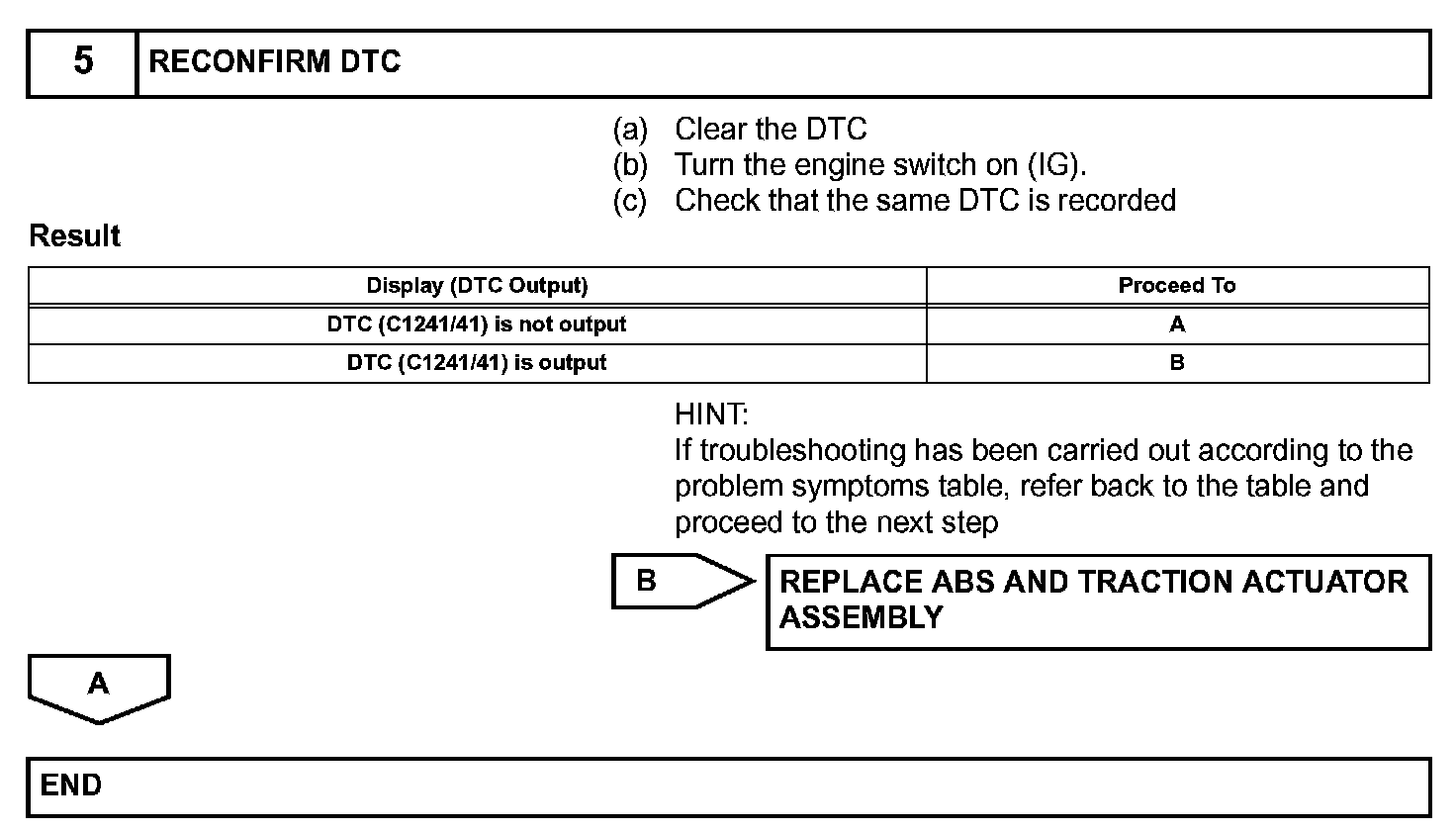

Step 5:

INSPECTION PROCEDURE

NOTE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration. Vehicle Stability Control System
