Chassis Related

DTC C1241/94 Low Power Supply Voltage

DESCRIPTION
If a malfunction in the power source circuit occurs and, when a malfunction in communication with the skid control ECU or in a speed sensor occurs, the 4WD control ECU will prohibit operations by the fail-safe function.

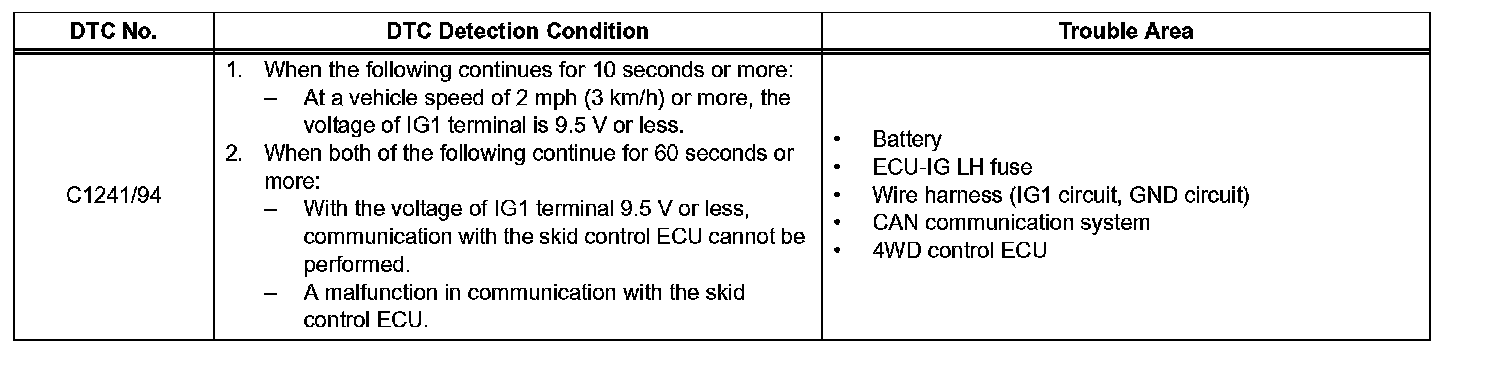

DTC DETECTION CONDITION:

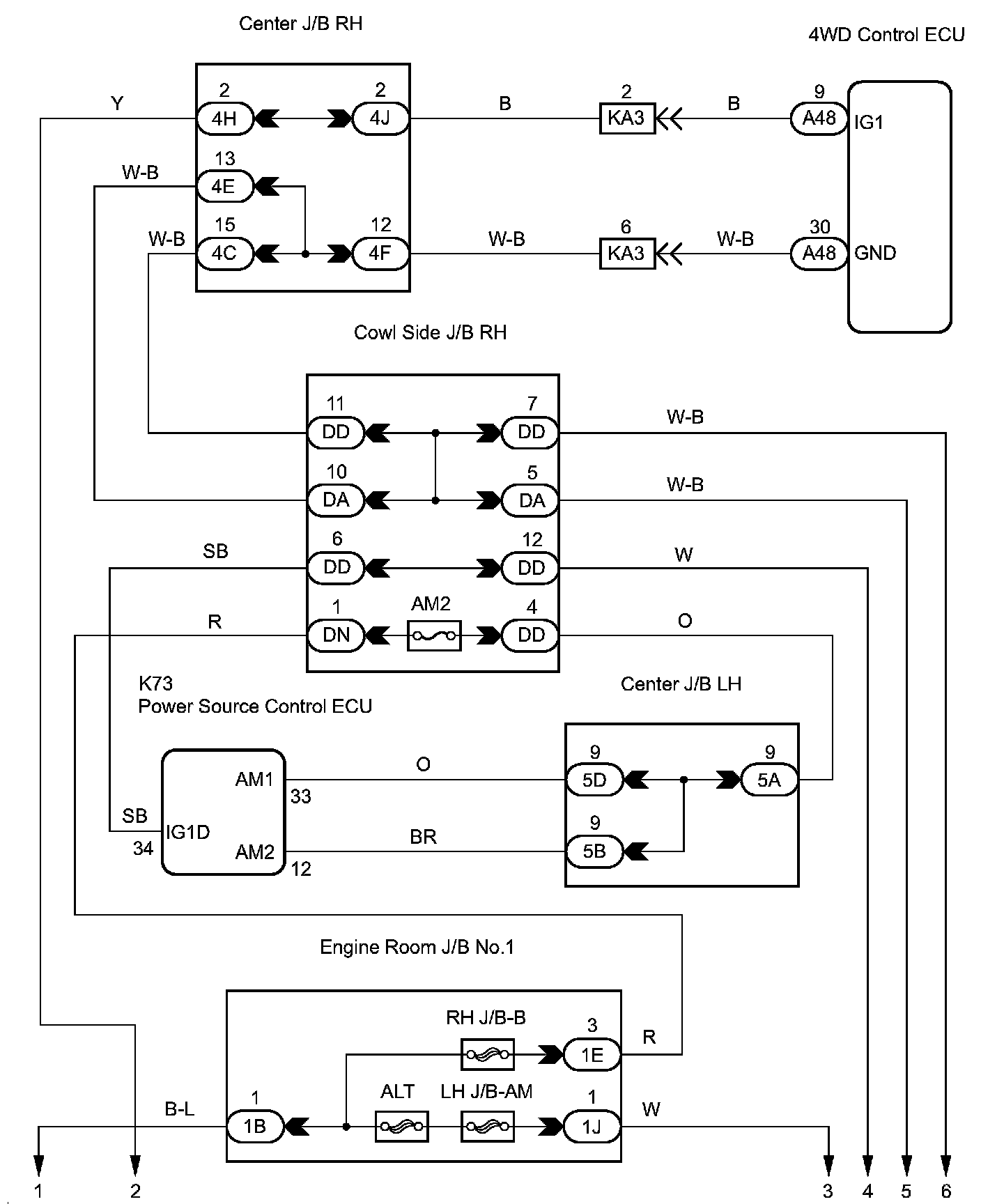

WIRING DIAGRAM (PART 1):

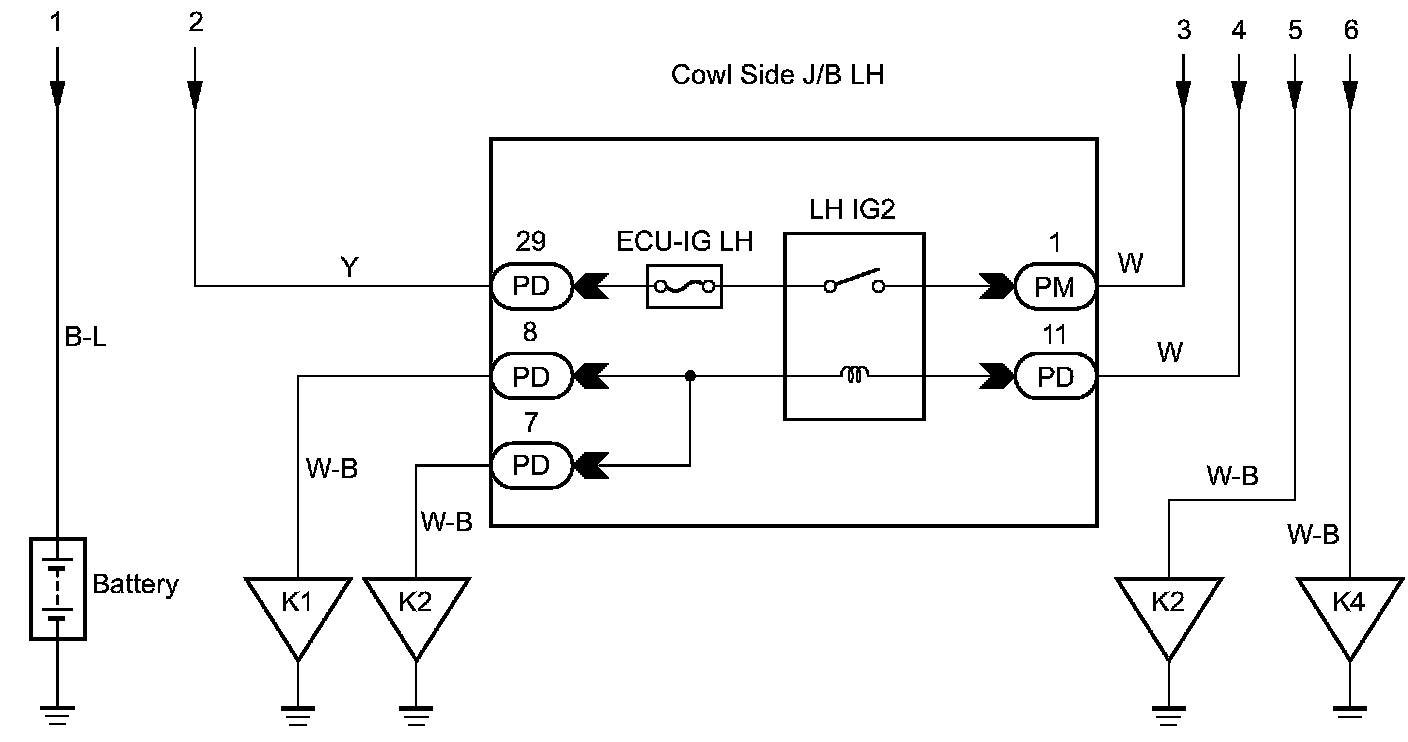

WIRING DIAGRAM (PART 2):

HINT: Check the condition of each related circuit connector before troubleshooting.

INSPECTION PROCEDURE

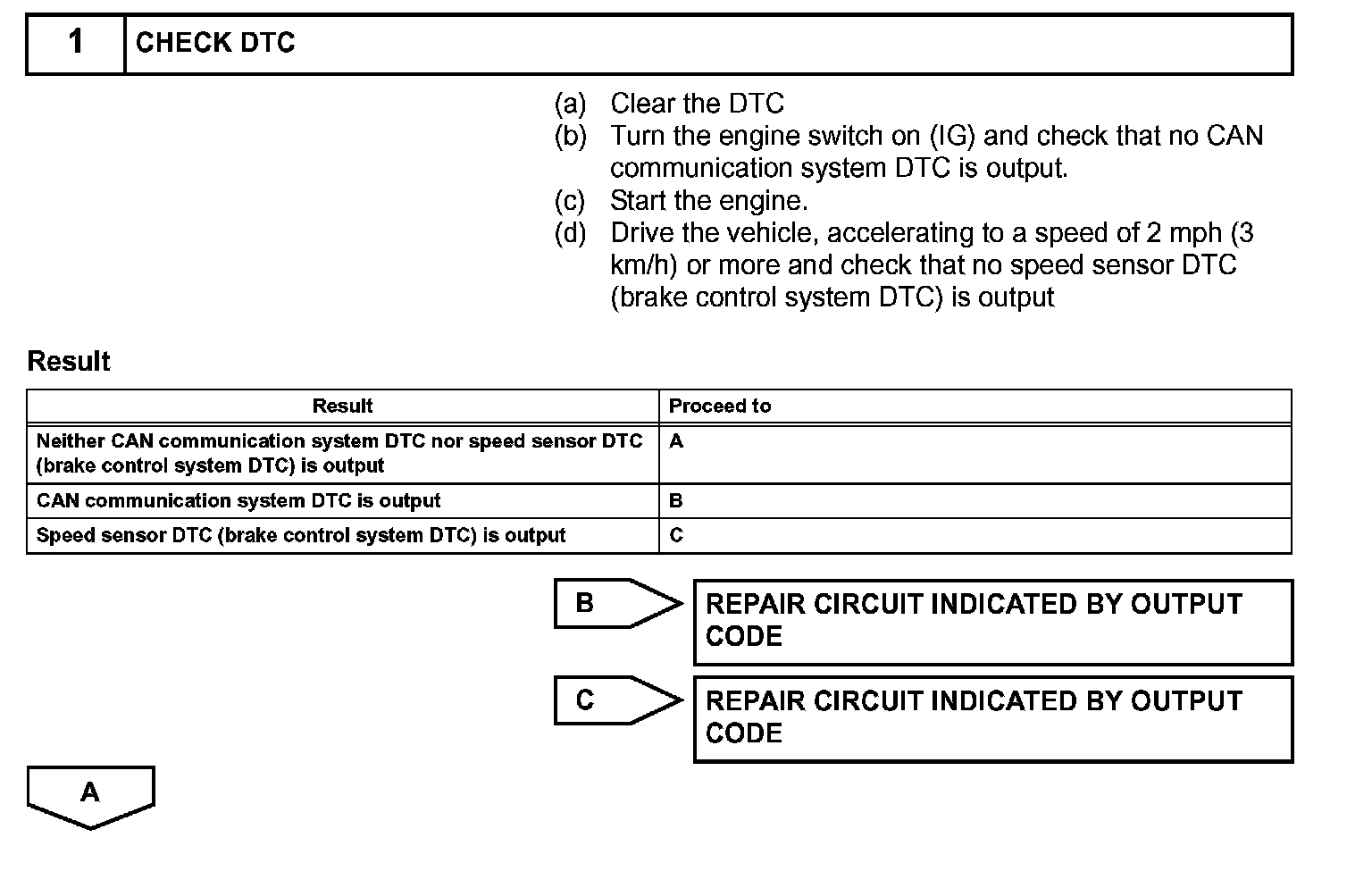

Step 1:

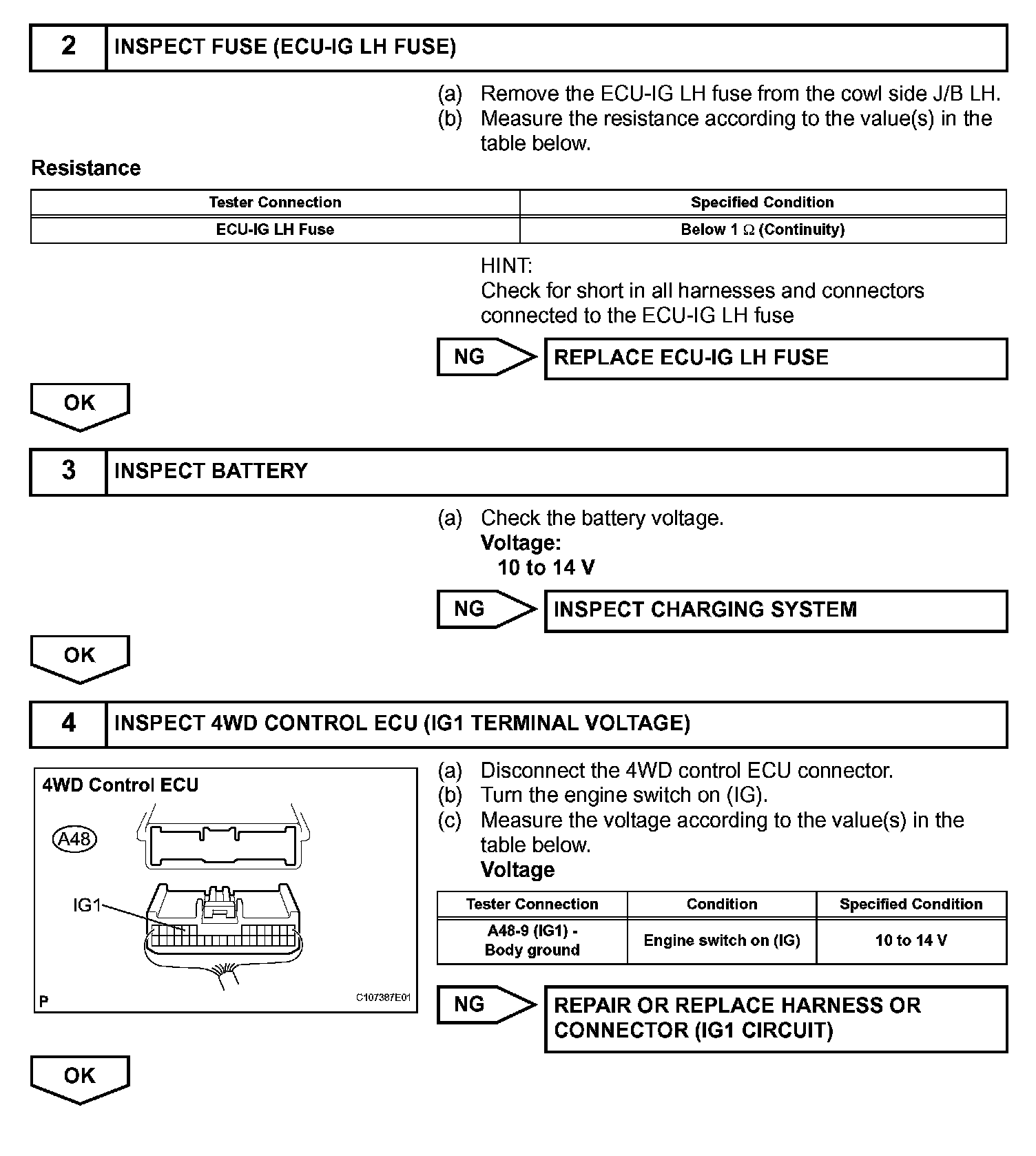

Steps 2-4:

Steps 5-6:
