B2416

DTC B2416 Height Control Sensor Malfunction

DESCRIPTION

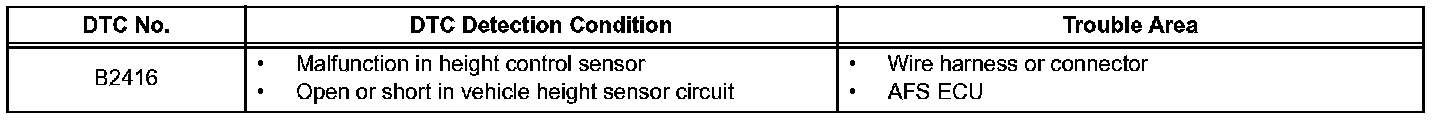

DTC Detection Condition:

The AFS ECU receives signals regarding the height of the front/rear of the vehicle from the height control sensor.

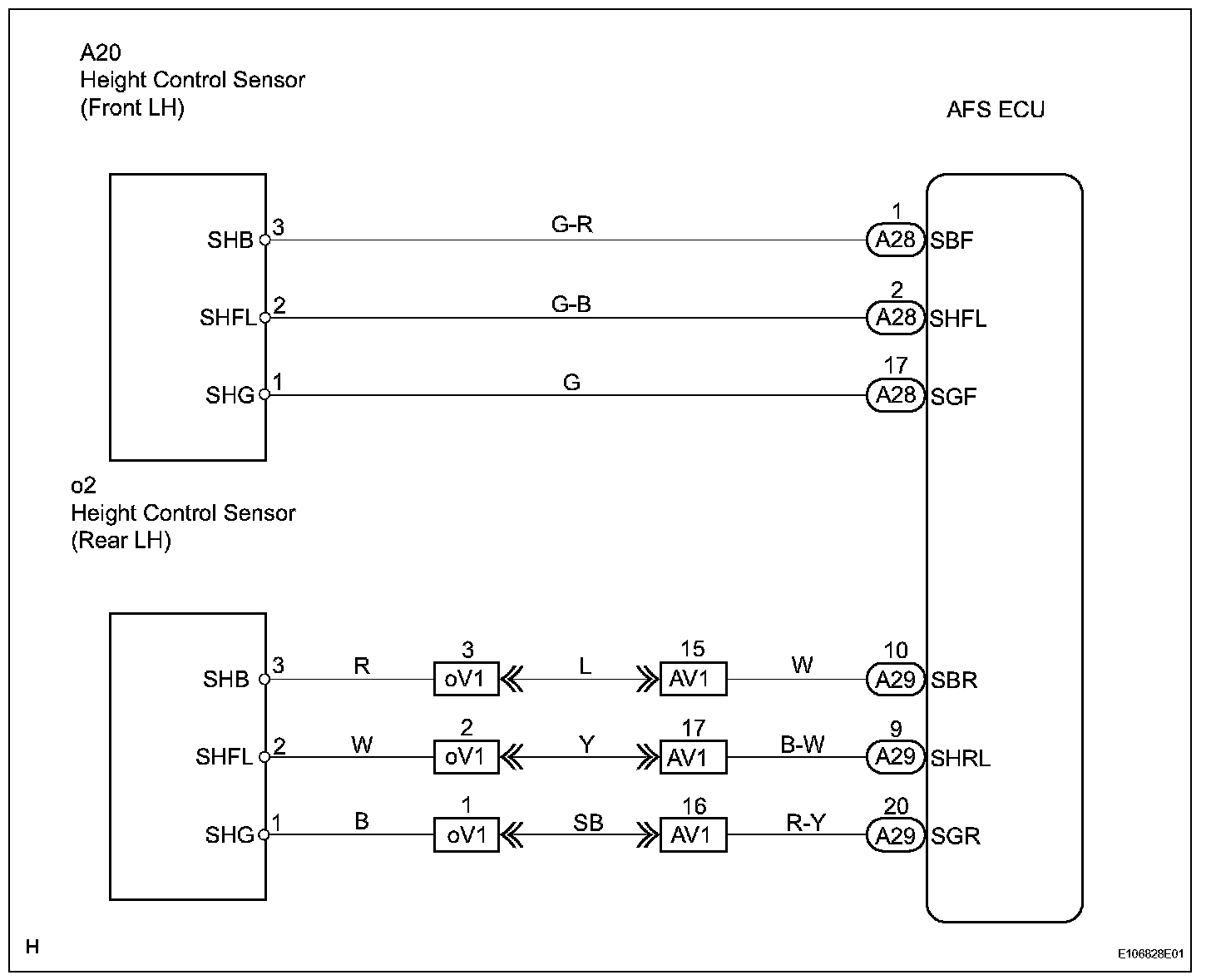

Wiring Diagram:

INSPECTION PROCEDURE

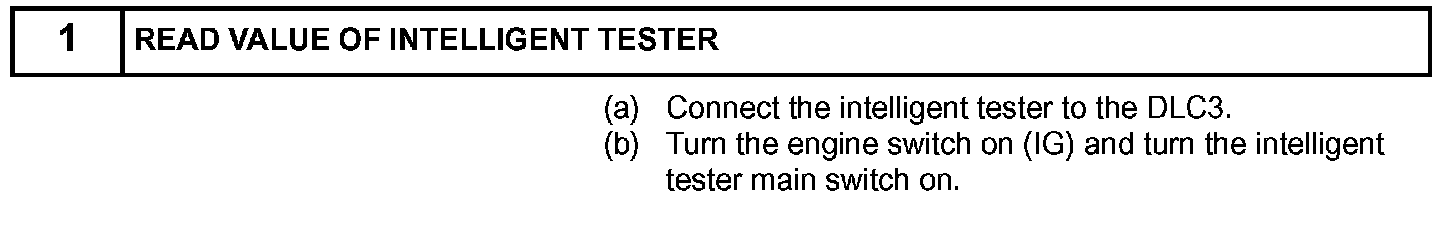

Step 1:

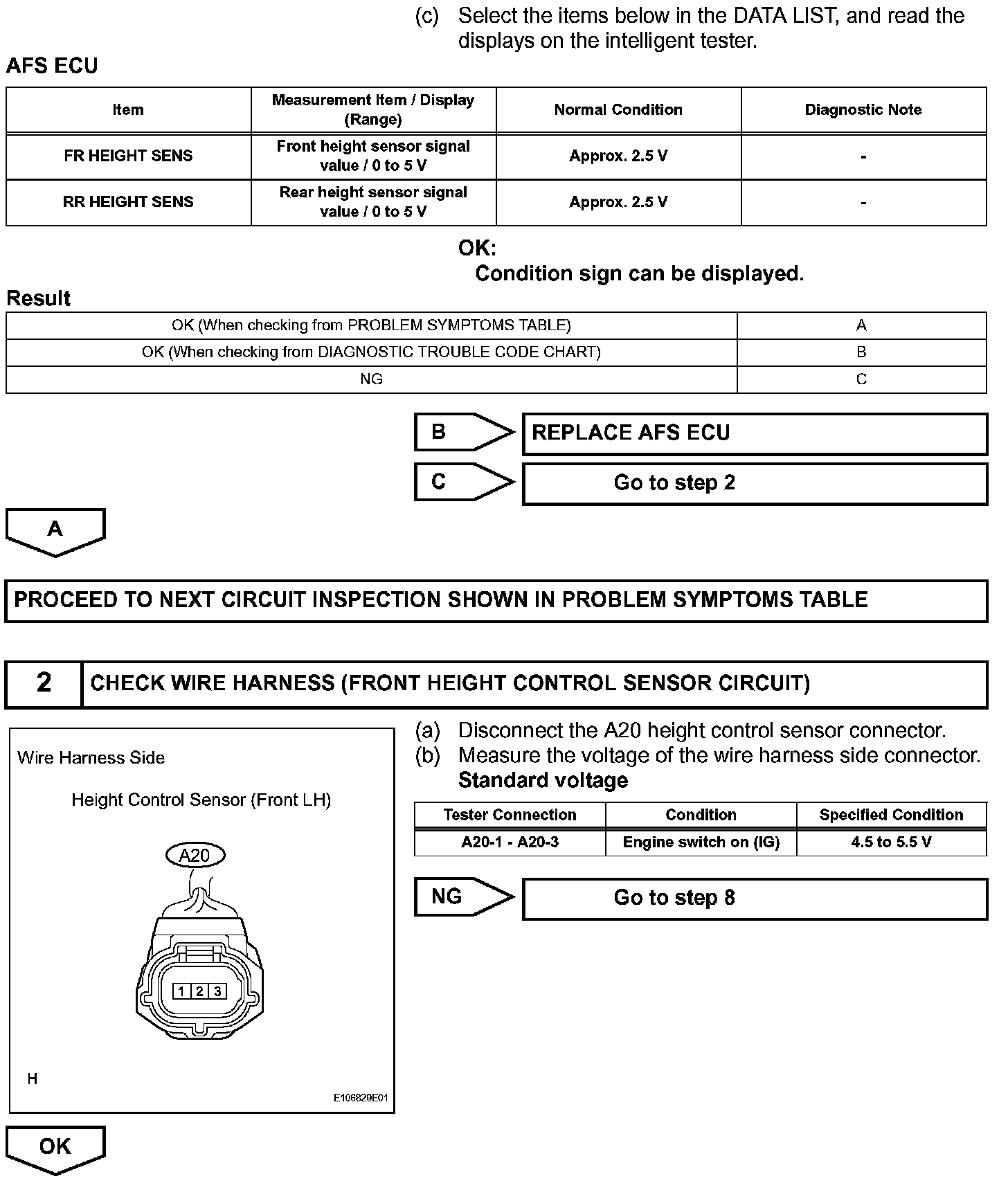

Step 1 (Continued)-2:

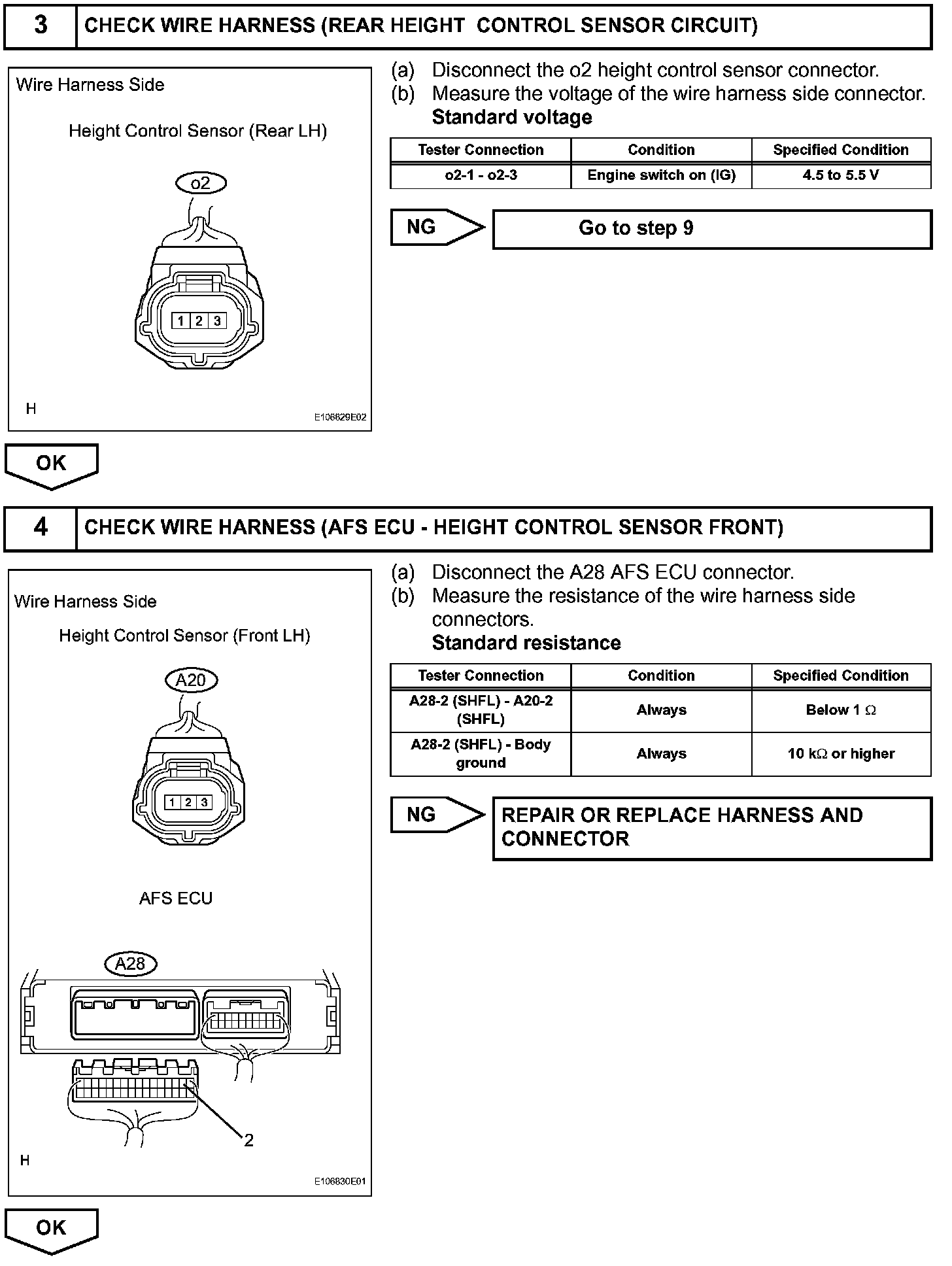

Step 3-4:

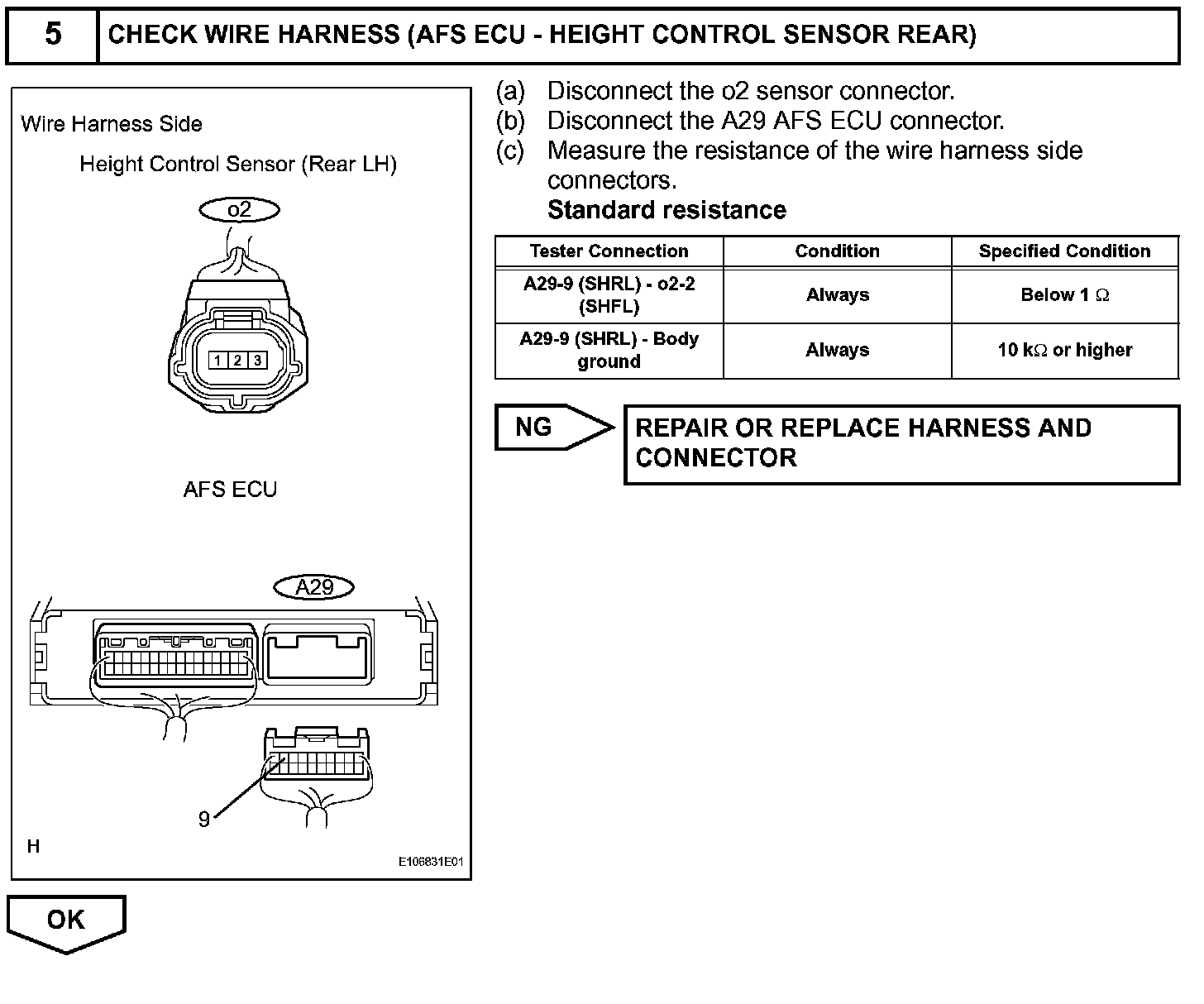

Step 5:

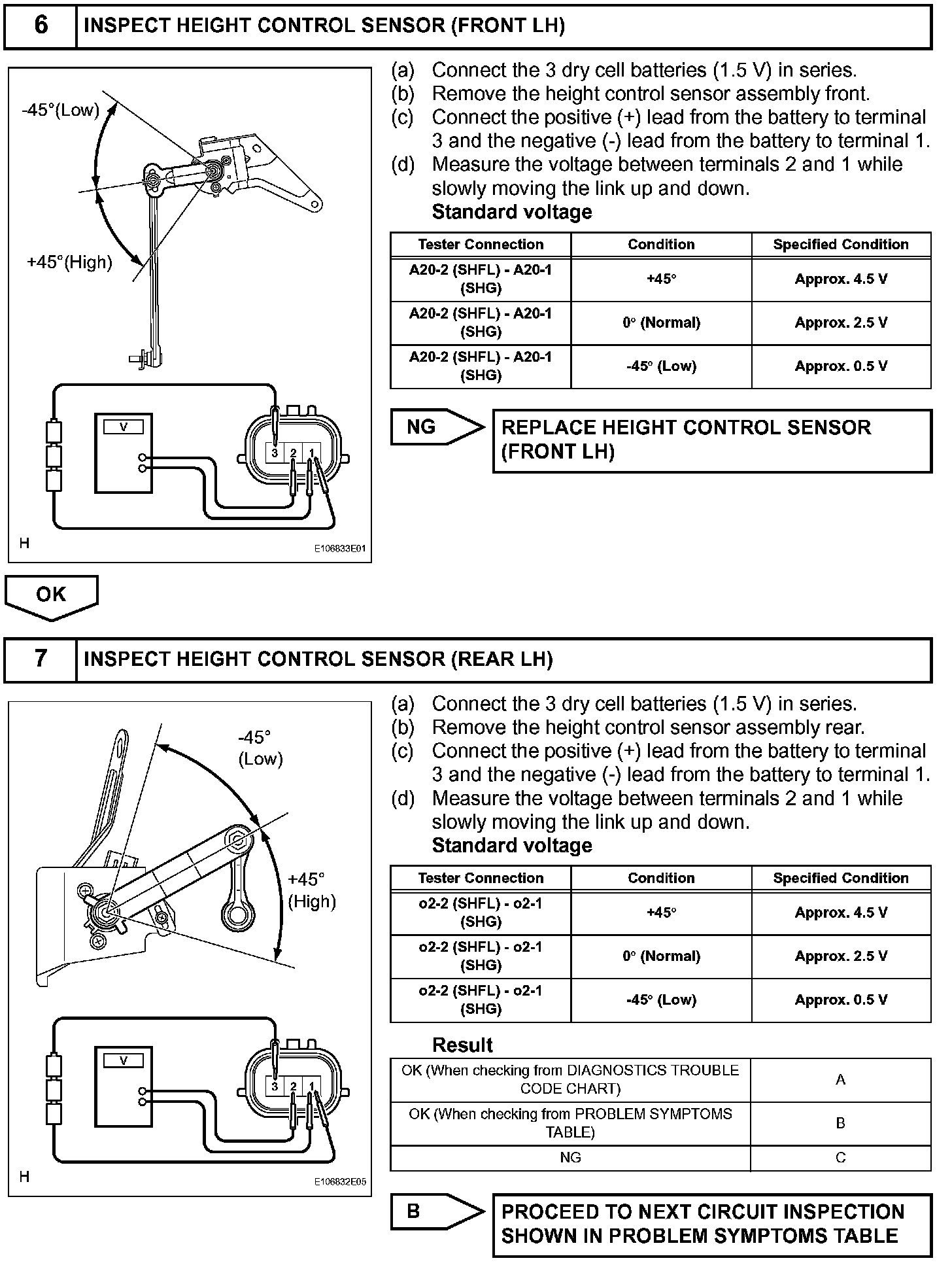

Step 6-7:

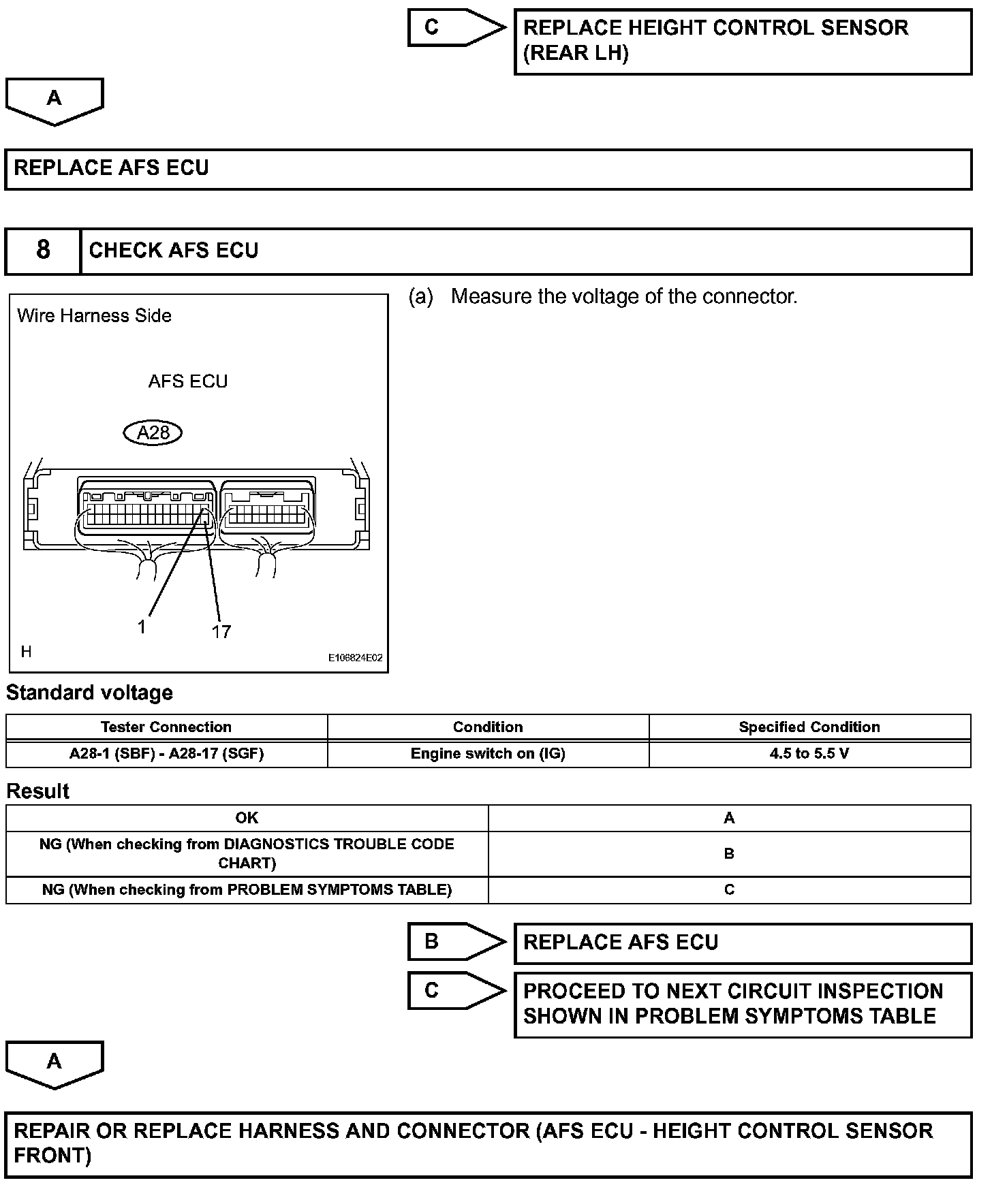

Step 7 (Continued)-8:

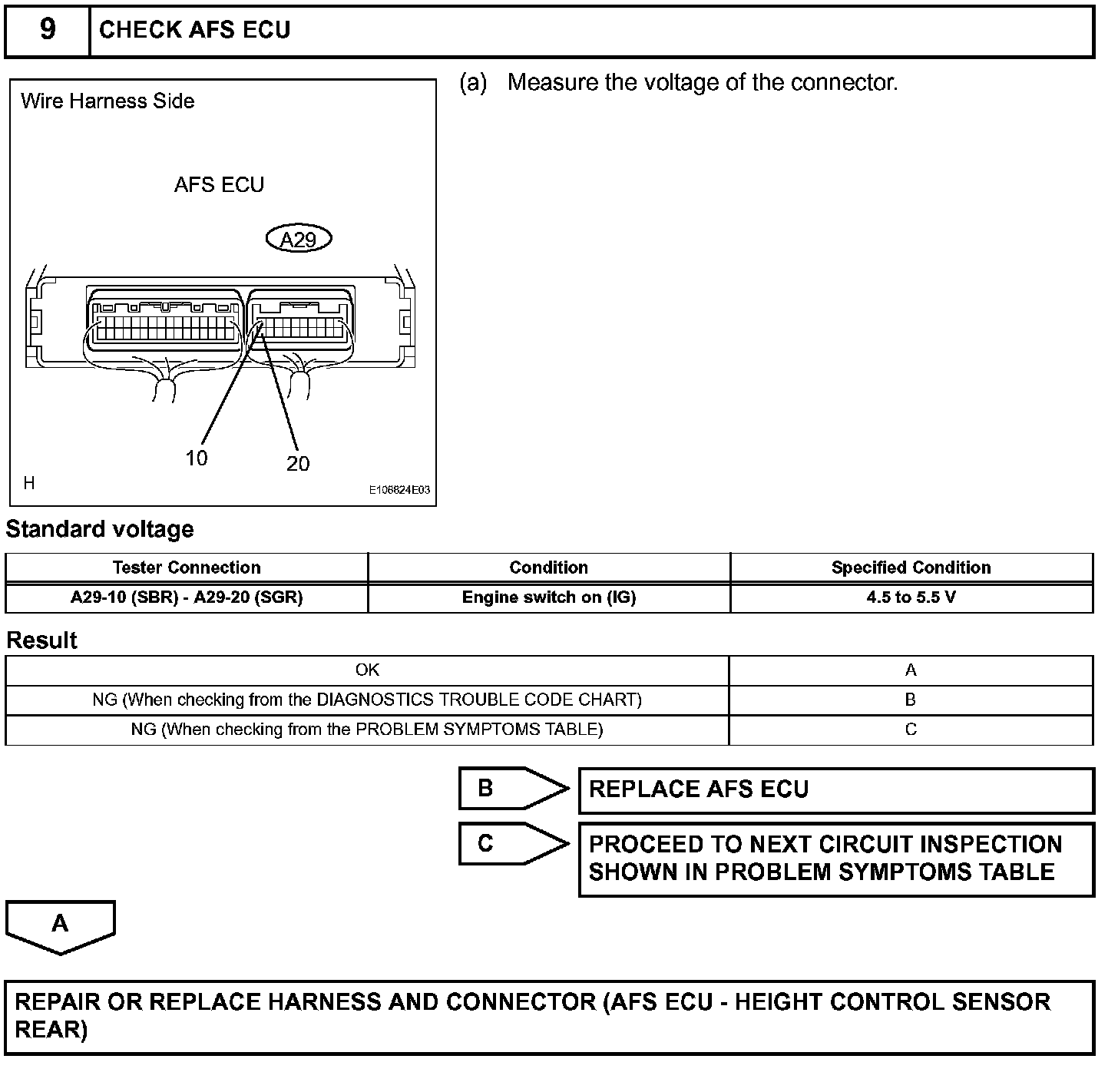

Step 9:
