B2273

DTC B2273 Ignition 2 Monitor Malfunction

DESCRIPTION

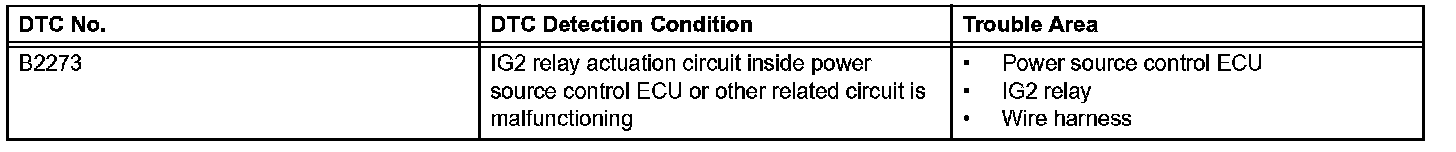

DTC Detection Condition:

This DTC is output when a malfunction is occurring in the IG output circuit, which is from the IG2 relay actuation circuit inside the power source control ECU to the IG2 relay.

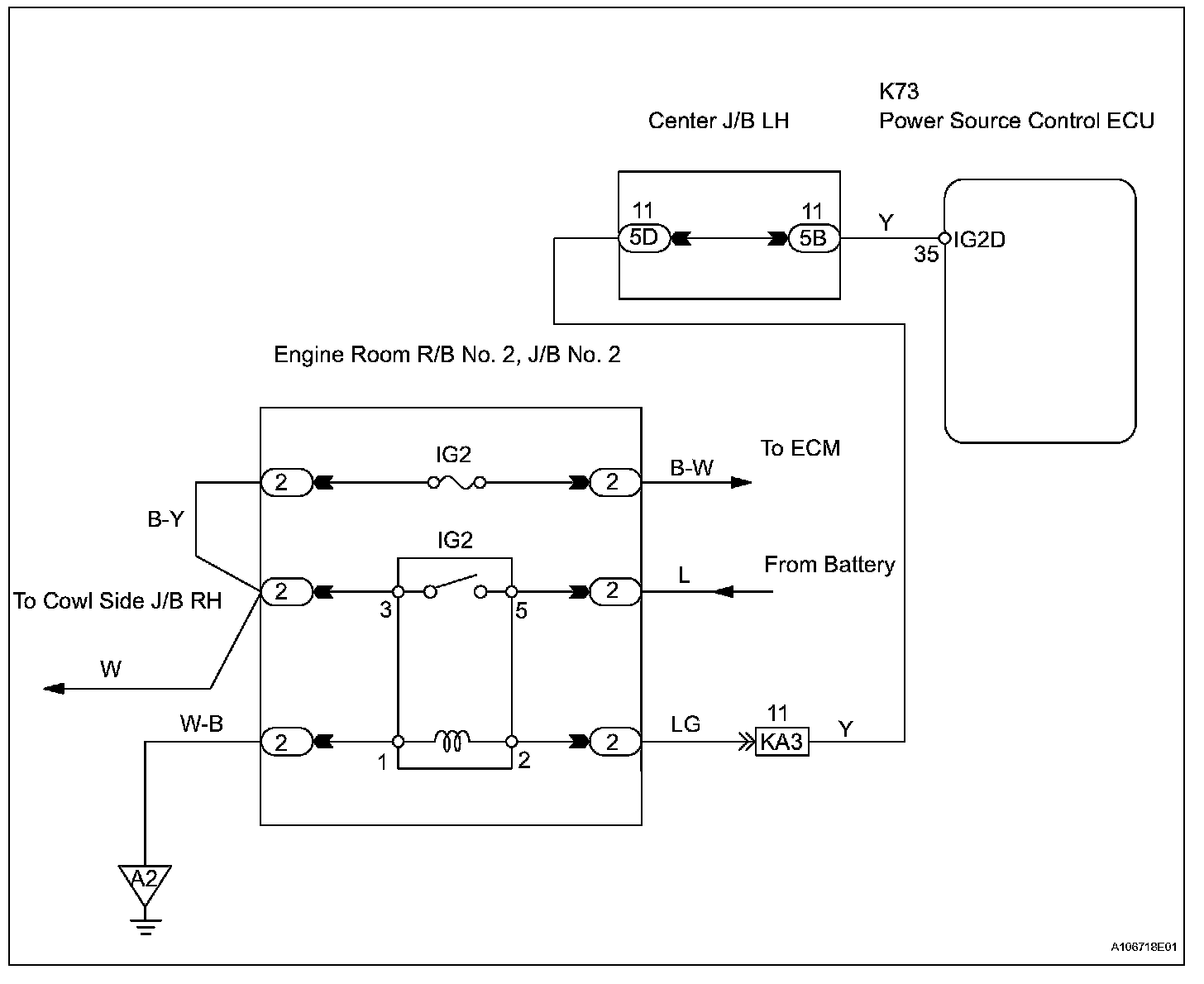

Wiring Diagram:

INSPECTION PROCEDURE

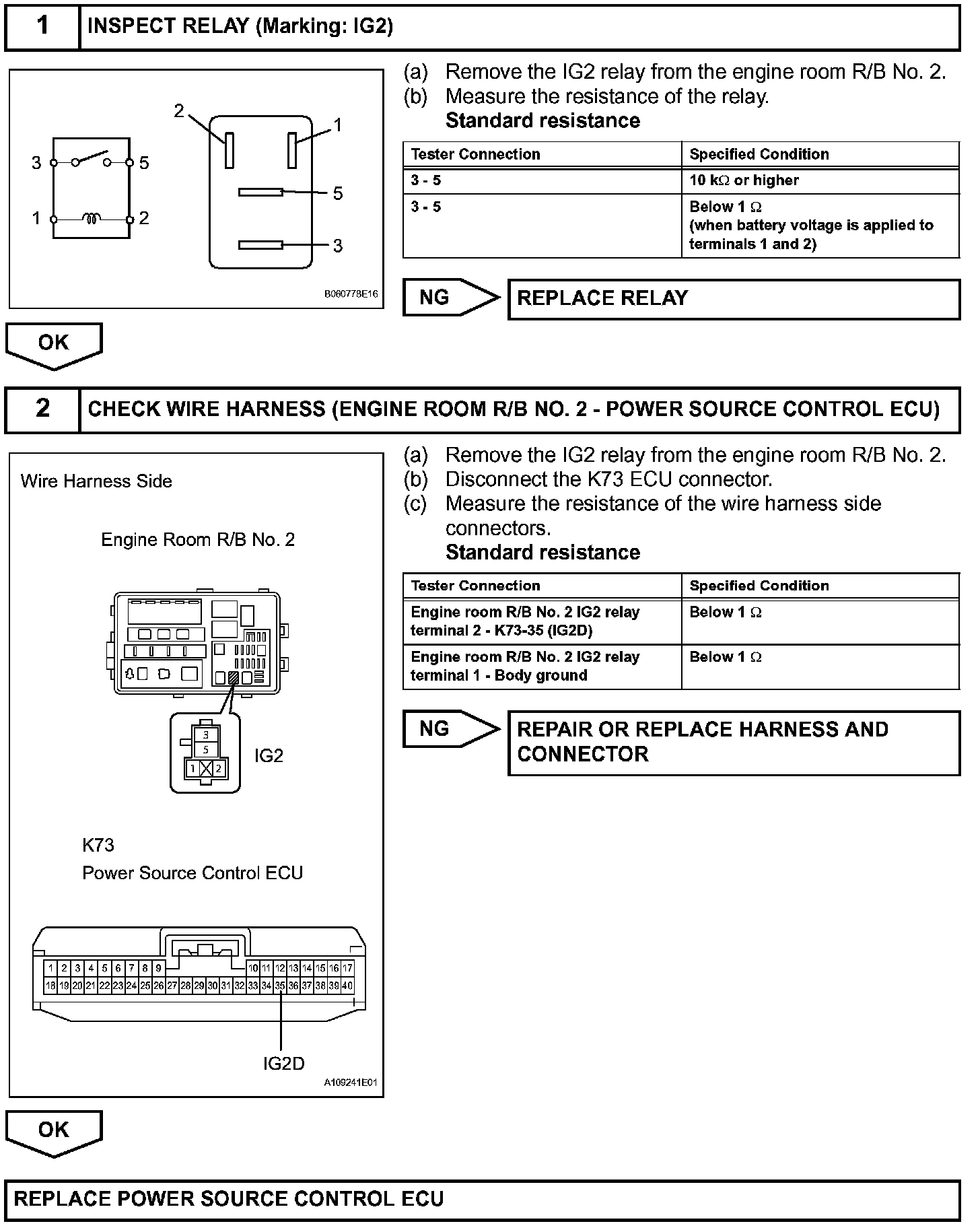

Step 1-2:
