B2272

DTC B2272 Ignition 1 Monitor Malfunction

DESCRIPTION

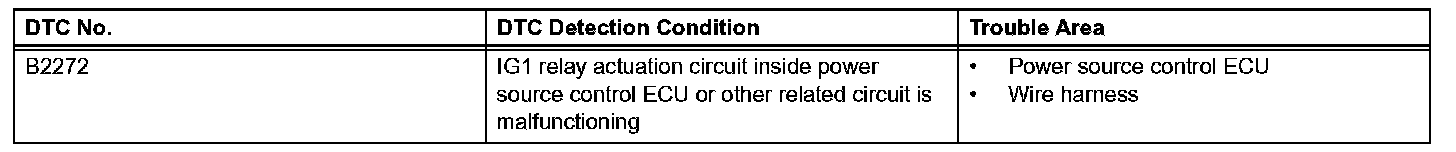

DTC Detection Condition:

This DTC is output when a malfunction is occurring in the IG output circuit, which is from the IG1 relay actuation circuit inside the power source control ECU to the IG1 relay.

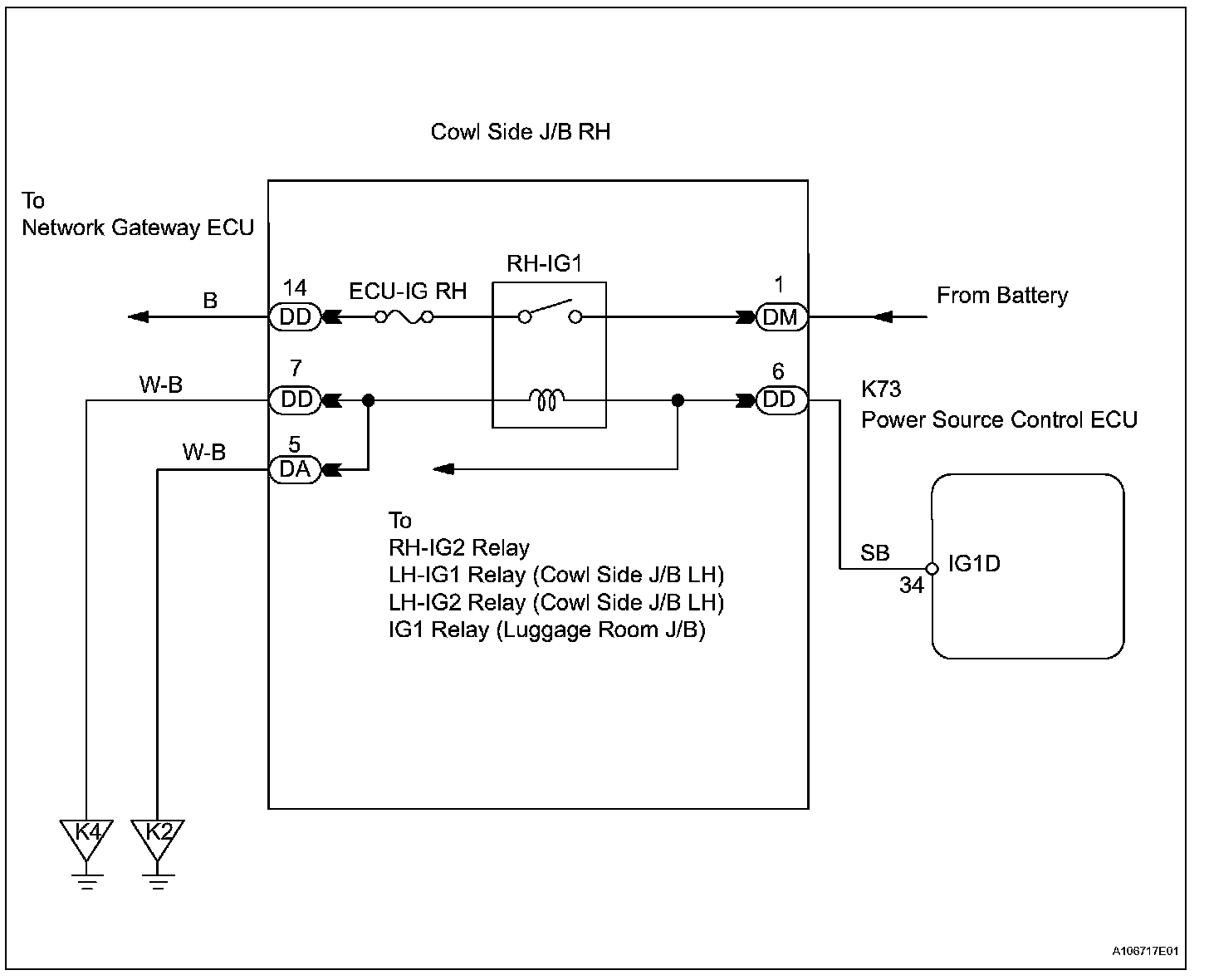

Wiring Diagram:

INSPECTION PROCEDURE

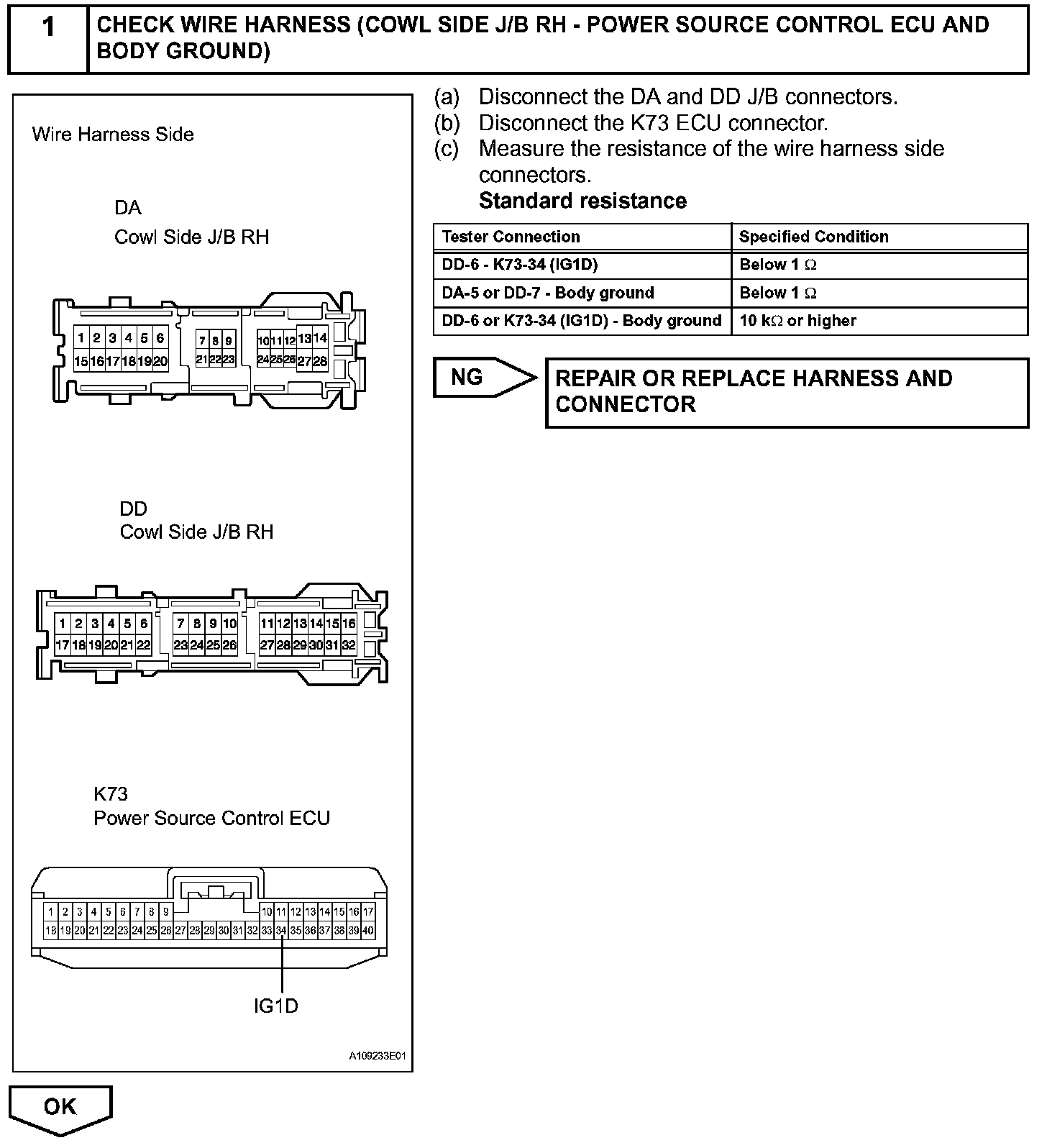

Step 1:

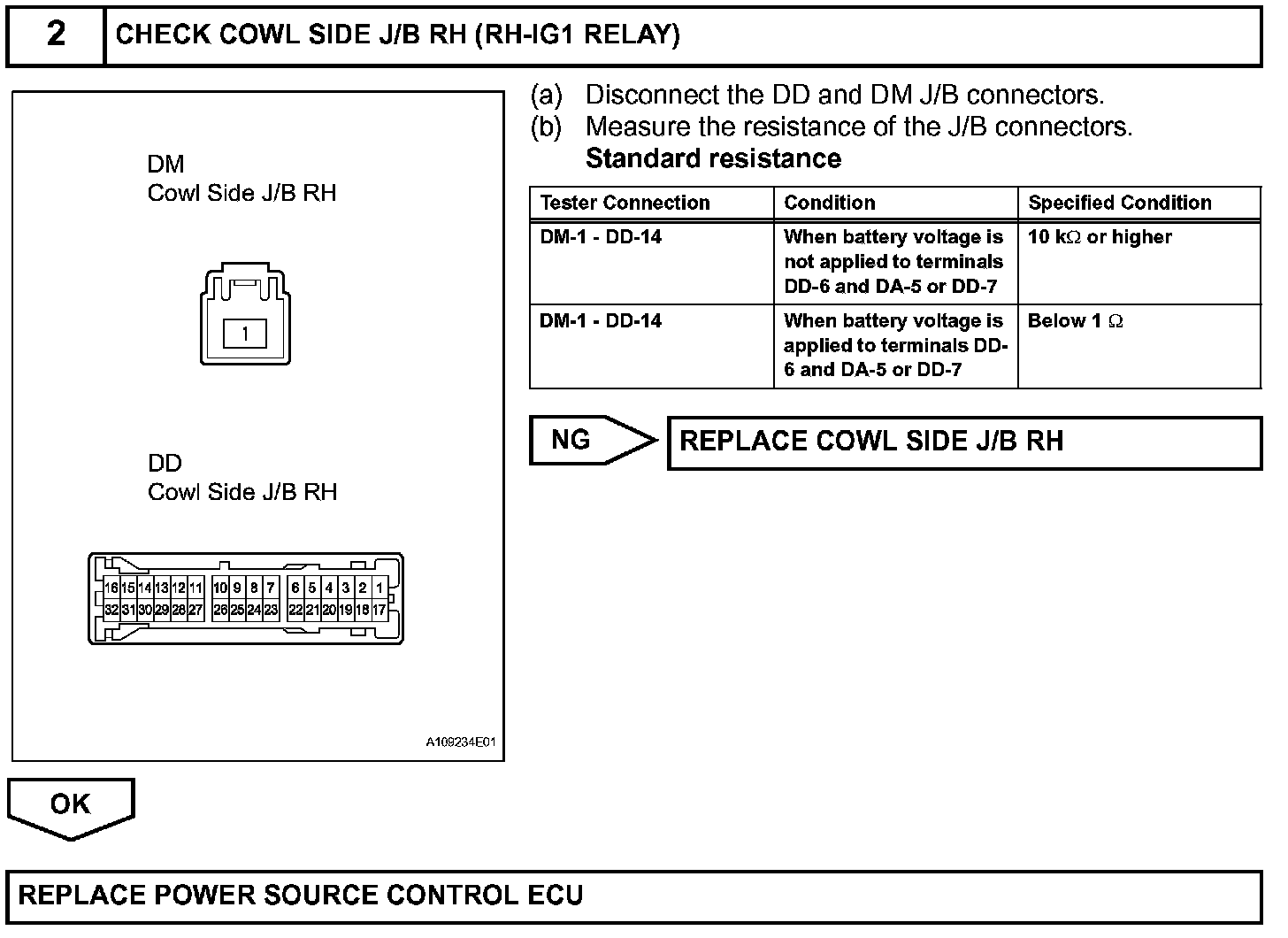

Step 2:
