B1296

DTC B1296 Front Light ECU Communication Stop

DESCRIPTION

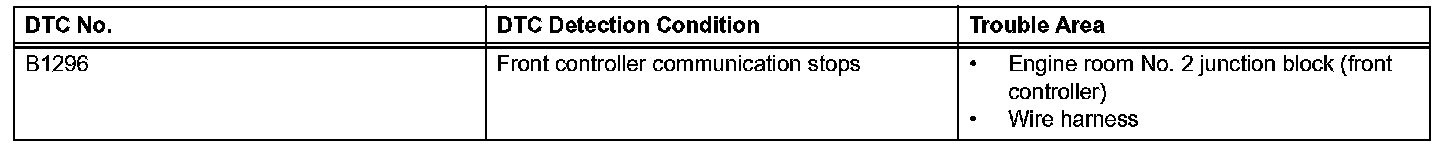

DTC Detection Condition:

This DTC is detected when communication between the engine room No. 2 junction block (front controller) and gateway ECU stops for more than 10 seconds.

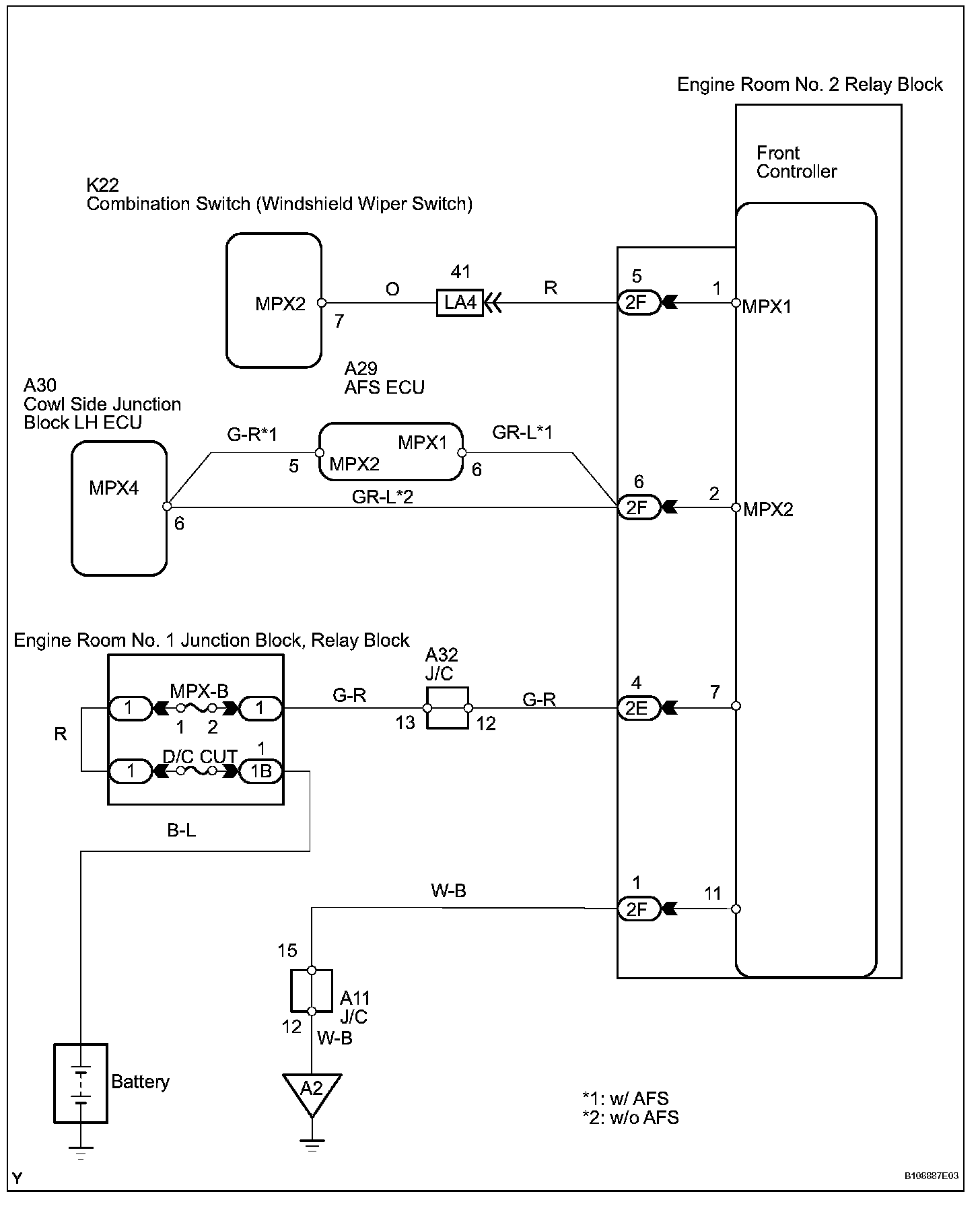

Wiring Diagram:

INSPECTION PROCEDURE

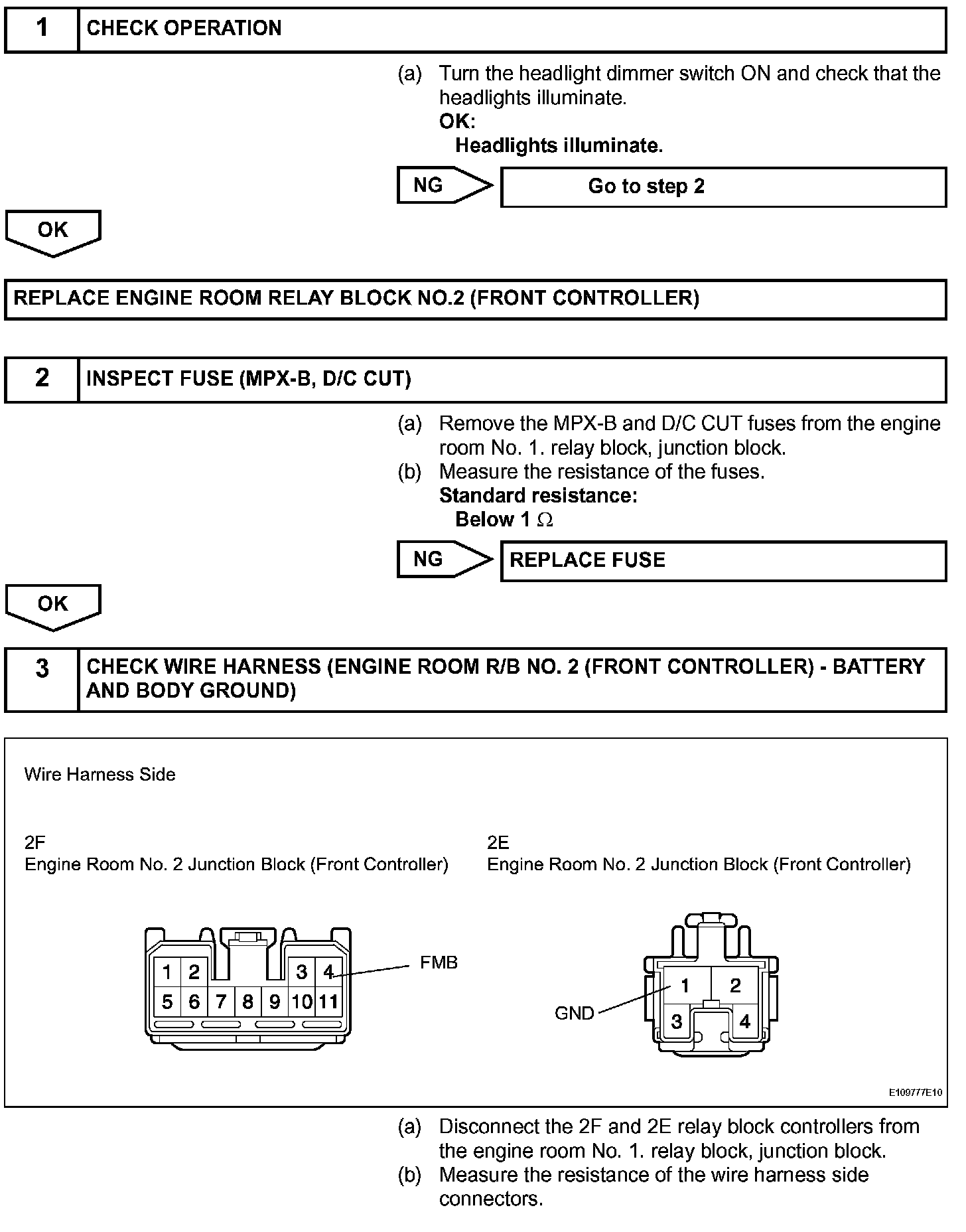

Step 1-3:

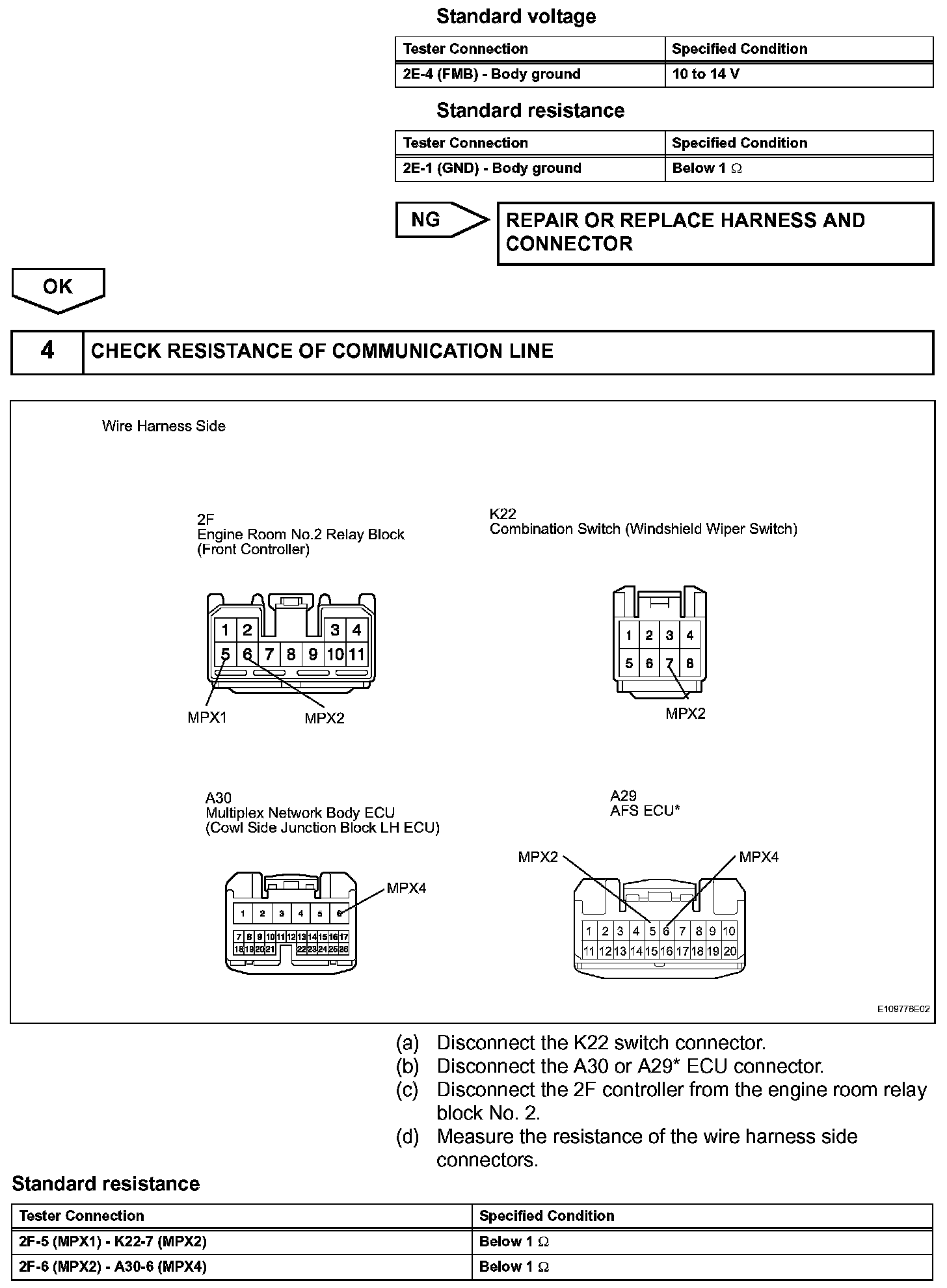

Step 3 (Continued)-4:

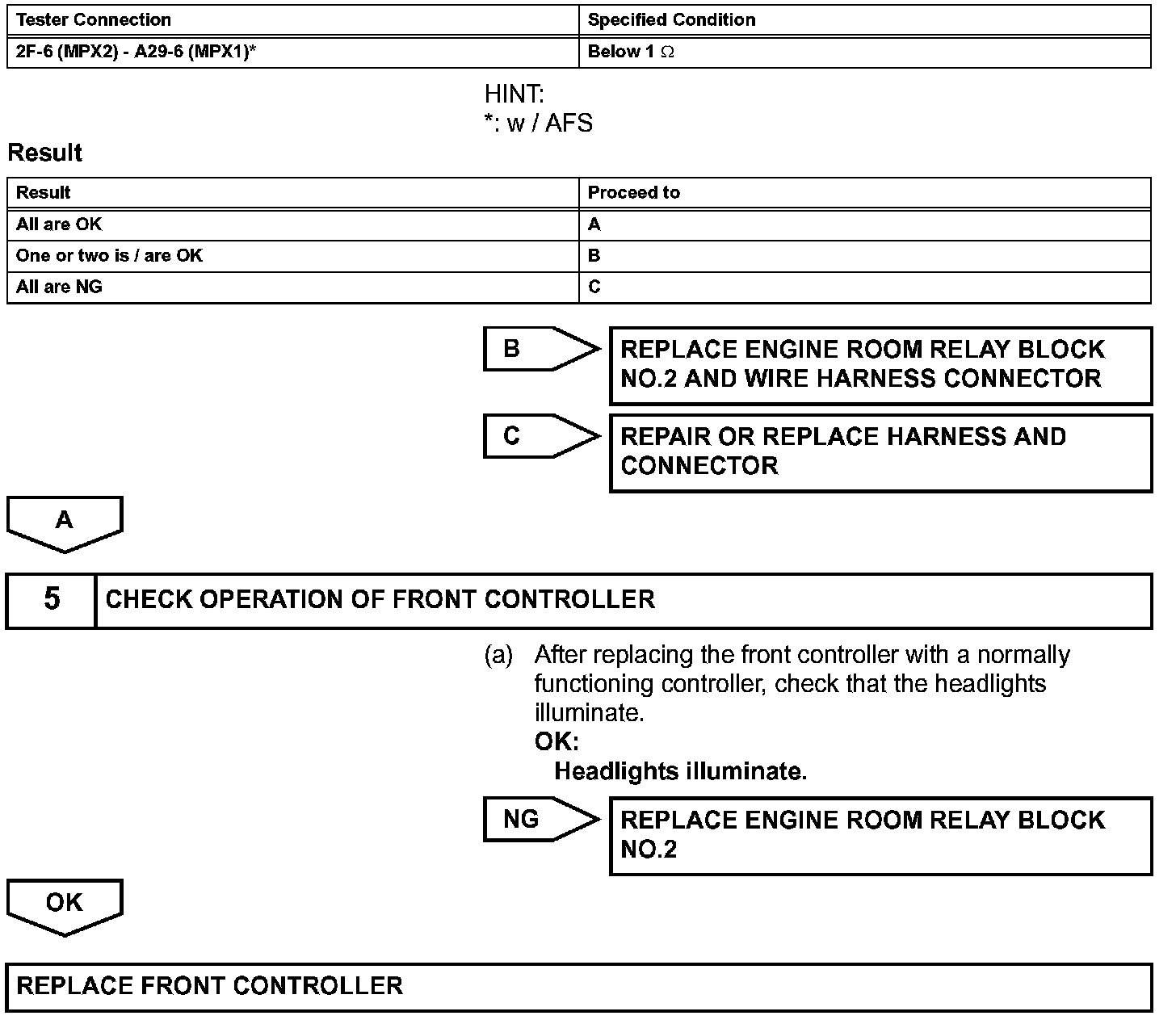

Step 4 (Continued)-5:
