B1271
DTC B1271 Combination Meter ECU Communication StopDESCRIPTION

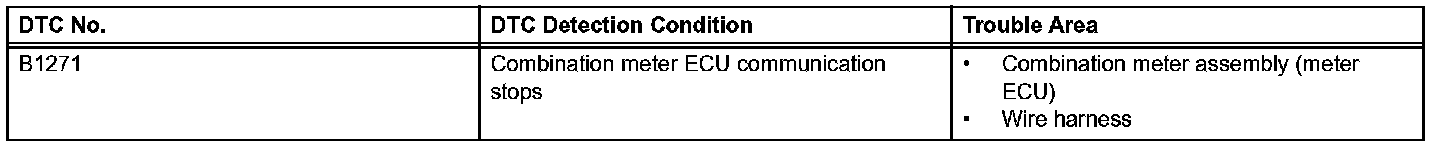

DTC Detection Condition:
This DTC is detected when communication between the combination meter (meter ECU) and network gateway ECU stops for more than 10 seconds.

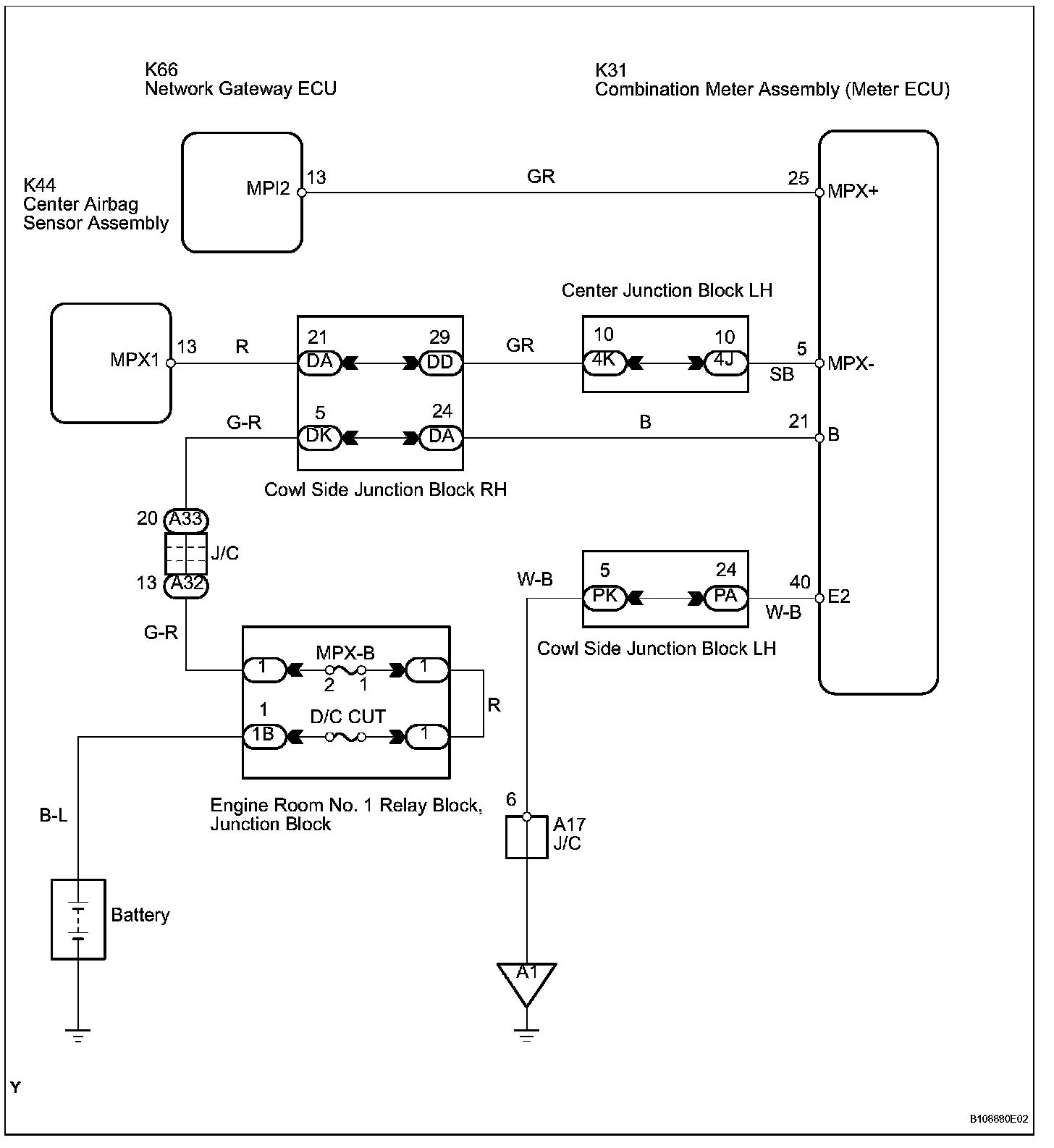

Wiring Diagram:

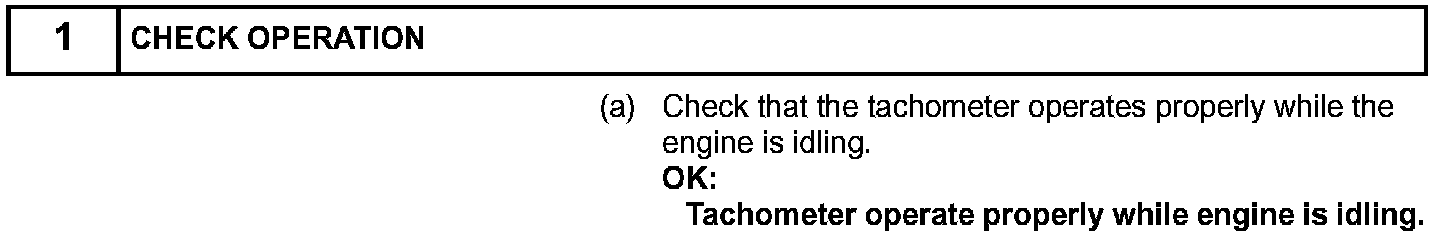

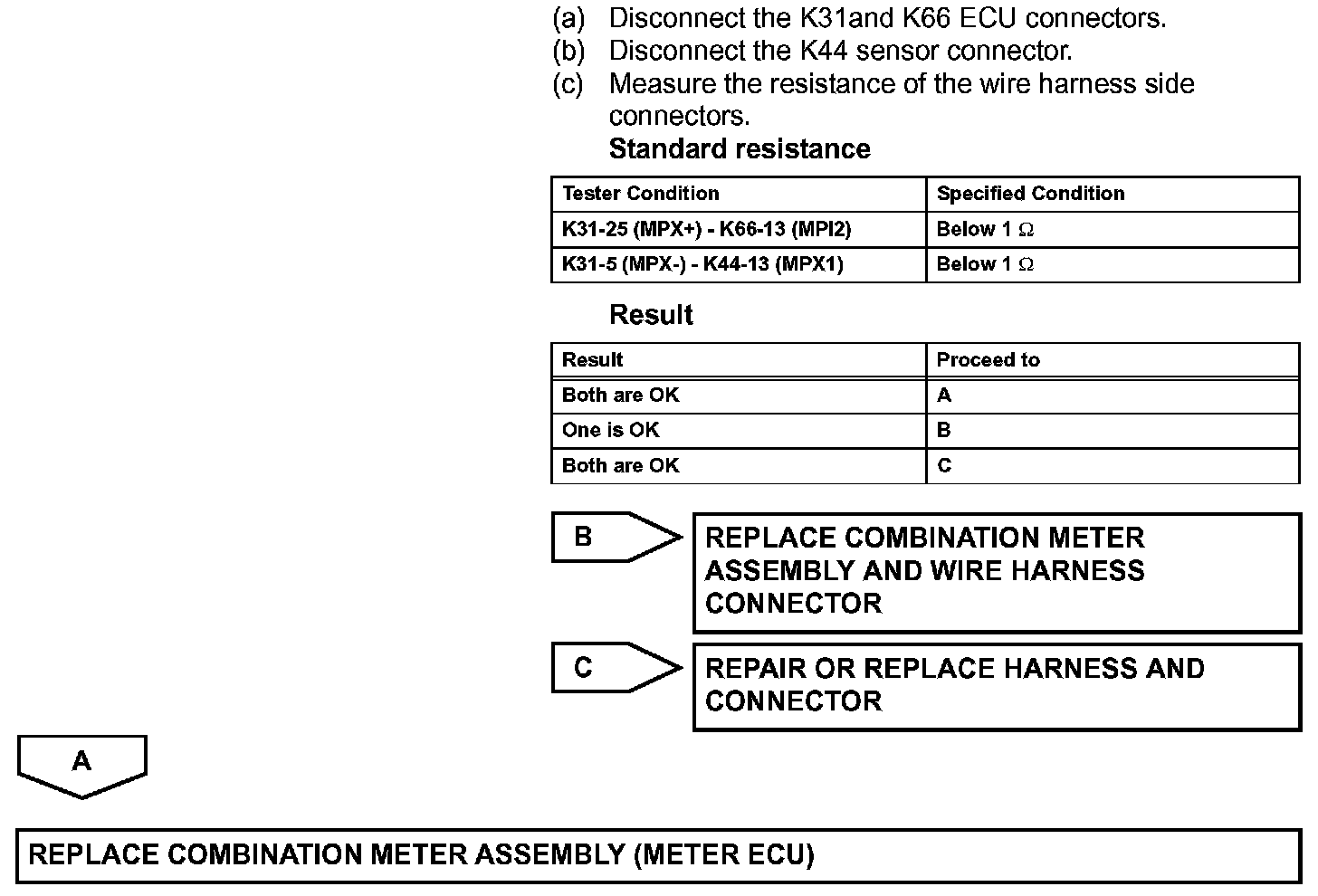

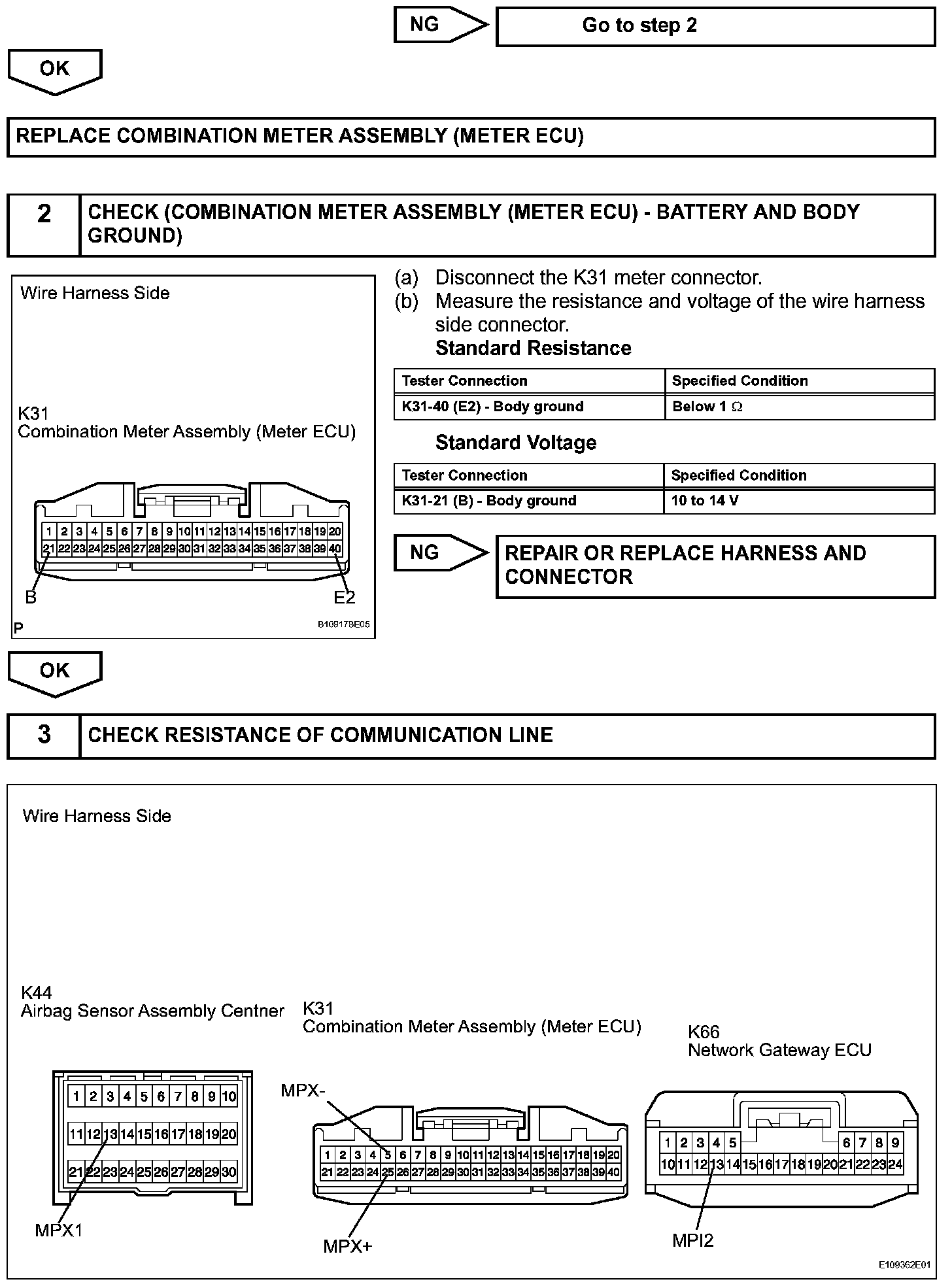

INSPECTION PROCEDURE
