B1217
DTC B1217 Rear Door ECU LH Communication StopDESCRIPTION

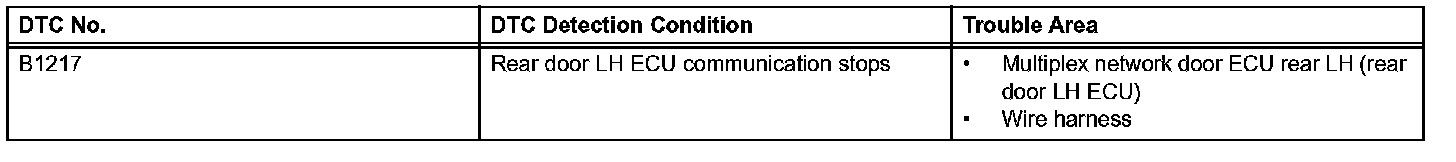

DTC Detection Condition:
This DTC is detected when communication between the multiplex network door ECU rear LH (rear door LH ECU) and gateway ECU stops for more than 10 seconds.

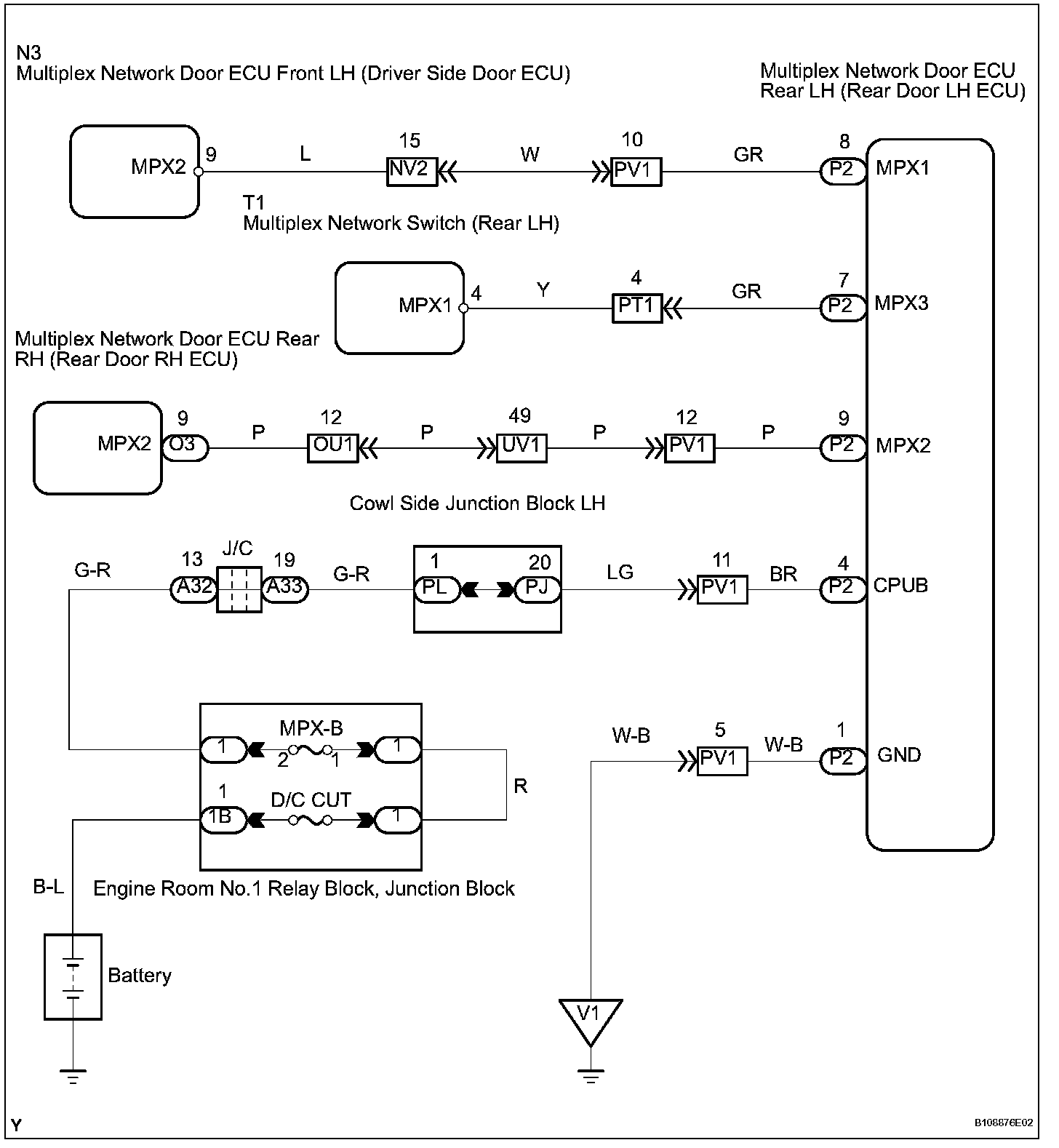

Wiring Diagram:
INSPECTION PROCEDURE

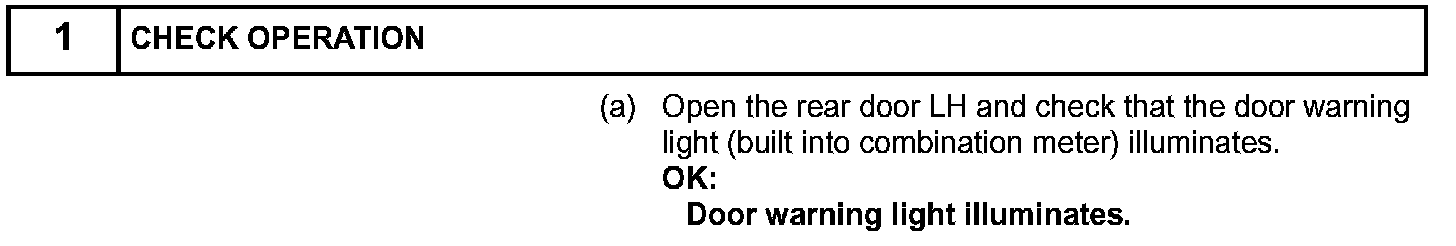

Step 1:

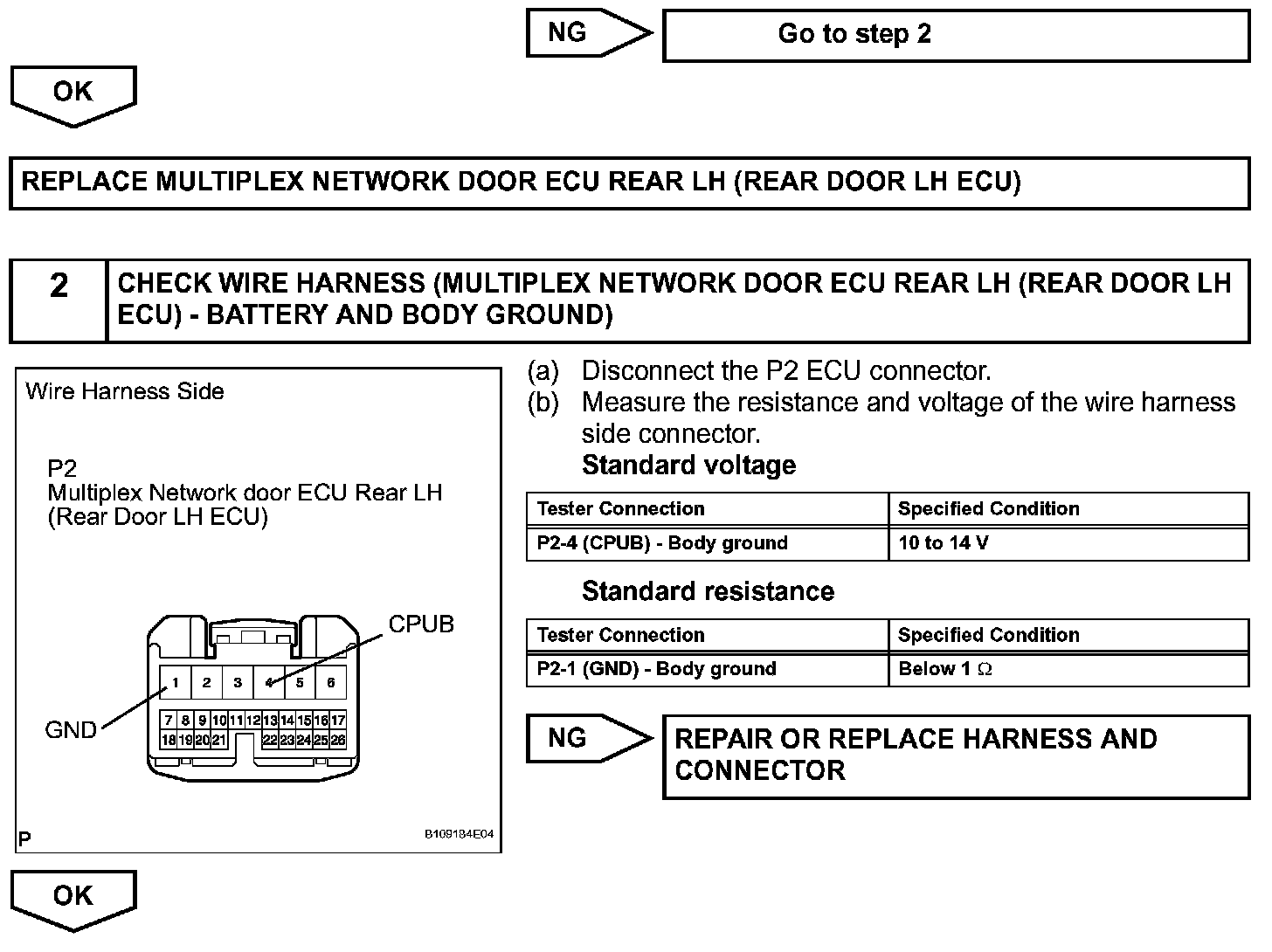

Step 1 (Continued)-2:

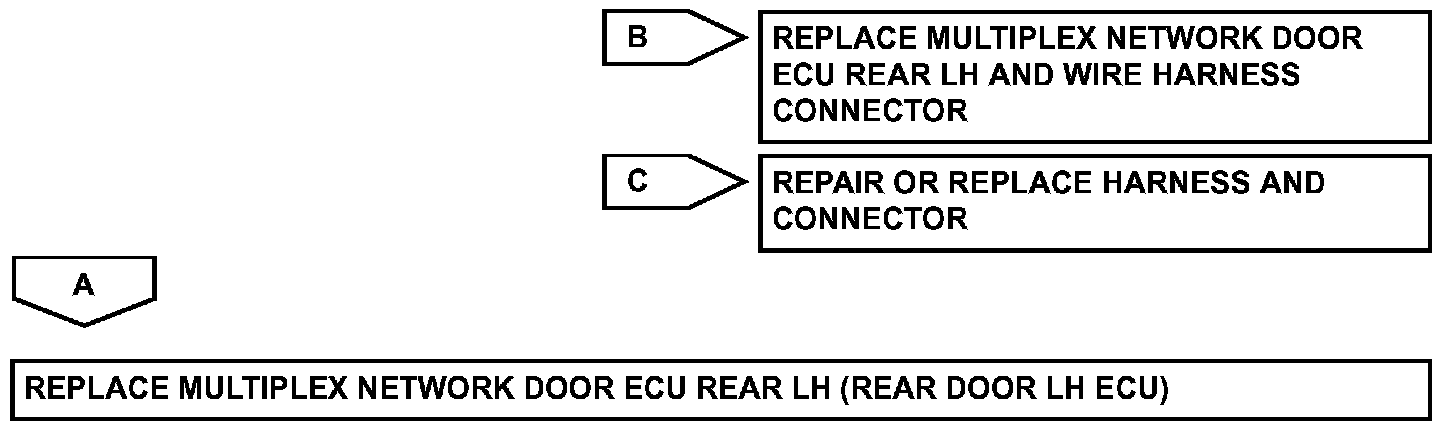

Step 3:
Step 3 (Continued):
