B1207

DTC B1207 Smart ECU Stop

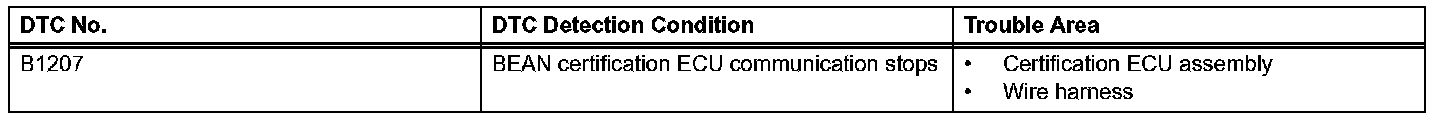

DTC Detection Condition:

DESCRIPTION

HINT: This DTC is only output on vehicles equipped with a smart access with push-button start. This DTC is detected when communication between the certification ECU and gateway ECU stops for more than 10 seconds.

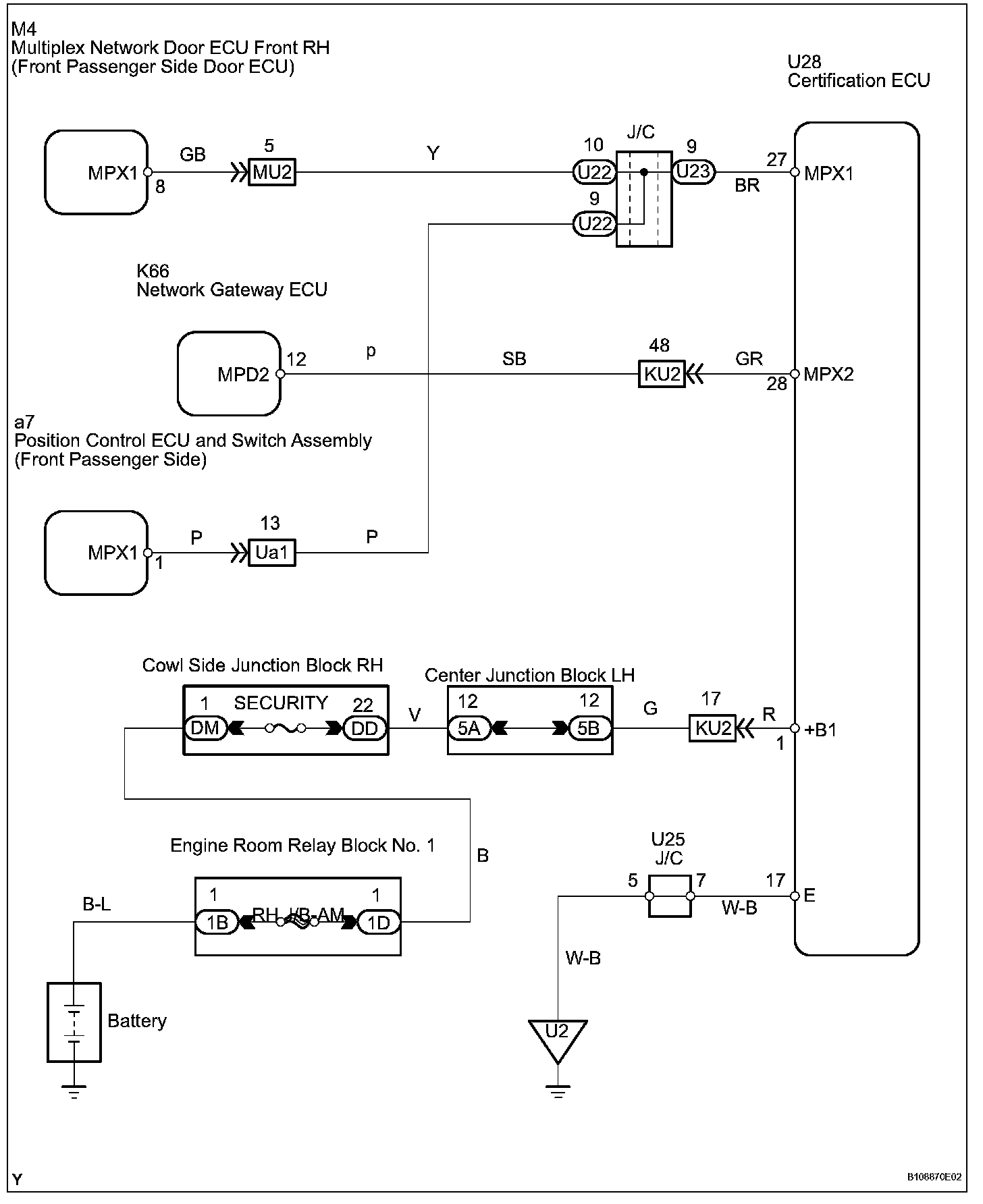

Wiring Diagram:

INSPECTION PROCEDURE

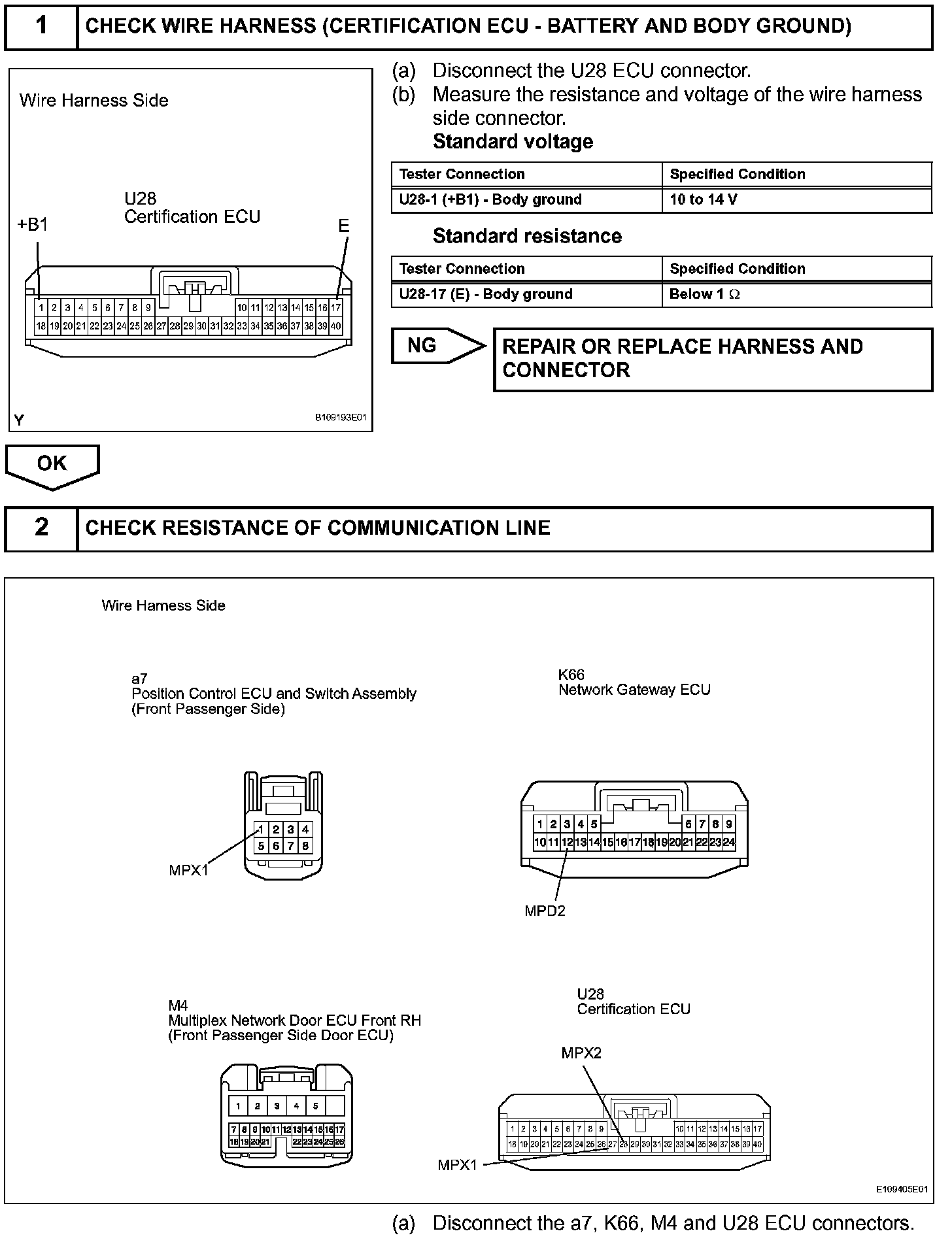

Step 1-2:

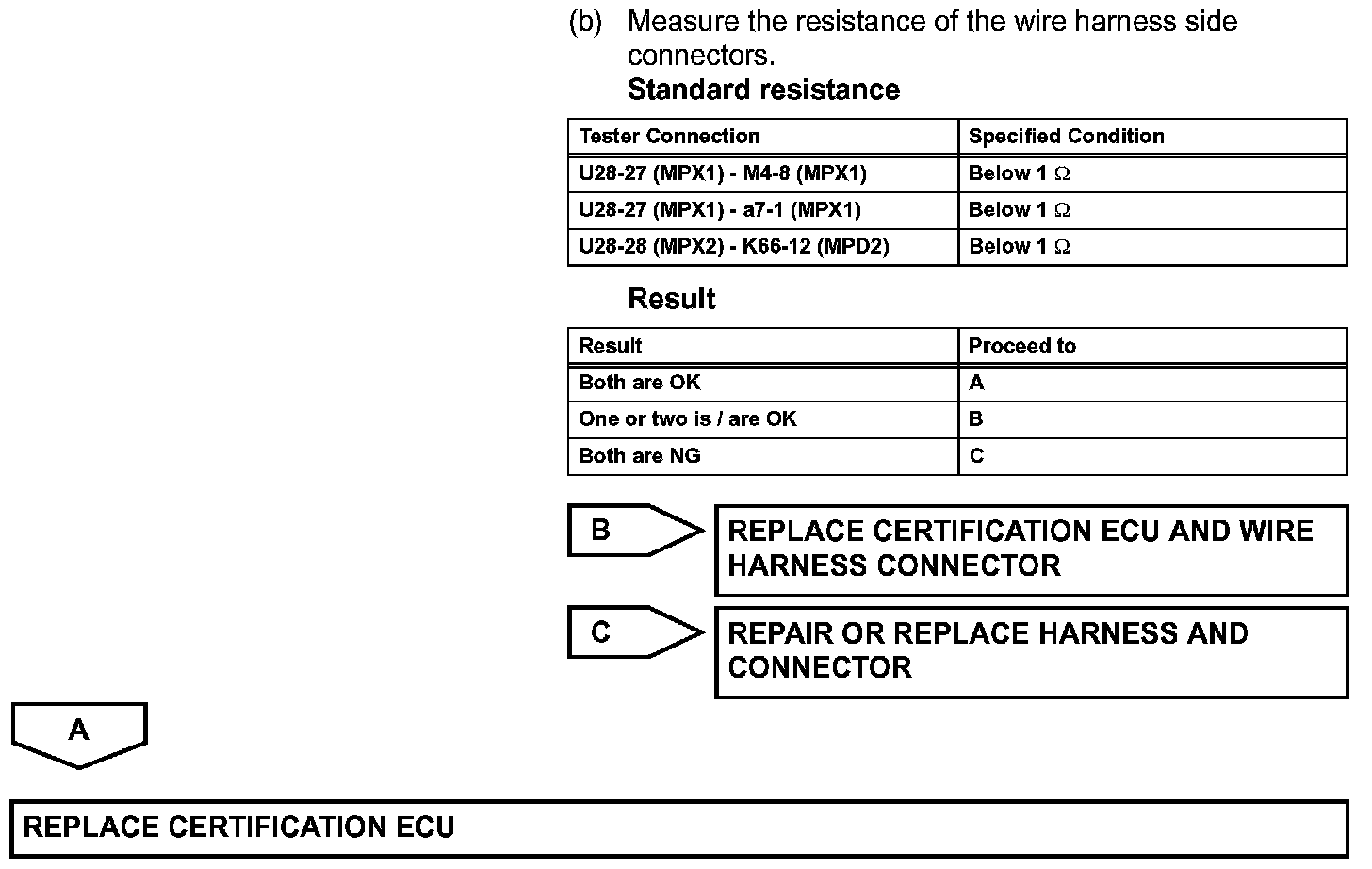

Step 2 (Continued):
