B1205

DTC B1205 AFS ECU Communication Stop

DESCRIPTION

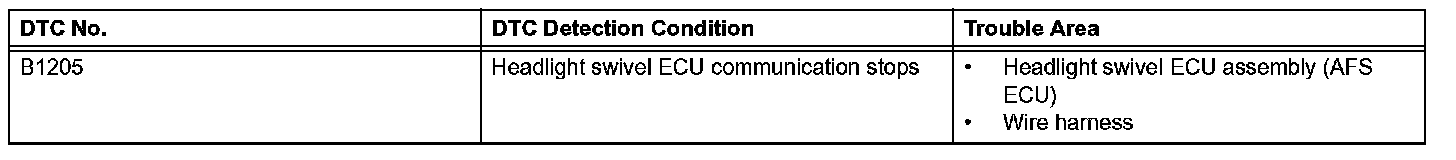

DTC Detection Condition:

This DTC is detected when communication between the headlight swivel ECU (AFS ECU) and the gateway ECU stops for more than 10 seconds.

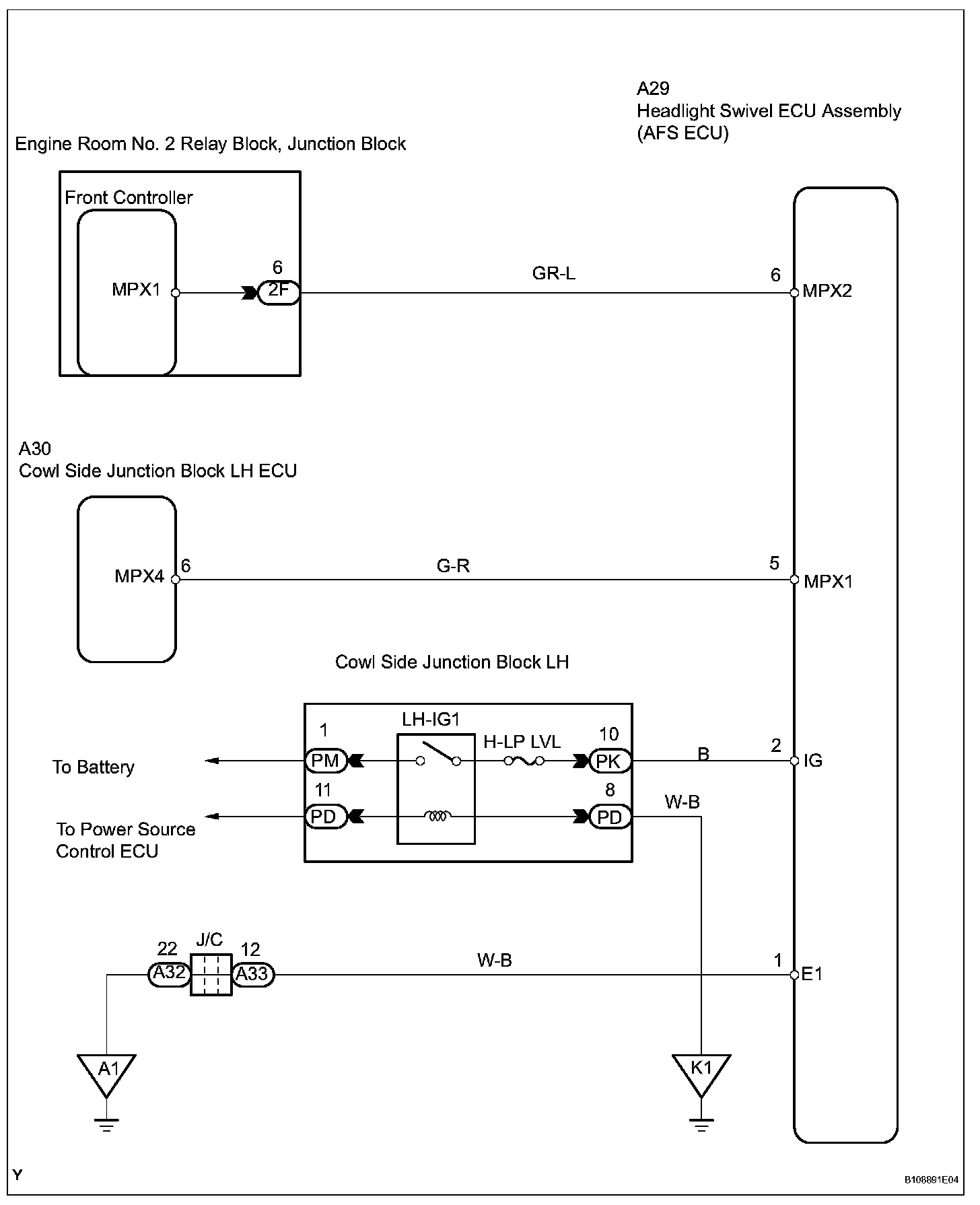

Wiring Diagram:

INSPECTION PROCEDURE

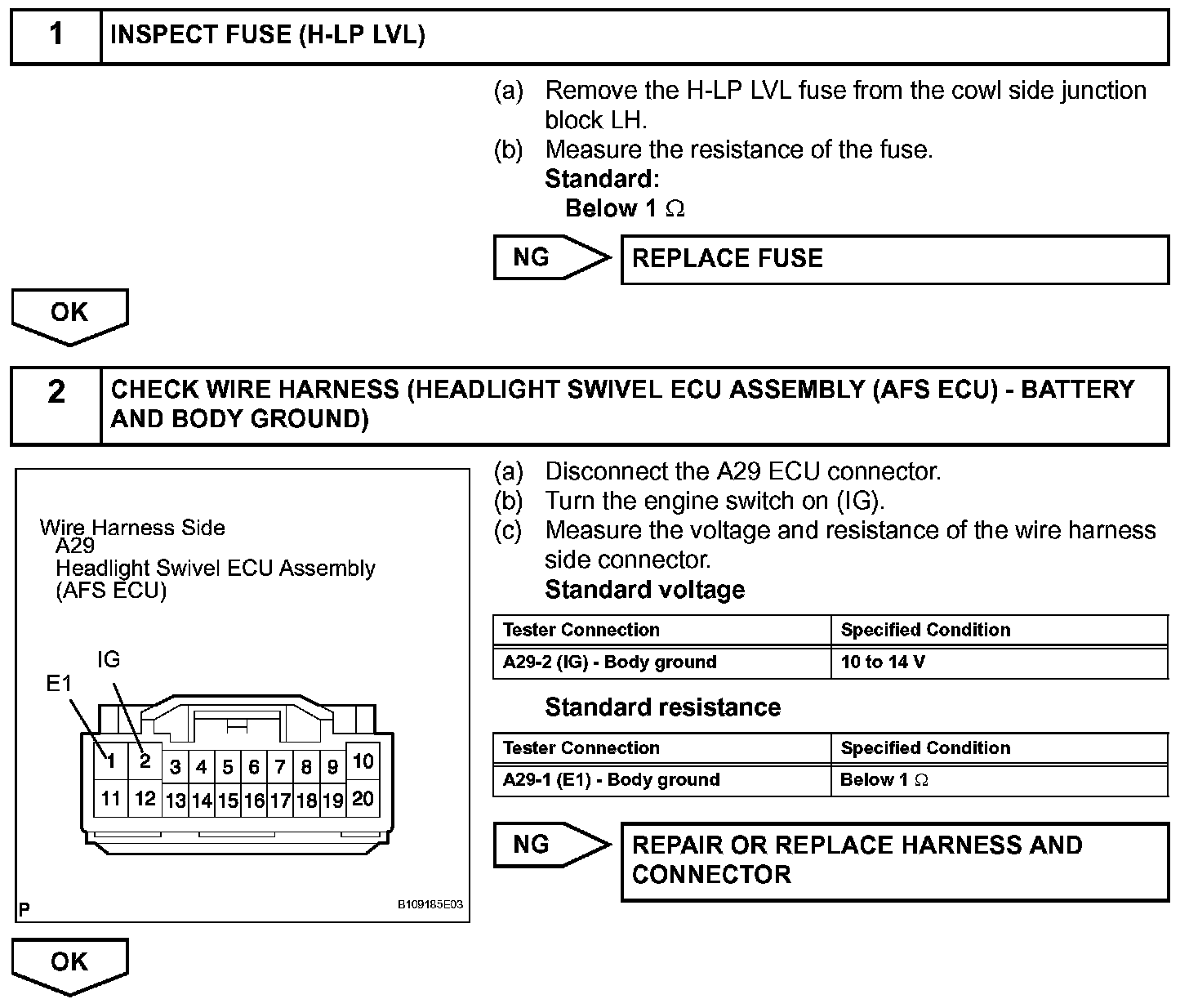

Step 1-2:

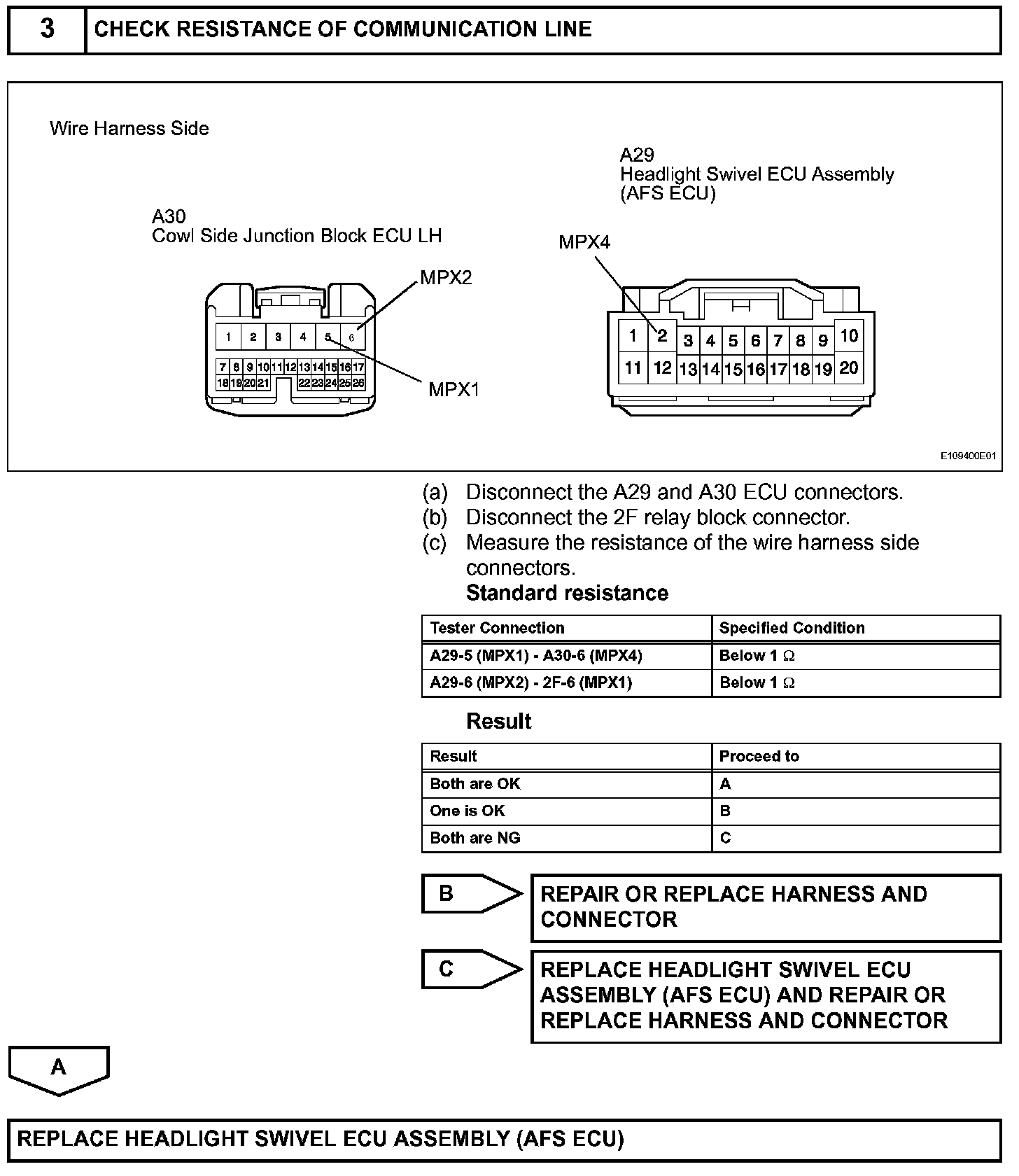

Step 3:
