B1204

DTC B1204 Driver Side Seat Switch ECU Communication Stop

DESCRIPTION

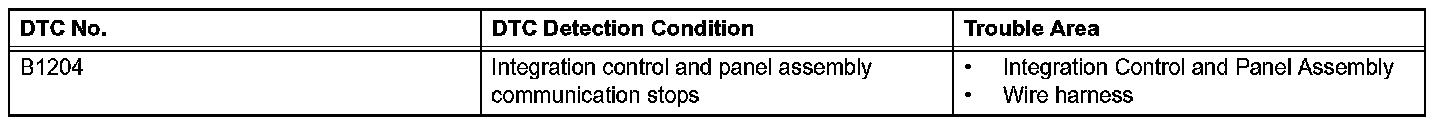

DTC Detection Condition:

This DTC is detected when communication between the integration control and panel assembly and network gateway ECU stops for more than 10 seconds.

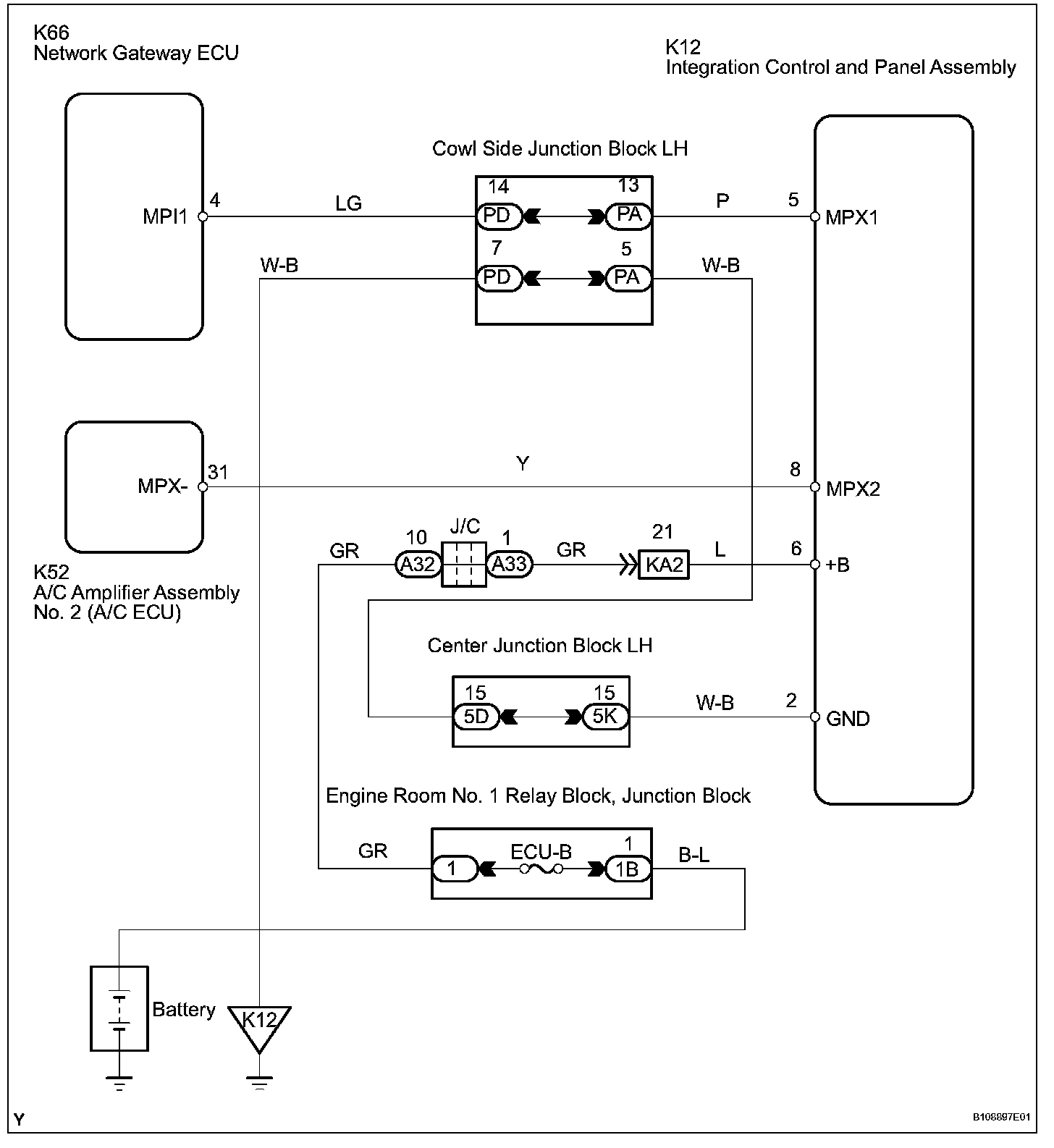

Wiring Diagram:

INSPECTION PROCEDURE

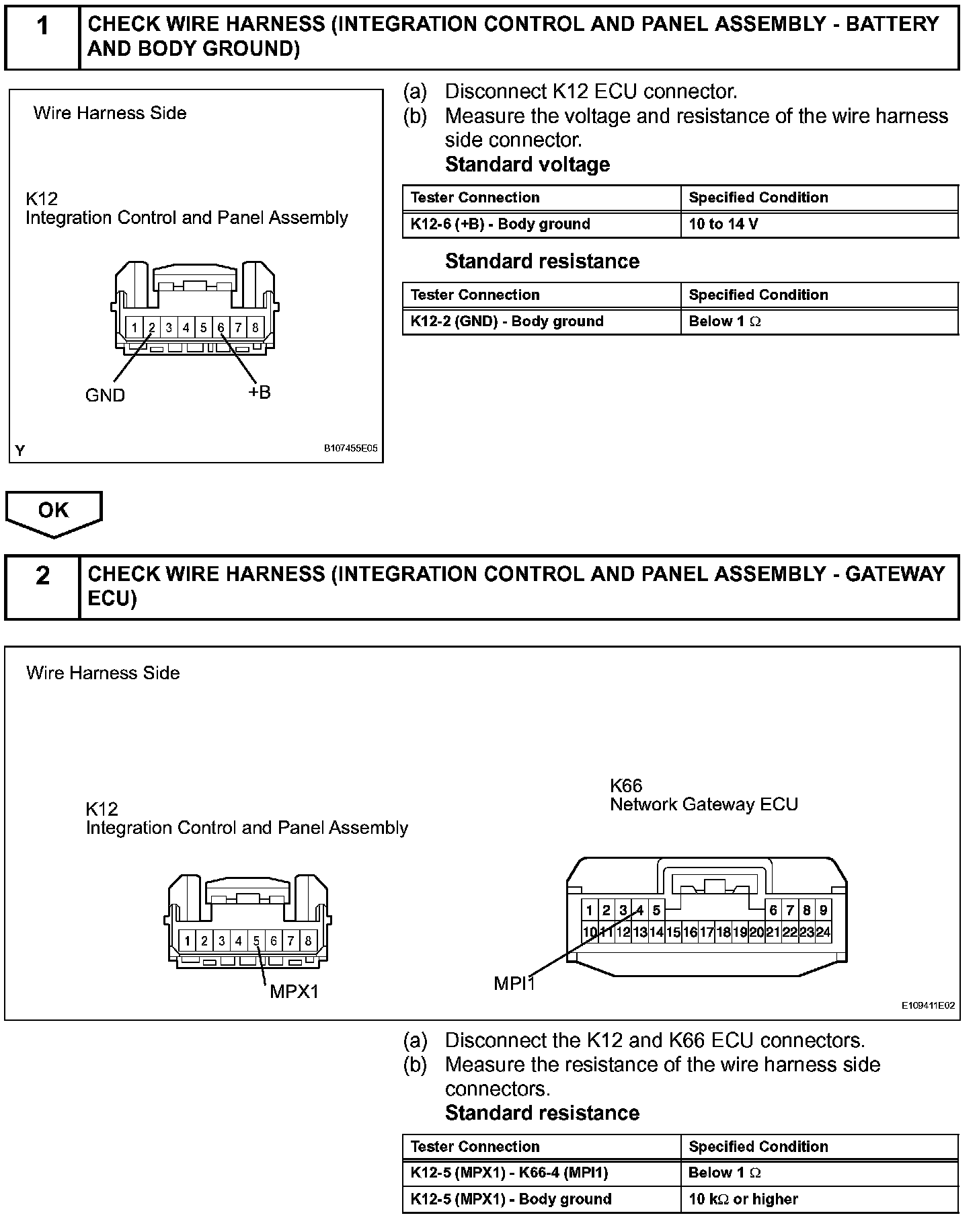

Step 1-2:

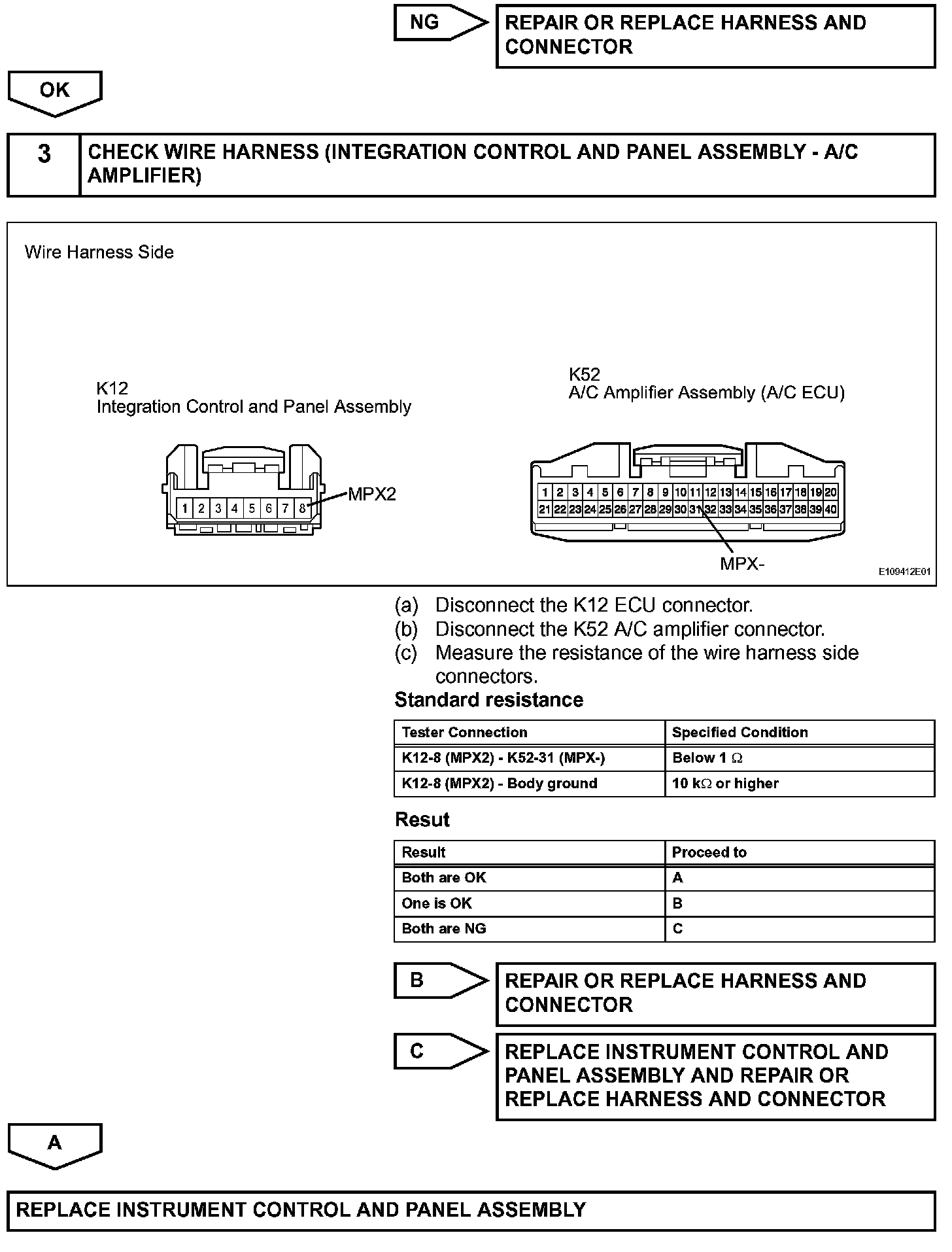

Step 2 (Continued)-3:
