Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Parts and Labor >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Images

Images

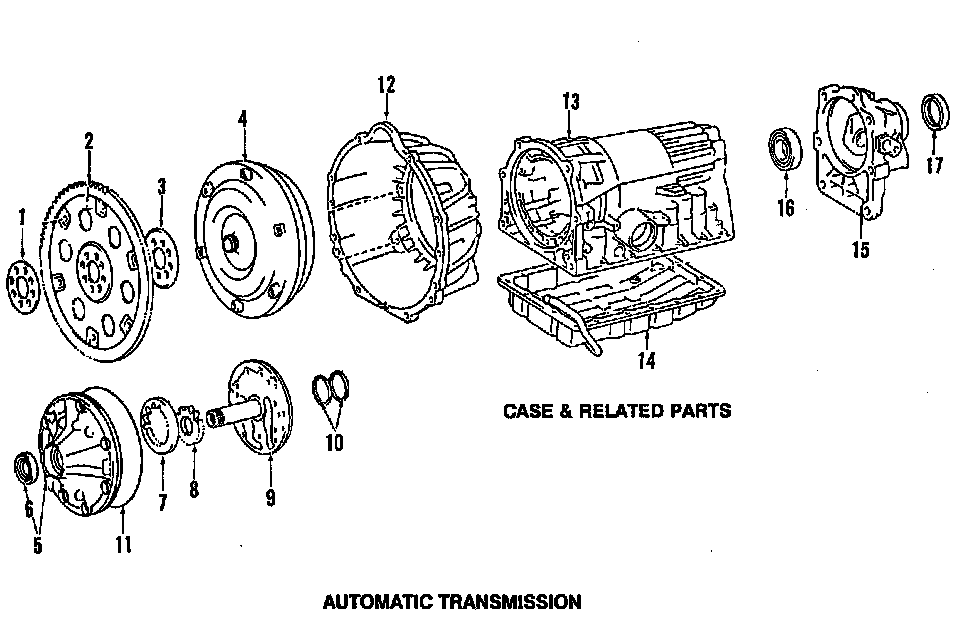

Case & Related Parts:

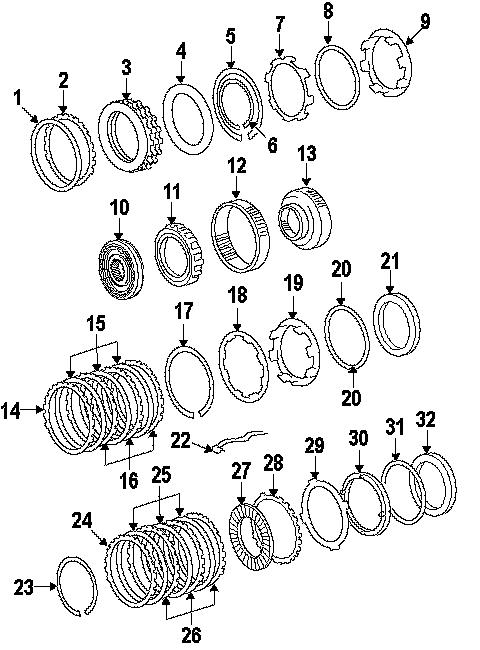

First & Reverse Brake Clutch:

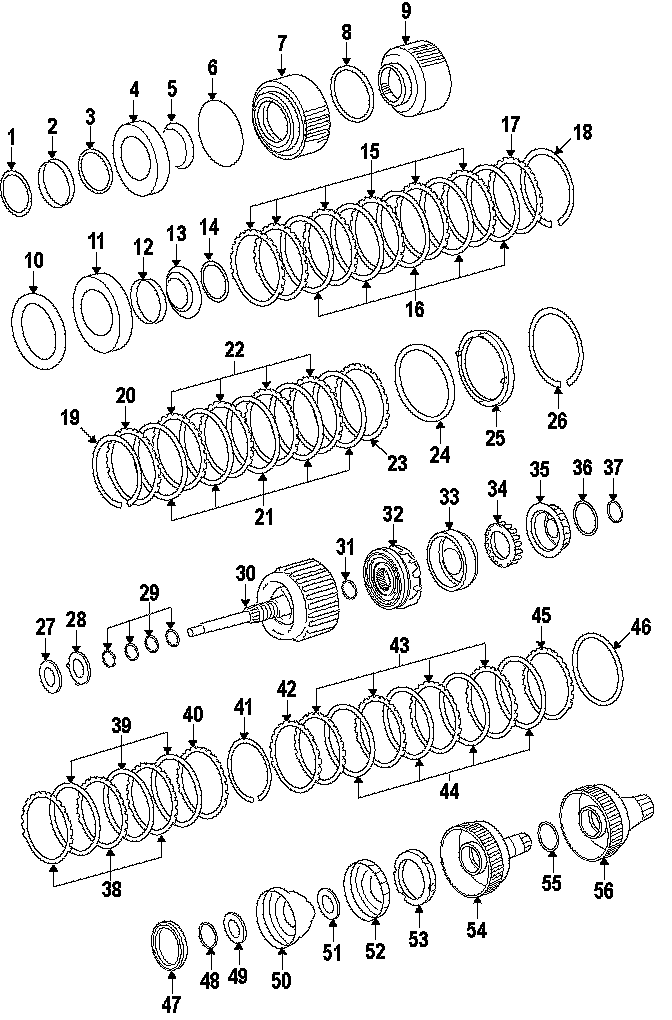

Gear Train:

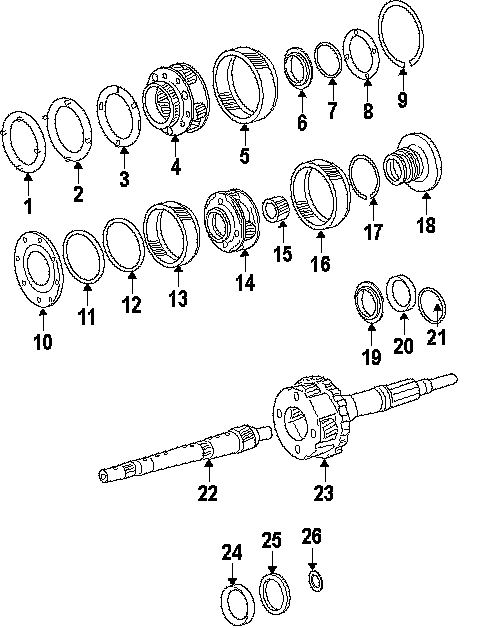

Planetary Gears:

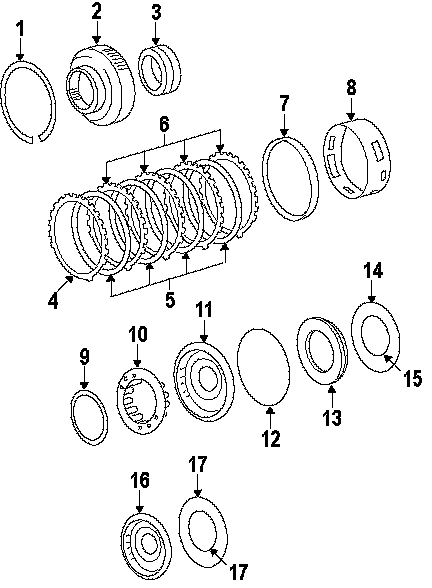

Multi Disc Clutch:
