Wiper Motor Power Source Circuit

Wiper Motor Power Source Circuit

DESCRIPTION

This circuit provides power to the windshield wiper motor assembly.

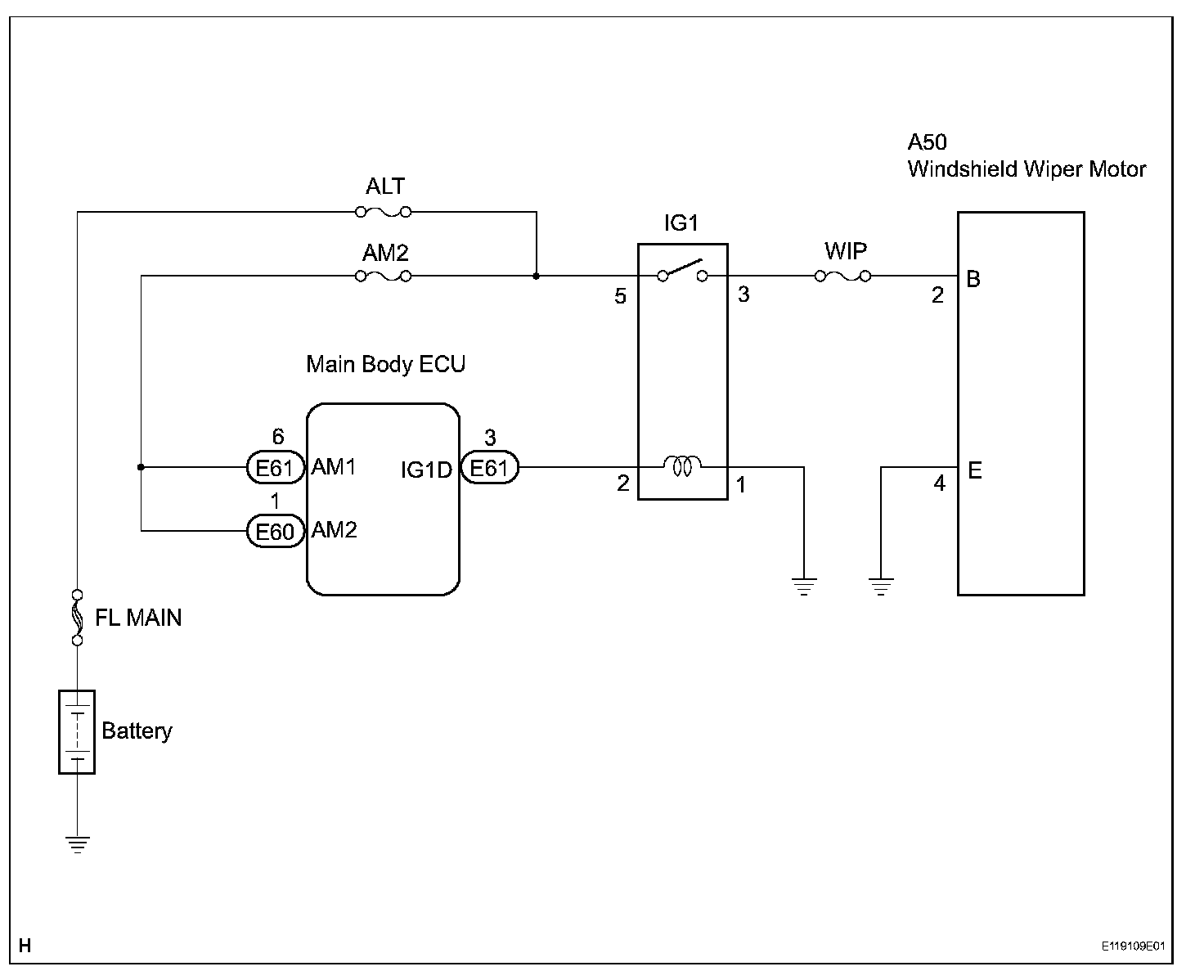

Wiring Diagram:






Step 1:

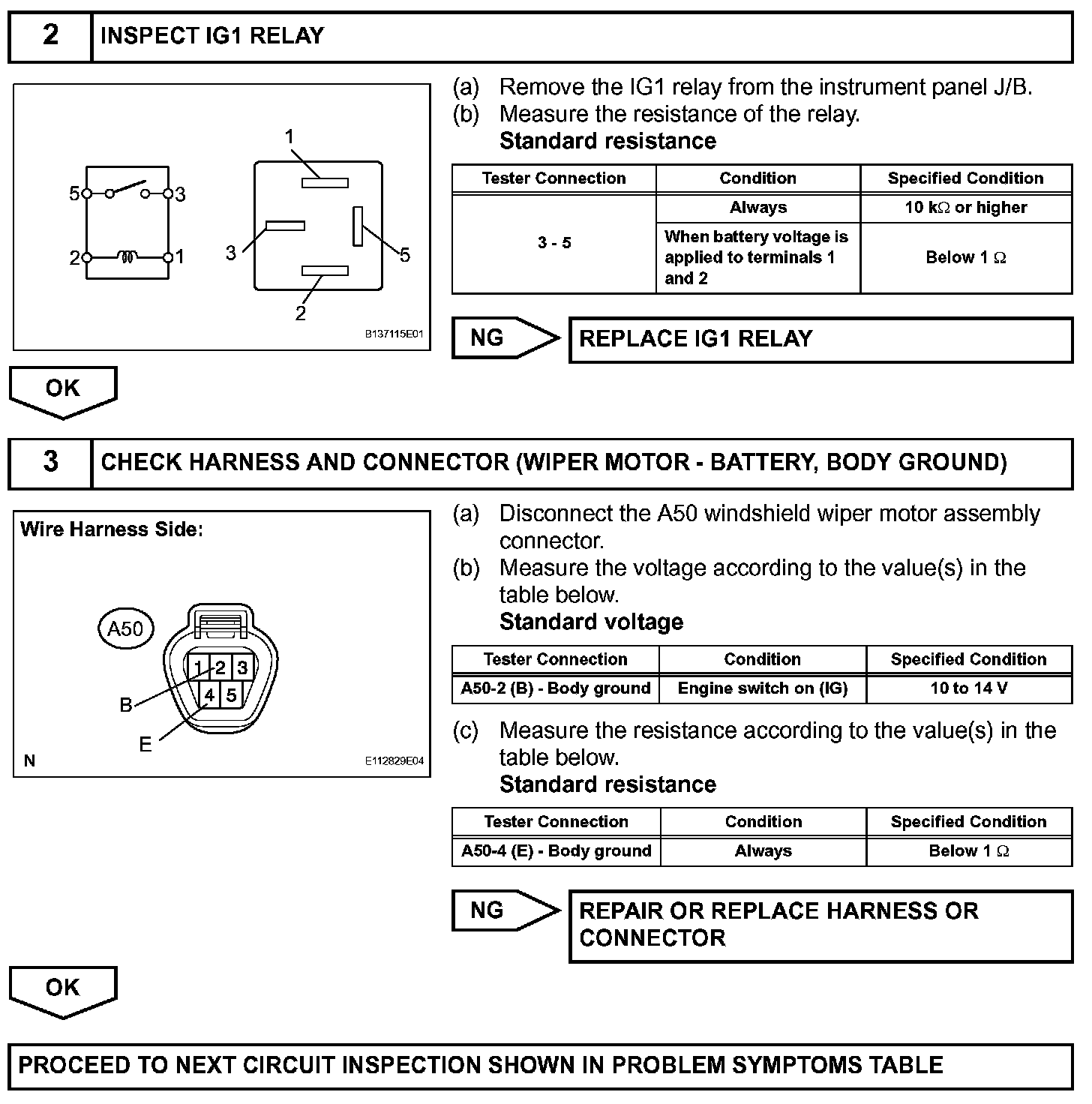

Step 2-3:




INSPECTION PROCEDURE
