Washer Fluid Level Warning Switch Circuit
Washer Fluid Level Warning Switch CircuitDESCRIPTION
When the volume of washer fluid decreases to a certain level (when the washer fluid level warning switch is turned ON), the combination meter warns the driver through the master warning light illumination, the buzzer and the warning message on the multi-information display.

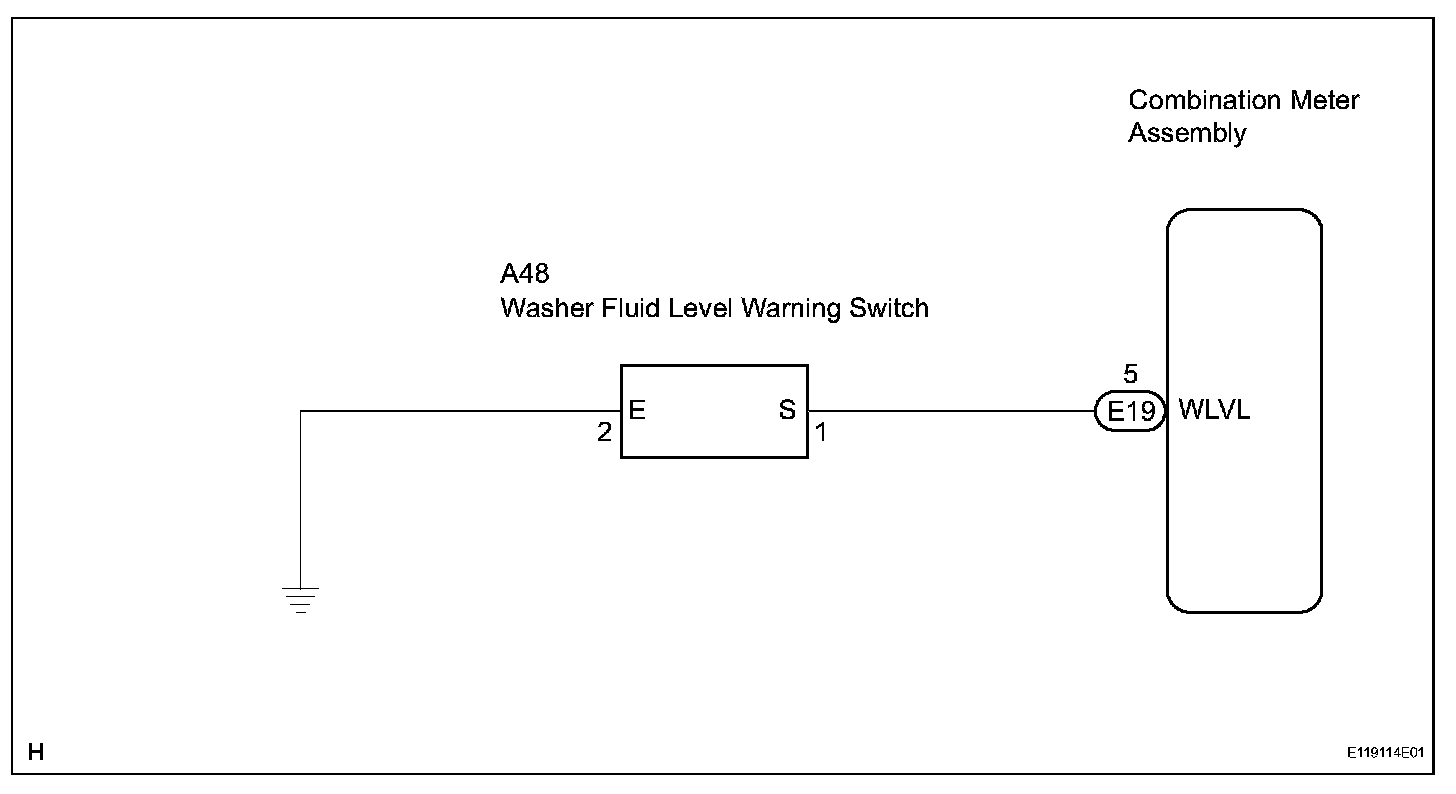

Wiring Diagram:

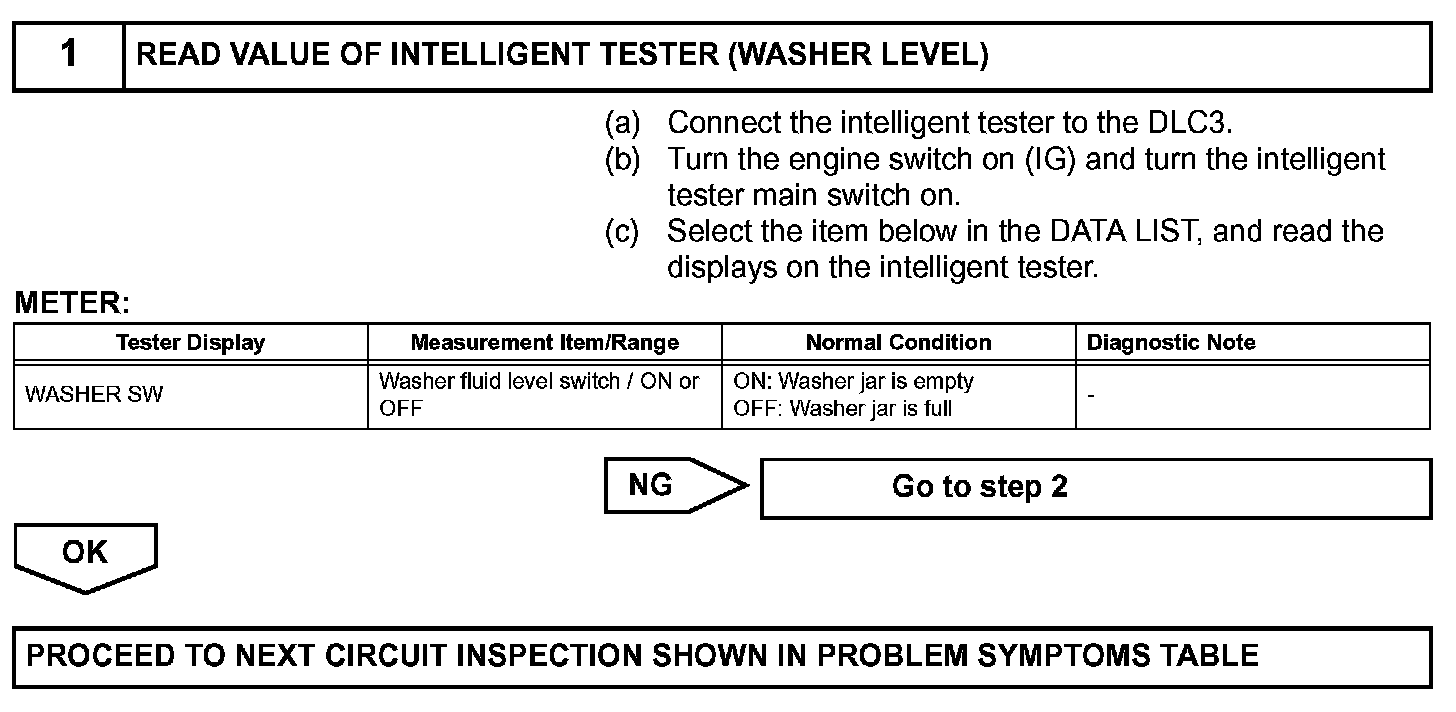

Step 1:

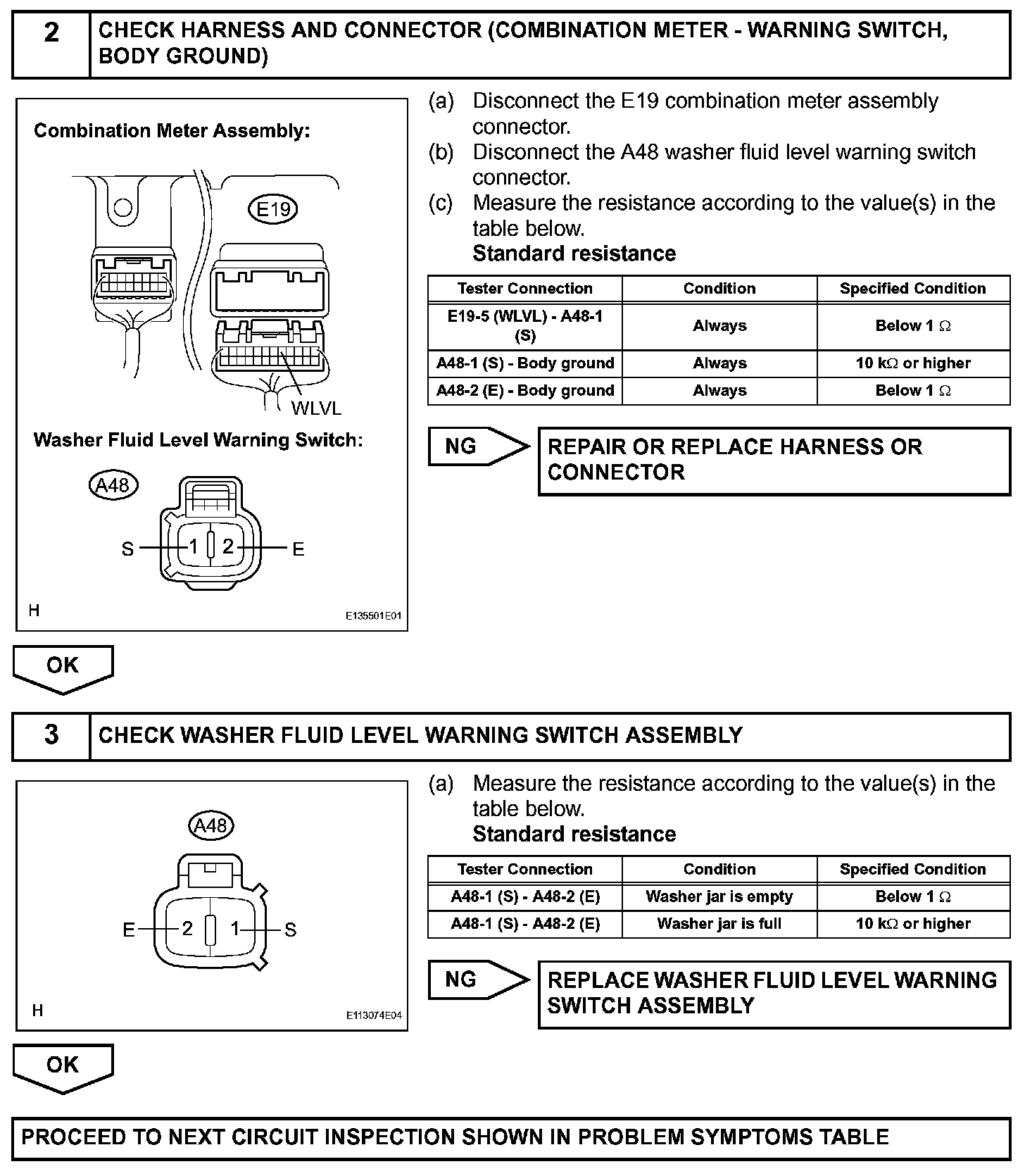

Step 2-3:
INSPECTION PROCEDURE
