Rear Sunshade Shift-Linked Function Does Not Operate When Shift Lever Is Moved to R Position

Rear Sunshade Shift-linked Function Does Not Operate When Shift Lever Is Moved To R Position

SYSTEM DESCRIPTION
When the engine switch is on (IG) and the rear sunshade is raised, moving the shift lever to the R position causes the park/neutral position switch to send a reverse-linked signal to the main body ECU through the ECM (the ECM and main body ECU communicate via CAN). Then the main body ECU sends the signal to the rear sunshade relay. The relay then lowers the rear sunshade.

WIRING DIAGRAM

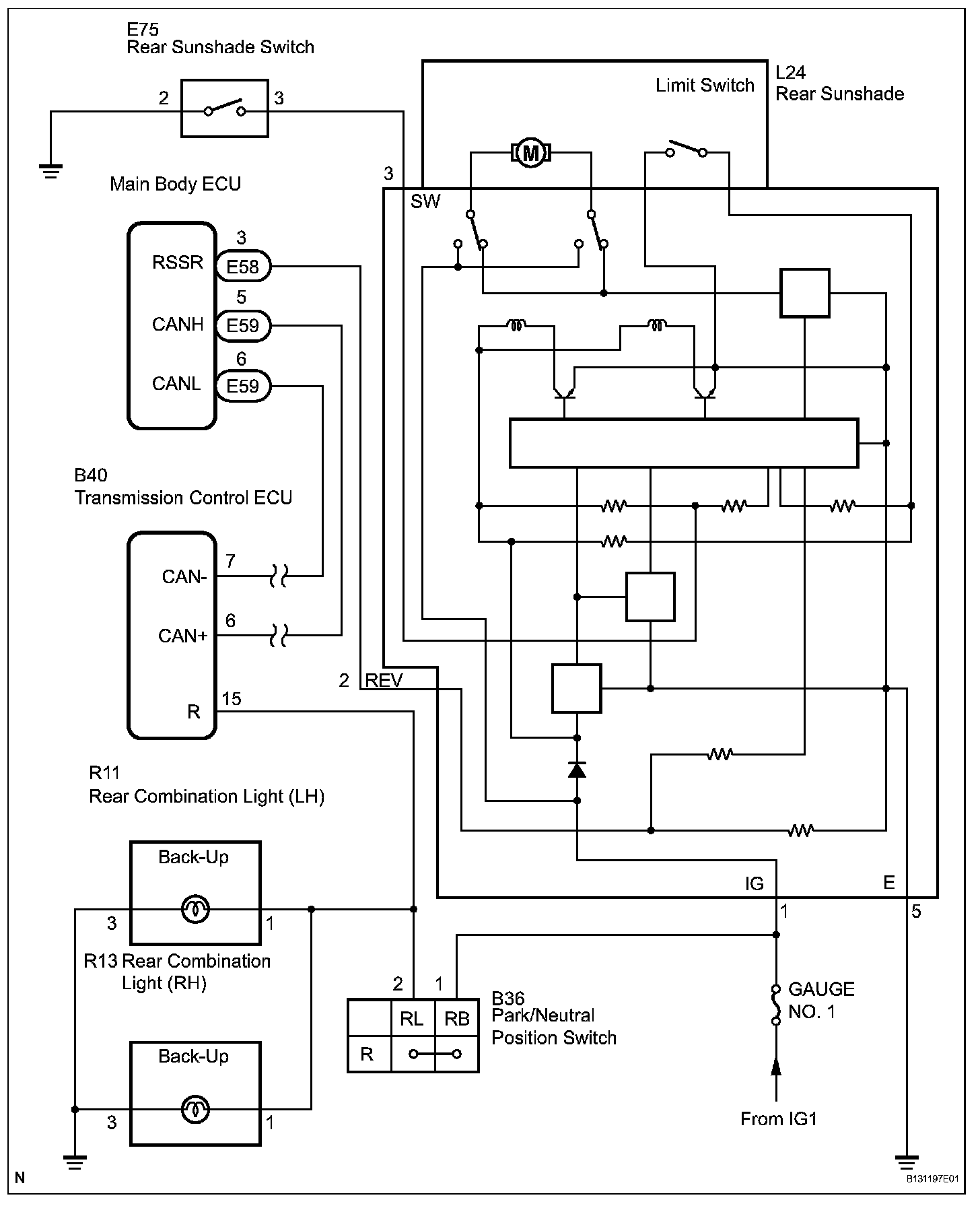

Wiring Diagram:

INSPECTION PROCEDURE

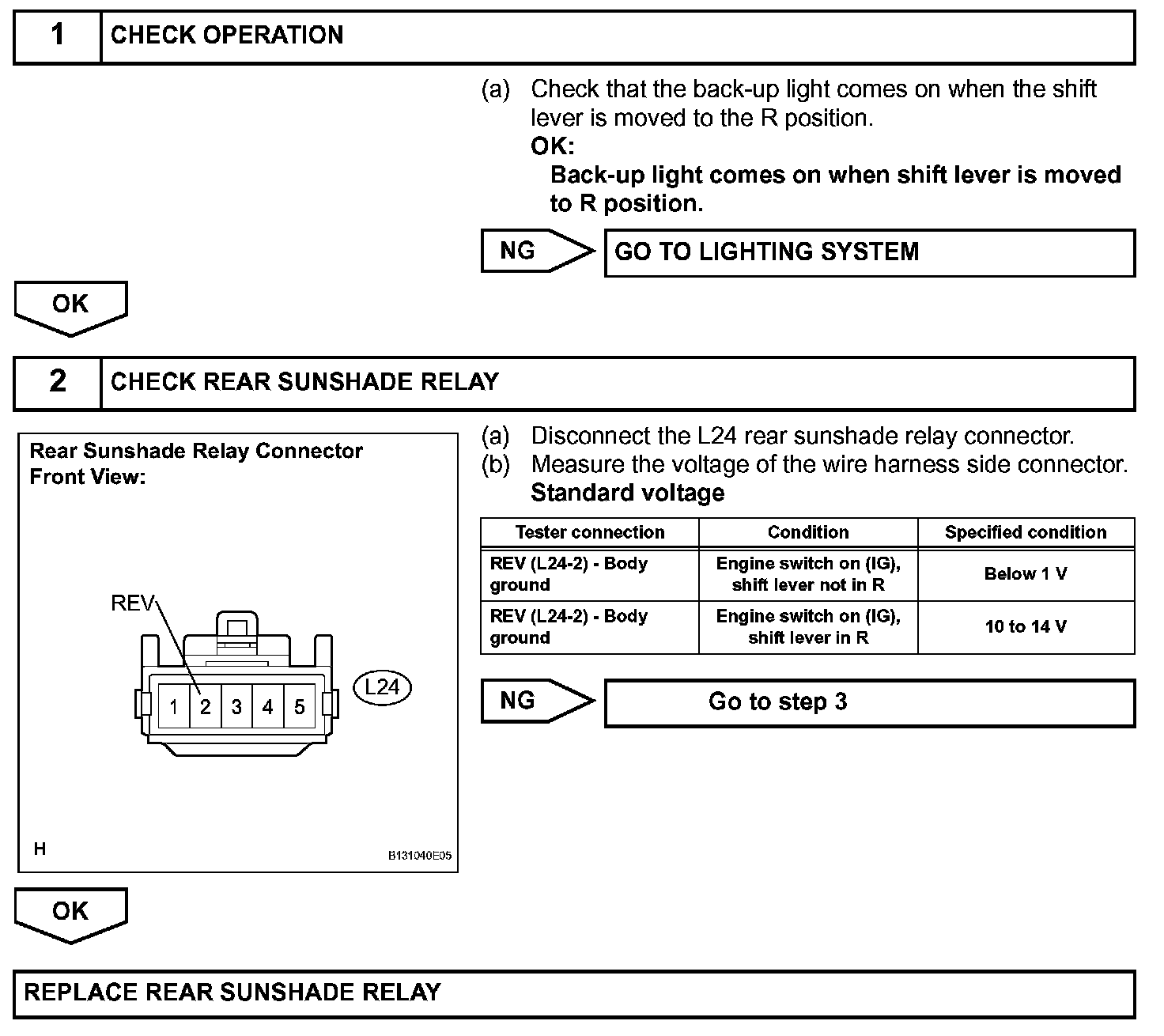

Step 1 - 2:

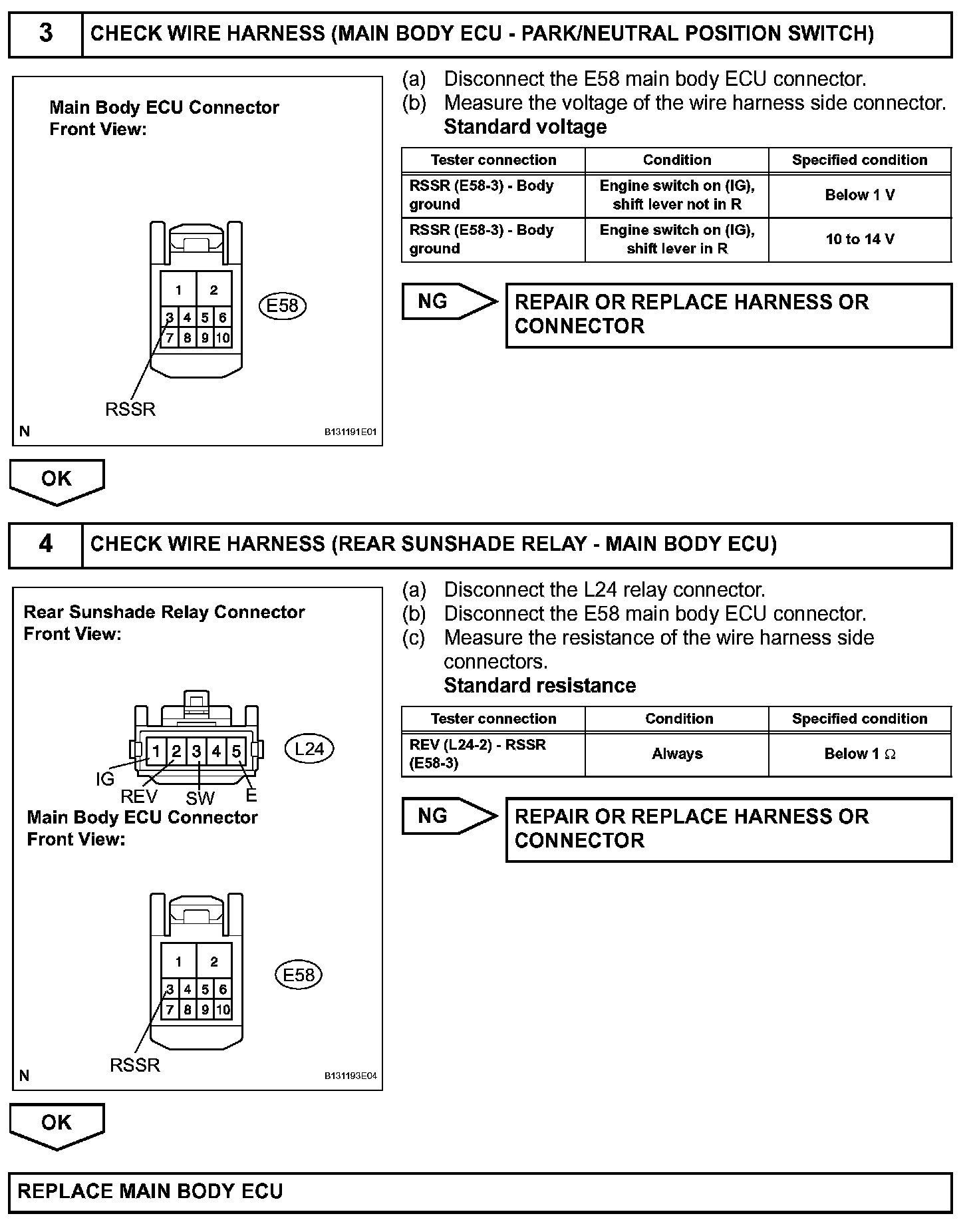

Step 3 - 4:
