Window Shade: Service and Repair

REAR SUNSHADE ASSEMBLY

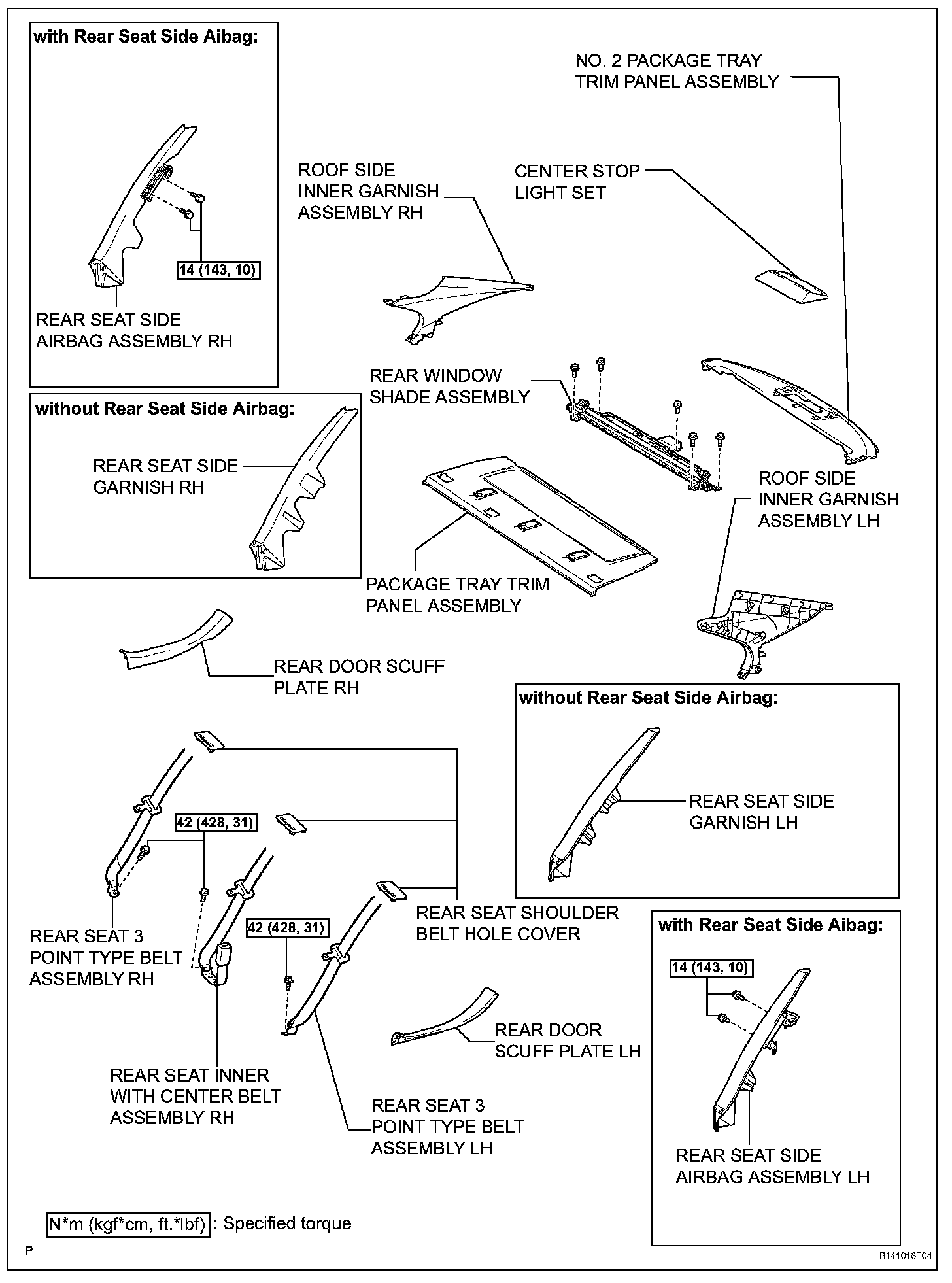

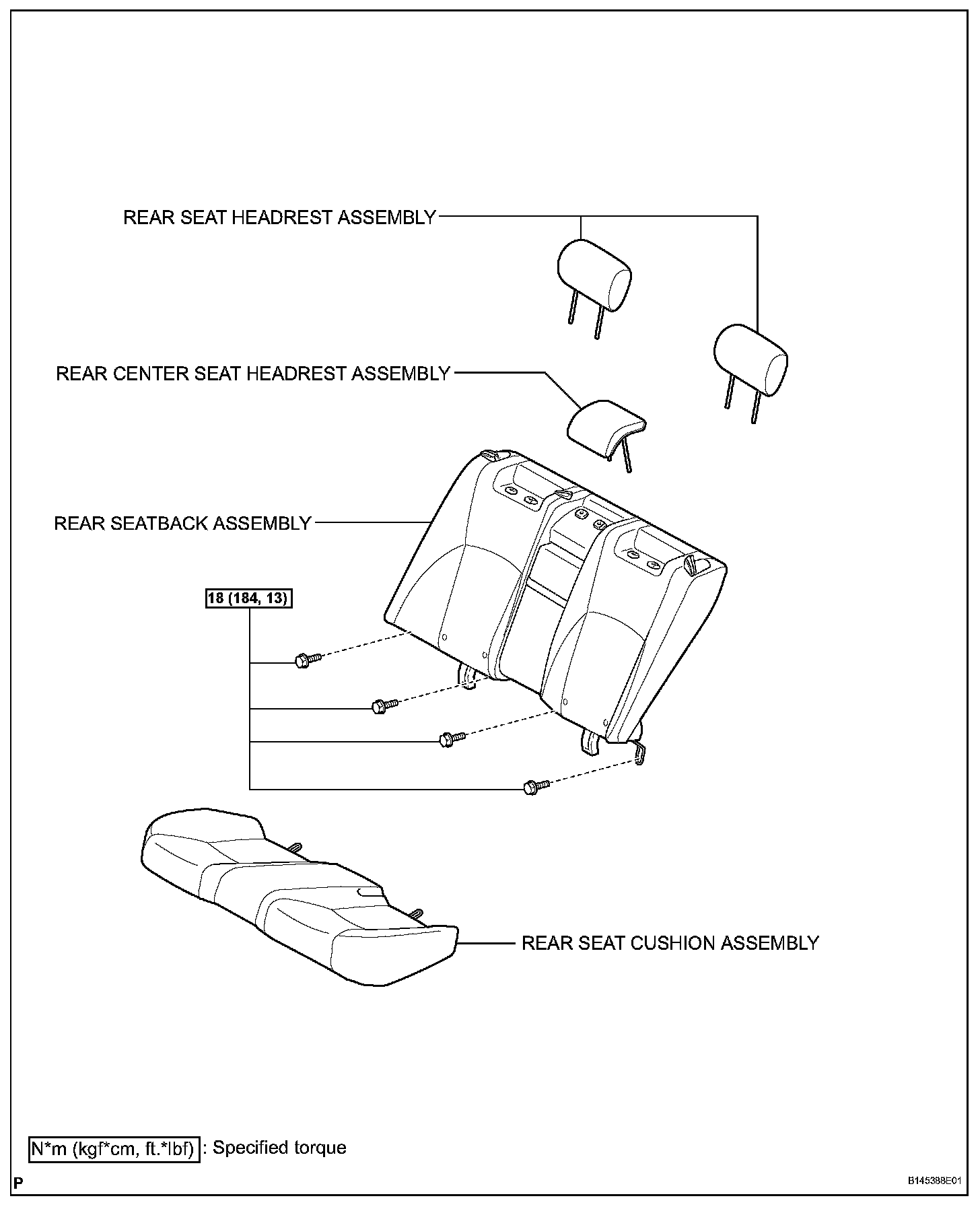

Rear Sunshade Assembly:

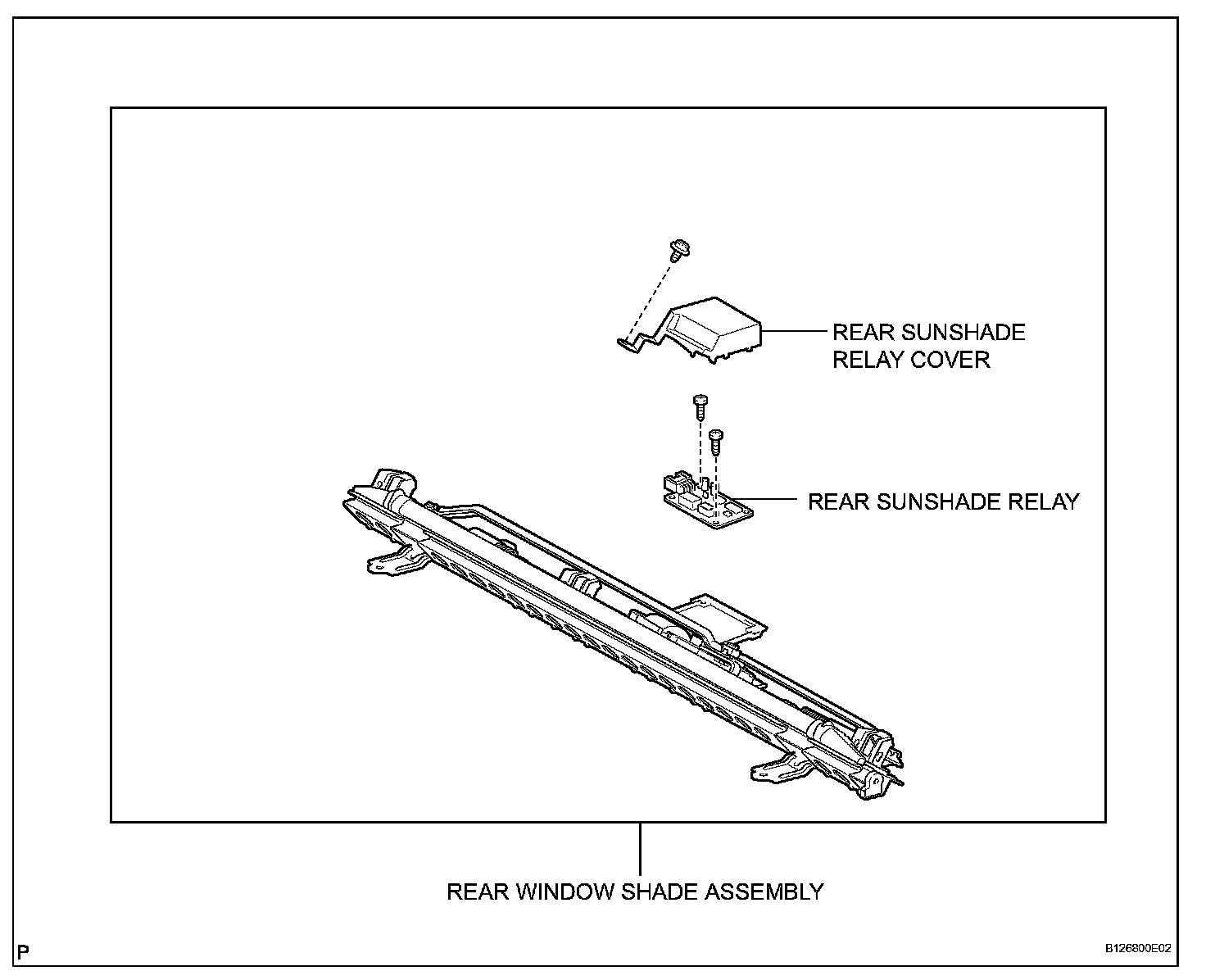

Rear Sunshade Assembly:

Rear Sunshade Assembly:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Rear Seat Side Airbag)

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

2. REMOVE REAR SEAT CUSHION ASSEMBLY
3. REMOVE REAR SEAT HEADREST ASSEMBLY
4. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
5. REMOVE REAR SEATBACK ASSEMBLY
6. REMOVE REAR DOOR SCUFF PLATE LH
7. REMOVE REAR DOOR SCUFF PLATE RH
8. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)
9. REMOVE REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
10. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)

HINT: Use the same procedure for the LH side and RH side.

11. REMOVE REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)
12. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
13. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH
14. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
15. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
16. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
17. REMOVE REAR SEAT SHOULDER BELT HOLE COVER

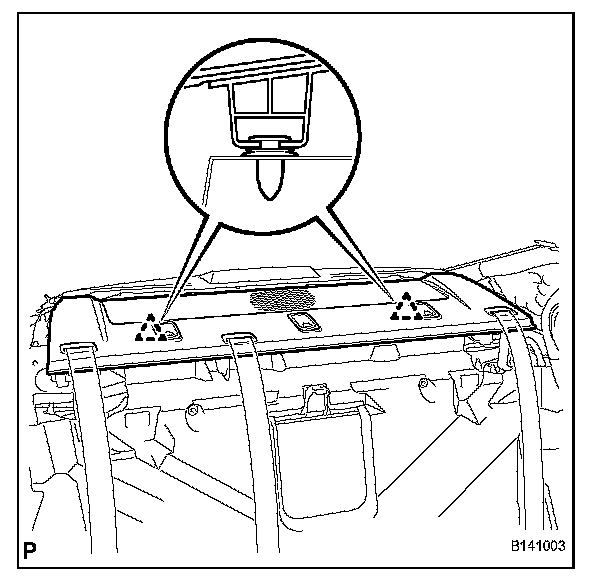

18. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
a. Disengage the 2 clips and raise the front portion of the package tray trim panel assembly.





b. Pass the 3 rear seat belt floor anchors through the holes in the package tray trim panel assembly.
c. Remove the package tray trim panel assembly.

19. REMOVE CENTER STOP LIGHT SET

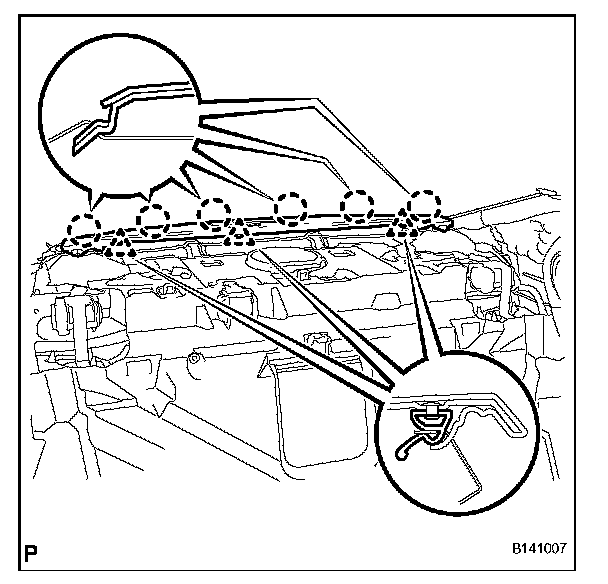

20. REMOVE NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY





a. Disengage the 3 clips and 6 claws, and remove the No. 2 package tray trim panel assembly.

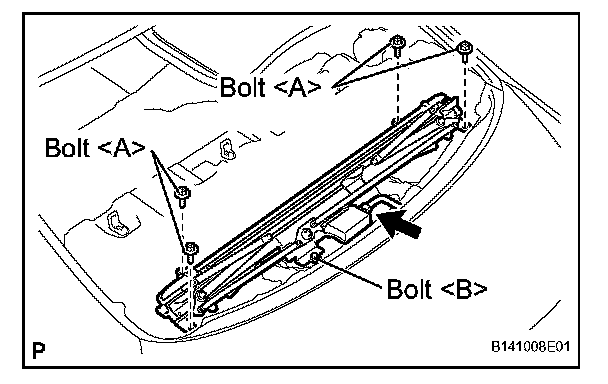

21. REMOVE REAR WINDOW SHADE ASSEMBLY





a. Disconnect the connector.
b. Remove the 4 bolts [A].
c. Loosen bolt[B] and remove the rear window shade assembly.

NOTICE: Bolt [B] cannot be removed from the rear window shade assembly.

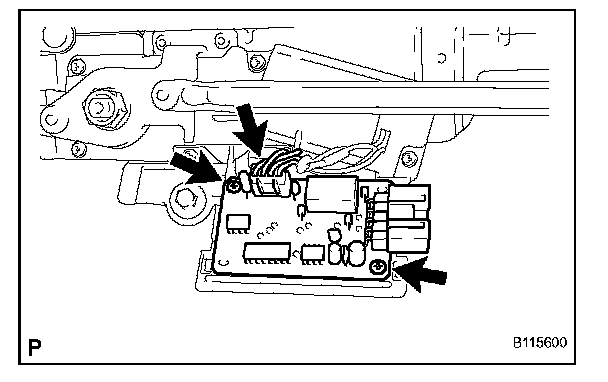

22. REMOVE REAR SUNSHADE RELAY

NOTICE: When disassembling the rear sunshade assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.





a. Remove the screw.

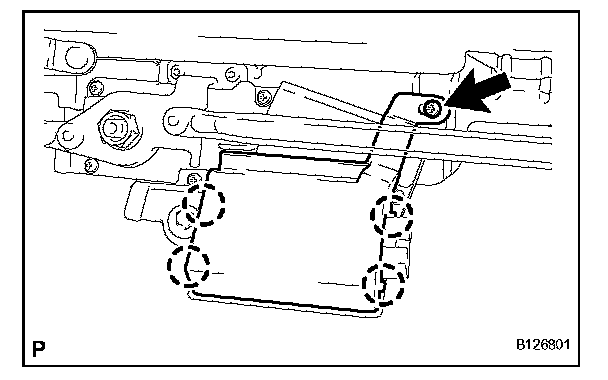

b. Disengage the 4 claws and remove the rear sunshade relay cover.





c. Disconnect the connector.

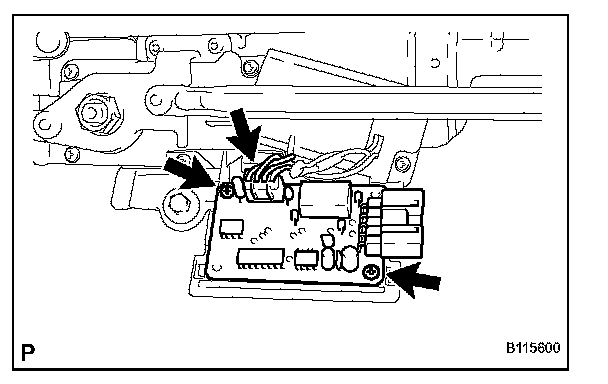

d. Remove the 2 screws and the rear sunshade relay.

INSTALLATION

1. INSTALL REAR SUNSHADE RELAY

NOTICE: When reassembling the rear sunshade assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.





a. Install the rear sunshade relay with the 2 screws.
b. Connect the connector.

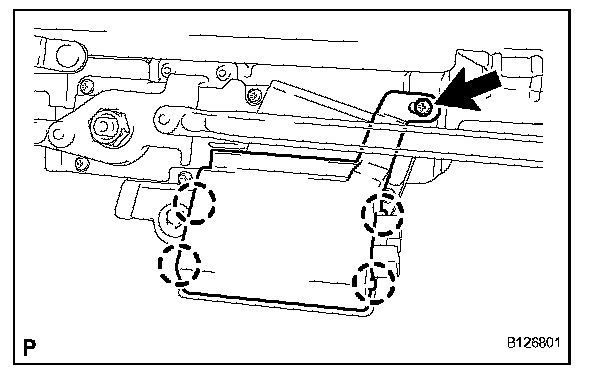

c. Engage the 4 claws and install the rear sunshade relay cover.
d. Install the screw.

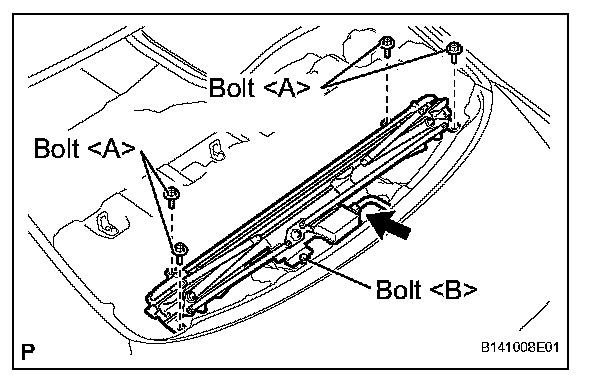

2. INSTALL REAR WINDOW SHADE ASSEMBLY





a. Install the rear window shade assembly, and temporarily tighten the 4 bolts [A] and bolt [B].
b. Fully tighten the 5 bolts.
c. Connect the connector.

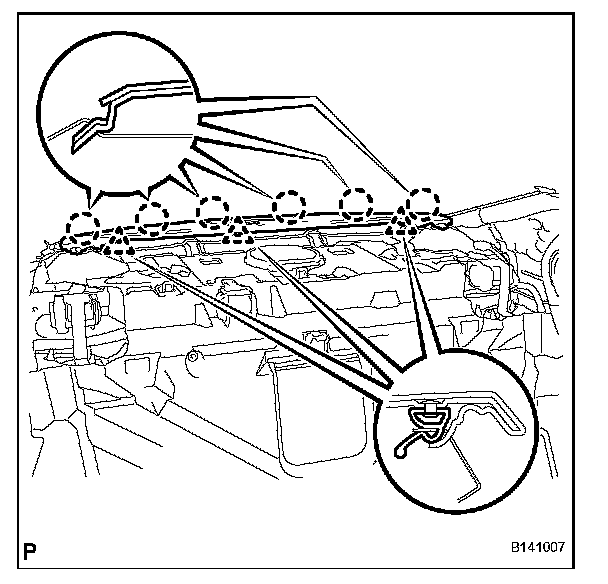

3. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY





a. Engage the 6 claws and 3 clips, and install the No. 2 package tray trim panel assembly.

4. INSTALL CENTER STOP LIGHT SET

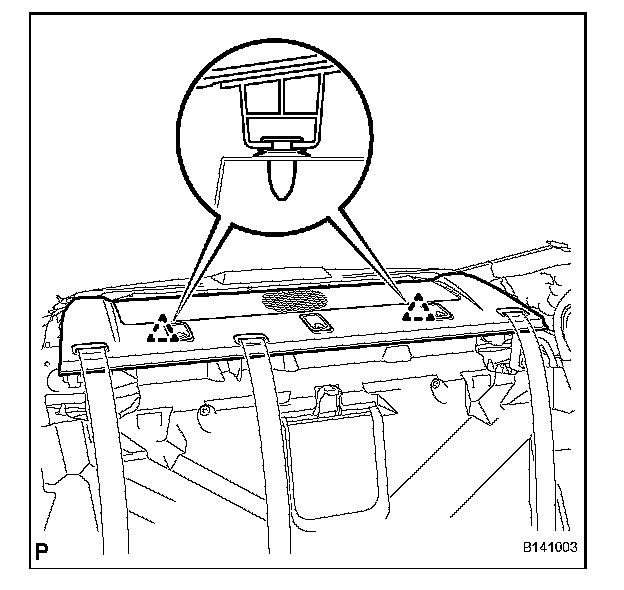

5. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY





a. Thread the 3 rear seat belt floor anchors into the package tray trim panel assembly.
b. Insert the rear end of the package tray trim panel assembly into the rear window shade assembly.
c. Engage the 2 clips and install the package tray trim panel assembly.

6. INSTALL REAR SEAT SHOULDER BELT HOLE COVER
7. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
8. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
9. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
10. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH
11. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH
12. INSTALL REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
13. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)
14. INSTALL REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)
15. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)

HINT: Use the same procedure for the LH side and RH side.

16. INSTALL REAR DOOR SCUFF PLATE LH
17. INSTALL REAR DOOR SCUFF PLATE RH
18. INSTALL REAR SEATBACK ASSEMBLY
19. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
20. INSTALL REAR SEAT HEADREST ASSEMBLY
21. INSTALL REAR SEAT CUSHION ASSEMBLY
22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Rear Seat Side Airbag)
23. PERFORM INITIALIZATION (w/ Rear Seat Side Airbag)

NOTICE: Some systems need initialization after reconnecting the cable to the negative battery terminal.

24. INSPECT SRS WARNING LIGHT (w/ Rear Seat Side Airbag)
