Window Shade: Description and Operation

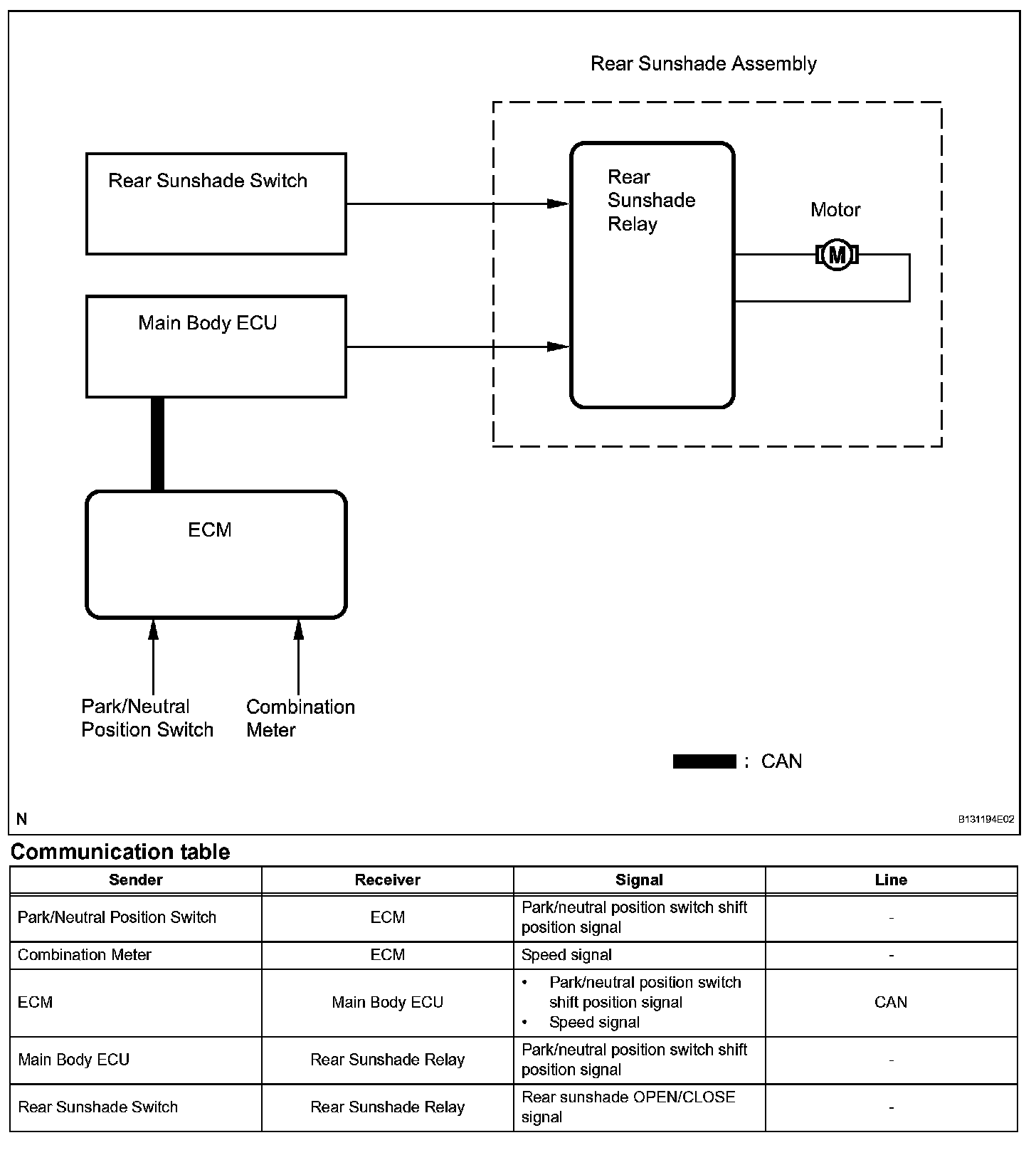

System Diagram:

SYSTEM DESCRIPTION

1. REAR SUNSHADE SYSTEM DESCRIPTION
a. The rear sunshade is raised or lowered by operating the rear sunshade switch located in the lower instrument panel sub-assembly.
b. When the shift lever in the R position, the park/ neutral position switch sends a reverse-linked signal to the rear sunshade relay, and the rear sunshade lowers.
c. When the shift lever is moved to the D or S position, or when the vehicle speed is 15 km/h (9.3 mph) or more, the rear sunshade is redeployed.
d. Using the intelligent tester, the reverse-linked sunshade lowering function's response time can be customized to one of the following (seconds): 0, 0.7, 0.9, 1.2.
