Power Window Motor: Testing and Inspection

INSPECTION

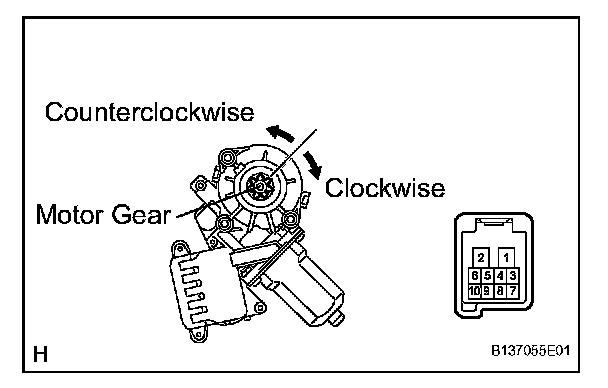

1. INSPECT POWER WINDOW REGULATOR MOTOR FRONT RH

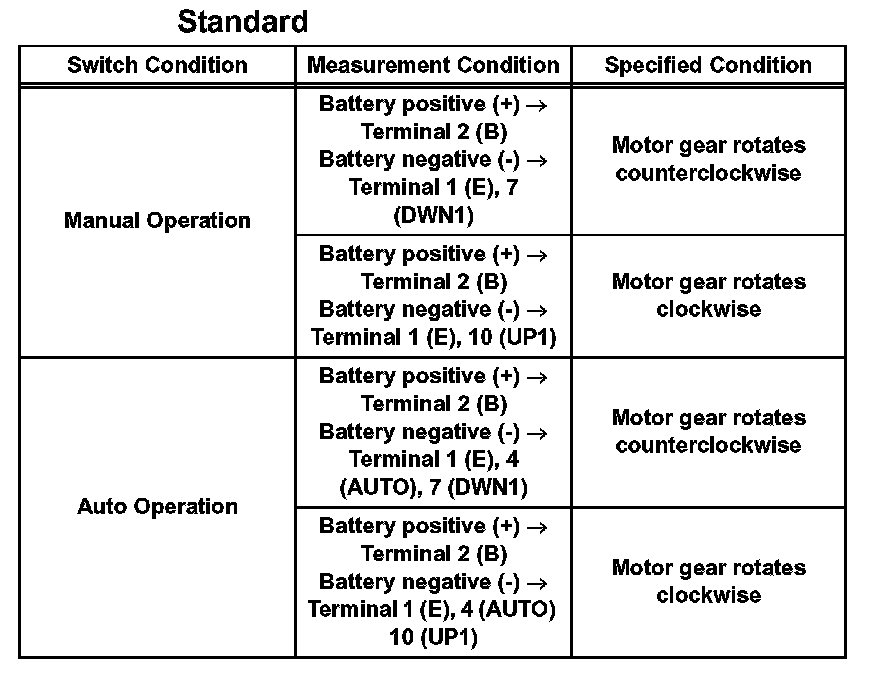

a. Apply battery voltage to the motor connector according to the table.








NOTICE: Do not apply battery voltage to any terminals except terminals 1, 2, 4, 7 and 10.

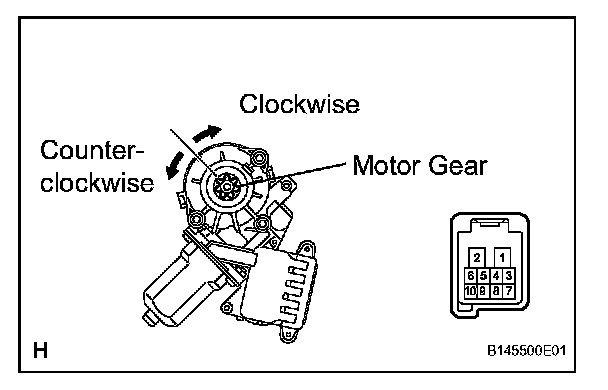

2. INSPECT POWER WINDOW REGULATOR MOTOR FRONT LH

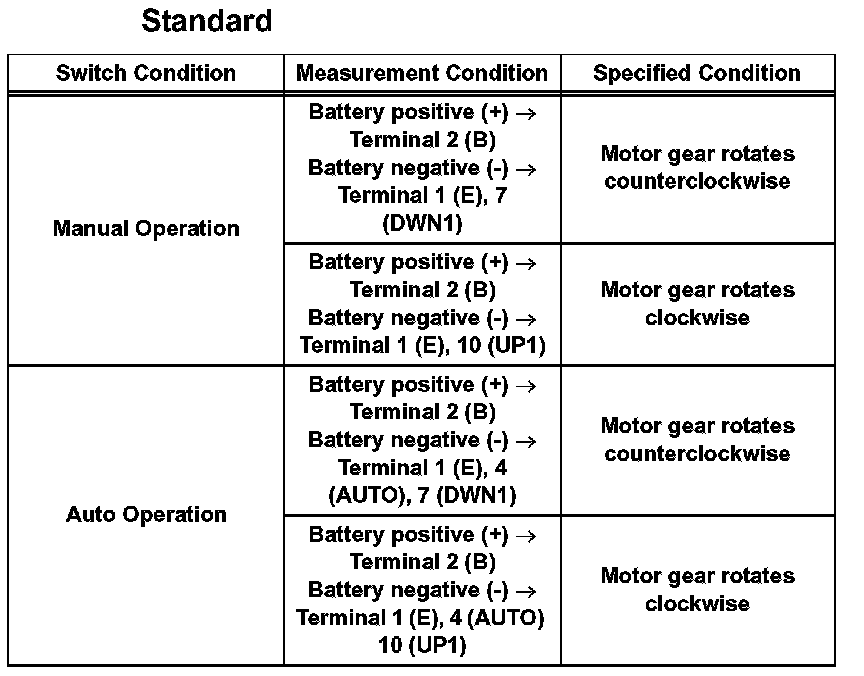

a. Apply battery voltage to the motor connector according to the table.








NOTICE: Do not apply battery voltage to any terminals except terminals 1, 2, 4, 7 and 10.

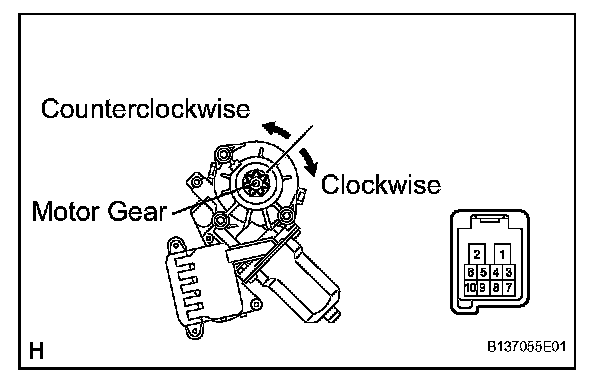

3. INSPECT POWER WINDOW REGULATOR MOTOR REAR RH

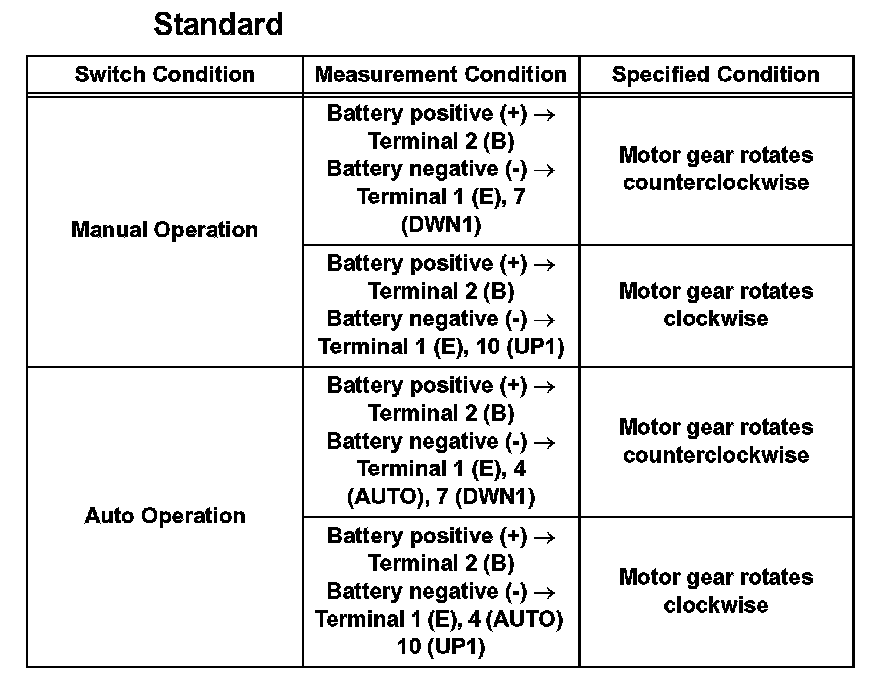

a. Apply battery voltage to the motor connector according to the table.








NOTICE: Do not apply battery voltage to any terminals except terminals 1, 2, 4, 7 and 10.

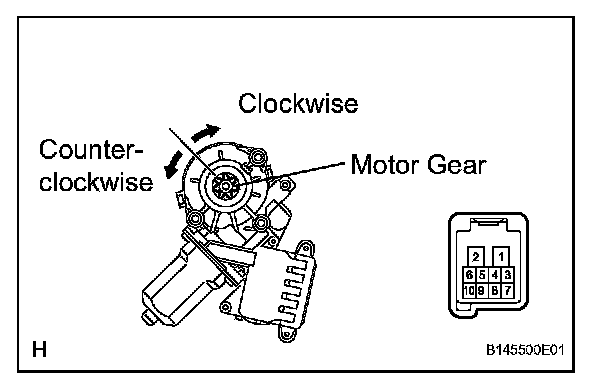

4. INSPECT POWER WINDOW REGULATOR MOTOR REAR LH

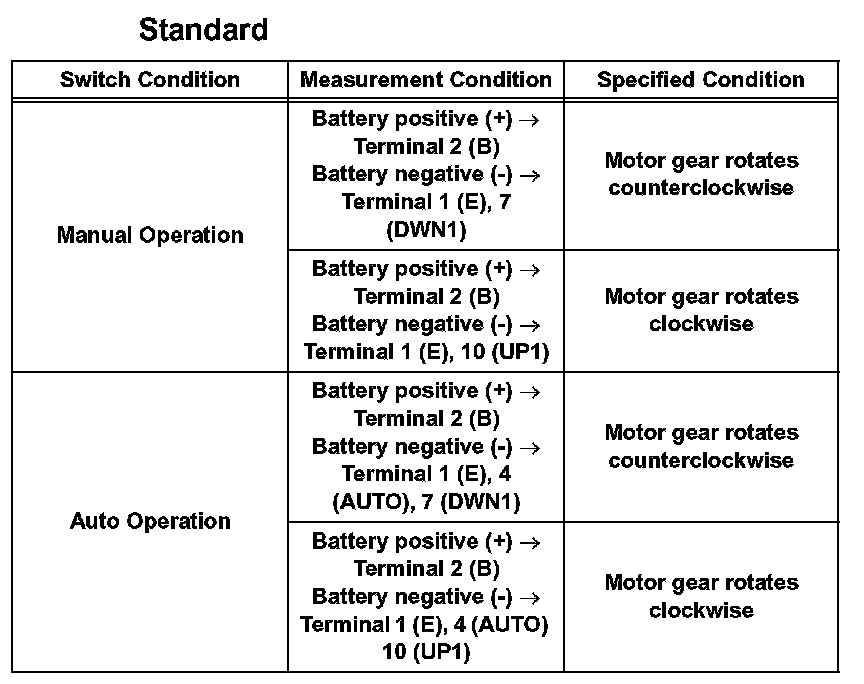

a. Apply battery voltage to the motor connector according to the table.








NOTICE: Do not apply battery voltage to any terminals except terminals 1, 2, 4, 7 and 10.
