Rear Window Defogger System Does Not Operate

Rear Window Defogger System Does Not Operate

DESCRIPTION
When the rear window defogger switch, which is built into the heater control assembly, is operated, the operation signals are transmitted to the A/C amplifier assembly through LIN. When the A/C amplifier assembly receives the signals, it turns on the RR DEF relay to operate the rear window defogger.

WIRING DIAGRAM

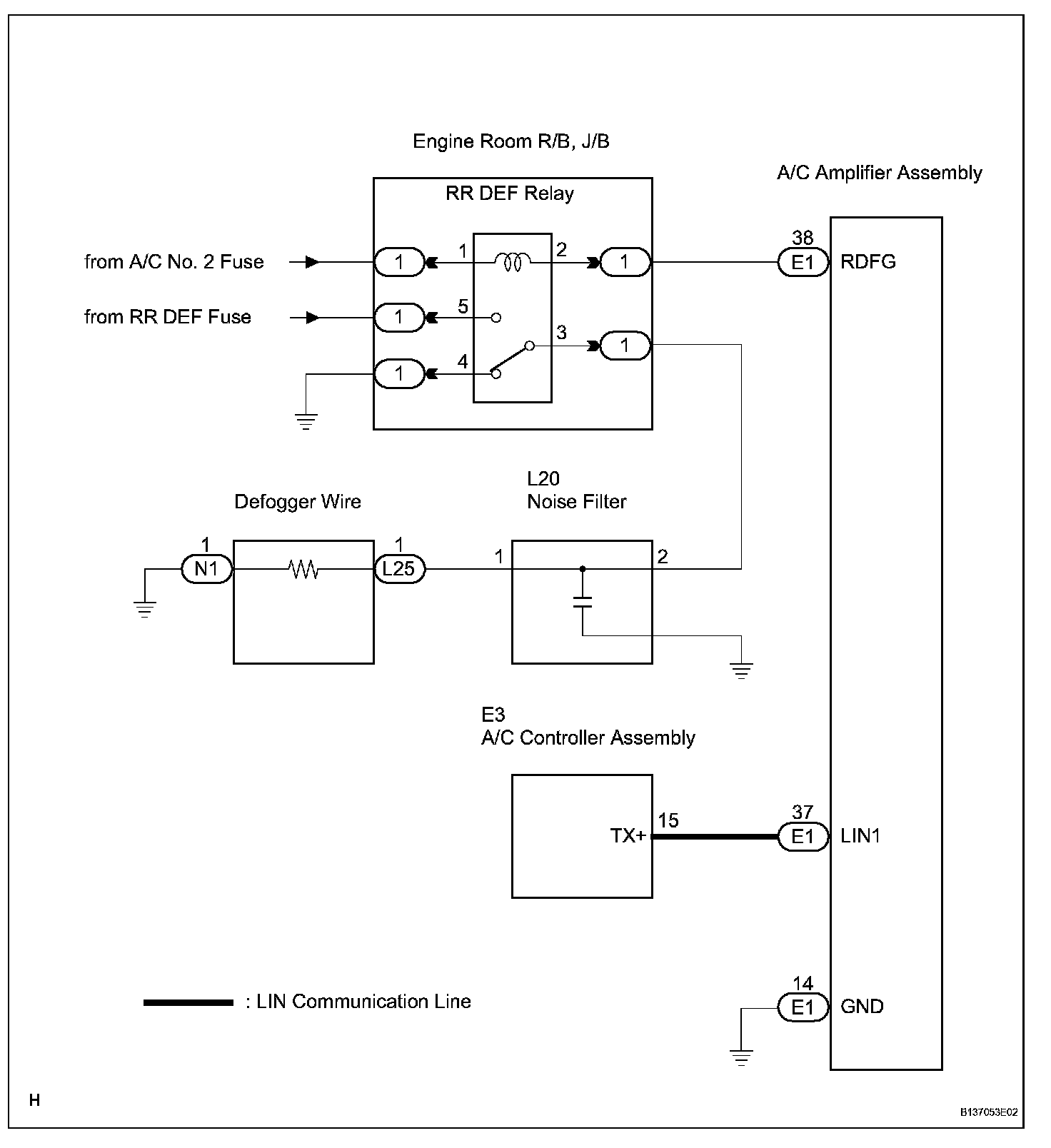

Wiring Diagram:

INSPECTION PROCEDURE

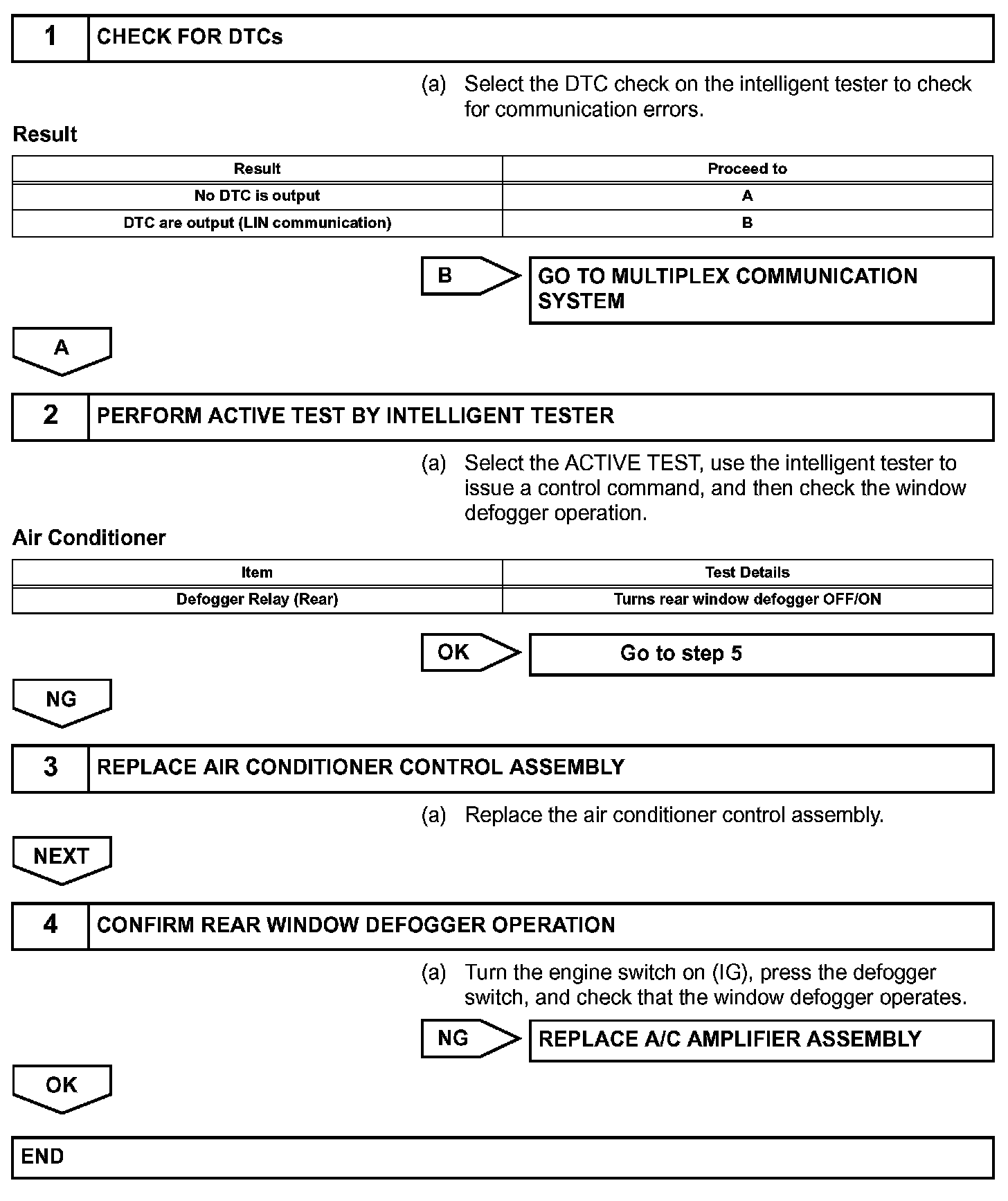

Step 1 - 4:

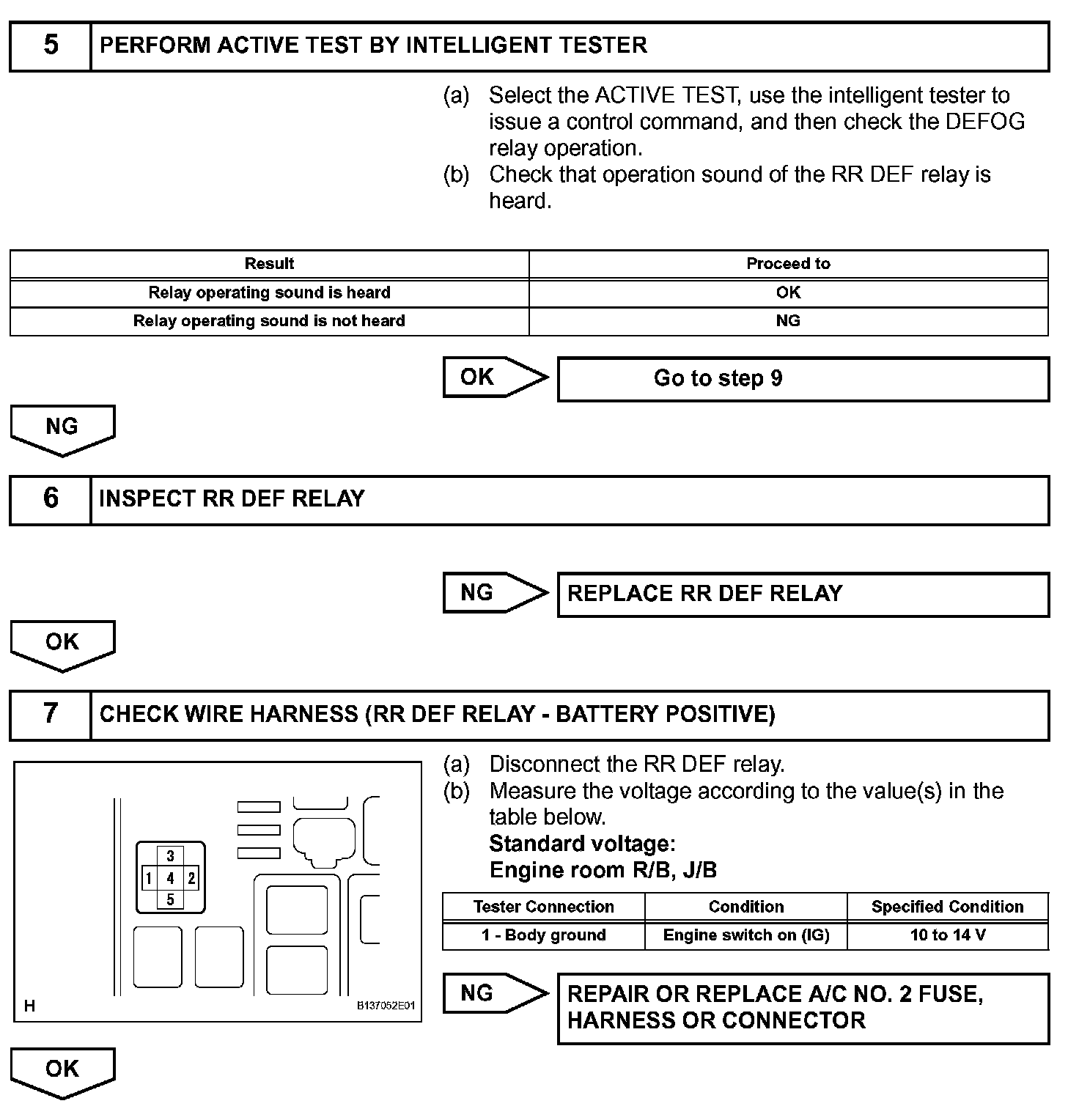

Step 5 - 7:

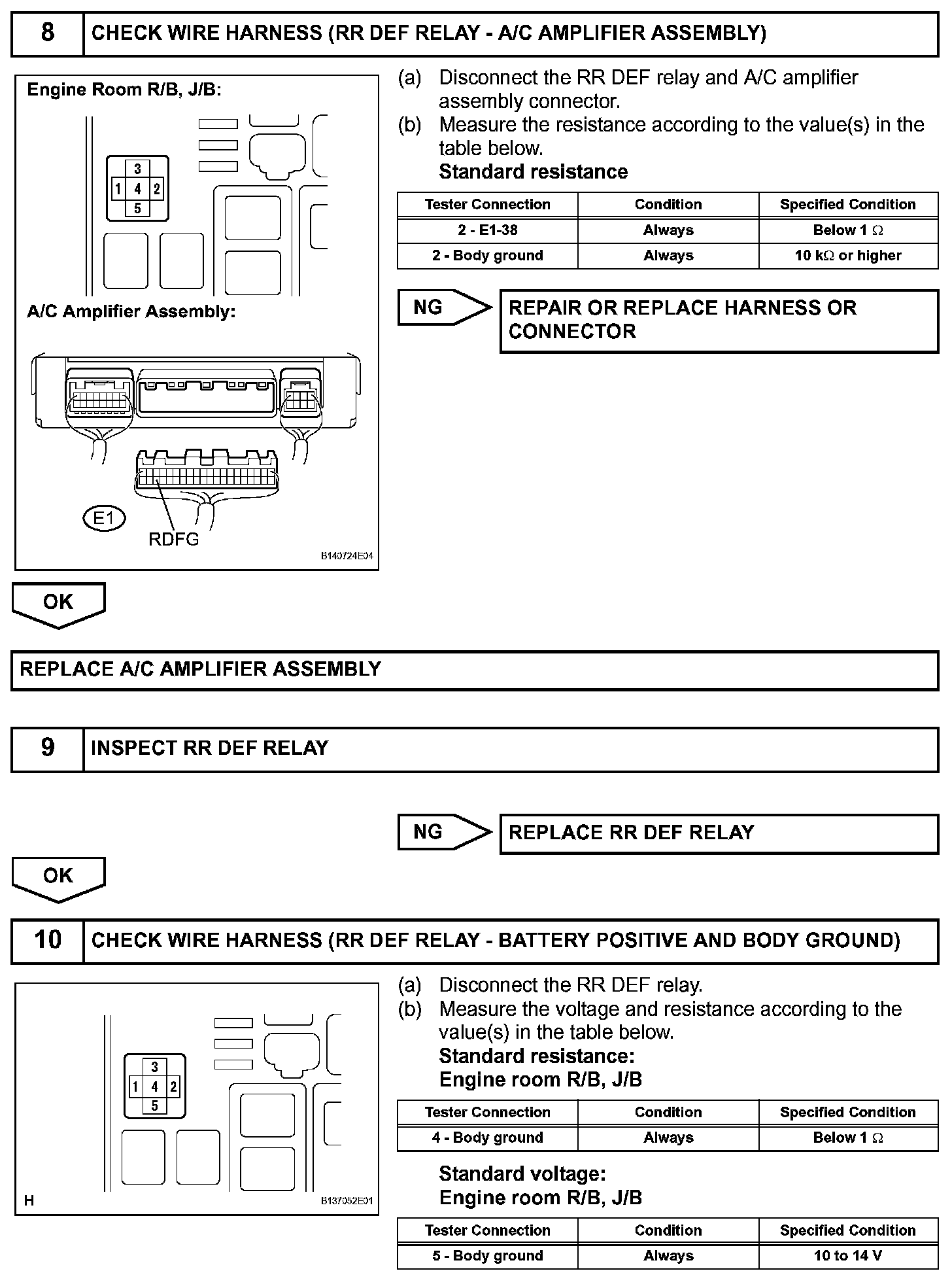

Step 8 - 10:

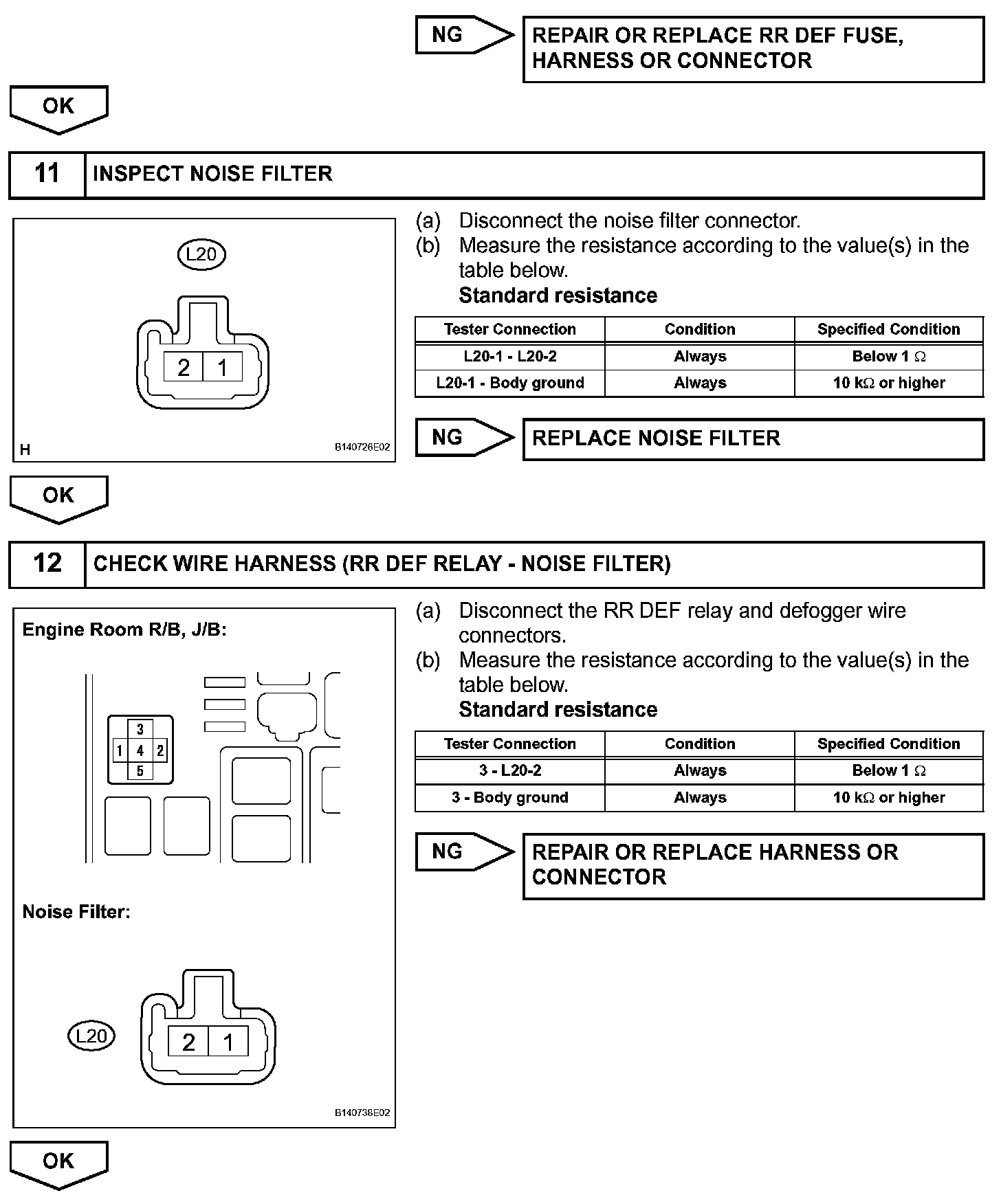

Step 10(Continued) - 12:

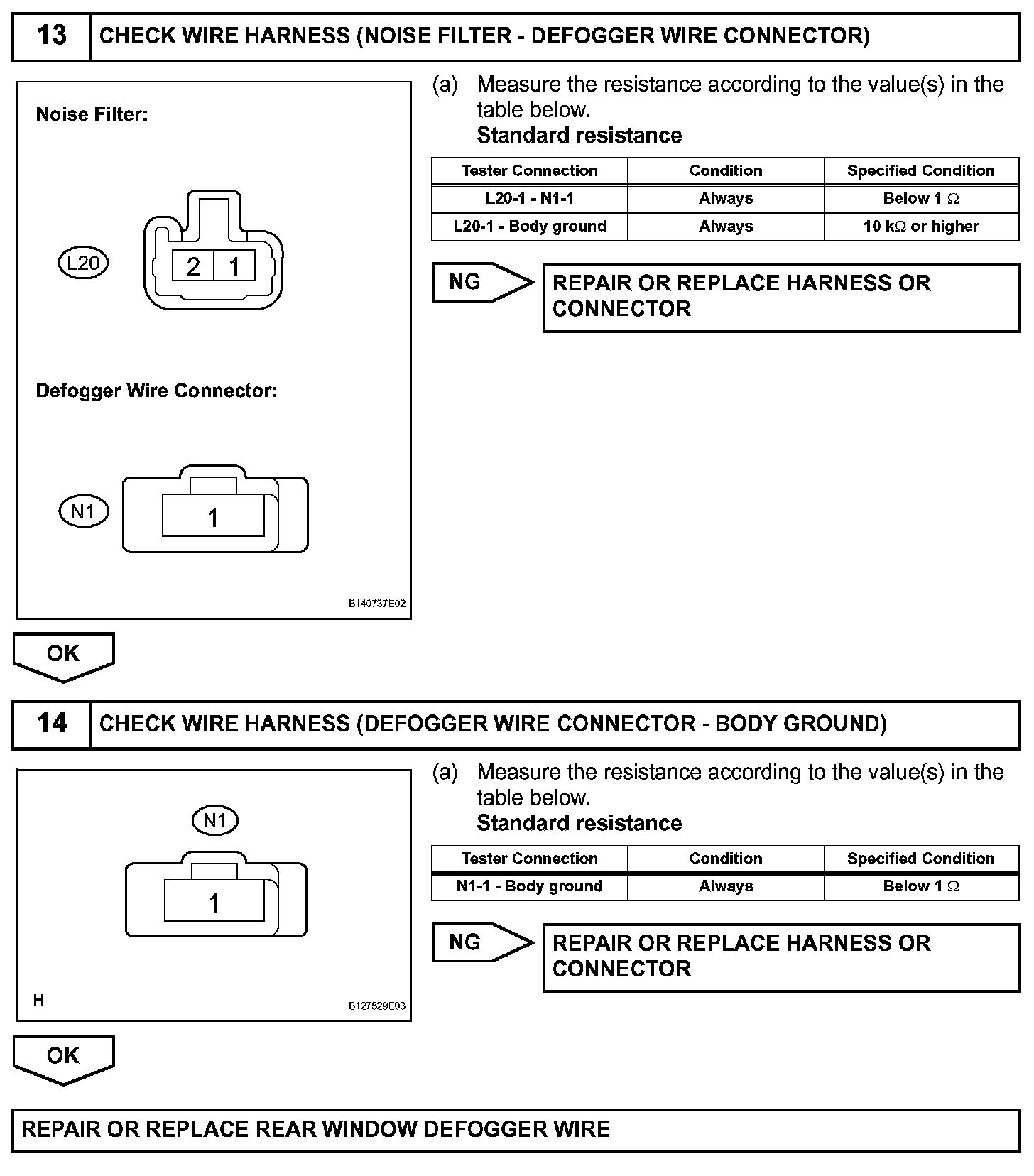

Step 13 - 14:
