A/T - U660E Torque Converter Installation Precautions

TRANSMISSION & CLUTCH
TC003-06

June 20, 2006

Title:
U660E 6 - SPEED TORQUE CONVERTER

Models:
'07 ES 350 (6-Speed ATM)

Introduction

Proper torque converter installation procedures must be followed when replacing the U660E 6-speed transaxle. A growling noise and/or ATF leak may result if the torque converter is improperly installed. This TSB highlights the measurement procedure for proper torque converter installation.

Applicable Vehicle:
^ 2007 model year ES 350 vehicles equipped with 6-speed automatic transmission.

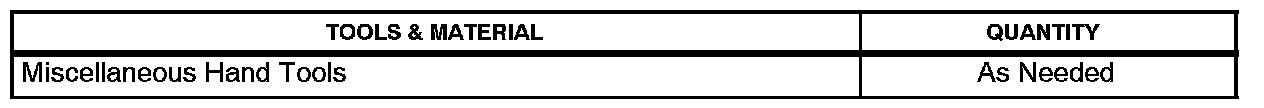

Required Tools & Material

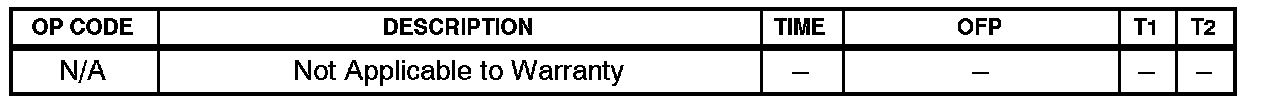

Warranty Information

Repair Procedure

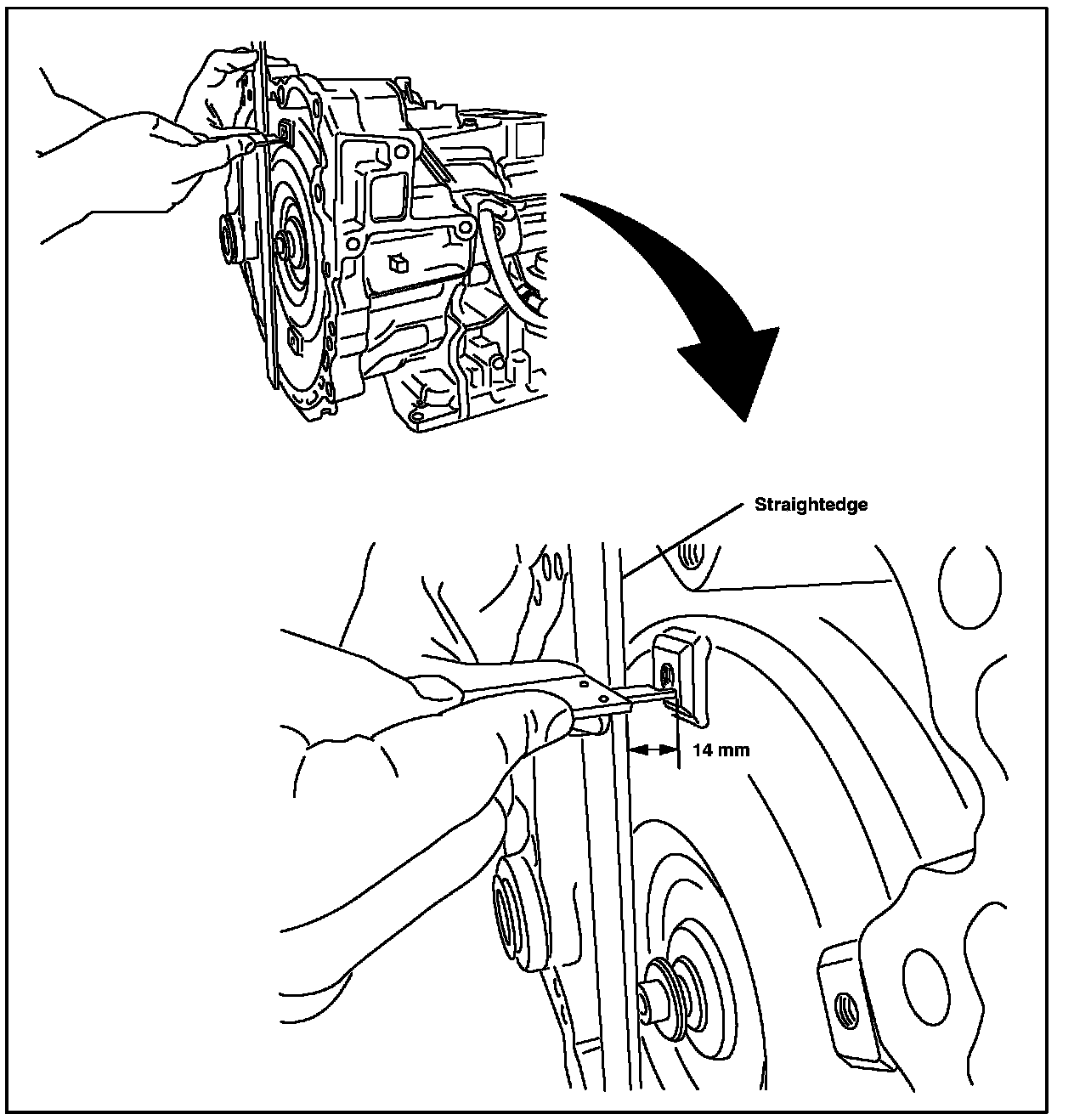

Using vernier calipers and a straightedge, measure the depth of the torque converter from the bell housing mounting surface as shown to the torque converter mounting lugs. Standard measurement: 14 mm (0.55 in.)

HINT:
^ Be sure to deduct the thickness of the straightedge.

^ For easier torque converter installation, tip the top slightly inward while rotating and applying inward pressure.

NOTE:
Internal damage may occur if the torque converter is NOT fully engaged to the oil pump drive gear.
