IG Power Source Circuit

IG Power Source Circuit

DESCRIPTION
When the engine switch is turned on (IG), the IG power source circuit supplies positive voltage to the multiplex tilt and telescopic ECU.
The multiplex tilt and telescopic ECU also receives engine switch signals via this circuit.

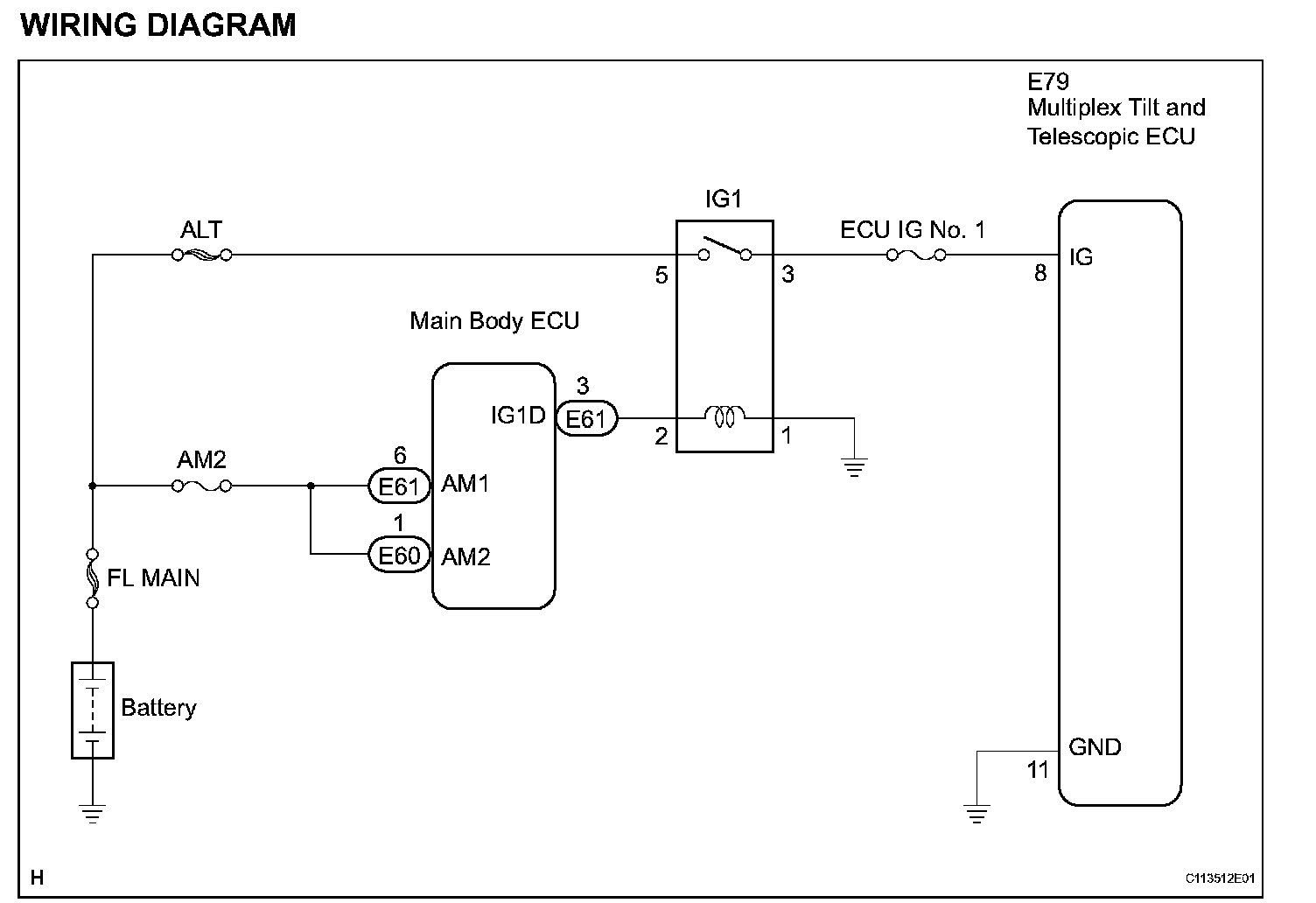

WIRING DIAGRAM:





INSPECTION PROCEDURE

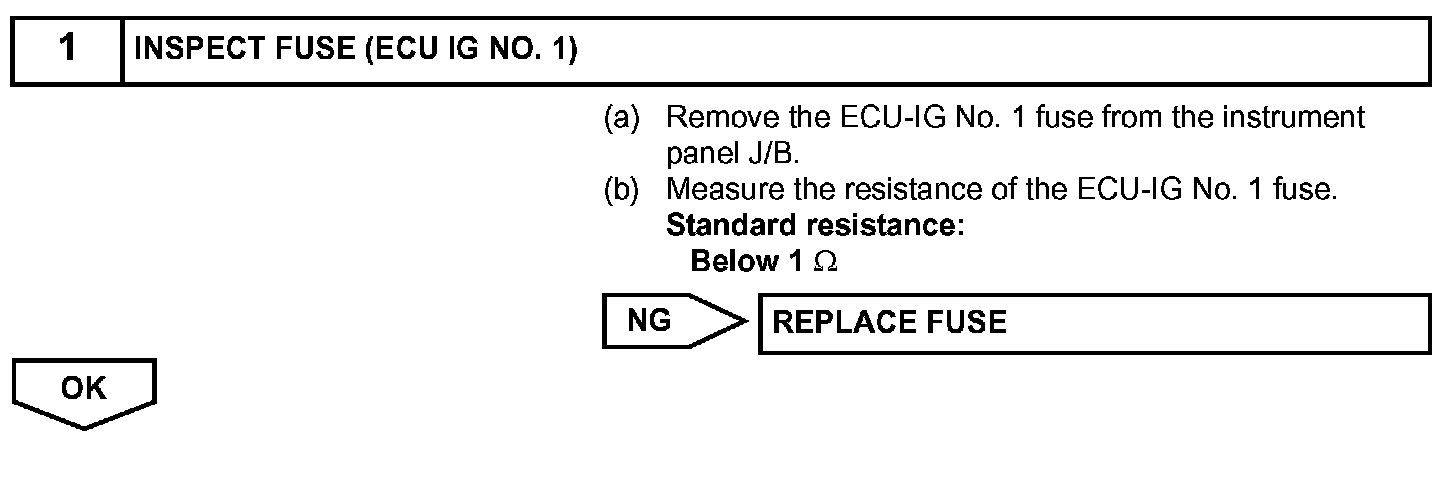

Step 1:

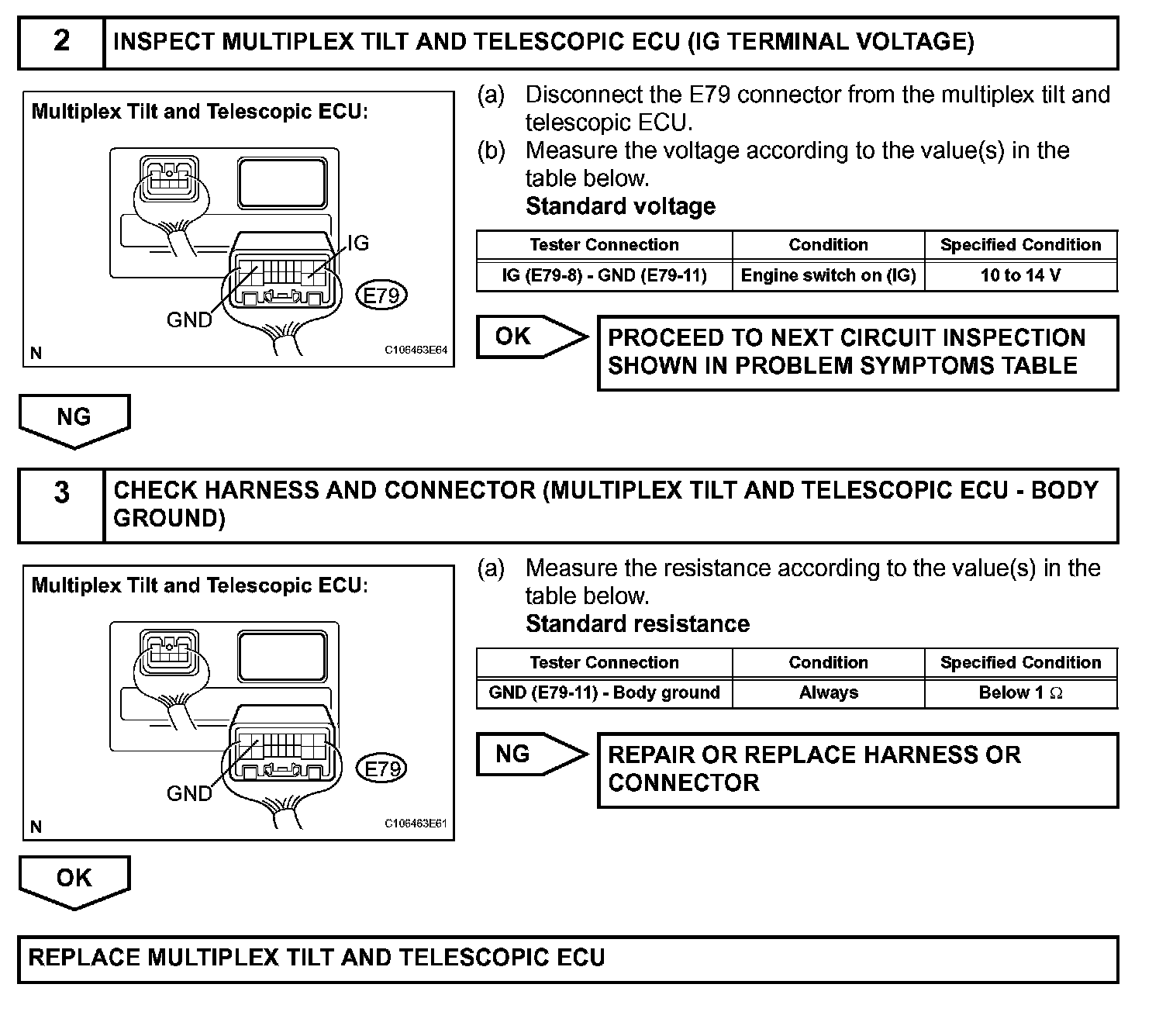

Step 2-3:
