Home >> Lexus >> 2007 >> ES 350 V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID >> Instrument Panel J/B

Instrument Panel J/B

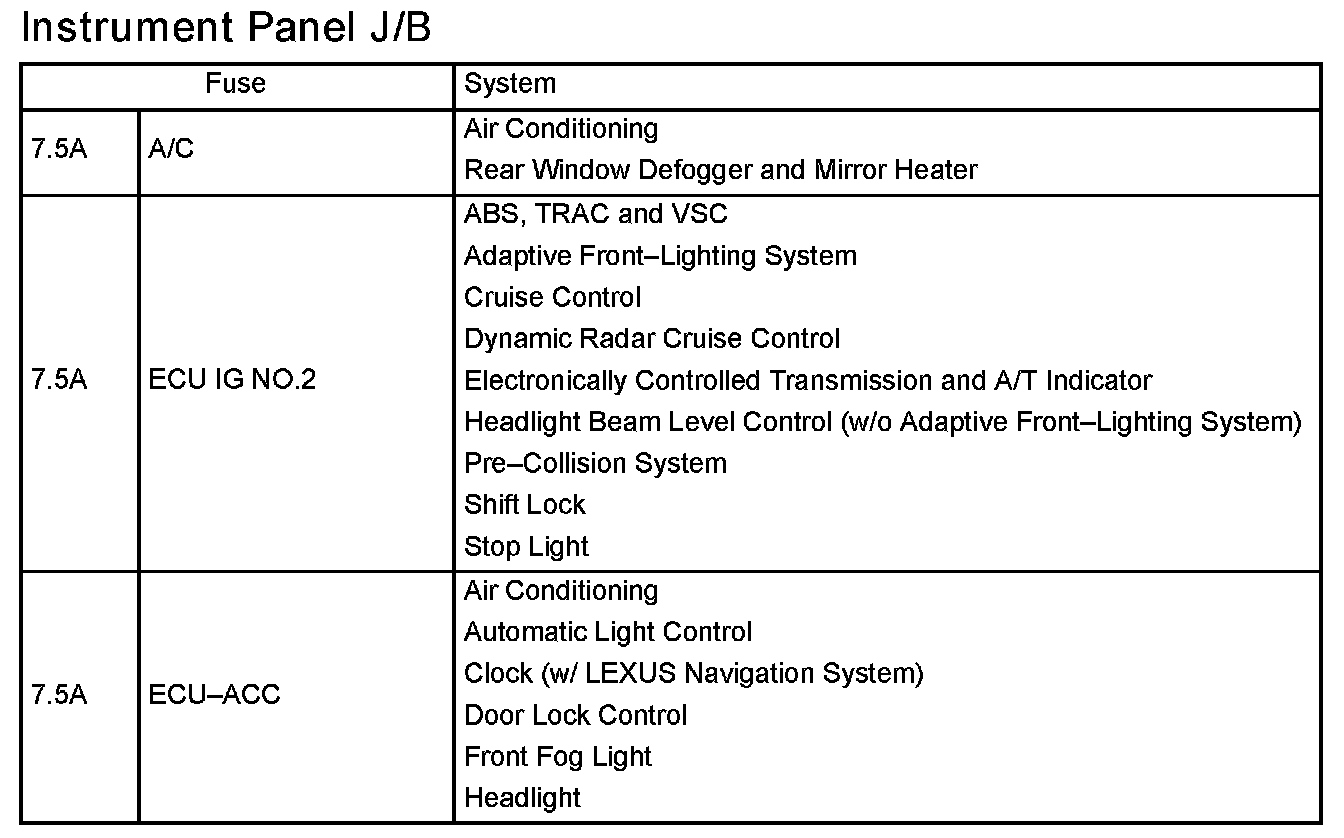

Instrument Panel J/B Part 1:

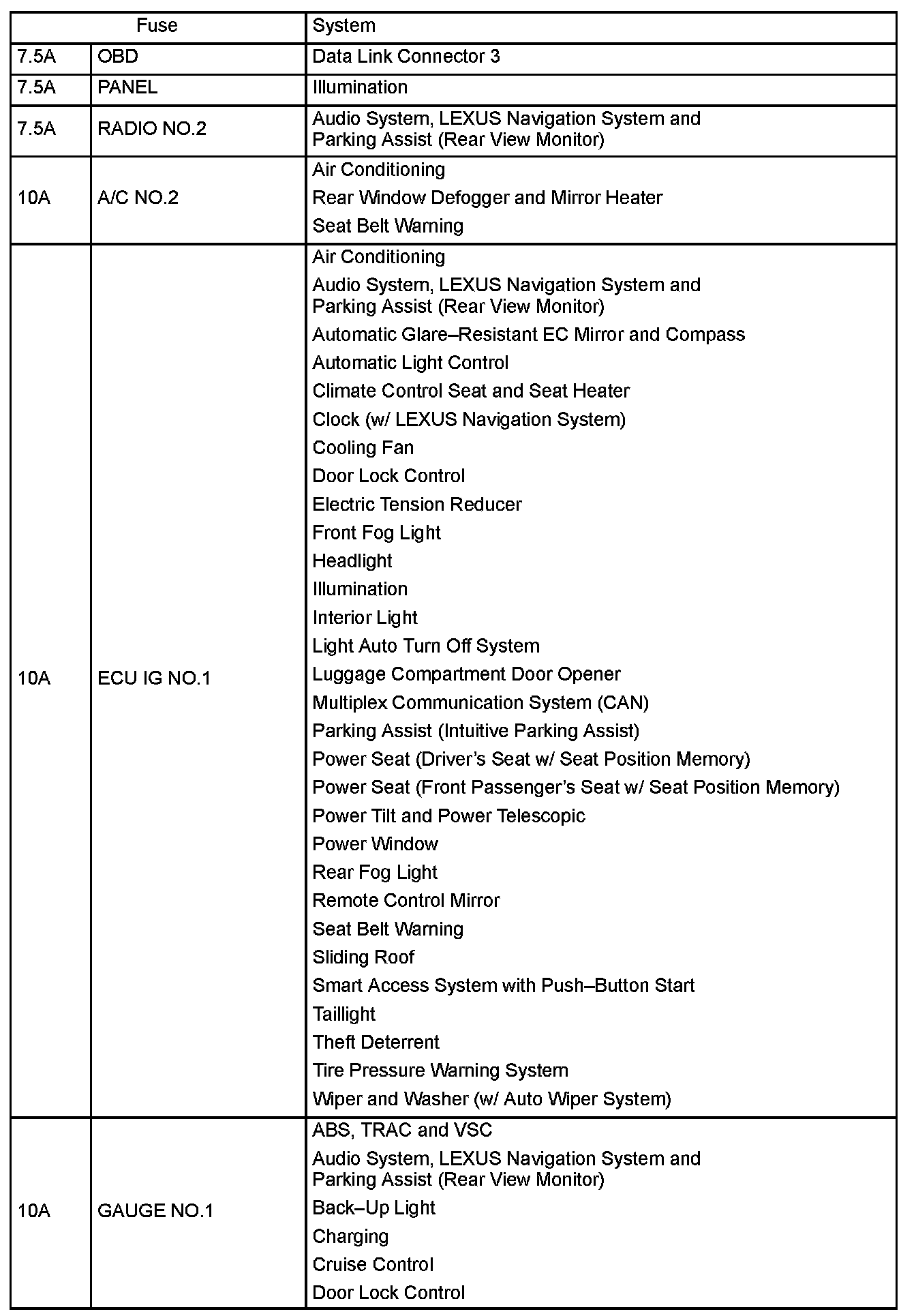

Instrument Panel J/B Part 2:

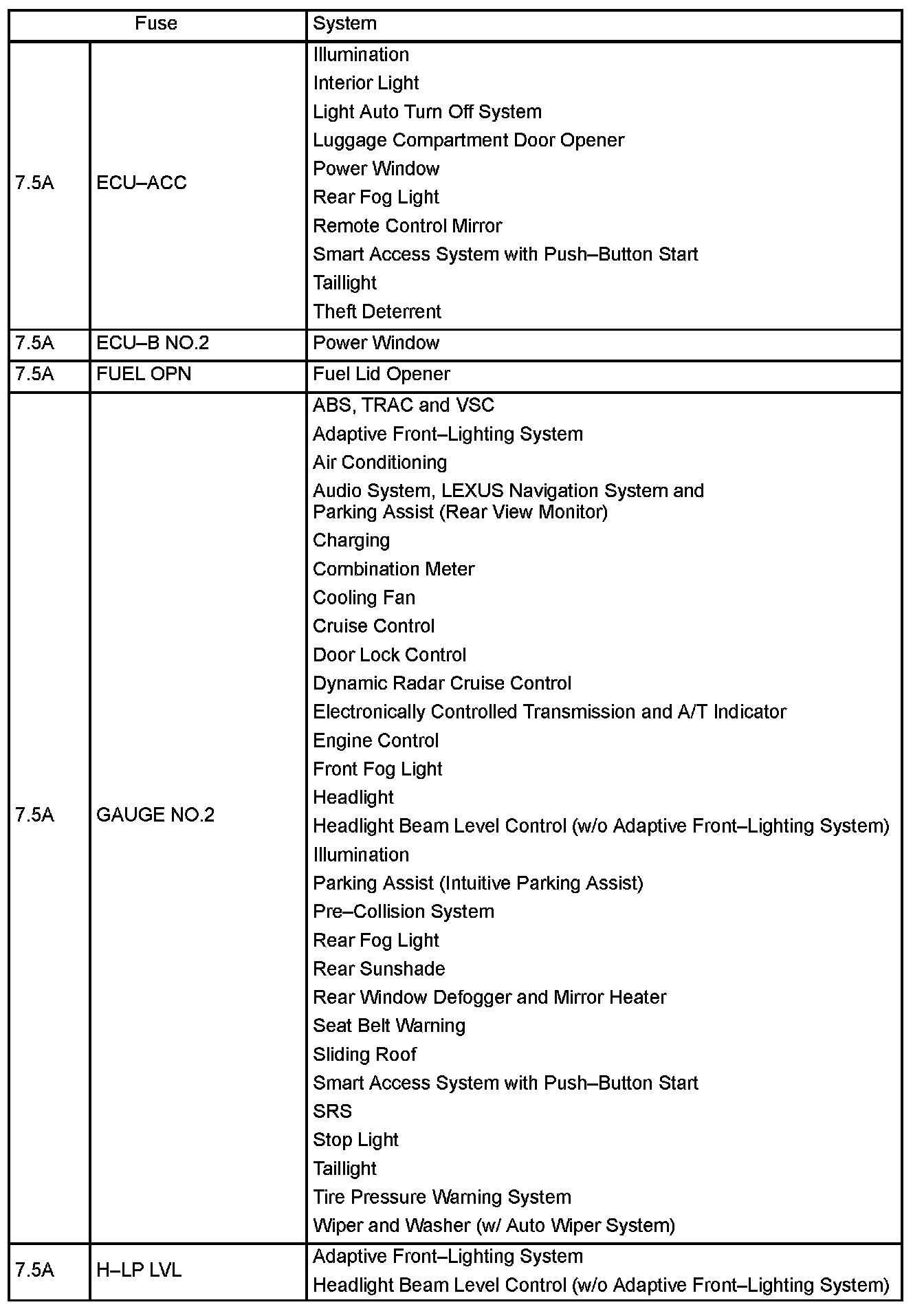

Instrument Panel J/B Part 3:

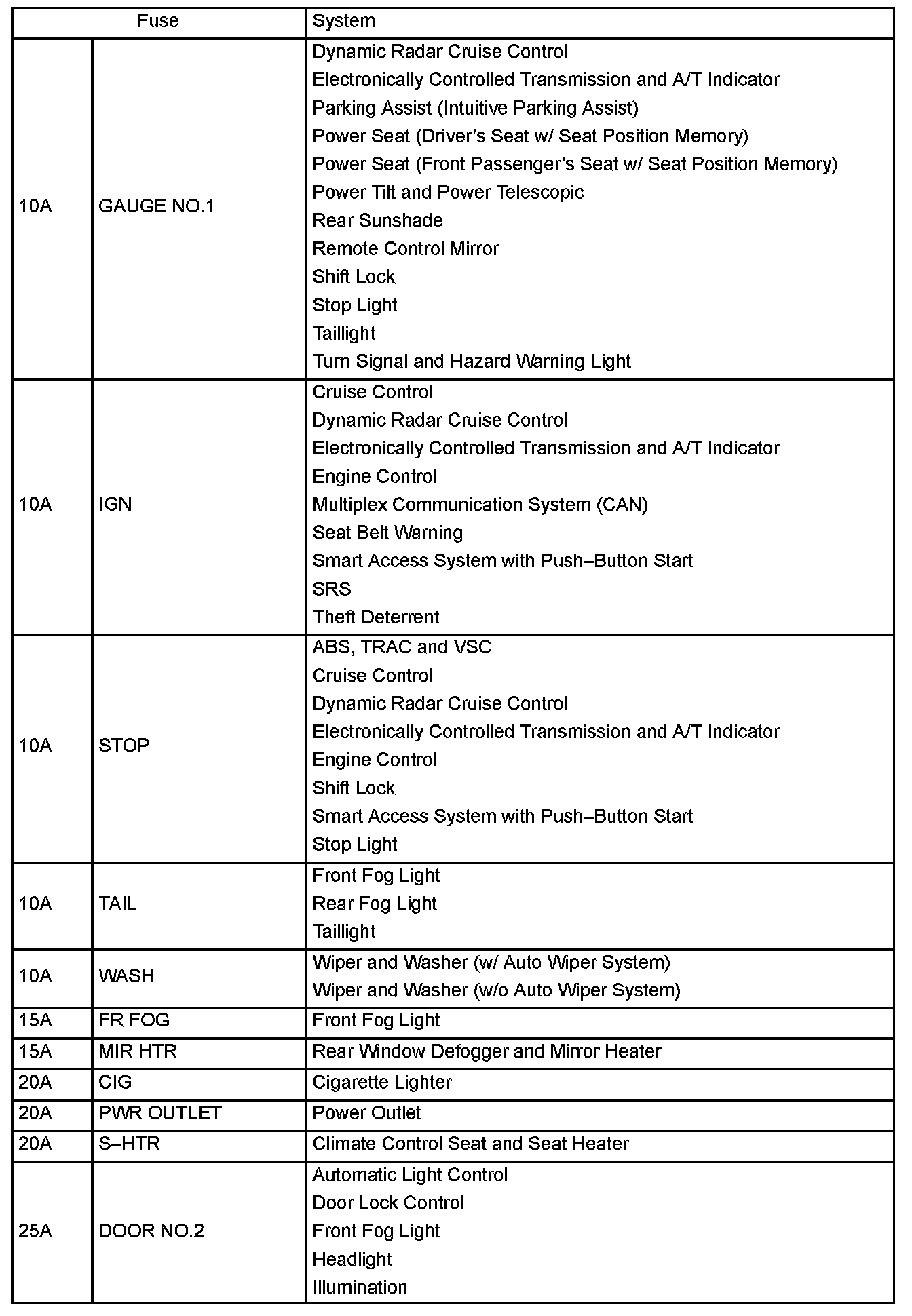

Instrument Panel J/B Part 4:

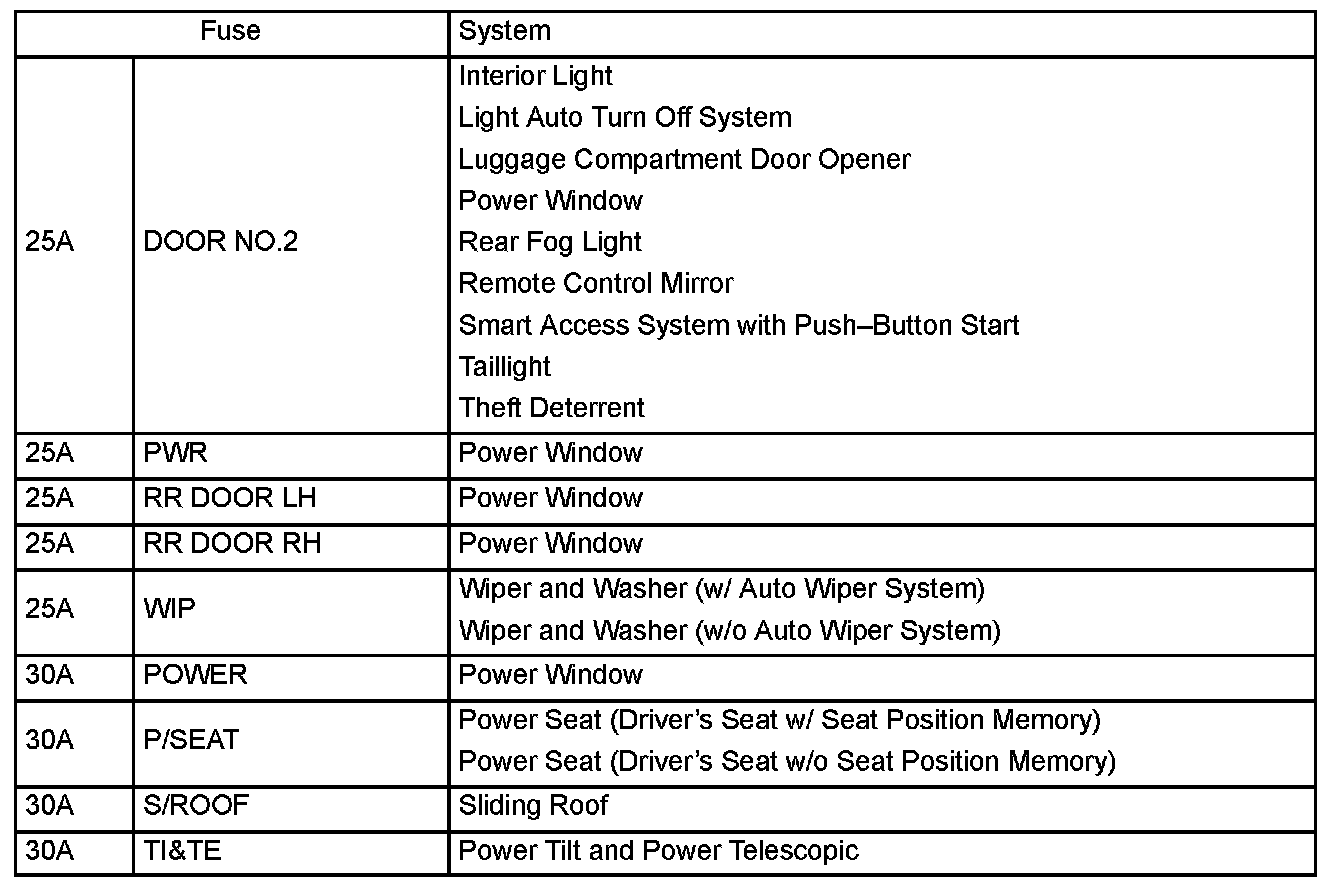

Instrument Panel J/B Part 5:
