Alignment
Alignment
FRONT WHEEL ALIGNMENT

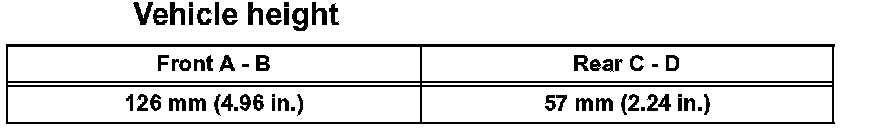

Vehicle height:

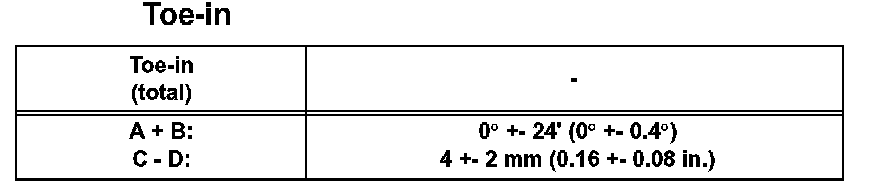

Toe-in:

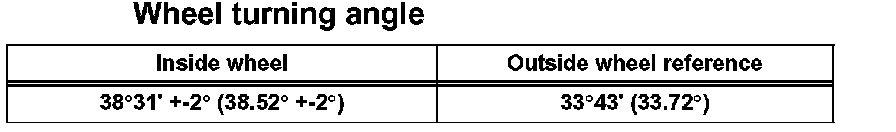

Wheel turning angle:

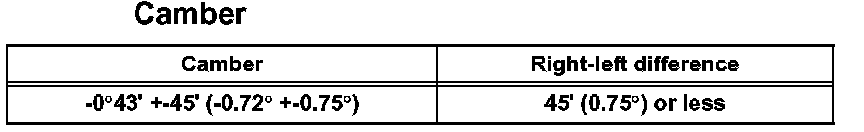

Camber:
Caster:

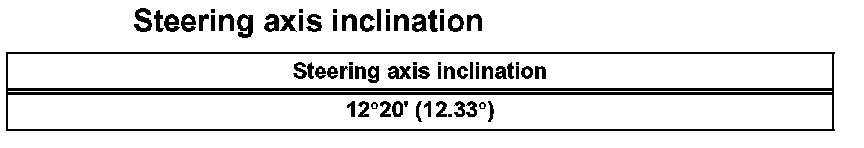

Steering axis inclination:
REAR WHEEL ALIGNMENT
Vehicle height:
Toe-in:

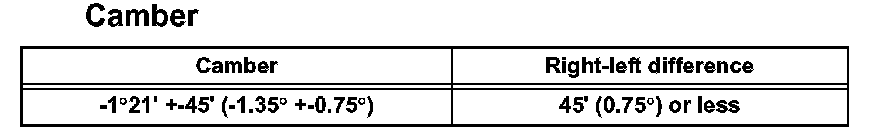

Camber:
