Trouble in Passenger Airbag ON / OFF Indicator
Trouble in Passenger Airbag ON / OFF IndicatorDESCRIPTION
The occupant classification system detects the front passenger seat condition. It then informs a passenger of the front passenger airbag assembly and front seat side airbag assembly condition (activated/not activated) by the passenger airbag ON/OFF indicator.

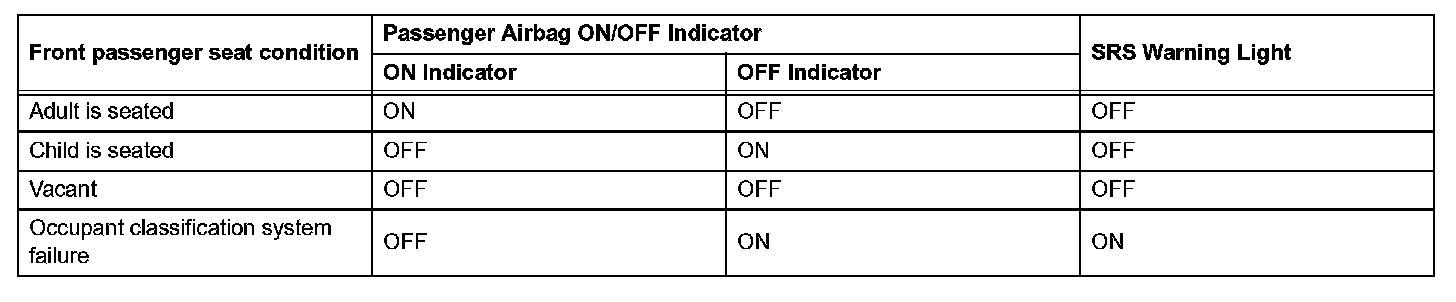

HINT: Approximately 6 seconds after the engine switch is turned on (IG), the passenger airbag ON/OFF indicator will be ON/OFF depending on the conditions listed.

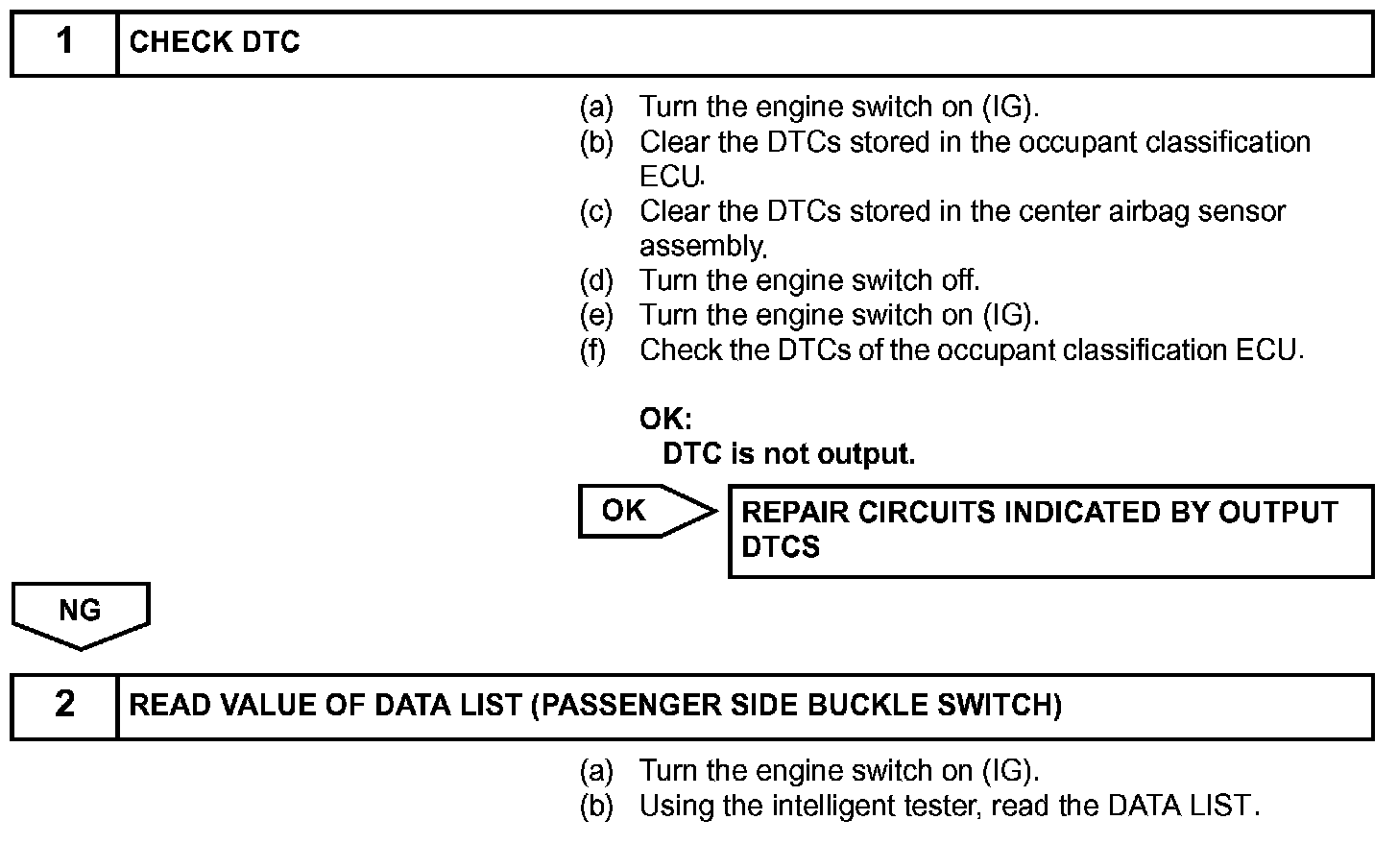

Step 1-2:

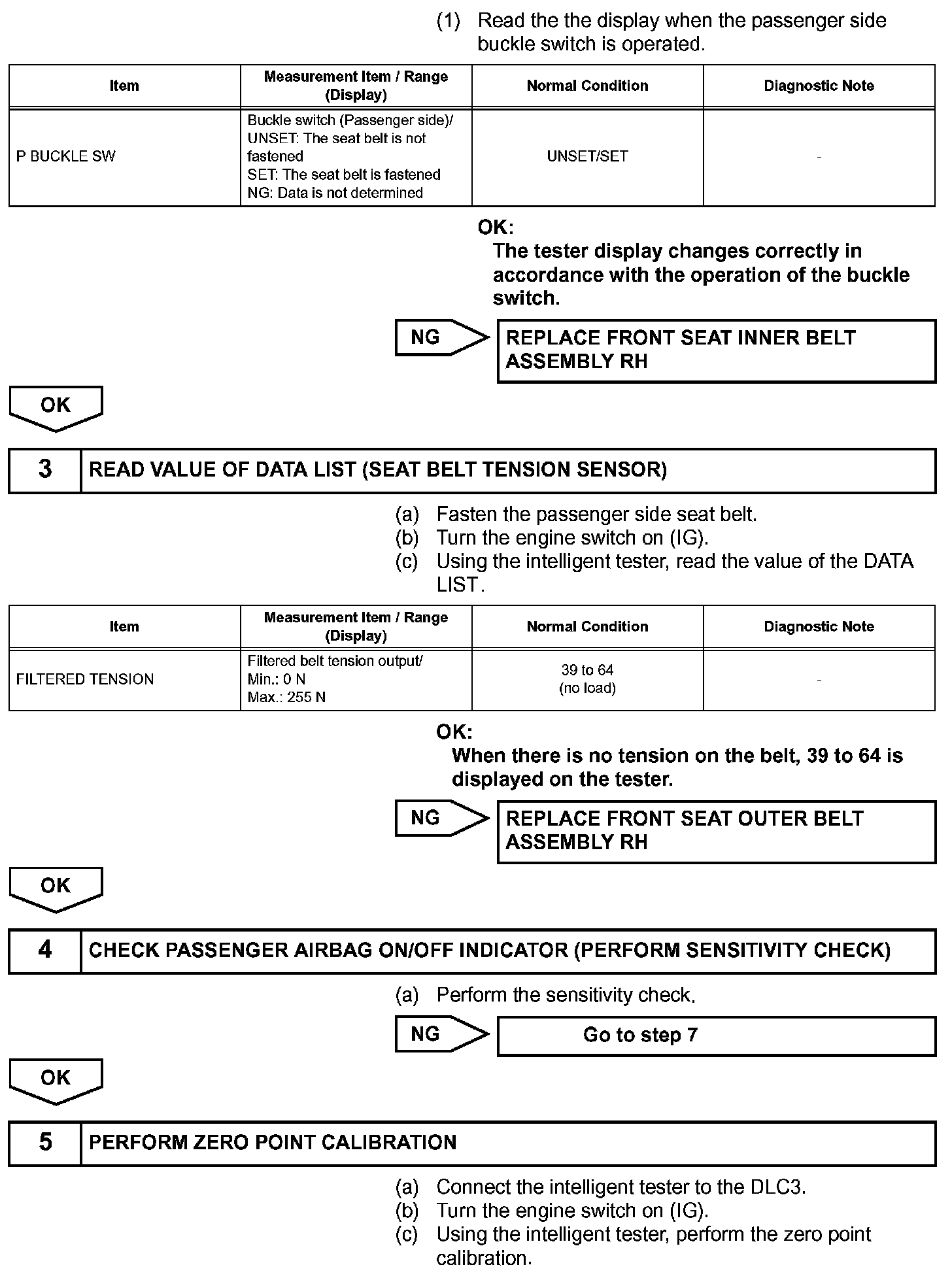

Step 2 (Continued)-5:

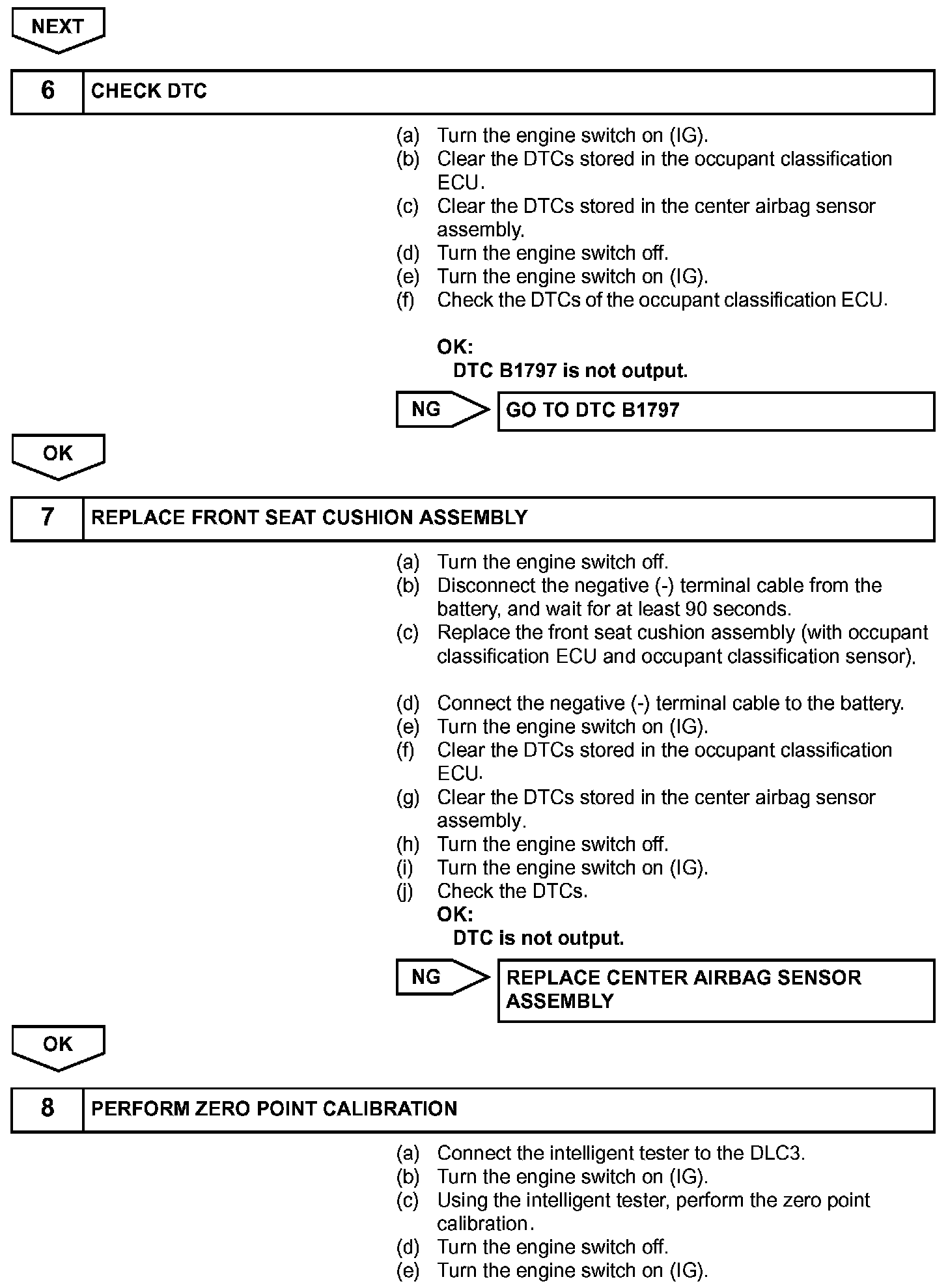

Step 5 (Continued)-8:

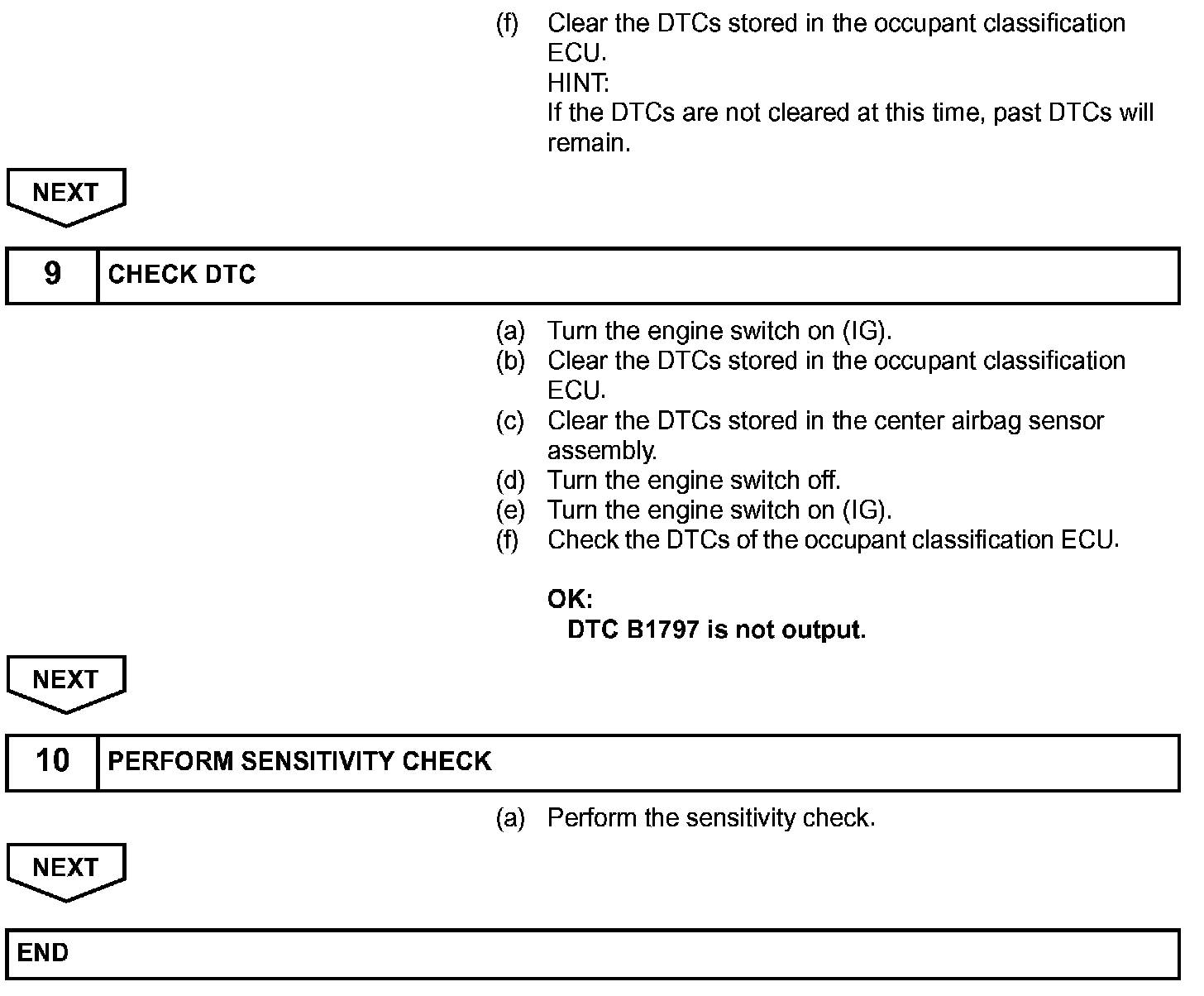

Step 8 (Continued)-10:
INSPECTION PROCEDURE
HINT: If this trouble occurs, the SRS warning light is off. If it is on, a DTC is output. Troubleshoot for the output DTC.
