Front Power Seat Lumbar Switch

FRONT POWER SEAT LUMBAR SWITCH

Front Power Seat Lumbar Switch:

Front Power Seat Lumbar Switch:

REMOVAL

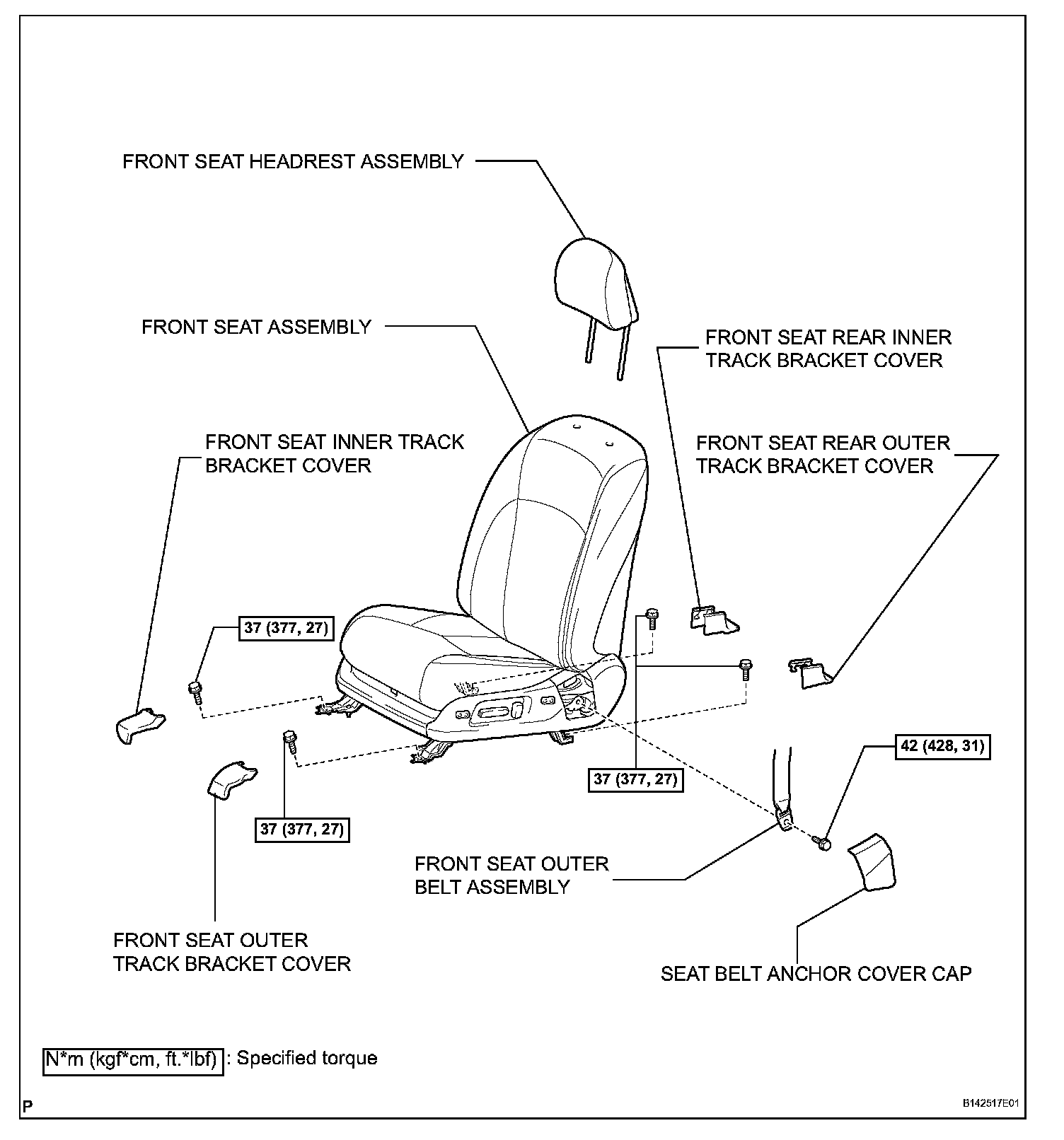

1. REMOVE SEAT BELT ANCHOR COVER CAP
2. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
3. REMOVE FRONT SEAT HEADREST ASSEMBLY
4. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER
5. REMOVE FRONT SEAT INNER TRACK BRACKET COVER
6. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER
7. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER
8. REMOVE FRONT SEAT ASSEMBLY

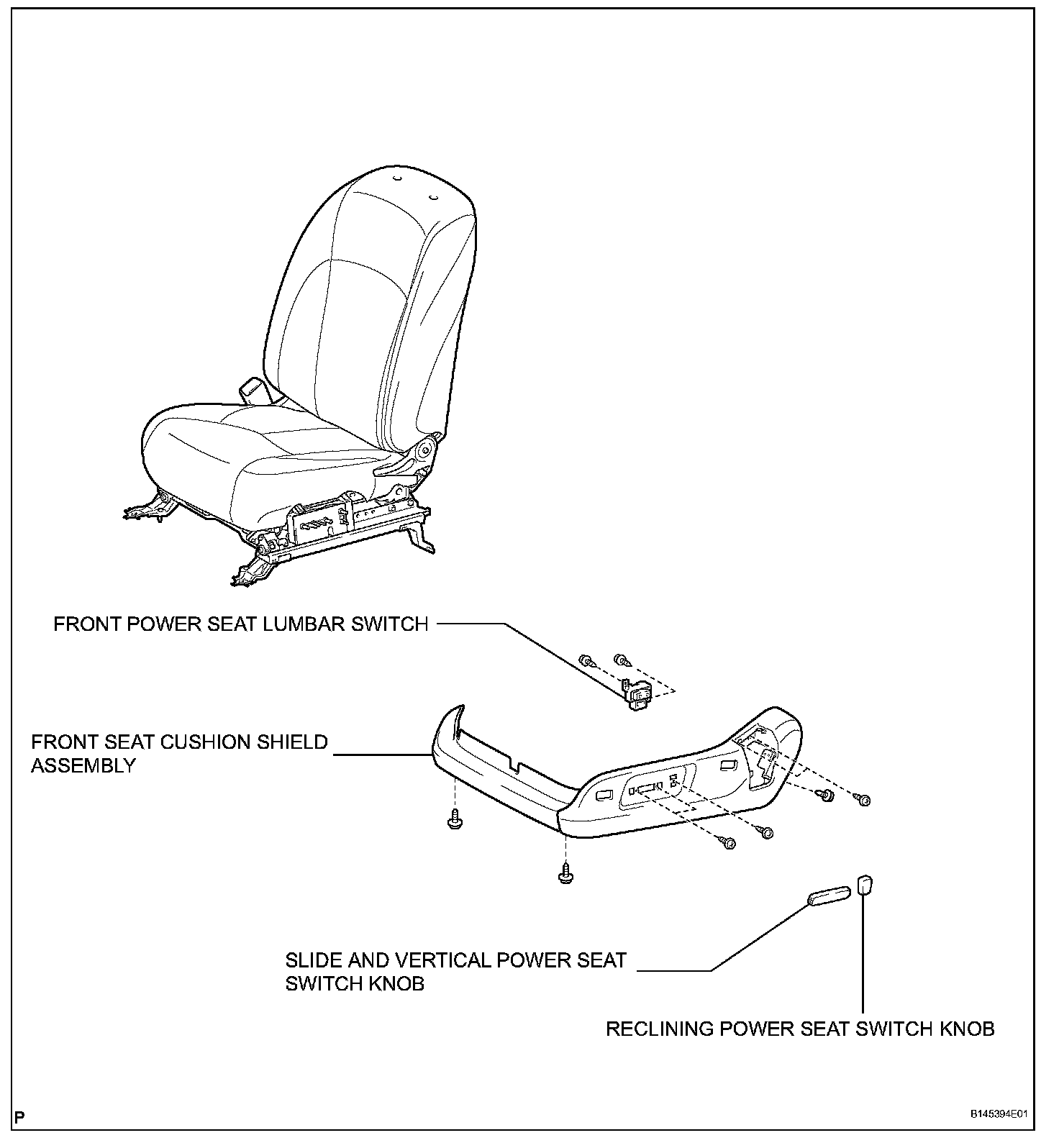

9. REMOVE RECLINING POWER SEAT SWITCH KNOB
10. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
11. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY

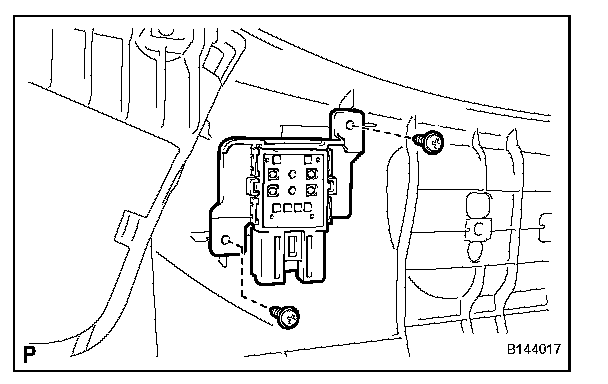

12. REMOVE FRONT POWER SEAT LUMBAR SWITCH





a. Remove the 2 screws and front power seat lumbar switch.

INSTALLATION

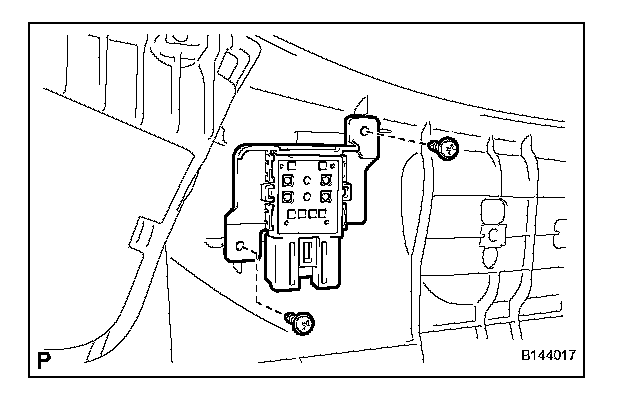

1. INSTALL FRONT POWER SEAT LUMBAR SWITCH





a. Install the front power seat lumbar switch with the 2 screws.

2. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY
3. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
4. INSTALL RECLINING POWER SEAT SWITCH KNOB
5. INSTALL FRONT SEAT ASSEMBLY
6. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER
7. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER
8. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER
9. INSTALL FRONT SEAT INNER TRACK BRACKET COVER
10. INSTALL FRONT SEAT HEADREST ASSEMBLY
11. CONNECT FRONT SEAT OUTER BELT ASSEMBLY
12. INSTALL SEAT BELT ANCHOR COVER CAP
13. PERFORM INITIALIZATION

NOTICE: Some systems need initialization after reconnecting the negative battery cable.

14. INSTALL FRONT SEAT ASSEMBLY
15. INSPECT SRS WARNING LIGHT
Check the SRS warning light.
