Remote Switch: Testing and Inspection

INSPECTION

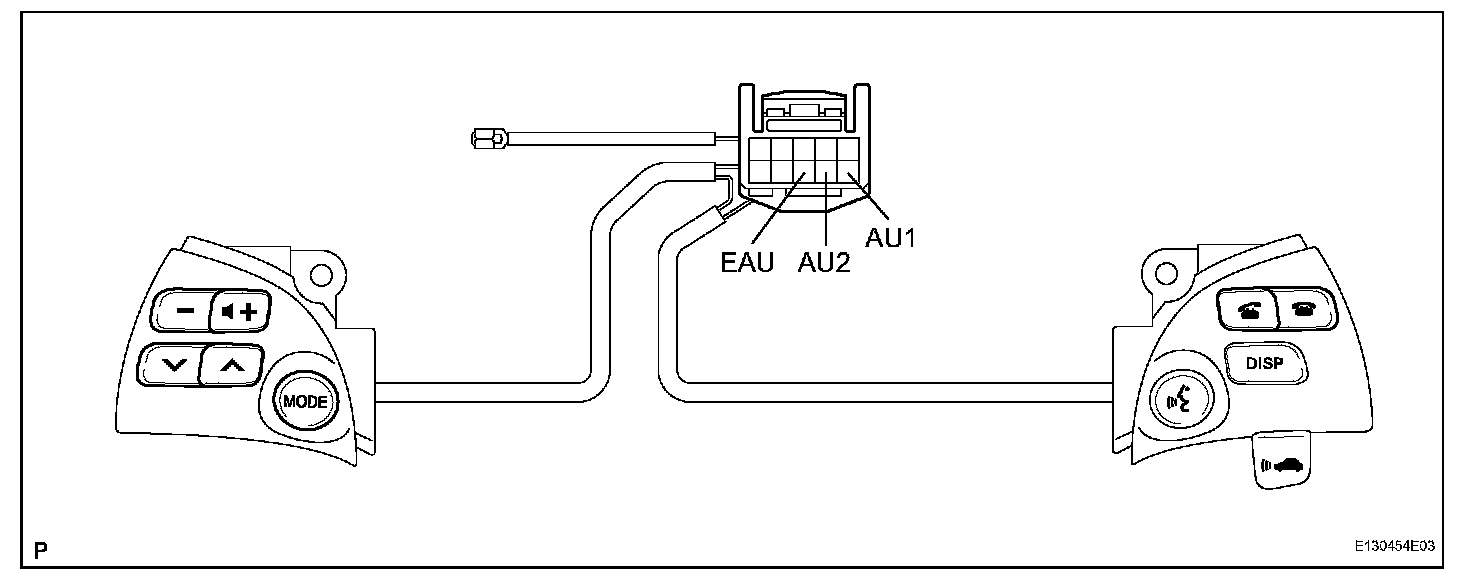

1. INSPECT STEERING PAD SWITCH




a. Disconnect the steering pad switch connector.

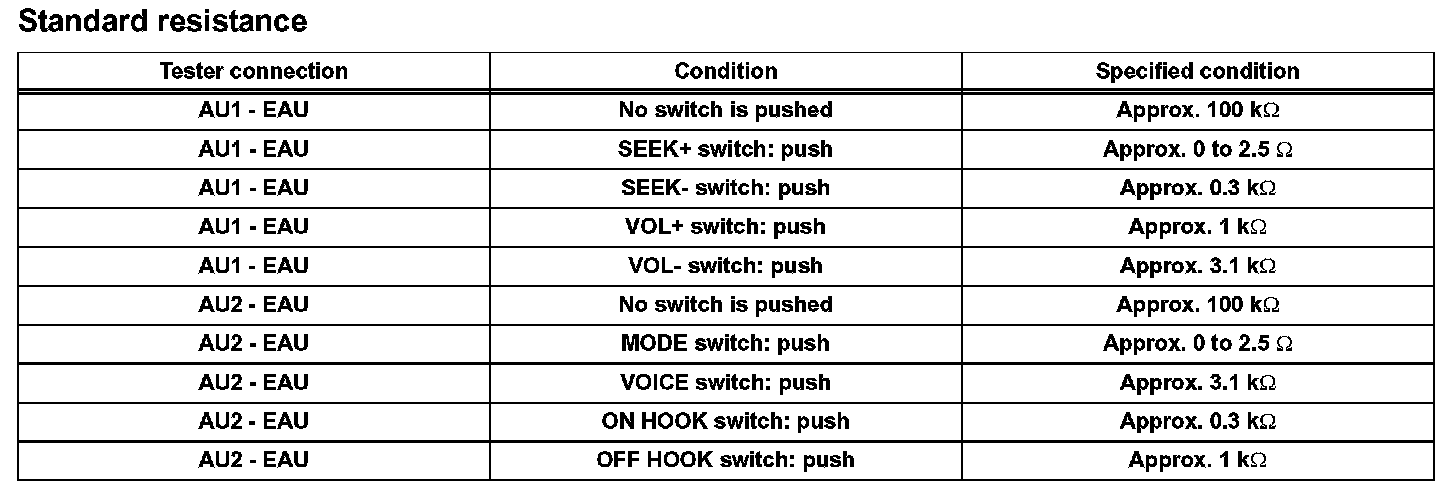

b. Measure the resistance according to the values in the table.

If the result is not as specified, replace the steering pad switch.
