Remote Switch: Service and Repair

Steering Pad Switch:

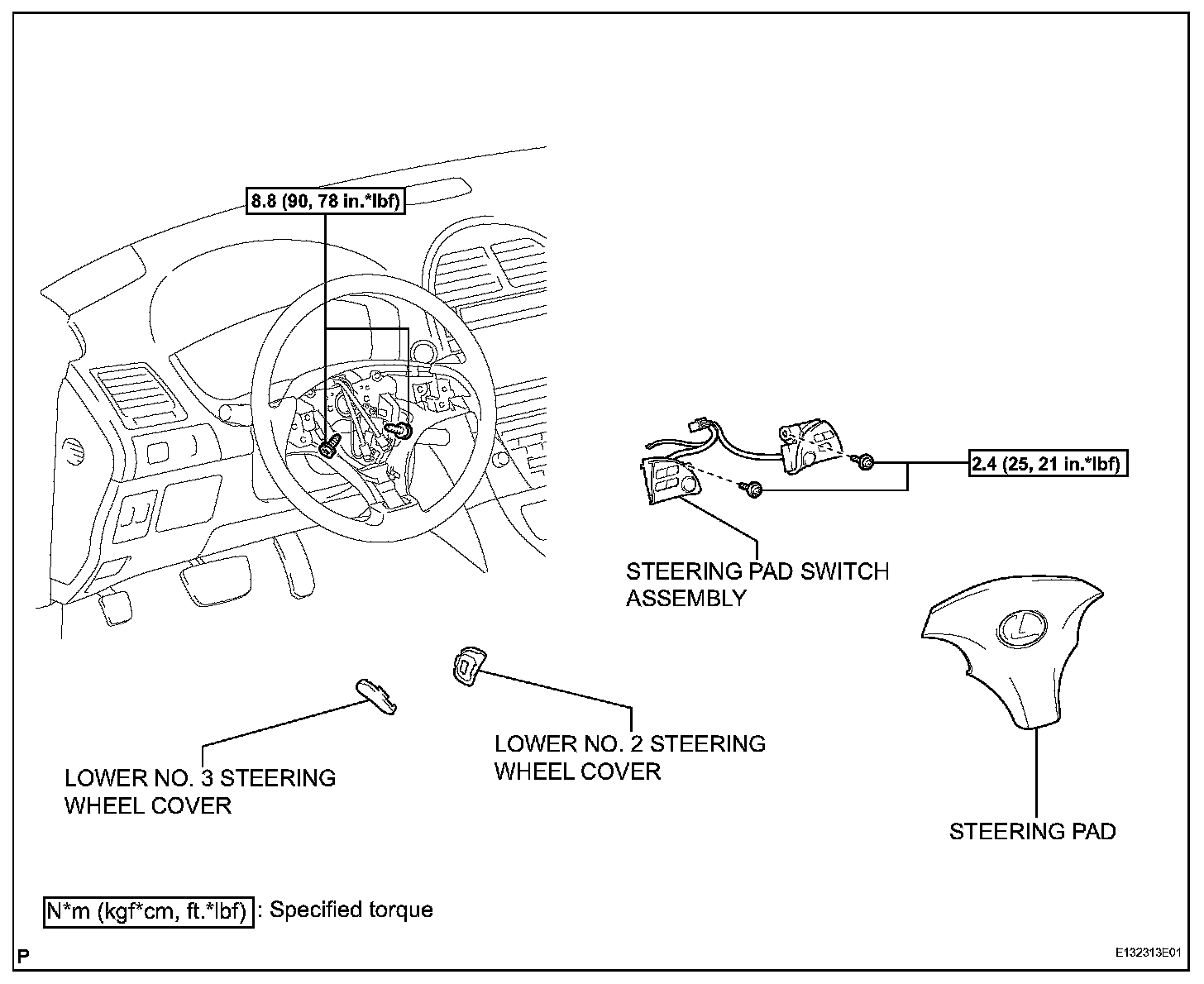

STEERING PAD SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

2. REMOVE LOWER NO. 3 STEERING WHEEL COVER
3. REMOVE LOWER NO. 2 STEERING WHEEL COVER
4. REMOVE STEERING PAD

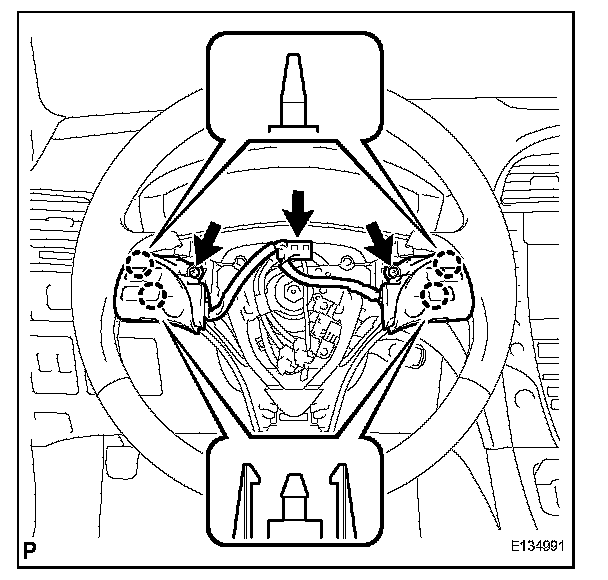

5. REMOVE STEERING PAD SWITCH ASSEMBLY




a. Disconnect the pad switch connector from the spiral cable.
b. Remove the 2 screws.
c. Disengage the 4 claws and remove the steering pad switch assembly.

INSTALLATION

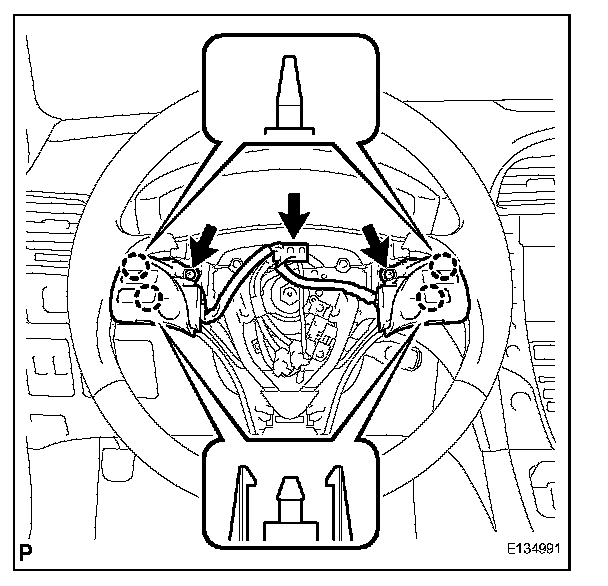

1. INSTALL STEERING PAD SWITCH ASSEMBLY




a. Engage the 4 claws.
b. Install the steering pad switch assembly with the 2 screws.

Torque: 2.4 N.m (25 kgf.cm, 21 in.lbf)

c. Connect the connector to the spiral cable.

2. INSTALL STEERING PAD
3. INSTALL LOWER NO. 3 STEERING WHEEL COVER
4. INSTALL LOWER NO. 2 STEERING WHEEL COVER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION

NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal.

7. INSPECT SRS WARNING LIGHT
