Rear Seat Side Airbag Assembly

ON-VEHICLE INSPECTION

1. INSPECT REAR SEAT SIDE AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)

a. Perform a diagnostic system check.




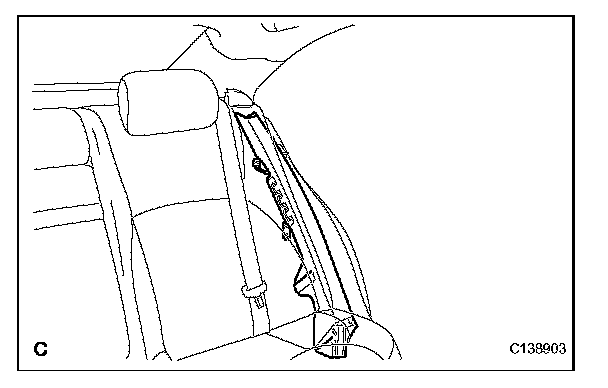

b. With the rear seat side airbag assembly installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the rear seat side airbag assembly with a new one:

Cuts, minute cracks or marked discoloration on the rear seat side airbag assembly.

2. INSPECT REAR SEAT SIDE AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

a. Perform a diagnostic system check.

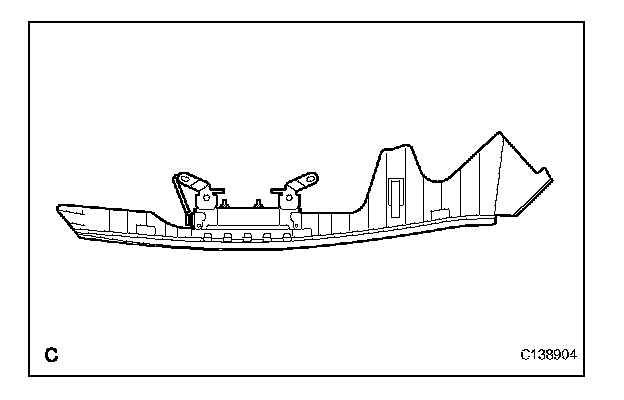

b. With the rear seat side airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the rear seat side airbag assembly with a new one:
- Cuts, minute cracks or marked discoloration on the rear seat side airbag assembly.
- Cracks or other damage to the connector.

CAUTION: Be sure to follow the correct removal and installation procedure.
