Engine Mount Control Unit: Testing and Inspection

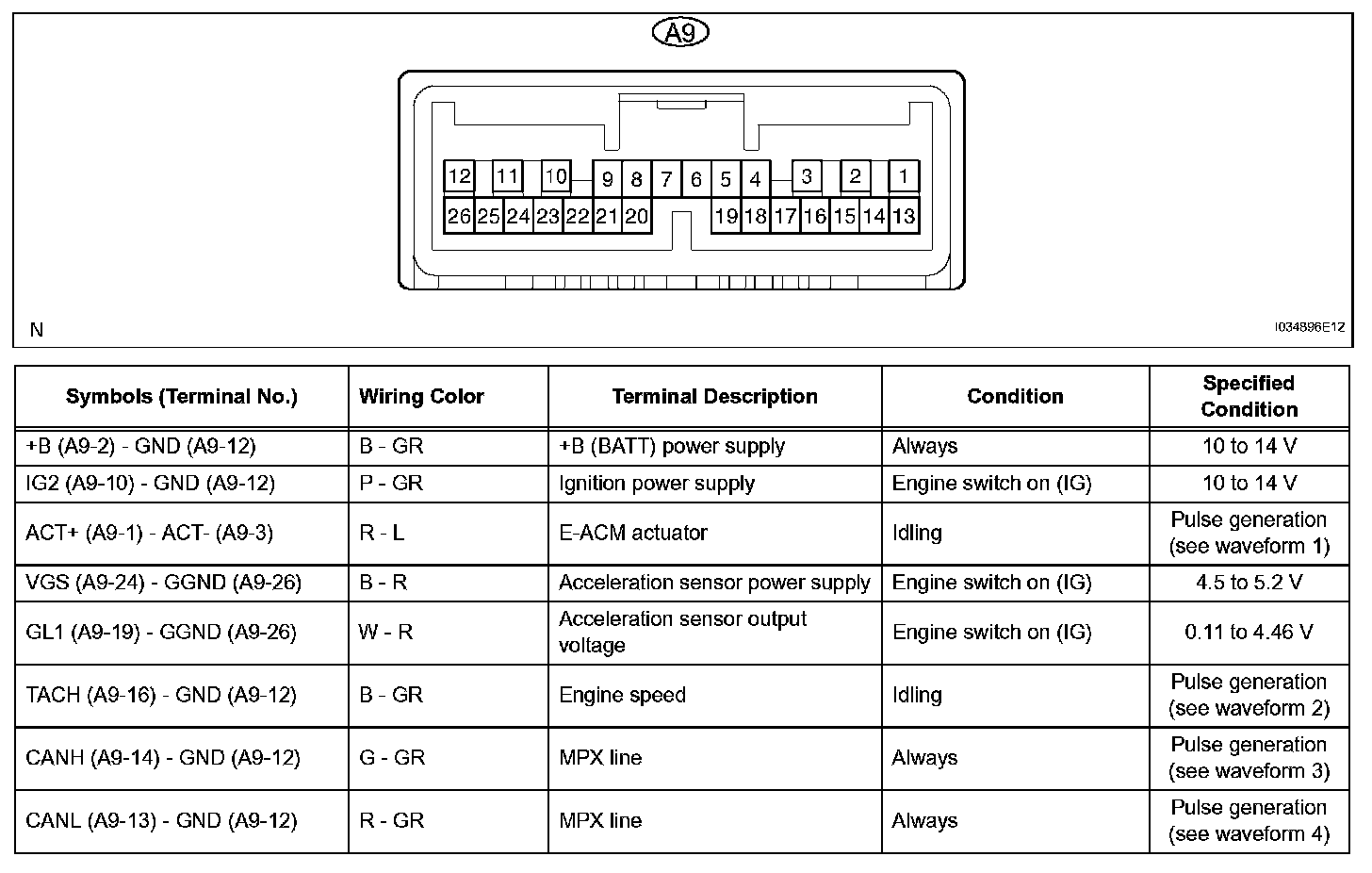

Terminals Of Control Module/Pinouts:

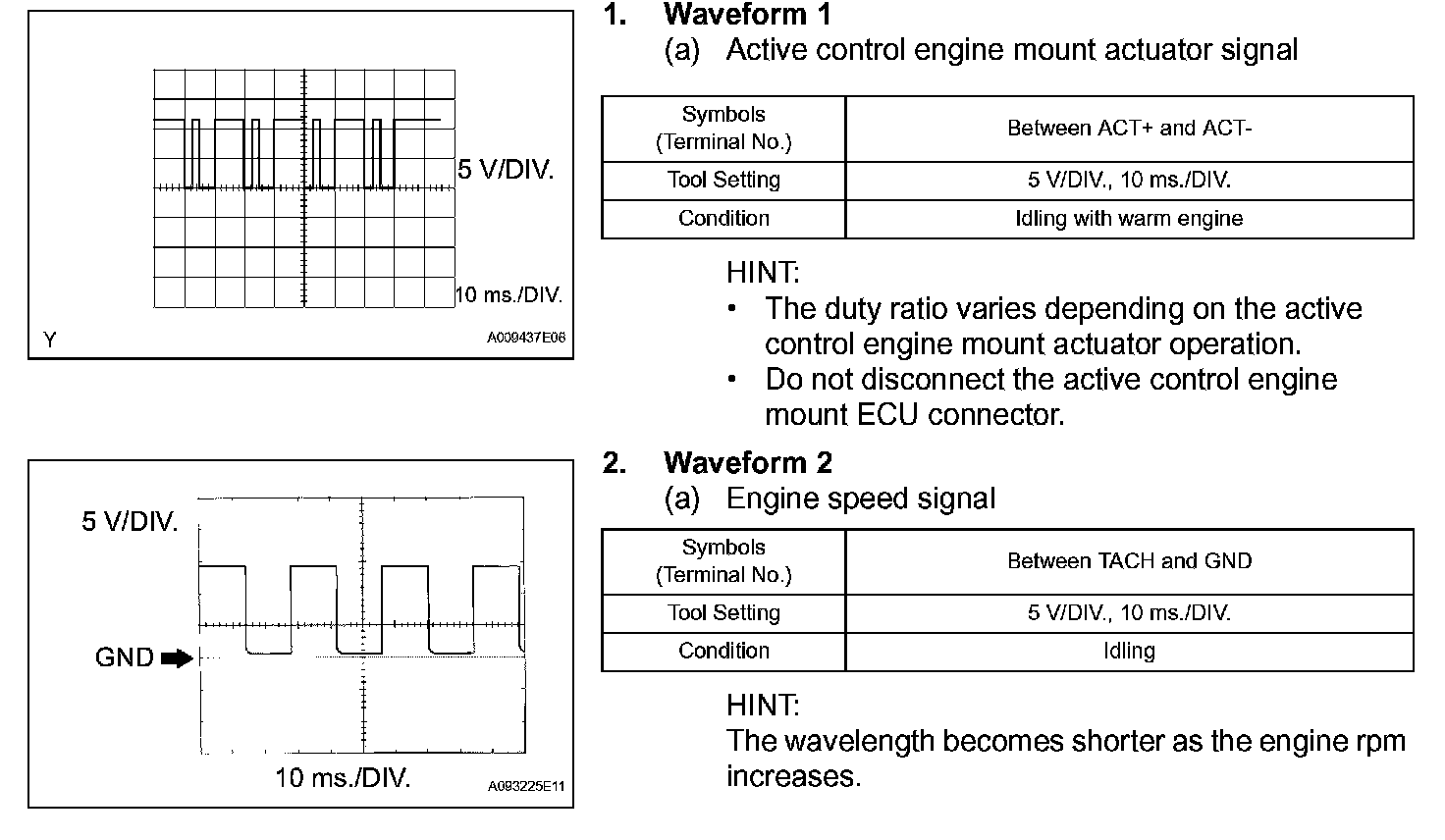

Oscilloscope Waveforms (Part 1):

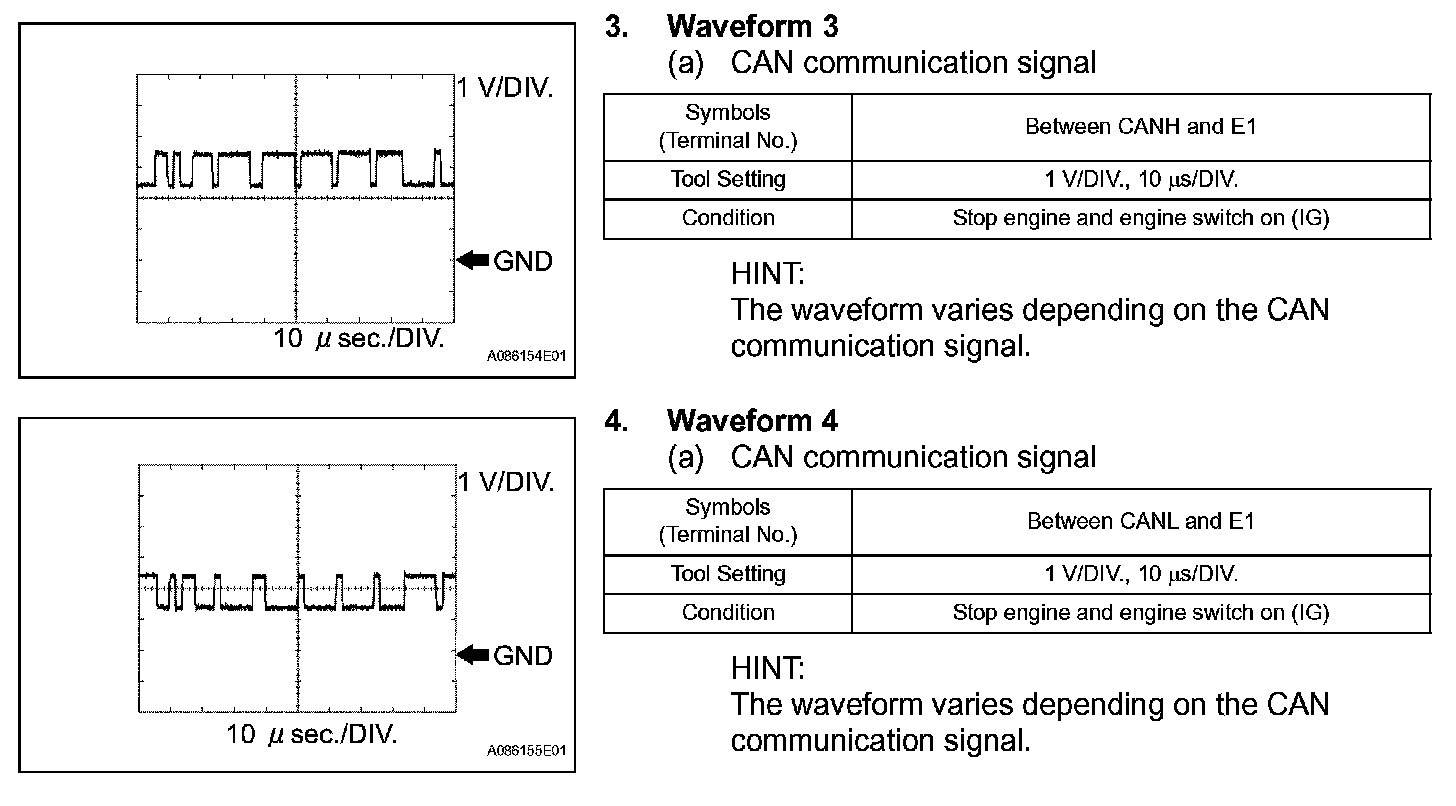

Oscilloscope Waveforms (Part 2):
